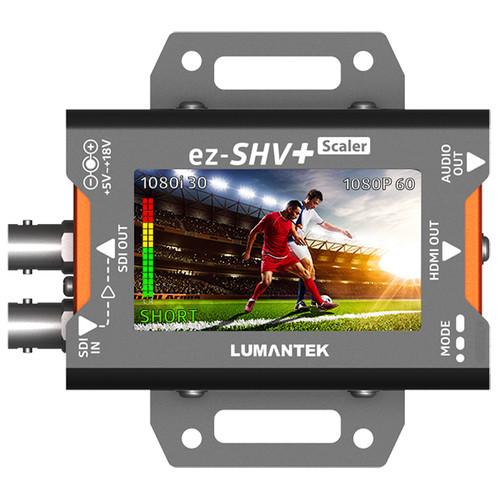

Product description The SDI to HDMI Converter from Lumantek accepts an SD, HD, or 3G-SDI signal and converts it to an HDMI signal. Featuring a 2.7" TFT LCD display, the converter allows you to monitor input and output resolution, cable length, and eye-pattern at once. You can change the resolution of incoming video to any resolution ranging from 480i to 1080p60 with the 6-pole dip switch, as well as choose between a 16:9 and 4:3 aspect ratio and control the LCD brightness. The ez-SHV+ detects cable length automatically up to 623' at 3G-SDI and shows it as 'Short', 'Medium', or 'Long'. UPC: 887367000276 In the Box Lumantek SDI to HDMI Converter with Display and Scaler 12 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumantek SDI to HDMI Converter with Display and Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumantek EZ-SHV+ Specs | | | Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) | | Input Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94/60 fps
PAL: 50 fps | | | | Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Loop Output)
1 x HDMI | | Output Video Format | HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps | | Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Stereo | | | | Power Connector | 1 x Barrel (5 to 18 VDC) Input | | Power Consumption | 100 to 240 VAC at 1 A (3 W) | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | | | Dimensions | 3.4 x 2.25 x 1.05" / 86.3 x 57.2 x 26.6 mm | | Weight | 10.6 oz / 300 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 3.5" |
