Lume Cube AIR LED Light

Search your instruction manual in PDF to download

User Manual for Lume Cube AIR LED Light

Click to enlarge the picture
Lume Cube AIR LED Light Contents of the user manual for the Lume Cube AIR LED Light
  • Product category: On Camera Lights Lume Cube
  • Brand: Lume Cube
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lume Cube On Camera Lights

Lume Cube AIR LED Light Lume Cube AIR LED Light Lume Cube AIR LED Light Lume Cube AIR LED Light Lume Cube AIR LED Light Lume Cube AIR LED Light Lume Cube AIR LED Light Lume Cube AIR LED Light Lume Cube AIR LED Light
User manual for the Lume Cube AIR LED Light contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lume Cube product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lume Cube user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lume Cube product will considerably shorten its lifespan!



Product description

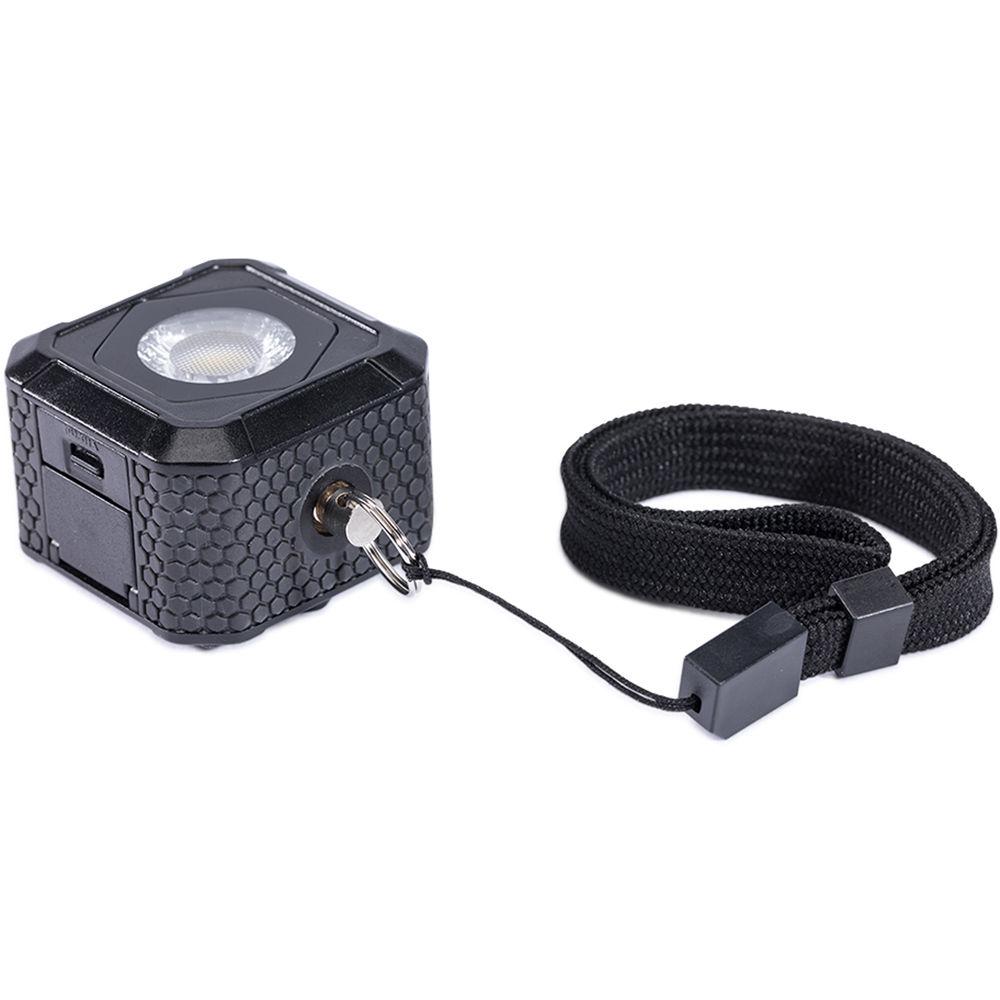

Surprise! It's the Lume Cube Air Read More Ultra-compact, 30' waterproof, magnetic, and featuring a standard 1/4"-20 mounting thread, the Lume Cube AIR is a highly versatile LED light suitable for numerous applications. Combined with optional Lume Cube (as well as third-party) mounts, it can be used for on-camera, smartphone, action cam, and underwater photo/video lighting (it's not recommended for drone use because of the built-in magnet). It's a flexible and convenient light for use in standard operations, vlogging, and selfie shots. The built-in magnet on the back allows you to attach the light to various objects for creative purposes as well ordinary uses, such as providing a light source when you're changing a tire or fixing something in the dark. Being that it's so small, you can simply pull it out of your pocket and hold it with your hand to light up a shot or a place. An included lanyard helps with this.

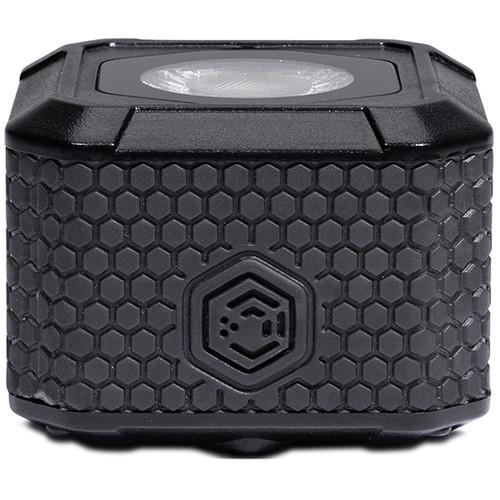

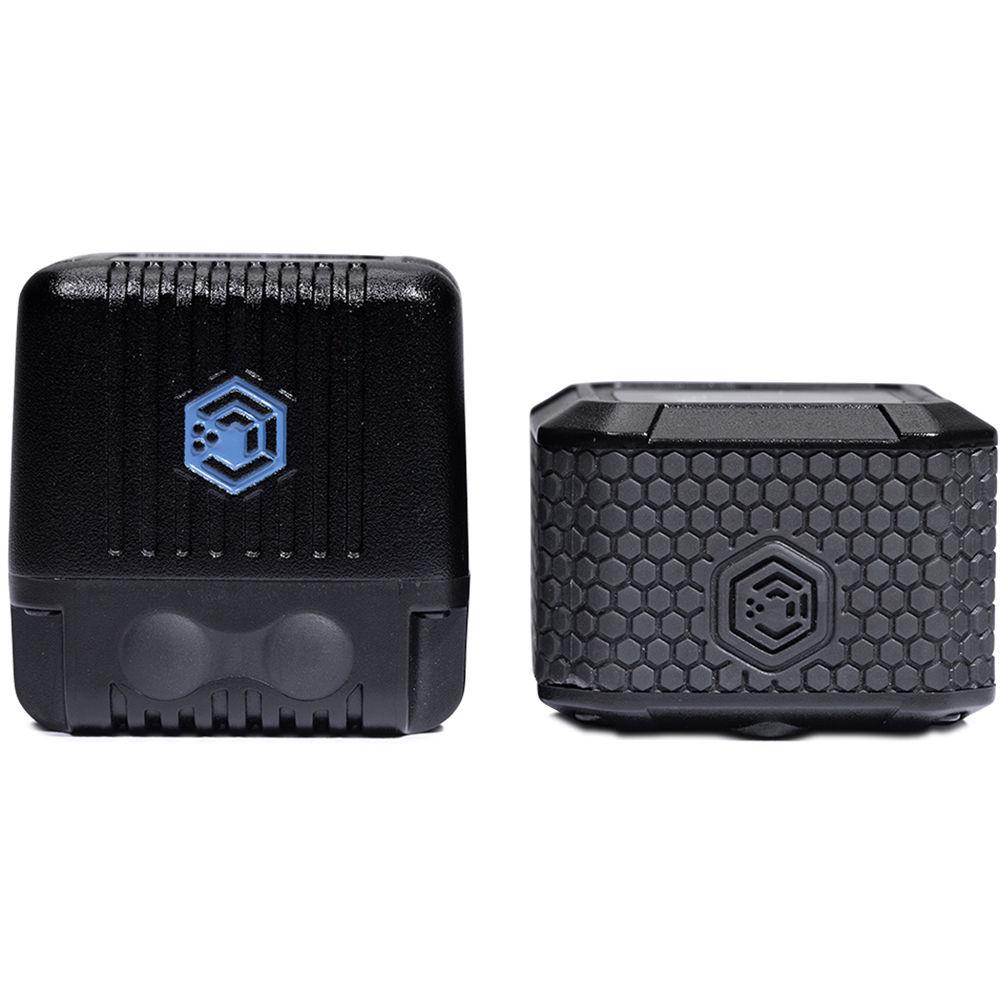

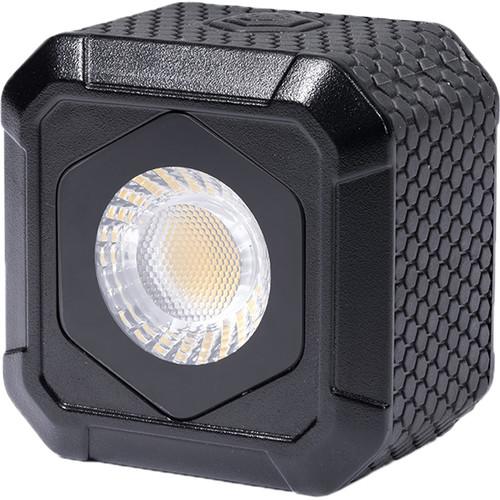

The Lume Cube AIR is smaller and about half as lightweight as the original Lume Cube and has a rubberized grip exterior. It features a 5600K daylight color temperature with a 90+/- CRI rating, and provides 400 lux brightness at 3.3' in a 60° beam angle. The lens is custom-designed to deliver smooth falloff and extra push.

The light can be controlled using the single button on top or via the companion Lume-X iOS/Android app, which works seamlessly over a Bluetooth connection. The onboard button allows you to switch between four brightness levels as well as select the strobe mode. The app lets you do the same thing as well as monitor the battery level. Multiple units can be controlled and monitored via the app at the same time.

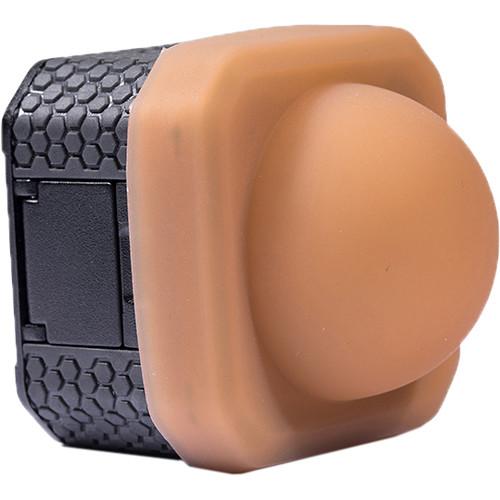

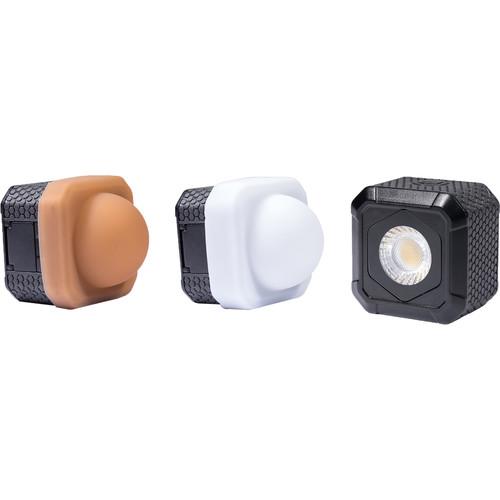

The Lume Cube AIR operates on a built-in lithium-polymer battery and runs for 2.5 hours at half brightness, and 30-45 minutes at full brightness. The battery is rechargeable via a micro-USB port on the side of the light. A white diffuser and warming diffuser are included for achieving different tones of light. Note: Because of the built-in magnet, the Lume Cube AIR is not recommended for use on drones.
    Key Features

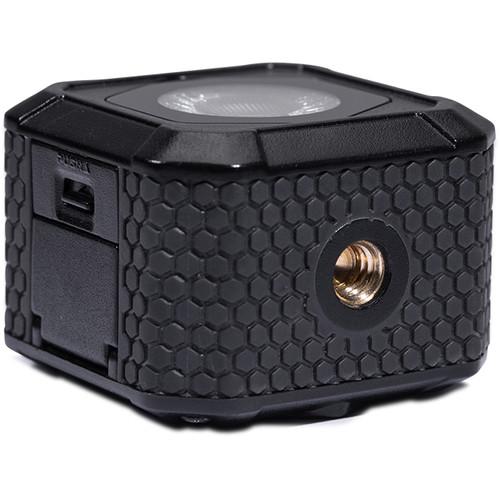

    • Suitable for on-camera, smartphone, action cam, and underwater applications using optional mounts with the 1/4"-20 mounting thread on the bottom
    • Useful for photo/video, vlogging, and selfie lighting

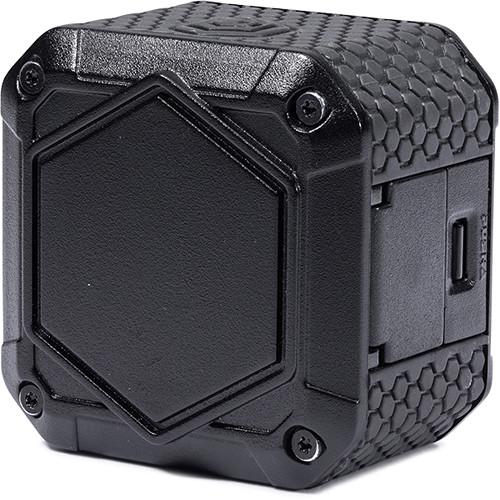

    • Built-in magnet on the rear allows for various standard/non-standard uses
    • 30' waterproof
    • 5600K daylight color temperature
    • 90+/- CRI rating
    • 400-lux brightness at 3.3'
    • 60° beam angle
    • Lens custom-designed to deliver smooth falloff and extra push
    • Rubberized exterior
    • Operate using the onboard control button or the companion Lume-X iOS/Android app
    • Switch between four brightness levels
    • Switch to strobe mode
    • Multiple units can be managed and their battery levels monitored via the app
    • 2.5-hour runtime at half brightness / 30-45 minutes at full brightness

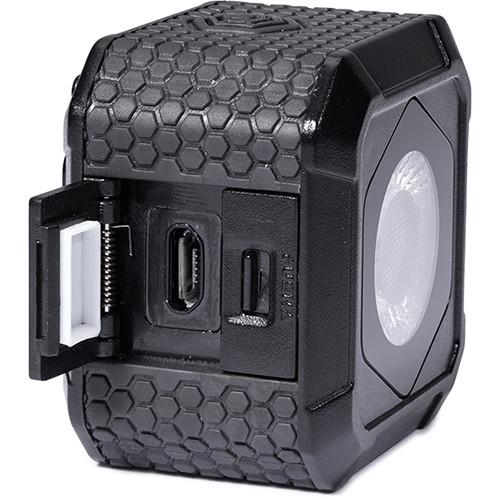

    • Built-in lithium-polymer rechargeable via a micro-USB port on the side
UPC: 855239006763 In the Box Lume Cube AIR LED Light

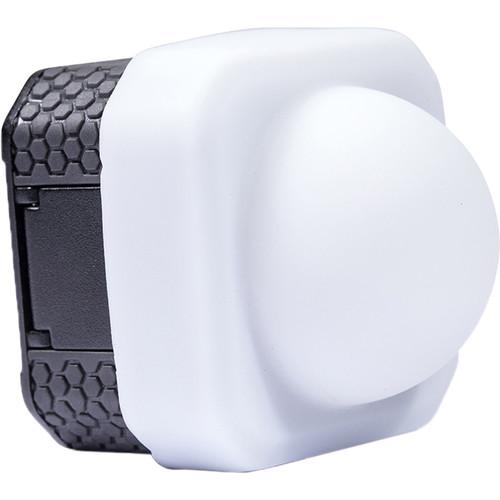

  • White Diffuser
  • Warming Diffuser
  • Lanyard
  • Micro-USB Charging Cable
  • Lume Cube Sticker
  • Limited 1-Year Warranty
  • Quick start Guide PDF 396.2kbdcyexfer Table of Contents




    Upload User Manual

    Have you got an user manual for the Lume Cube AIR LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Download User Manual

    The user manual for the Lume Cube AIR LED Light can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Lume Cube AIR LED LightDownload PDF User Manual - https://www.search-manual.com/ upload/ lume-cube-air-led-light-271874-user-manual.pdf
    (PDF file, 0.07 MB)


    Technical parameters

    Lume Cube LC-AIR11 Specs

    Beam Angle 60°
    Color Temperature 5600K
    Photometrics 37.2 fc / 400 lux at 3.28' / 1 m
    Dimming Yes Stepped
    Battery Chemistry Lithium-Ion Polymer (LiPo)
    Power Input Connector Micro-USB
    Power Source Integrated Battery
    Wireless Protocol Bluetooth (Unspecified Type)
    Mount Type 1/4"-20 Female Thread, Magnetic
    Dimensions 1.6 x 1.6 x 1.1" / 4.1 x 4.1 x 2.8 cm
    Weight 2 oz / 57 g
    Package Weight 0.55 lb
    Box Dimensions (LxWxH) 5.7 x 4.1 x 2.6"
