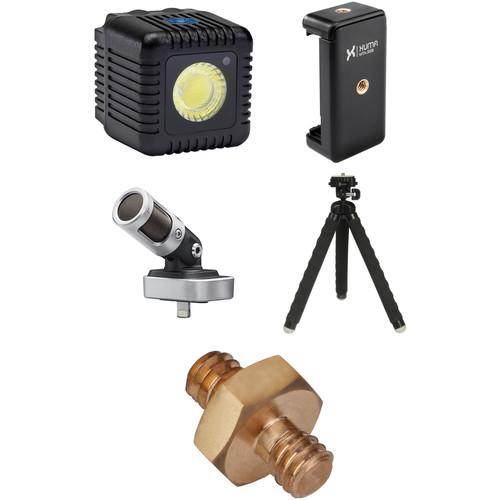

User Manual for Lume Cube iOS Video Kit Click to enlarge the picture
Contents of the user manual for the Lume Cube iOS Video Kit
- Product category: Lights Lume Cube
- Brand: Lume Cube
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lume Cube Lights
|
User manual for the Lume Cube iOS Video Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lume Cube product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lume Cube user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lume Cube product will considerably shorten its lifespan!
|
Product description Enhance your iPhone or iPod Touch videography with the Lume Cube iOS Video Kit. This Kit features the Lume Cube 1500 Lumen Light in black, which is dimmable and has a 6000K color temperature for even, natural lighting. The Shure MOTIV MV88 stereo condenser microphone slots directly into your device's Lightning port for recording high-quality audio. Finally, a 9.7" flexible tripod lets you position your iPhone or iPod where you'd like, and holds devices 2.4 to 3.25" wide thanks to the included smartphone mount. - Lume Cube 1500 Lumen Light (Black)
- What is Lume Cube?
- Brand Video v7
The black Lume Cube 1500 Lumen Light features a 6000K color temperature, and the unit's output is dimmable from 0 to 1500 Lumens. The light is suitable for use as either a video light or a still photo strobe. It incorporates a rechargeable battery that lasts 20 minutes at full brightness and two hours plus at 50% brightness.
The Lume Cube is controlled either manually or via Bluetooth using optional iOS or Android apps. The Bluetooth connectivity allows you to simultaneously control up to five Lume Cube fixtures at the same time. The 1/4"-20 female threads allow you to mount the Lume Cube onto a variety of optional camera accessories. The fixture is waterproof down to 100', which makes it usable in dry and wet weather or while fully submerged. - The Lume Cube features a built-in optical sensor to slave it to other strobe units. The flash features variable duration from 1/8000 of a second to freeze motion to one second for more exposure.
- Optional apps Lume Cube and Lume Cube Pro allow you to control the fixture via Bluetooth. Additionally, you can control up to five Lume Cubes at one time using Bluetooth.
- The Lume Cube is waterproof down to 100 feet. This allows you to comfortably use the Lume Club in wet weather as well as dry or when submerged.
UPC: 855239006022 - Xuma Smartphone Mount
- What is Lume Cube?
- Brand Video v7
Take your smartphone photography to the next level with a Xuma Smartphone Mount. This mount fits devices 2.4 to 3.25" wide, holding them in place with a spring-loaded bracket with a rubber coating to protect your device's finish. It features three 1/4"-20 standard tripod threaded holes: one at the top, one at the bottom, and one on the back. This lets you mount your device to a tripod or monopod while still being able to attach 1/4"-20-compatible peripherals, like lights and microphones. UPC: 847628597662 - Shure MOTIV MV88 Digital Stereo Condenser Microphone for iOS
- What is Lume Cube?
- Brand Video v7
Designed to capture clear, high-quality sound, the MOTIV MV88 from Shure is a stereo condenser microphone that directly connects to any iOS device equipped with a Lightning connector. The professional-quality microphone offers up to 24-bit/48 kHz resolution with a frequency response of 20 Hz to 20 kHz. The microphone element offers a 90° hinge and left/right rotation for flexible audio and video recording options.
The MV88 utilizes the ShurePlus MOTIV mobile recording app (available free from the app store) for access to mute, gain, and volume controls as well as stereo width settings, EQ, and five DSP modes. Each DSP preset offers a different combination of EQ and compression and includes choices for speech, singing, acoustic, loud, and flat. - Key Features
-
- Stereo Condenser Microphone
- Matched capsules and mid-side design for clear, detailed stereo capture
- 24-bit/48 kHz digital recording
- 90° hinge with left/right rotation
- Compatible with free ShurePlus MOTIV Mobile App
- Adjustable stereo width, EQ, and limiter/compressor via software
- Software controls for mute, gain, and volume controls
- 5 preset DSP modes
- All-metal construction
ShurePlus MOTIV Video App -
- iOS mobile video application enabling users to record uncompressed audio for video (free download available separately)
- Features all functionality of MOTIV audio app, including gain control, EQ, and compression
- On-screen audio metering
- Choice of video resolution, device dependent (720p, 1080p, 4K)
- Choice of audio format (WAV, AAC, ALAC)
- For iOS 10 or later
- 64-bit iPhone (iPhone 5s and later)
UPC: 042406491549 - Magnus MaxiGrip Flexible Tripod (Black)
- What is Lume Cube?
- Brand Video v7
You'll never miss a photo for lack of a tripod when you have the MaxiGrip Flexible Tripod (Black) from Magnus. It weighs only 6 oz - you can carry it with you 24/7. It has flexible legs that can be bent 360° to wrap around a fence, a tree branch, a chair leg or anything else stable enough to hold a small camera and small enough to wrap the legs around. It has a 9.7" maximum height and includes a flat head that supports a point-and-shoot camera or pocket video camera weighing up to 2.2 lb. The flexible legs are covered with a protective foam shell, and rubber feet give you a stable support when using the tripod traditionally, with all three feet on a flat surface. The ball head has a standard 1/4"-20 mounting screw, and features a quick release system. - Flexible tripod has legs that can bend 360° to grip a table, chair, fence, branch, or almost anything else the legs will fit around
- Included ball head features quick release and allows you to attach a point-and-shoot camera or small pocket video camera
- Tiny, lightweight design makes this a tripod you'll carry with you all the time - never miss a shot because you don't have a camera support
- Sure-grip rubber feet give you a stable support when the tripod is used traditionally - three feet on a flat surface
- Legs are covered with protective foam shell for durability
UPC: 847628026834 - Impact 1/4"-20 To 1/4"-20 Adapter Spigot
- What is Lume Cube?
- Brand Video v7
This Adapter Spigot from Impact is a male 1/4"-20 to male 1/4"-20 adapter. It allows two pieces of equipment that have female 1/4"-20 threads to be connected to each other. It has a hex nut center for tightening. UPC: 847628574397 In the Box - 1500 Lumen Light (Black) atufyaqwubduxyqcveddcufsfxa
- USB Charging Cable
- Limited 1-Year Warranty
- Shure - MOTIV MV88 Digital Stereo Condenser Microphone for iOS
- Magnus - MaxiGrip Flexible Tripod (Black)
- Impact - 1/4"-20 To 1/4"-20 Adapter Spigot
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lume Cube iOS Video Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lume Cube 1500 Lumen Light (Black)
| | | Lumens | 1500 | | Refresh Rate | 8000 Hz | | | | Battery Runtime | 20 to 120 Minutes | | | | Power Input Connector | Micro-USB | | Power Source | Integrated Battery | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 1.5 x 1.5 x 1.5" / 3.8 x 3.8 x 3.8 cm | | | | Box Dimensions (LxWxH) | 3.2 x 3.1 x 3.0" | - Xuma Smartphone Mount
| Compatibility | Devices 2.4 to 3.25" (6.1 to 8.2 cm) wide | | Connectors | 3 x 1/4"-20 | | Dimensions | 2.9 x 1.4 x 1.0" (7.4 x 3.5 x 2.4 cm) | | Weight | 10 oz (283 g) | | | | Box Dimensions (LxWxH) | 4.5 x 1.8 x 1.0" | - Shure MOTIV MV88 Digital Stereo Condenser Microphone for iOS
| MFi Certified | Yes | | DSP Modes | Speech
Singing
Acoustic
Loud
Flat | | Transducer Type | Cardioid/bidirectional condenser cartridge 0.4" / 1.0 cm | | Polar Pattern | Adjustable width stereo
Mono bidirectional
Mono cardioid
Mid-side | | Recording Quality | Up to 24-bit/48 kHz | | Frequency Response | 20 Hz to 20 kHz | | Gain Range | 0 to +36 dB (adjustable) | | Sensitivity | -37 dBFS/Pa at 1 kHz | | Max SPL Level | 120 dB | | Limiter | Yes | | Compressor | Yes (adjustable) | | Equalizer | 5-band EQ | | Power Requirements | Powered through Lightning connector only | | Housing | All-metal construction | | Dimensions (H x W x D) | 2.6 x 1.0 x 1.4" / 6.7 x 2.5 x 3.5 cm | | Weight | 1.4 oz / 40.5 g | | | | Box Dimensions (LxWxH) | 4.9 x 3.7 x 2.9" | - Magnus MaxiGrip Flexible Tripod (Black)
| Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 2.2 lb / 1 kg | | Maximum Working Height | 9.7" / 24.6 cm | | Minimum Working Height | 4.5" / 11.4 cm | | Dimensions | H: 10.7" / H: 27.2 cm (Folded) | | Weight | 6 oz / 170 g | | | | Box Dimensions (LxWxH) | 12.0 x 2.0 x 1.9" | - Impact 1/4"-20 To 1/4"-20 Adapter Spigot
| Material | Brass | | Thread Size | Male, 1/4"-20 to male, 1/4"-20 | | | | Box Dimensions (LxWxH) | 6.2 x 3.55 x 0.7" |
