Product description

• 1500 Lumen Light (Black) The black Lume Cube 1500 Lumen Light features a 6000K color temperature, and the unit's output is dimmable from 0 to 1500 Lumens. The light is suitable for use as either a video light or a still photo strobe. It incorporates a rechargeable battery that lasts 20 minutes at full brightness and two hours plus at 50% brightness.

  The Lume Cube is controlled either manually or via Bluetooth using optional iOS or Android apps. The Bluetooth connectivity allows you to simultaneously control up to five Lume Cube fixtures at the same time. The 1/4"-20 female threads allow you to mount the Lume Cube onto a variety of optional camera accessories. The fixture is waterproof down to 100', which makes it usable in dry and wet weather or while fully submerged.
  • The Lume Cube features a built-in optical sensor to slave it to other strobe units. The flash features variable duration from 1/8000 of a second to freeze motion to one second for more exposure.
  • Optional apps Lume Cube and Lume Cube Pro allow you to control the fixture via Bluetooth. Additionally, you can control up to five Lume Cubes at one time using Bluetooth.
  • The Lume Cube is waterproof down to 100 feet. This allows you to comfortably use the Lume Club in wet weather as well as dry or when submerged.
  UPC: 855239006022

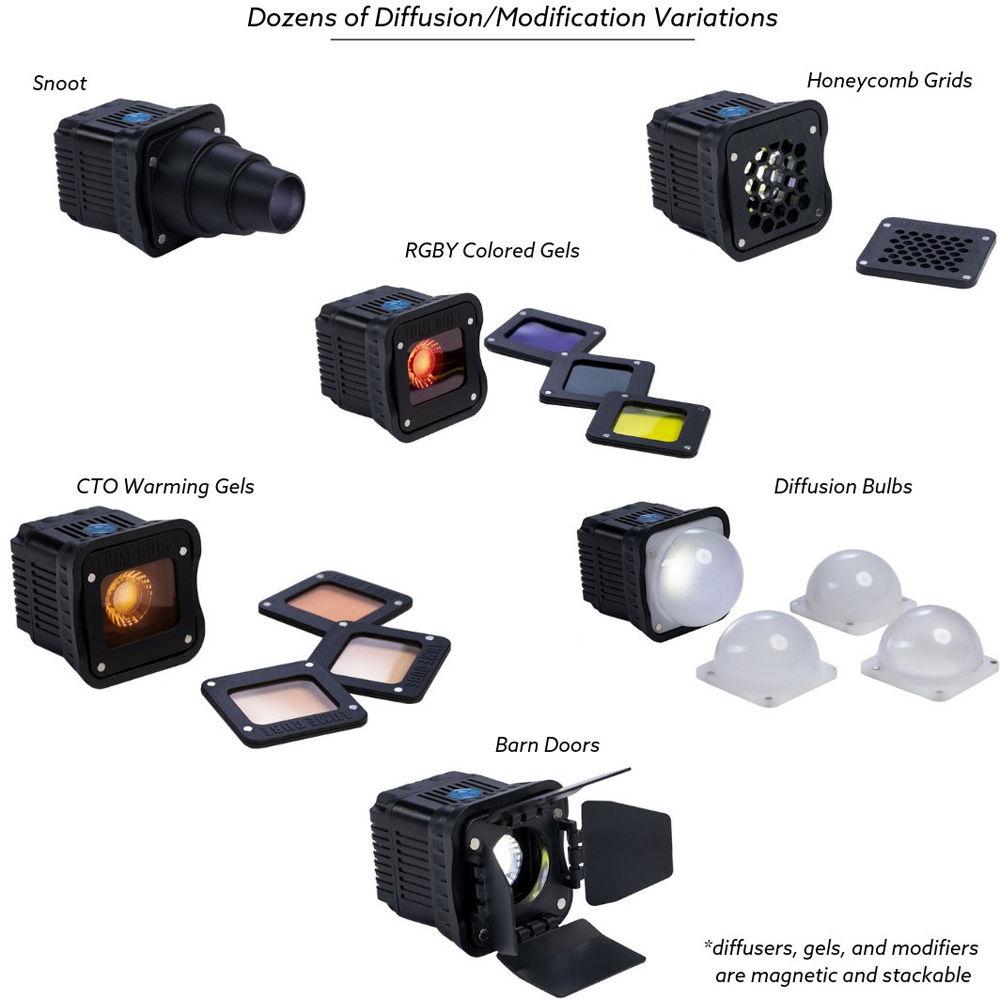

• Modification Frame for Lume Cube LED Light Snap this Modification Frame from Lume Cube onto your Lume Cube LED light so you can add the optional modification accessories such as gels, filters, barndoors, or a snoot. The frame quickly snaps onto the light and its metal construction allows the Lume Cube accessories to connect with their built-in magnets. Note: The frame is designed for the Lume Cube, and it is not compatible with the Lume Cube AIR. UPC: 855239006930
• CTO 4 Pack for Light-House Lume Cube Housing The CTO 4 Pack for Light-House Lume Cube Housing consists of four color temperature correction gels in individual plastic frames with integrated mounting magnets. The gels can be used to warm up the native 6000K color temperature of your Lume Cube light fixture (not included). Designed to fit into the Lume Cube Light-House (not included), each gel provides a different degree of warming to your light's output and is made using Lee Filter Zircon filter material.

  The 806 Warm Amber 2 corrects cool white LED to tungsten, the 807 Warm Amber 4 corrects White LED to tungsten, the 808 corrects warm white LED output to tungsten, and the 809 Warm Amber 8 is for fine correction of warm white LED light to tungsten. Each filter attaches to the housing magnetically, and you can use the filters individually or stack them for stronger effect.
  • Magnetic filter attachment
  • Included filters are stackable
  • Four different color correction filters included
  UPC: 855239006558
• RGBY Color Pack for Light-House Lume Cube Housing The RGBY Color Pack for Light-House Lume Cube Housing consists of four color filters in individual plastic frames with integrated mounting magnets. This pack features one red, one green, one blue, and one yellow fitler. Designed to fit into the Lume Cube Light-House (not included), each gel provides a different degree of warming to your light's output.
  • Magnetic filter attachment
  • Included filters are stackable
  UPC: 855239006565
• Honeycomb Pack for Light-House Lume Cube Housing The Honeycomb Pack for Light-House Lume Cube Housing from Lume Cube provides shape and control to the output of your Lume Cube (not included). You can use either of these grids for spill control when using diffusion. The magnetic grids come in two sizes: a large and small grid pattern.
  • Magnetic attachment
  • Two grid-size patterns: small approximately 10/20° and large approximately 40°
  • Provides spill control when used with diffusion
  UPC: 855239006572

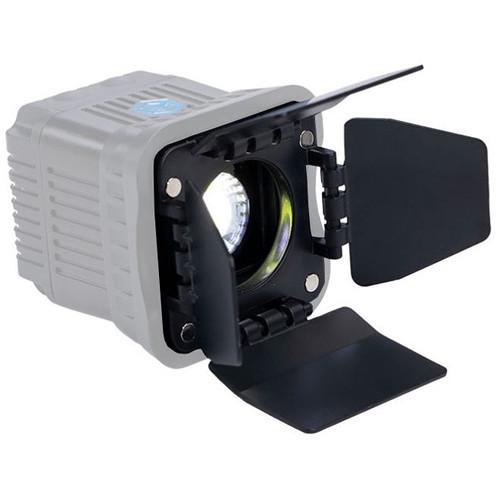

• Barndoors for Lume Cube LED Light Snap on the hinged, four-leaf Barndoors from Lume Cube onto your Lume Cube LED light and control the light's beam to reach areas that you want, and keep light from areas you don't want to illuminate. The barndoors require the Lume Cube Modification Frame or Light House Cage to allow it to be connected by magnets to the front of the light. Note: Barndoors require the Lume Cube Modification Frame or Light House cage to connect it to Lume Cube. It is not compatible with Lume Cube AIR. UPC: 855239006909
• Snoot for Lume Cube Pop on this Snoot from Lume Cube onto your Lume Cube LED light, and narrow the light's beam to a smaller area. A more focused light is suitable when shooting small subjects or for accent lighting. The snoot requires the separately available Lume Cube Modification Frame or the Light House Cage to easily connect via magnets to the front of the light. Note: The snoot requires the Lume Cube Modification Frame or Light House Cage to connect it to Lume Cube. It is not compatible with Lume Cube AIR. UPC: 855239006916
• Diffusion Bulb Pack for Light-House Housing for Lume Cube The Diffusion Bulb Pack for Light-House Housing for Lume Cube from Lume Cube diffuses the output of your Lume Cube. In addition to providing a diffusion effect, the Diffusion Bulb spreads the beam out to the sides, creating an overall ambience. There are three different strengths in the pack, a light, medium, and strong diffusion, and each one attaches magnetically to the Light-House Housing (not included). Although you cannot stack one Diffusion Bulb on top of another, you can mount the Diffusion bulb on top of a color gel, warming filter, or even another diffusion gel.
  • Three different strengths of diffusion
  • Diffusion shape provides even more spread out diffusion of light
  • Stackable with color gels, warming gels, and other diffusion filters
  UPC: 855239006541

• USB Charging Cable

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

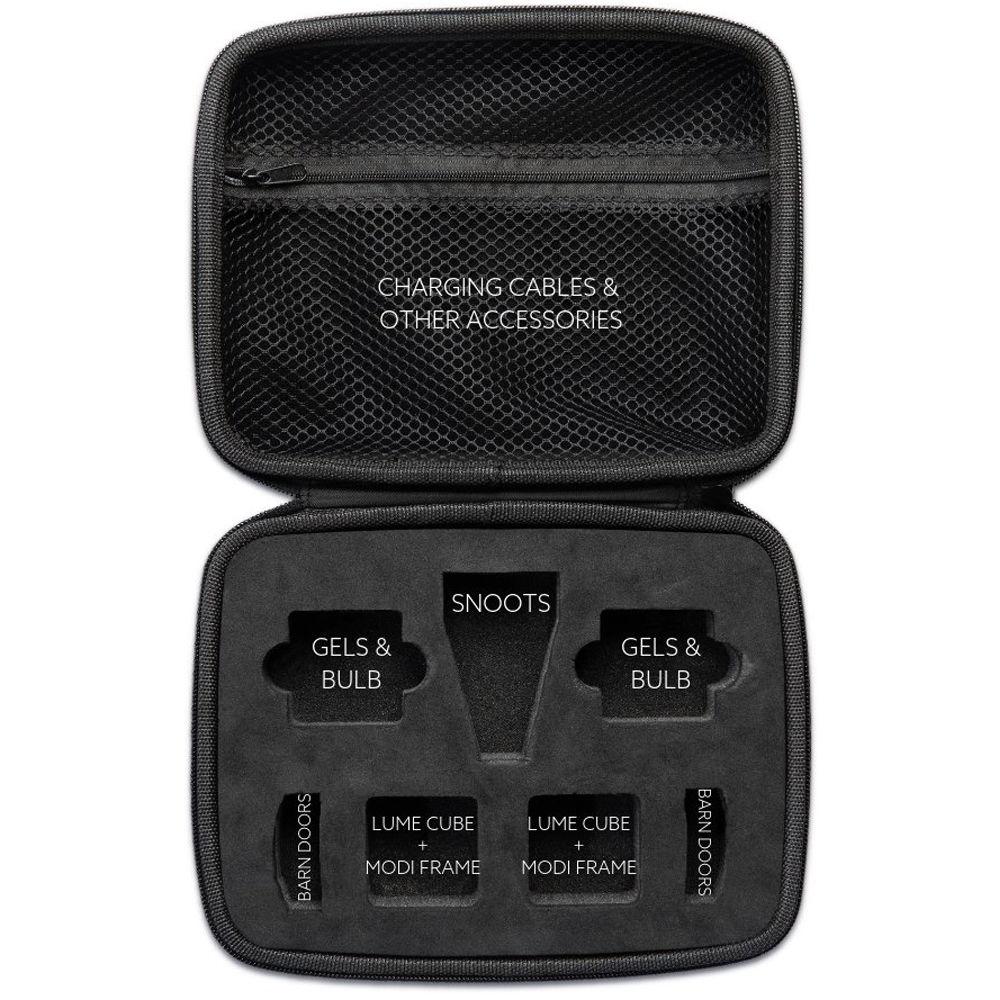

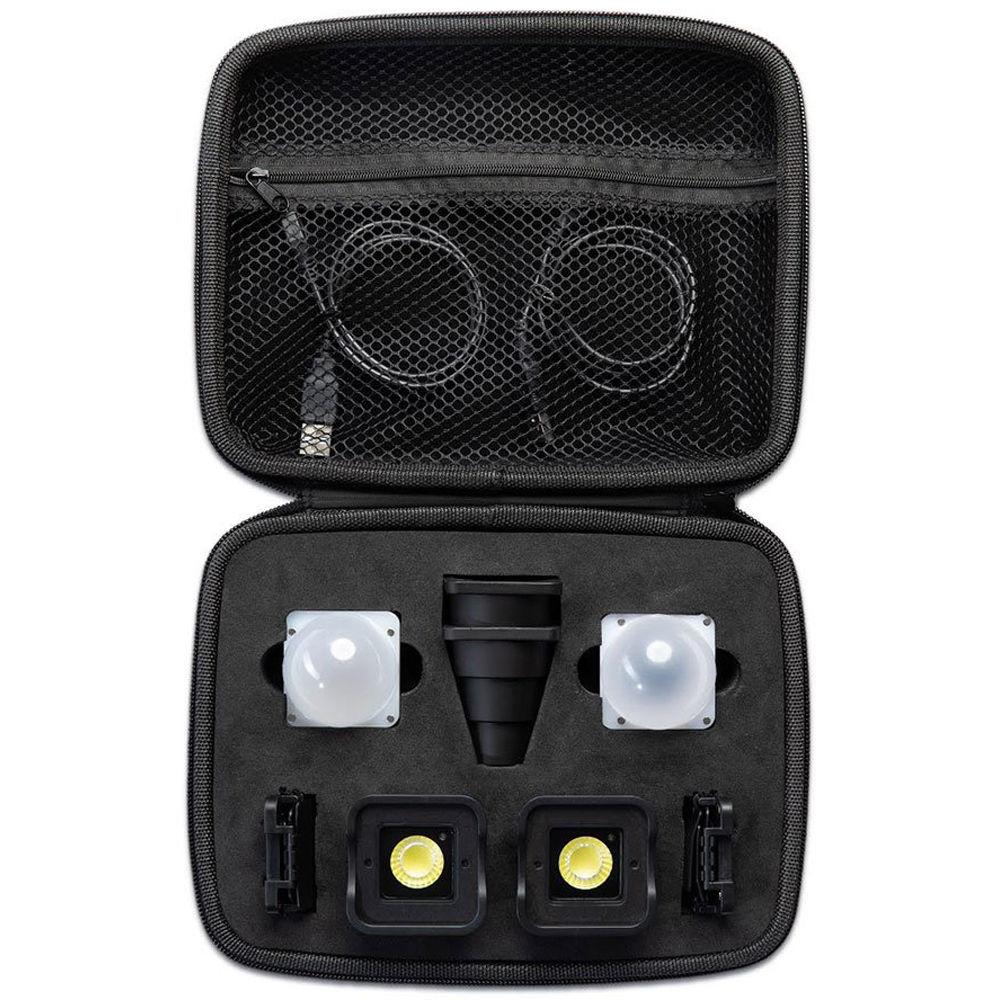

• Carrying Case with Custom-Cut Foam

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 1500 Lumen Light (Black)

  Lumens	1500
  Refresh Rate	8000 Hz

  Battery Runtime	20 to 120 Minutes

  Power Input Connector	Micro-USB
  Power Source	Integrated Battery

  Mount Type	1/4"-20 Female Thread
  Dimensions	1.5 x 1.5 x 1.5" / 3.8 x 3.8 x 3.8 cm

  Box Dimensions (LxWxH)	3.2 x 3.1 x 3.0"

• Modification Frame for Lume Cube LED Light

  Compatibility	Lume Cube (Lume Cube AIR Is Not Supported)
  Material of Construction	Metal
  Weight	1.8 oz / 50 g

  Box Dimensions (LxWxH)	4.0 x 2.9 x 1.1"

• CTO 4 Pack for Light-House Lume Cube Housing

  Material of Construction	Filter Holder: Plastic Filter Material: Lee Zircon
  Attachment Method	Magnetic
  Light Transmission	806 Warm Amber 2: Y=50/4% 807 Warm Amber 4: Y=65.1% 808 Warm Amber 6: Y=75.4% 809 Warm Amber 8: Y=79.7%
  Weight	0.5 oz / 14.2 g

  Box Dimensions (LxWxH)	4.4 x 3.0 x 1.1"

• RGBY Color Pack for Light-House Lume Cube Housing

  Material of Construction	Filter Holder: Plastic
  Attachment Method	Magnetic
  Weight	0.5 oz / 14.2 g

  Box Dimensions (LxWxH)	4.4 x 3.0 x 1.0"

• Honeycomb Pack for Light-House Lume Cube Housing

  Attachment Method	Magnetic
  Beam Control	Small: 10/20° (approximately) Large: 40° (approximately)
  Weight	0.5 oz / 14.2 g

  Box Dimensions (LxWxH)	4.3 x 3.0 x 0.9"

• Barndoors for Lume Cube LED Light

  Compatibility	Lume Cube (Lime Cube AIR Not Supported) Modification Frame or Light House Cage Required
  Material of Construction	Plastic
  Weight	1.8 oz / 50 g

  Box Dimensions (LxWxH)	4.45 x 2.95 x 1.05"

• Snoot for Lume Cube

  Compatibility	Lume Cube (Lime Cube AIR Not Supported) Modification Frame or Light House Cage Required
  Diameter	0.8" / 2 cm (Light Exit Hole)
  Material of Construction	Plastic
  Weight	1.8 oz / 50 g

  Box Dimensions (LxWxH)	2.2 x 1.7 x 1.7"

• Diffusion Bulb Pack for Light-House Housing for Lume Cube

  Strength	Light Medium Strong
  Attachment	Magnetic

  Box Dimensions (LxWxH)	6.7 x 4.9 x 1.3"
