User Manual for Lume Cube Professionals' Pack Click to enlarge the picture
Contents of the user manual for the Lume Cube Professionals' Pack
- Product category: On Camera Lights Lume Cube
- Brand: Lume Cube
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lume Cube On Camera Lights
 |
User manual for the Lume Cube Professionals' Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lume Cube product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lume Cube user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lume Cube product will considerably shorten its lifespan!
|

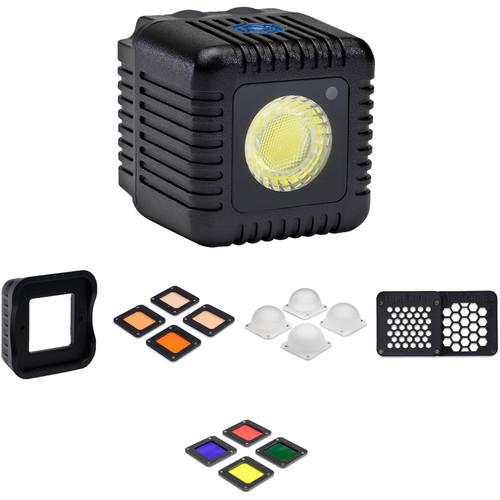

Product description The Lume Cube Professionals' Pack is a B&H kit that consists of a black Lume Cube 1500-lumen light, an aluminum Light-House housing with three diffusion filters, four CTO filters, four-RGBY filter pack, diffusion domes, and two honeycomb grids for the Lume Cube. The fixture features a 6000K color temperature, and dimmable output from 100 to 0% brightness. Suitable for stills or video, it incorporates an internal rechargeable battery.
The aluminum housing protects your Lume Cube and provides a mounting cavity for magnets that accept and secure the color and diffusion filters, as well as the honeycomb grids and diffusion domes. You can stack diffusion filters and color filters, or use the honeycomb grids to improve the directionality of the light's output. Although you can stack filters, the shape of the dome diffusion prevents stacking another filter on top of the dome. However, you can mount a dome filter over a color filter. - Lume Cube 1500 Lumen Light (Black)
- What is Lume Cube?
- Brand Video v7

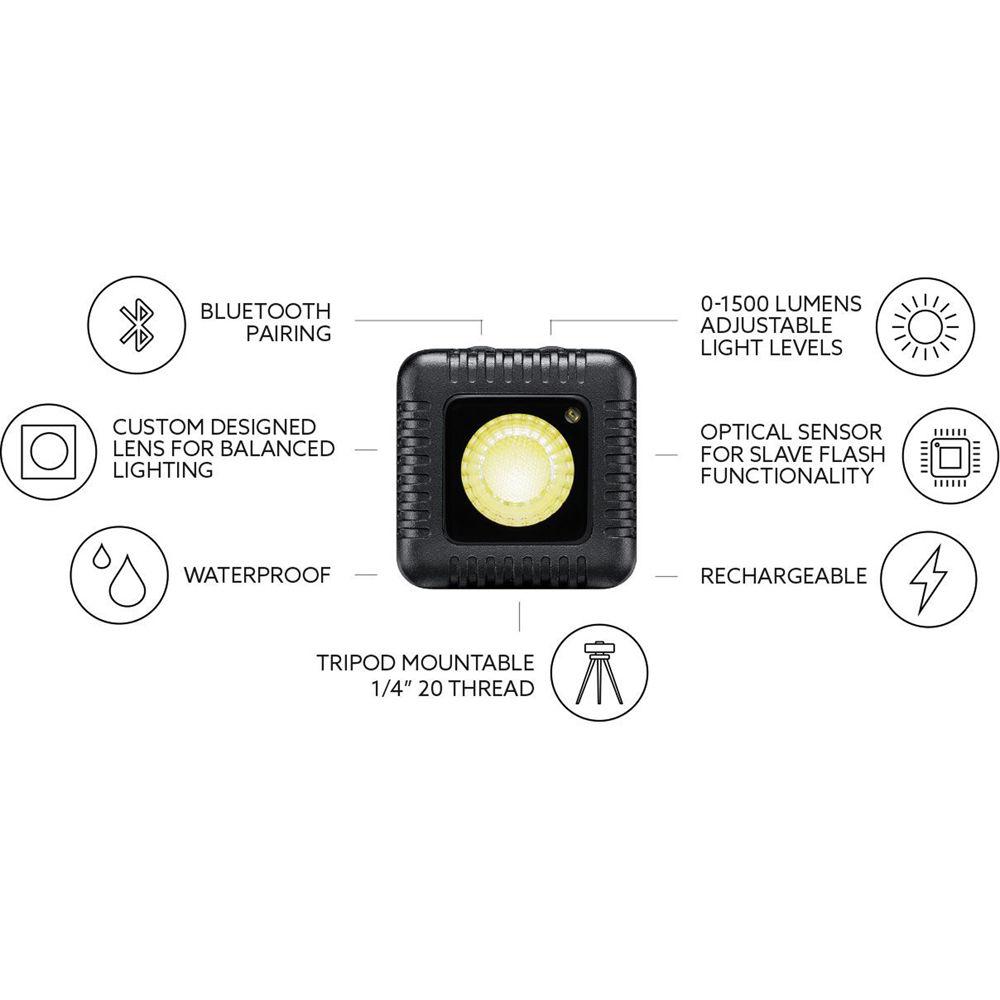

The black Lume Cube 1500 Lumen Light features a 6000K color temperature, and the unit's output is dimmable from 0 to 1500 Lumens. The light is suitable for use as either a video light or a still photo strobe. It incorporates a rechargeable battery that lasts 20 minutes at full brightness and two hours plus at 50% brightness.

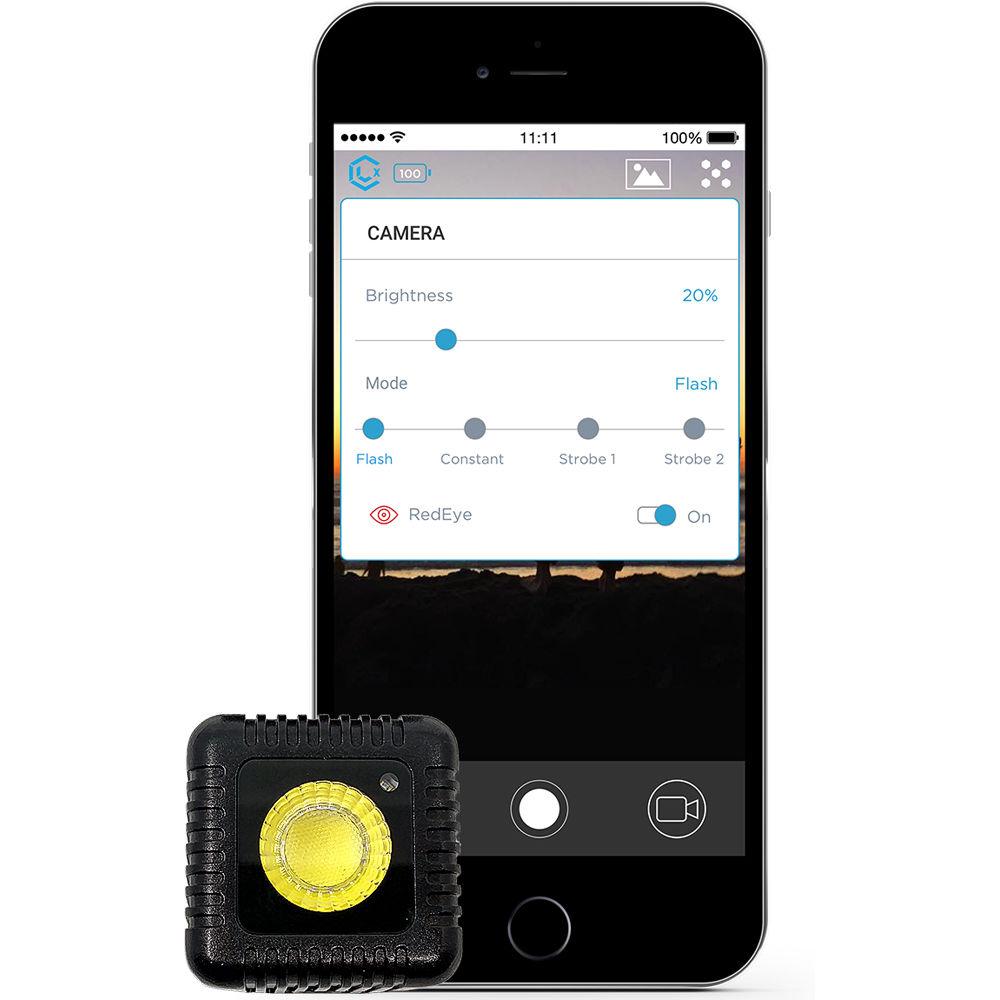

The Lume Cube is controlled either manually or via Bluetooth using optional iOS or Android apps. The Bluetooth connectivity allows you to simultaneously control up to five Lume Cube fixtures at the same time. The 1/4"-20 female threads allow you to mount the Lume Cube onto a variety of optional camera accessories. The fixture is waterproof down to 100', which makes it usable in dry and wet weather or while fully submerged. - The Lume Cube features a built-in optical sensor to slave it to other strobe units. The flash features variable duration from 1/8000 of a second to freeze motion to one second for more exposure.
- Optional apps Lume Cube and Lume Cube Pro allow you to control the fixture via Bluetooth. Additionally, you can control up to five Lume Cubes at one time using Bluetooth.
- The Lume Cube is waterproof down to 100 feet. This allows you to comfortably use the Lume Club in wet weather as well as dry or when submerged.
UPC: 855239006022 - Lume Cube Modification Frame for Lume Cube LED Light
- What is Lume Cube?
- Brand Video v7
Snap this Modification Frame from Lume Cube onto your Lume Cube LED light so you can add the optional modification accessories such as gels, filters, barndoors, or a snoot. The frame quickly snaps onto the light and its metal construction allows the Lume Cube accessories to connect with their built-in magnets. Note: The frame is designed for the Lume Cube, and it is not compatible with the Lume Cube AIR. UPC: 855239006930 - Lume Cube CTO 4 Pack for Light-House Lume Cube Housing
- What is Lume Cube?
- Brand Video v7
The CTO 4 Pack for Light-House Lume Cube Housing consists of four color temperature correction gels in individual plastic frames with integrated mounting magnets. The gels can be used to warm up the native 6000K color temperature of your Lume Cube light fixture (not included). Designed to fit into the Lume Cube Light-House (not included), each gel provides a different degree of warming to your light's output and is made using Lee Filter Zircon filter material.
The 806 Warm Amber 2 corrects cool white LED to tungsten, the 807 Warm Amber 4 corrects White LED to tungsten, the 808 corrects warm white LED output to tungsten, and the 809 Warm Amber 8 is for fine correction of warm white LED light to tungsten. Each filter attaches to the housing magnetically, and you can use the filters individually or stack them for stronger effect. - Magnetic filter attachment
- Included filters are stackable
- Four different color correction filters included
UPC: 855239006558 - Lume Cube Diffusion Bulb Pack for Light-House Housing for Lume Cube
- What is Lume Cube?
- Brand Video v7

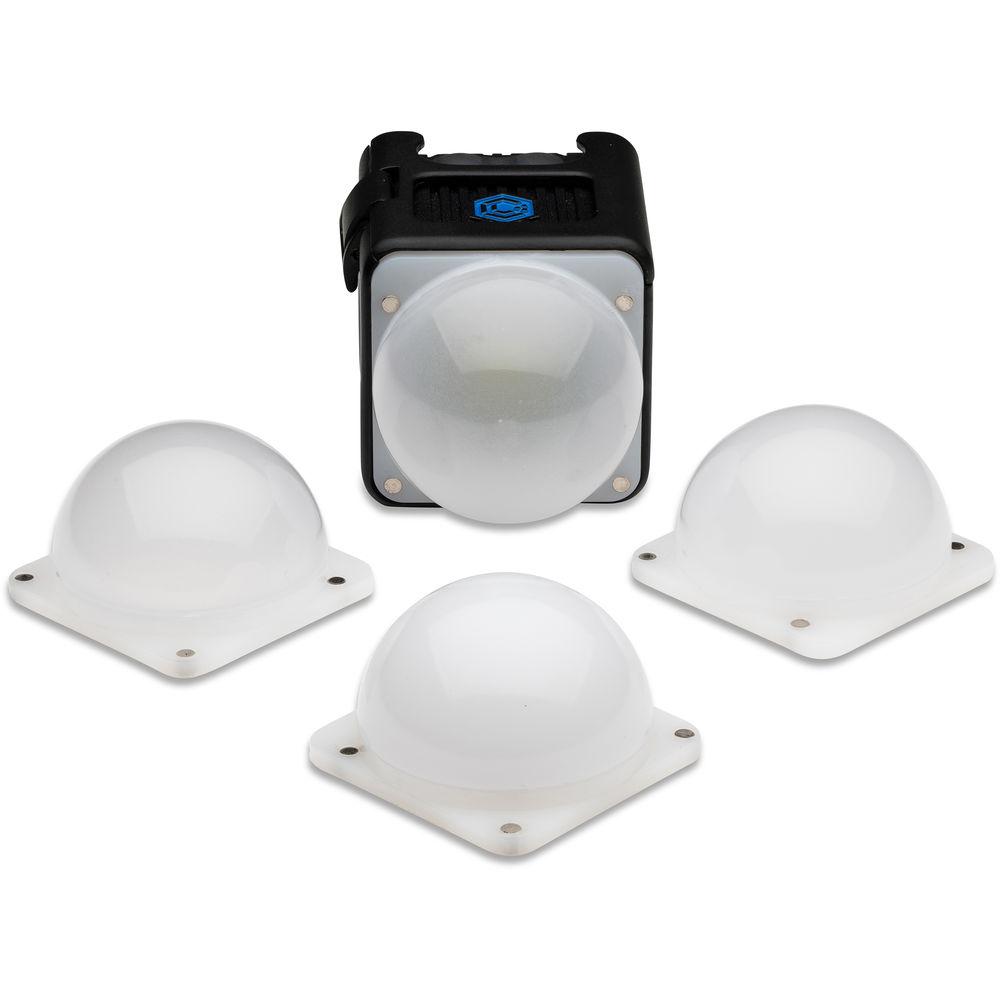

The Diffusion Bulb Pack for Light-House Housing for Lume Cube from Lume Cube diffuses the output of your Lume Cube. In addition to providing a diffusion effect, the Diffusion Bulb spreads the beam out to the sides, creating an overall ambience. There are three different strengths in the pack, a light, medium, and strong diffusion, and each one attaches magnetically to the Light-House Housing (not included). Although you cannot stack one Diffusion Bulb on top of another, you can mount the Diffusion bulb on top of a color gel, warming filter, or even another diffusion gel. - Three different strengths of diffusion
- Diffusion shape provides even more spread out diffusion of light
- Stackable with color gels, warming gels, and other diffusion filters
UPC: 855239006541 - Lume Cube Honeycomb Pack for Light-House Lume Cube Housing
- What is Lume Cube?
- Brand Video v7

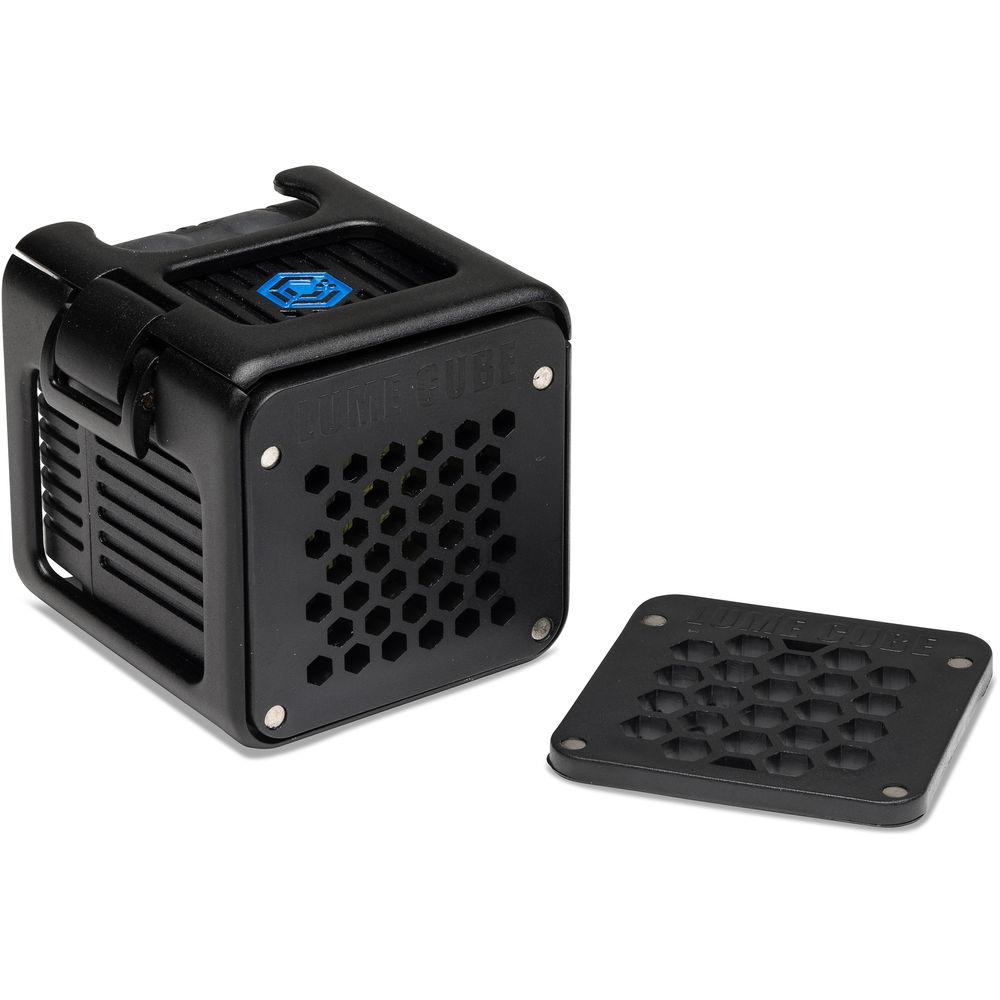

The Honeycomb Pack for Light-House Lume Cube Housing from Lume Cube provides shape and control to the output of your Lume Cube (not included). You can use either of these grids for spill control when using diffusion. The magnetic grids come in two sizes: a large and small grid pattern. - Two grid-size patterns: small approximately 10/20° and large approximately 40°
- Provides spill control when used with diffusion
UPC: 855239006572 - Lume Cube RGBY Color Pack for Light-House Lume Cube Housing
- What is Lume Cube?
- Brand Video v7

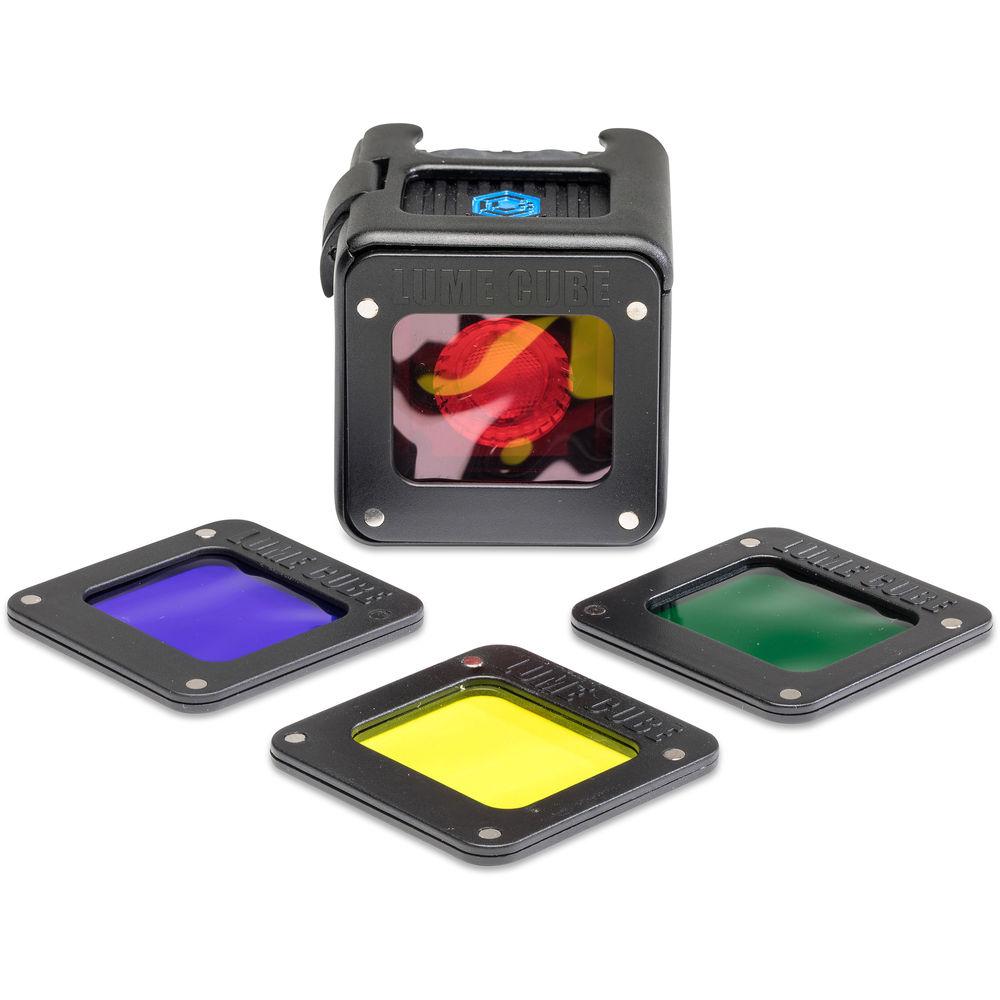

The RGBY Color Pack for Light-House Lume Cube Housing consists of four color filters in individual plastic frames with integrated mounting magnets. This pack features one red, one green, one blue, and one yellow fitler. Designed to fit into the Lume Cube Light-House (not included), each gel provides a different degree of warming to your light's output. - Magnetic filter attachment
- Included filters are stackable

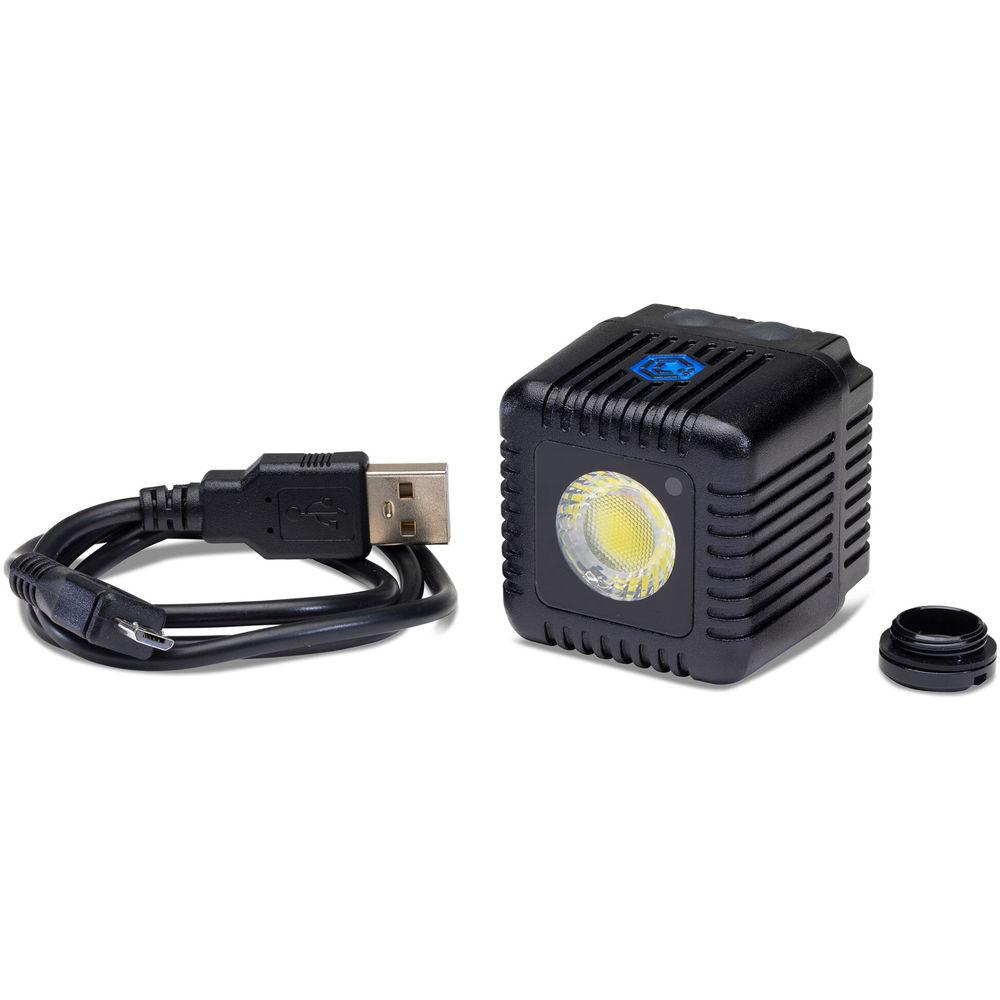

UPC: 855239006565 In the Box - 1500 Lumen Light (Black) xwbbqaxytxex
- USB Charging Cable
- Limited 1-Year Warranty
- Modification Frame for Lume Cube LED Light
- CTO 4 Pack for Light-House Lume Cube Housing
- Diffusion Bulb Pack for Light-House Housing for Lume Cube
- Honeycomb Pack for Light-House Lume Cube Housing
- RGBY Color Pack for Light-House Lume Cube Housing
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lume Cube Professionals' Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lume Cube 1500 Lumen Light (Black)
| | | Lumens | 1500 | | Refresh Rate | 8000 Hz | | | | Battery Runtime | 20 to 120 Minutes | | | | Power Input Connector | Micro-USB | | Power Source | Integrated Battery | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 1.5 x 1.5 x 1.5" / 3.8 x 3.8 x 3.8 cm | | | | Box Dimensions (LxWxH) | 3.2 x 3.1 x 3.0" | - Lume Cube Modification Frame for Lume Cube LED Light
| Compatibility | Lume Cube (Lume Cube AIR Is Not Supported) | | Material of Construction | Metal | | Weight | 1.8 oz / 50 g | | | | Box Dimensions (LxWxH) | 4.0 x 2.9 x 1.1" | - Lume Cube CTO 4 Pack for Light-House Lume Cube Housing
| Material of Construction | Filter Holder: Plastic
Filter Material: Lee Zircon | | Attachment Method | Magnetic | | Light Transmission | 806 Warm Amber 2: Y=50/4%
807 Warm Amber 4: Y=65.1%
808 Warm Amber 6: Y=75.4%
809 Warm Amber 8: Y=79.7% | | Weight | 0.5 oz / 14.2 g | | | | Box Dimensions (LxWxH) | 4.4 x 3.0 x 1.1" | - Lume Cube Diffusion Bulb Pack for Light-House Housing for Lume Cube
| Strength | Light
Medium
Strong | | Attachment | Magnetic | | | | Box Dimensions (LxWxH) | 6.7 x 4.9 x 1.3" | - Lume Cube Honeycomb Pack for Light-House Lume Cube Housing
| Attachment Method | Magnetic | | Beam Control | Small: 10/20° (approximately)
Large: 40° (approximately) | | Weight | 0.5 oz / 14.2 g | | | | Box Dimensions (LxWxH) | 4.3 x 3.0 x 0.9" | - Lume Cube RGBY Color Pack for Light-House Lume Cube Housing
| Material of Construction | Filter Holder: Plastic | | Attachment Method | Magnetic | | Weight | 0.5 oz / 14.2 g | | | | Box Dimensions (LxWxH) | 4.4 x 3.0 x 1.0" |
