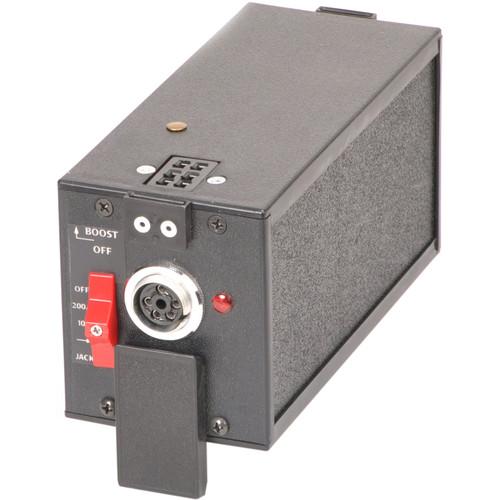

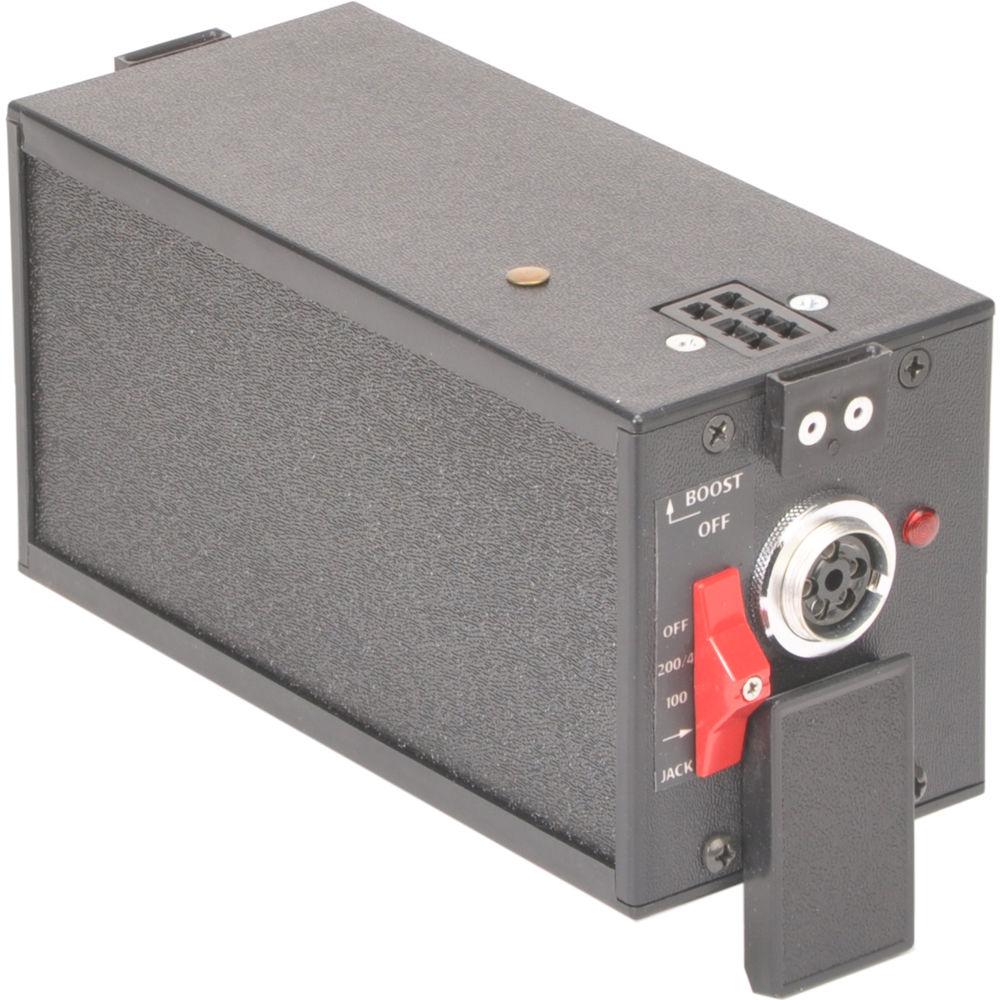

Product description Contains extra capacitors to increase the total watt/seconds available. Boosters only effect the highest setting on a power pack. While Boosters require a power pack to run from a battery, Control Boosters will run by themselves on an LU058 Series AC Power Supplies. Over 800 w/s through one head requires a 2400 w/s Quartz flashtube. - Three position switch to send boost up or use 100 w/s or 200 w/s from its own head jack (both turn boost off).
- Now stackable up to 2400 w/s, since 1997.
- When you double the w/s you gain one f-stop (200 w/s to 400 w/s or 800 w/s to 1600 w/s) and get half as many flashes per charge.
- Extra head jack can be used (as-) symmetrically in conjunction with the power pack and other Boosters.
In the Box Lumedyne 200 W/S Control Booster Module One (1) LU072 Control Booster Module Instruction Pamphlet One (1) Year Warranty Rgistration Card. Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumedyne 200 W S Control Booster Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumedyne X2DL Specs | Power Settings | Boost-Off/200-100/Jack | | Power Supply | Battery Packs, AC Power Supply #058 series, Vehicle Adaptor #039, or Vehicle Battery Kompartment #029K | | Power Control | Boost/Off | | Connectors | Two (2) Multi-pinned Power Connections for power supply.
One (1) Flash Head Connection (Jack) | | |
High Power System Ratings | | 600 Watt Seconds | Standard Head 270GN
Modeling Head 230GN
Bare Bulb 95GN
Flash Duration 1/260 | | 1200 Watt Seconds | Standard Head 390GN
Modeling Head 330GN
Bare Bulb 140GN
Flash Duration 1/135 | | 2400 Watt Seconds | Standard Head 550GN
Modeling Head 465GN
Bare Bulb 195GN
Flash Duration 1/67 | | Note | All High Power System Ratings formulated at ISO/ASA 100 | | Weight | 1.5 lbs. (.68kg). | | Dimensions | 3.5 x 3 x 7.4" (8.9 x 7.6 x 18.8cm). | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 9.1 x 7.9 x 3.6" |
