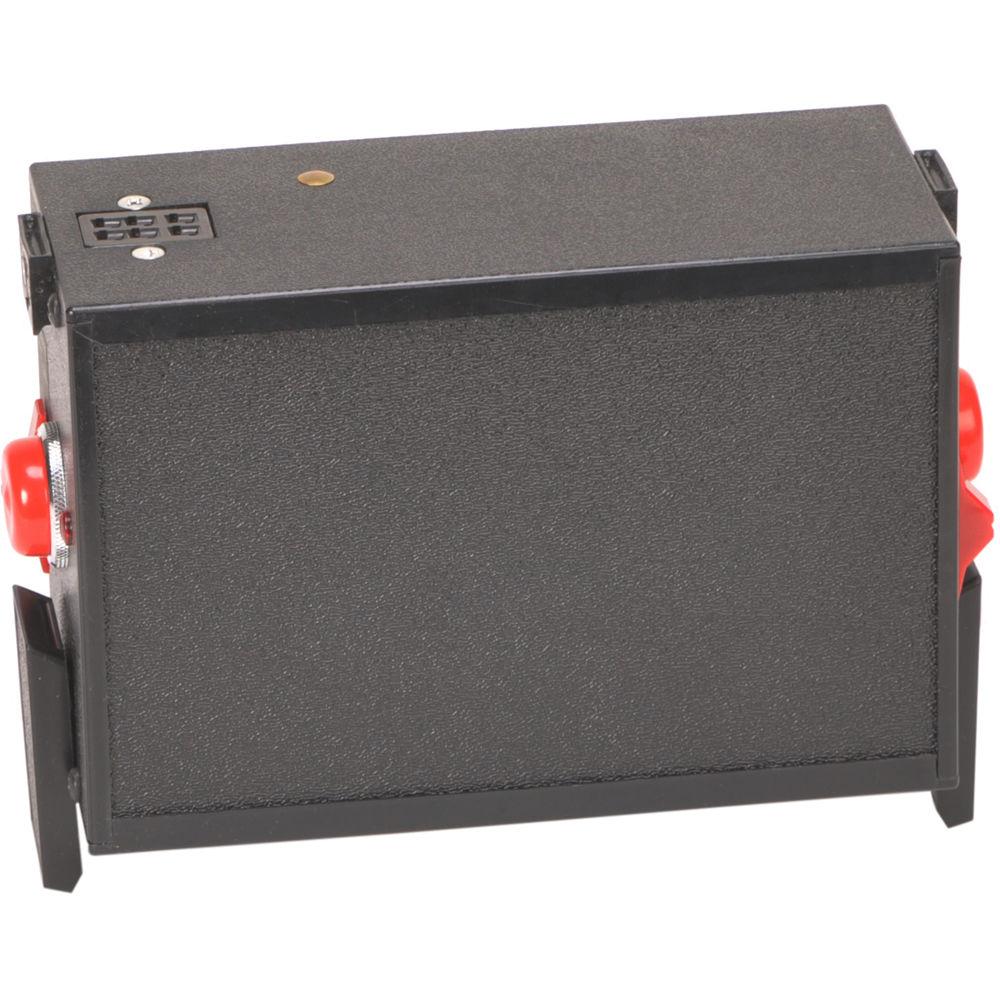

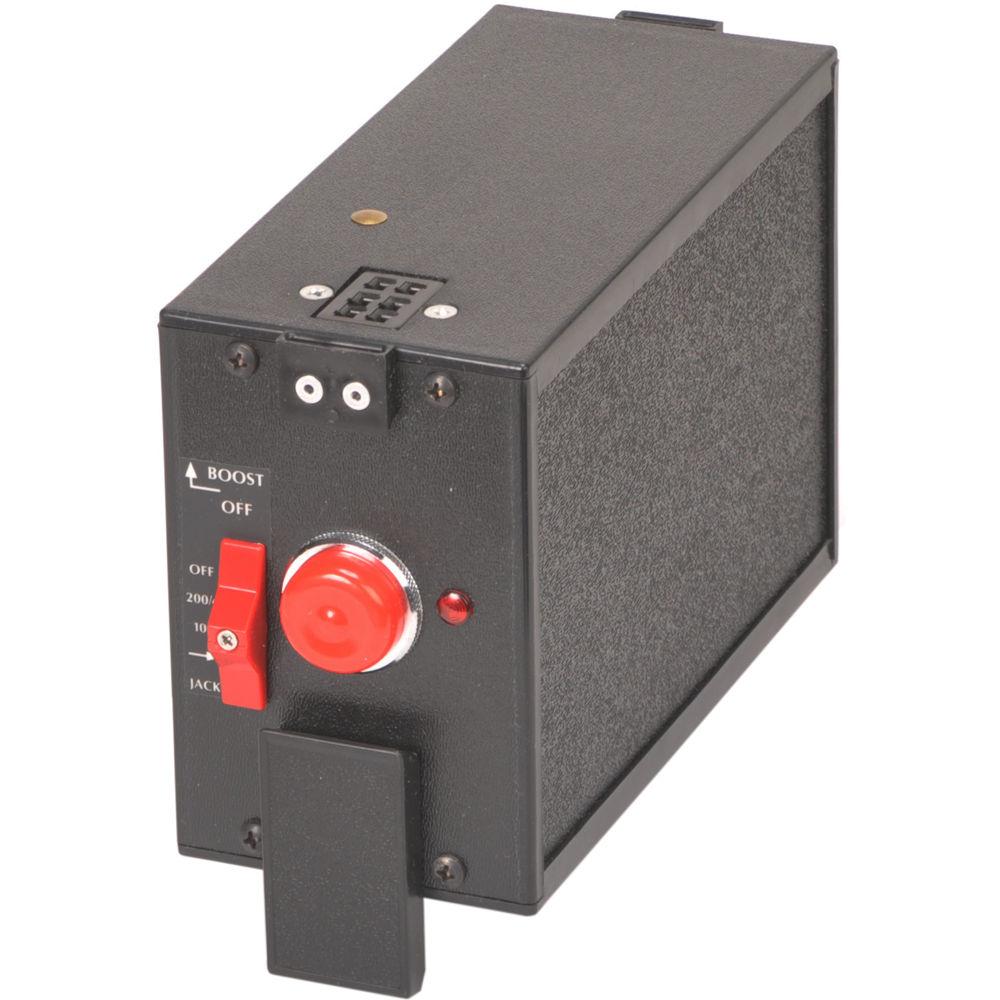

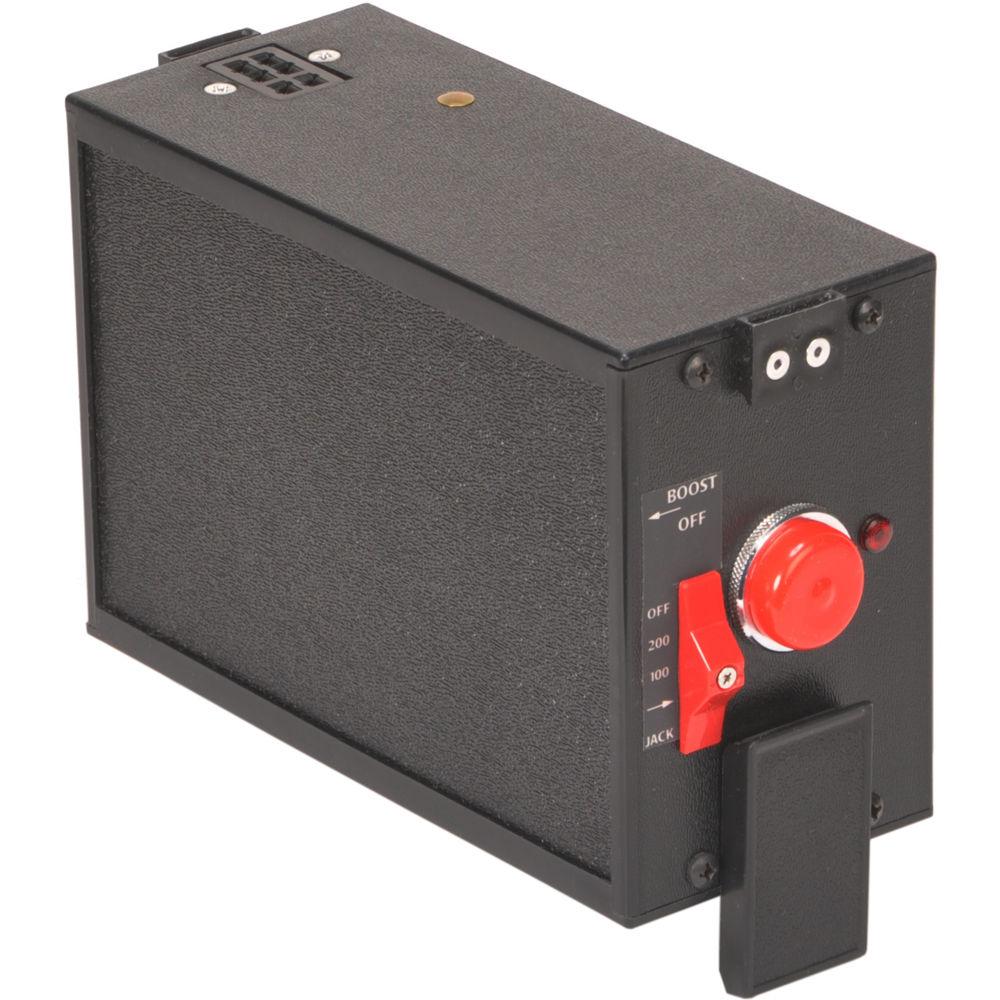

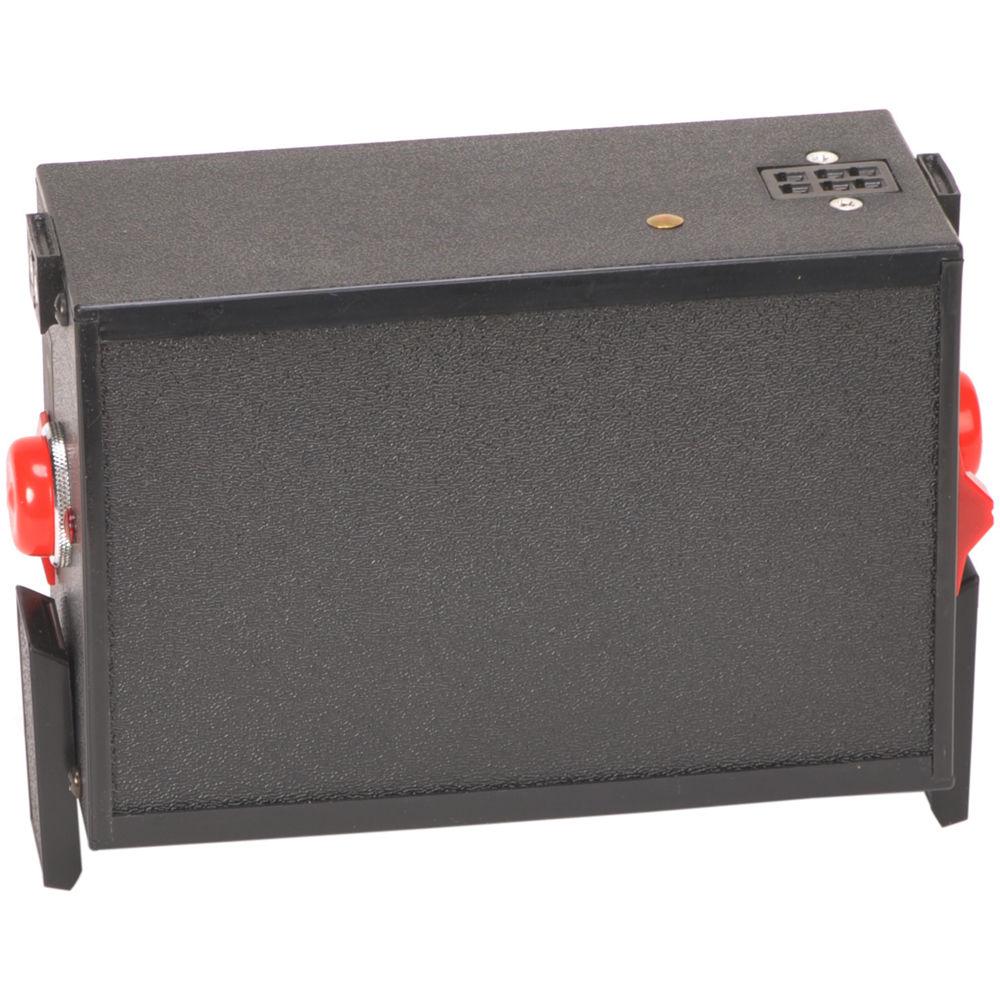

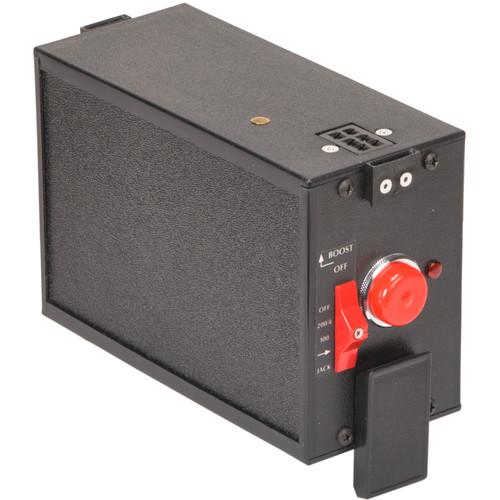

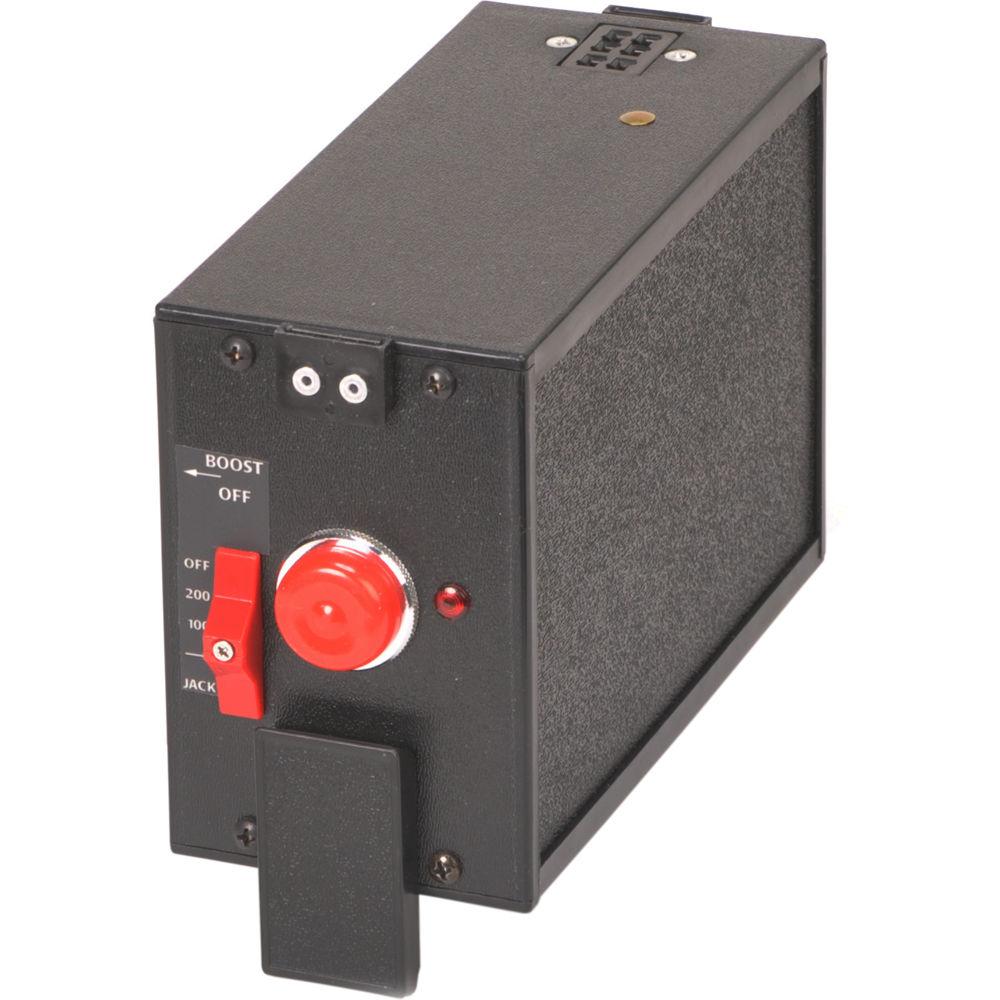

User Manual for Lumedyne 400 W S Deluxe Control Booster Module Click to enlarge the picture
Contents of the user manual for the Lumedyne 400 W S Deluxe Control
- Product category: DC Power Supplies Lumedyne
- Brand: Lumedyne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumedyne DC Power Supplies
 |
User manual for the Lumedyne 400 W S Deluxe Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumedyne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumedyne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumedyne product will considerably shorten its lifespan!
|
Product description Contains extra capacitors to increase the total watt/seconds available for the Lumedyne Power Packs. Boosters only effect the highest setting on a power pack. While Boosters require a power pack to run from a battery, Control Boosters will run by themselves on an AC Power Supply. More than 800 w/s through one head requires a 2400 w/s Quartz flashtube. - AC/DC Operation
- Can be used with pack and battery, or directly to AC, with adapter.
- Modular Design
- Stackable, up to 2400 w/s. This is the top of the line for power and flexibility.
- 2 Head Outlets
- Two individually controlled head jacks (one on back).
- Asymmetrical Distribution
- 2 internal 200 w/s sections can be used separately or combined together for boosting and adding heads.
Doubling the w/s gains 1 F-Stop and halves the number of flashes per charge. In the Box Lumedyne 400 W/S Deluxe Control Booster Module 400 w/s Deluxe Control Booster (074) Instruction Pamphlet 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumedyne 400 W S Deluxe Control Booster Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumedyne X4DL Specs | Maximum Watt/Seconds | Boost-Off/200/400-100/Jack | | Power Supply | Battery Packs, AC Power Supply #058 series, Vehicle Adaptor #039, or Vehicle Battery Kompartment #029K | | Power Control | Boost/Off, 1 per side plate | | Connectors | 2 Multi-pinned Power Connections for power supply.
2 Flash Head Connections, 1 per side plate. | | | High Power System Ratings | | 600 Watt Seconds | Standard Head 270GN
Modeling Head 230GN
Bare Bulb 95GN
Flash Duration 1/260 | | 1200 Watt Seconds | Standard Head 390GN
Modeling Head 330GN
Bare Bulb 140GN
Flash Duration 1/135 | | 2400 Watt Seconds | Standard Head 550GN
Modeling Head 465GN
Bare Bulb 195GN
Flash Duration 1/67 | | Note | All High Power System Ratings formulated at ISO/ASA 100 | | Weight | 2.6lbs (1.2kg). | | Dimensions | 4.5 x 3 x 7.4" (11.4 x 7.6 x 18.8cm). | | | | Package Weight | 3.12 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 3.6" |
