Lumedyne 400 W S Power Pack

Search your instruction manual in PDF to download

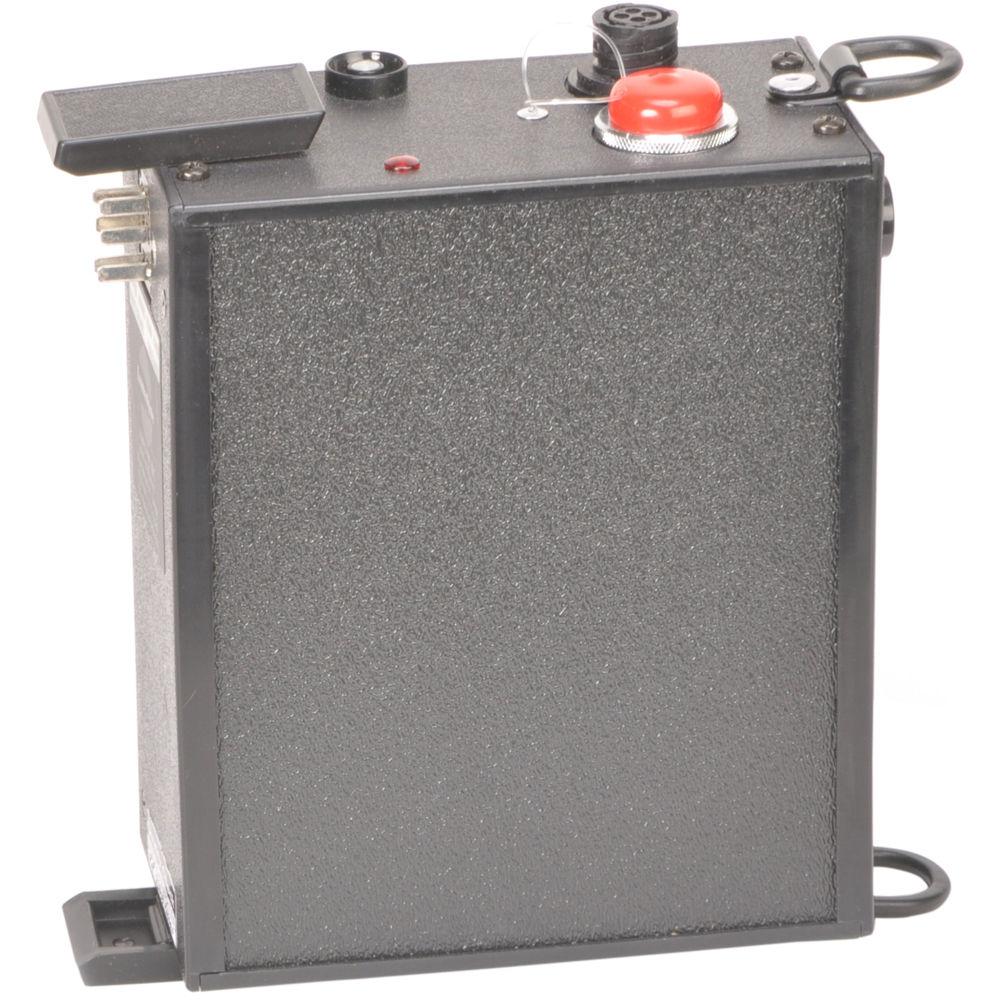

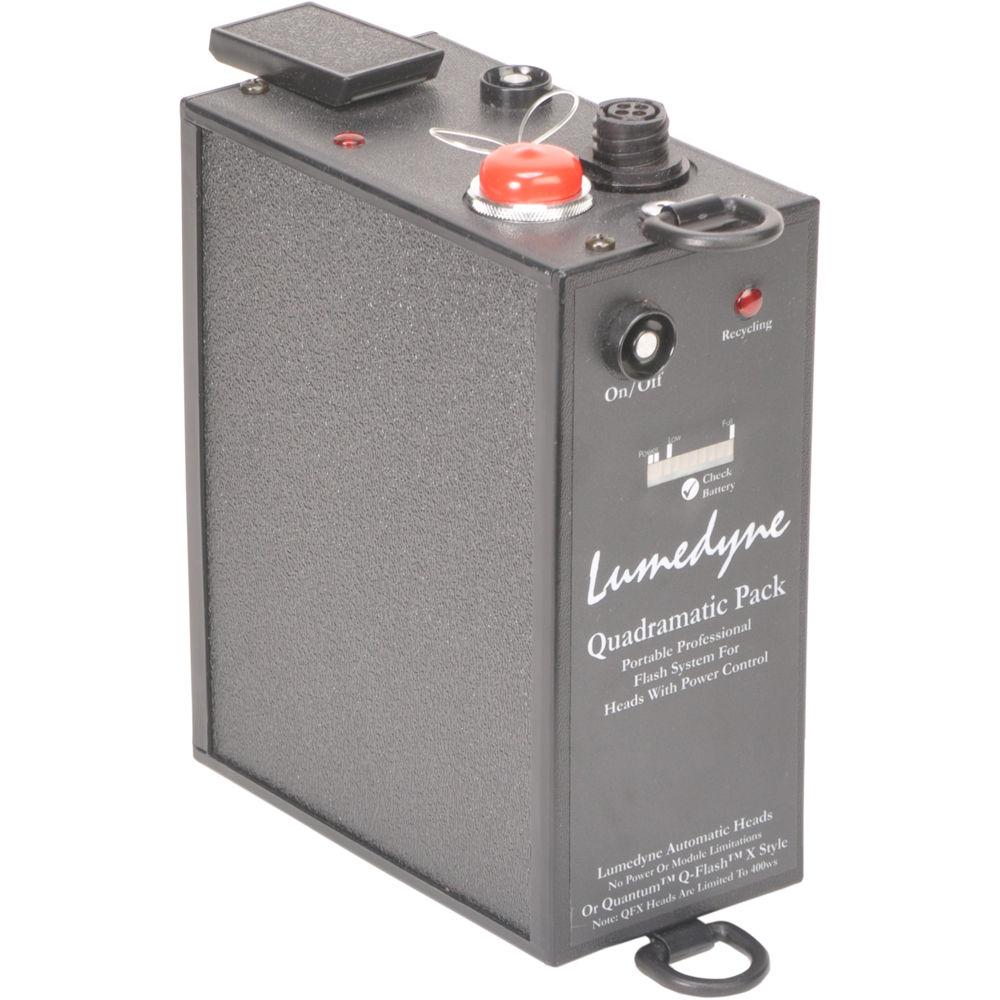

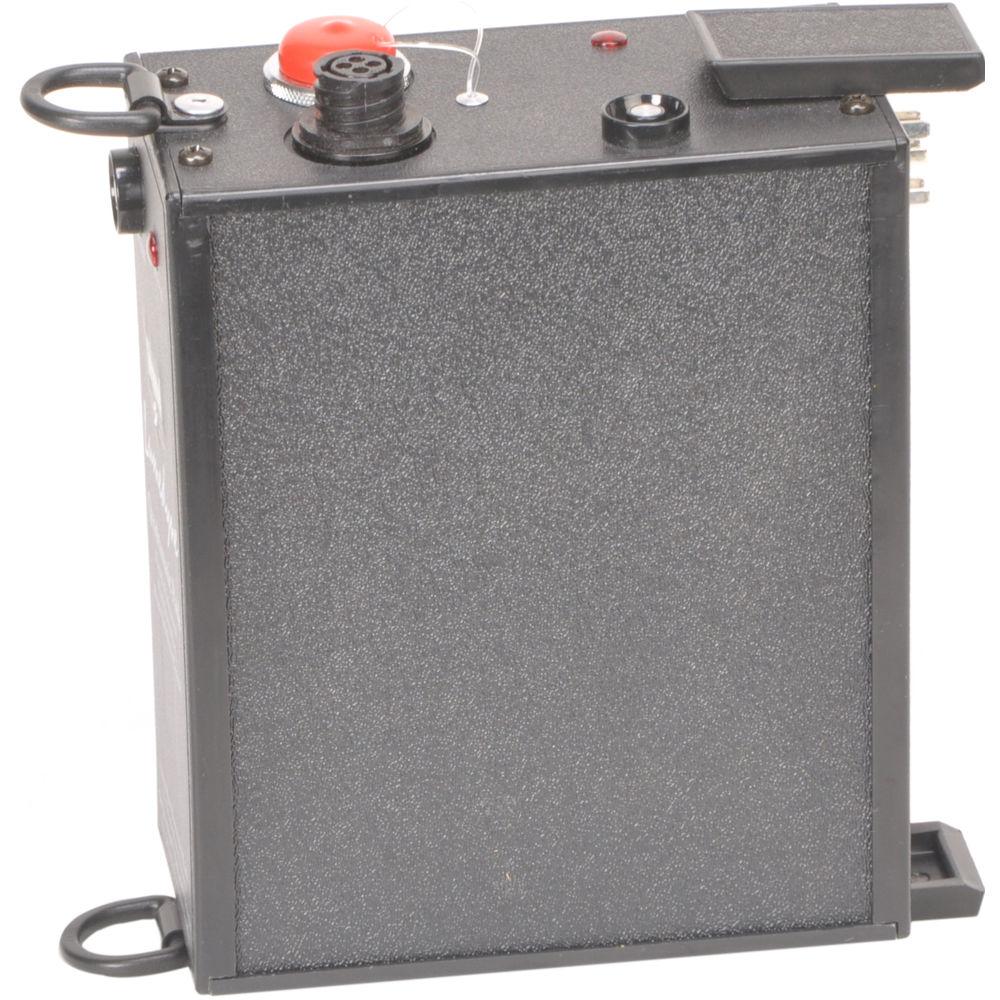

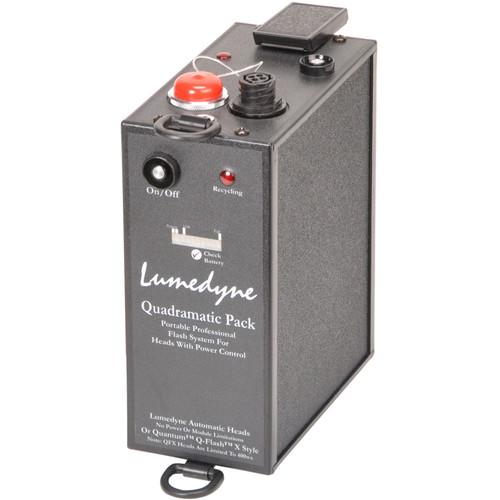

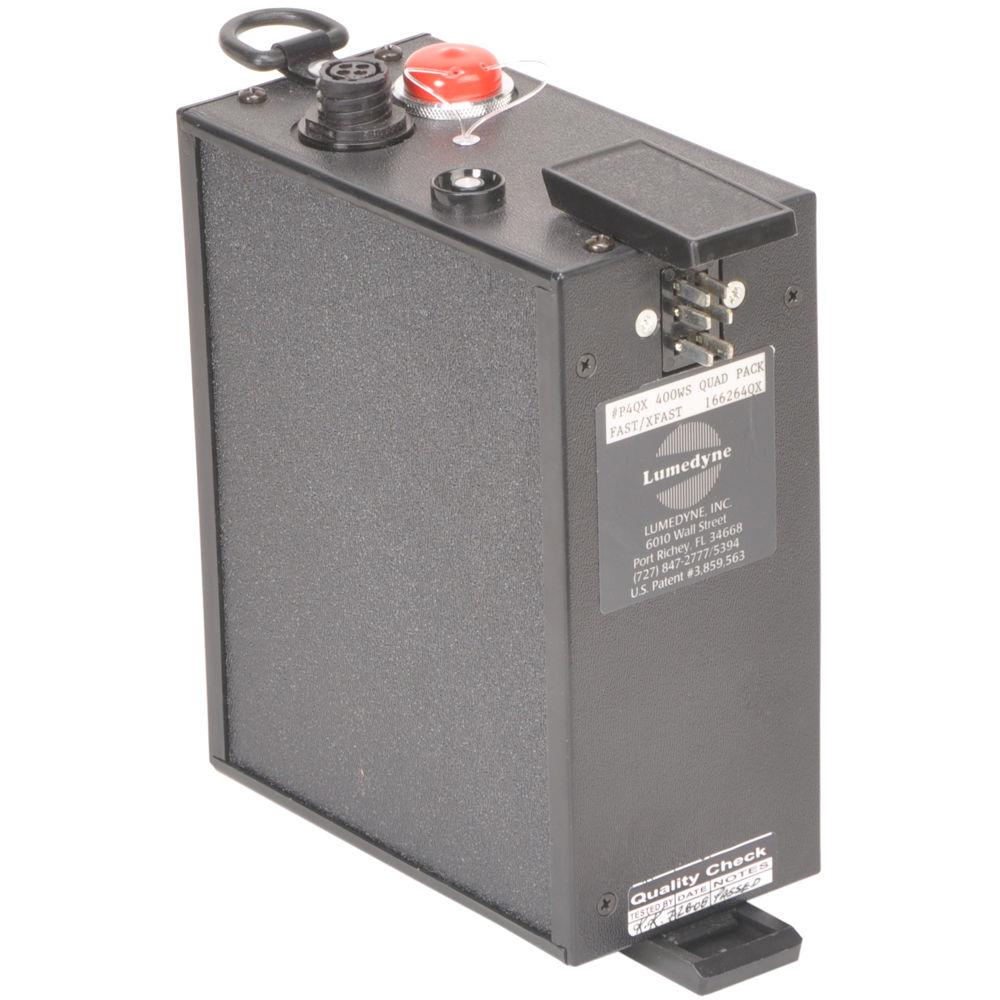

User Manual for Lumedyne 400 W S Power Pack for Quantum X2 - Xtra Fast Recycle

Click to enlarge the picture
Lumedyne 400 W S Power Pack for Quantum X2 - Xtra Fast Recycle Contents of the user manual for the Lumedyne 400 W S Power Pack
  • Product category: Battery Power Packs Lumedyne
  • Brand: Lumedyne
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lumedyne Battery Power Packs

Lumedyne 400 W S Power Pack for Quantum X2 - Xtra Fast Recycle Lumedyne 400 W S Power Pack for Quantum X2 - Xtra Fast Recycle Lumedyne 400 W S Power Pack for Quantum X2 - Xtra Fast Recycle Lumedyne 400 W S Power Pack for Quantum X2 - Xtra Fast Recycle Lumedyne 400 W S Power Pack for Quantum X2 - Xtra Fast Recycle
User manual for the Lumedyne 400 W S Power Pack contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lumedyne product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lumedyne user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lumedyne product will considerably shorten its lifespan!



Product description

The full power 400 w/s Power Pack with X-tra Fast 2.5 second recycling time is made to be used with the Quantum™ X series Heads or any of Lumedyne's Heads used with an Auto Module for power control. The Quantamatic Packs have an On/Off switch and a Battery Gauge, that's it. There is no power level switch to accidentally have in the wrong power setting. Fewer parts make the Pack slightly less expensive than a similar Pack with power control, but it also has fewer components that could possibly fail or malfunction.
    Full Compatibility
  • All of Quantum's TTL and Digital TTL features function normally.
    Power up to 400 Watt/Seconds
  • Using a Booster Module to power a QFX Head above 400 w/s will damage the head immediately.
    Lumedyne Compatible
  • The Lumedyne style Head Jack can also be used at full power with any Lumedyne Flash Head.
    Lumedyne's Auto Modules and Flash Heads can be Boosted up to 2400 w/s provided you have a 2400 w/s Quartz Flashtube.
    Optional Power Adapters
  • A variety of AC adapters, and a vehicle adapter are available.
    100% Charge Recycle Indication
  • Lights up during recycling and goes out only @ 100% charge.
In the Box Lumedyne 400 W/S Power Pack for Quantum X2 - Xtra Fast Recycle
  • Op Tech Shoulder Strap
  • D-Rings Riveted Securely to Pack
  • Captive Vinyl terminal covers
  • 2 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lumedyne 400 W S Power Pack for Quantum X2 - Xtra Fast Recycle in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lumedyne P4QX Specs

    Maximum Watt/Seconds 400 w/s
    Guide Number 220 @ 10', ISO 100, reflector in standard position
    190 with reflector in wide position
    Recycle Time 2.5 seconds
    Distribution Symmetrical
    Flash Ready Indicator Yes
    Built-in Slave No
    Auto Dump Yes
    Fan Cooled No
    Number of Flashes Determined by the removable battery in use
    Battery Charge Time Determined by the battery, and the charger used
    Dimensions 5 x 3 x 7.4" (12.7 x 7.6 x 18.7 cm)
    Weight 2.5 lbs (1.2 kg)
    Package Weight 4.1 lb
    Box Dimensions (LxWxH) 9.0 x 8.1 x 3.4"
