User Manual for Lumedyne 800 W S Flash Head - UV, Coiled Cord Click to enlarge the picture
Contents of the user manual for the Lumedyne 800 W S Flash Head
- Product category: Battery Powered Heads Lumedyne
- Brand: Lumedyne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumedyne Battery Powered Heads
 |
User manual for the Lumedyne 800 W S Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumedyne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumedyne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumedyne product will considerably shorten its lifespan!
|

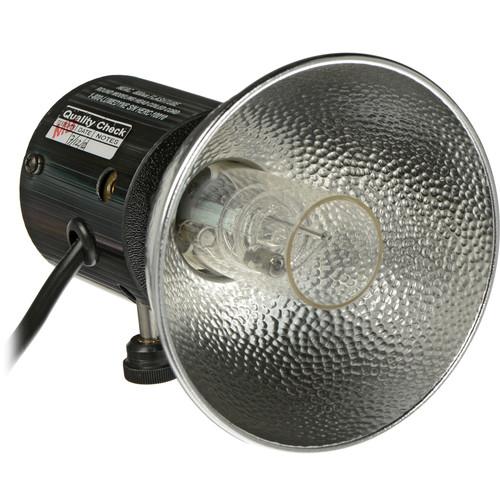

Product description The circuit production in the Lumedyne 800 w/s flash head allows the head to be shorter and lighter but also stronger than before. It is electronically able to handle 2400 w/s and are only limited to power by the 800 w/s or 2400 w/s Quartz Flashtube that is used in the head. It has the same Classic round shape, 1/4-20 threaded mount, and have an ultra lightweight PVC plastic body. This makes it ideal for Camera Bracket mounting. This Lumedyne head comes with a standard 800 w/s flashtube, coiled power cord, and modeling light. There is a 2400 w/s quartz flashtube that can be purchased with the head instead of the 800 w/s flashtube. The 2400 w/s quartz flashtubes are also available separately. - User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube.
- Heavy Duty Electronics
- Any Lumedyne flash head can handle up to 2400 w/s.
- Standard Flash Mount
- Standard 1/4"-20 thread mount enables the head to be mounted easily onto a camera bracket, light stand or tripod.

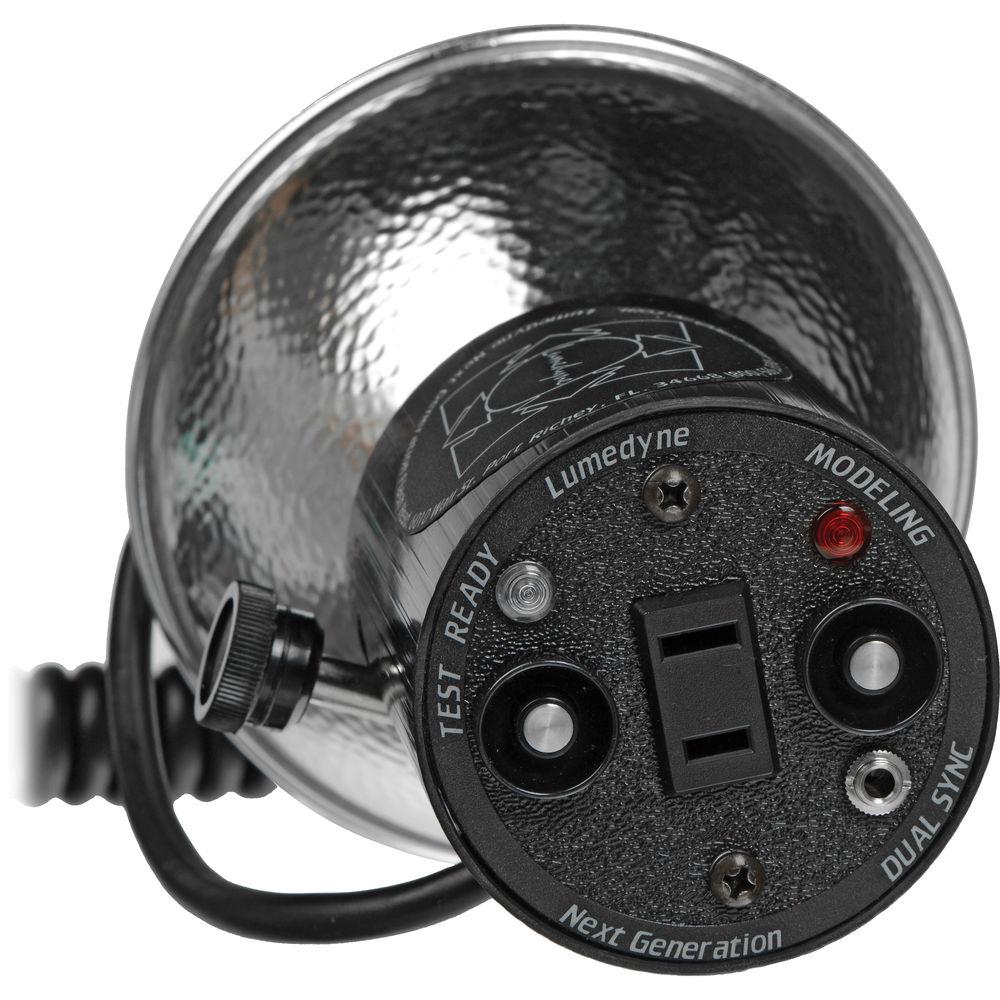

- Dual Sync Jacks
- Includes a standard household (twin blade) and mono (phono) plug sync jack.
- Ready Light
- Lets the photographer know when flash is ready to fire.
- Test Fire Button
- Located on the back of the head, it allows firing the head when the pack may be out of reach.
- Lightweight and Compact
- Easy to carry mounted on a camera, easy to transport on location.
- Modeling Light
- Assists focusing in the dark and visualizing shadows or reflections.
- UV Coated Flashtube
- Insures accurate color rendition.

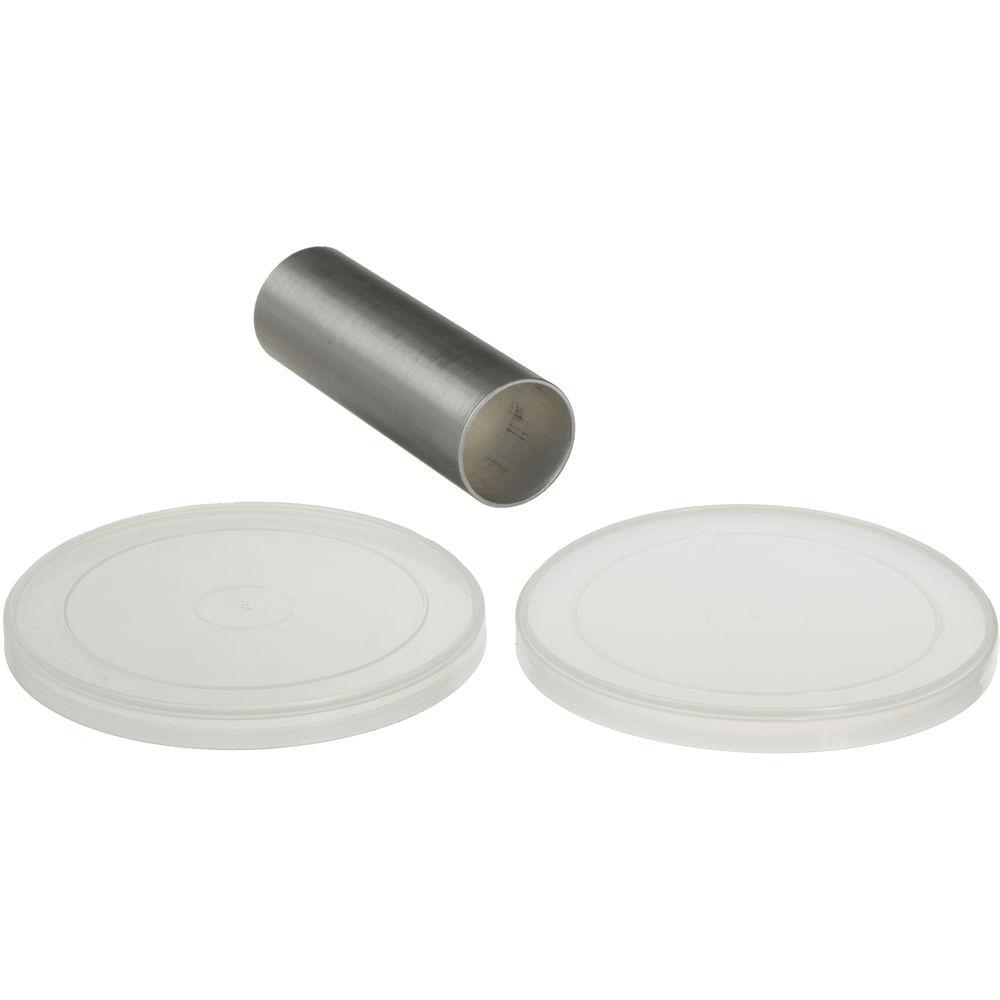

In the Box Lumedyne 800 W/S Flash Head - UV, Coiled Cord 5" (12.4cm) Hammer Dimple, 2 Position Reflector Snoot 2 Diffusers (1 Clear, 1 Dense Cloudy) 2 Guide Number Cards 800 w/s Flash Tube (097V) Modeling Light (095) Coiled power cord 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumedyne 800 W S Flash Head - UV, Coiled Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumedyne HERC Specs | Maximum Watt/Seconds | 800 w/s, as supplied, 2400 w/s with 097Q | | User Replaceable Flashtube | Yes (097V) | | Changeable Reflector | Yes | | Circuit Protection | No | | Cable Length | 4 - 7', coiled | | Modeling Light Wattage | 25W (095) | | Modeling Light On/Off Switch | Yes, also dims during recycle | | Protective Glass Dome | No | | Fan Cooled | No | | Dimensions | 2.5 x 2.8" (6.3 x 7.1 cm) without reflector | | Weight | 1 lb (.3 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 7.716 x 5.512 x 5.276" |
