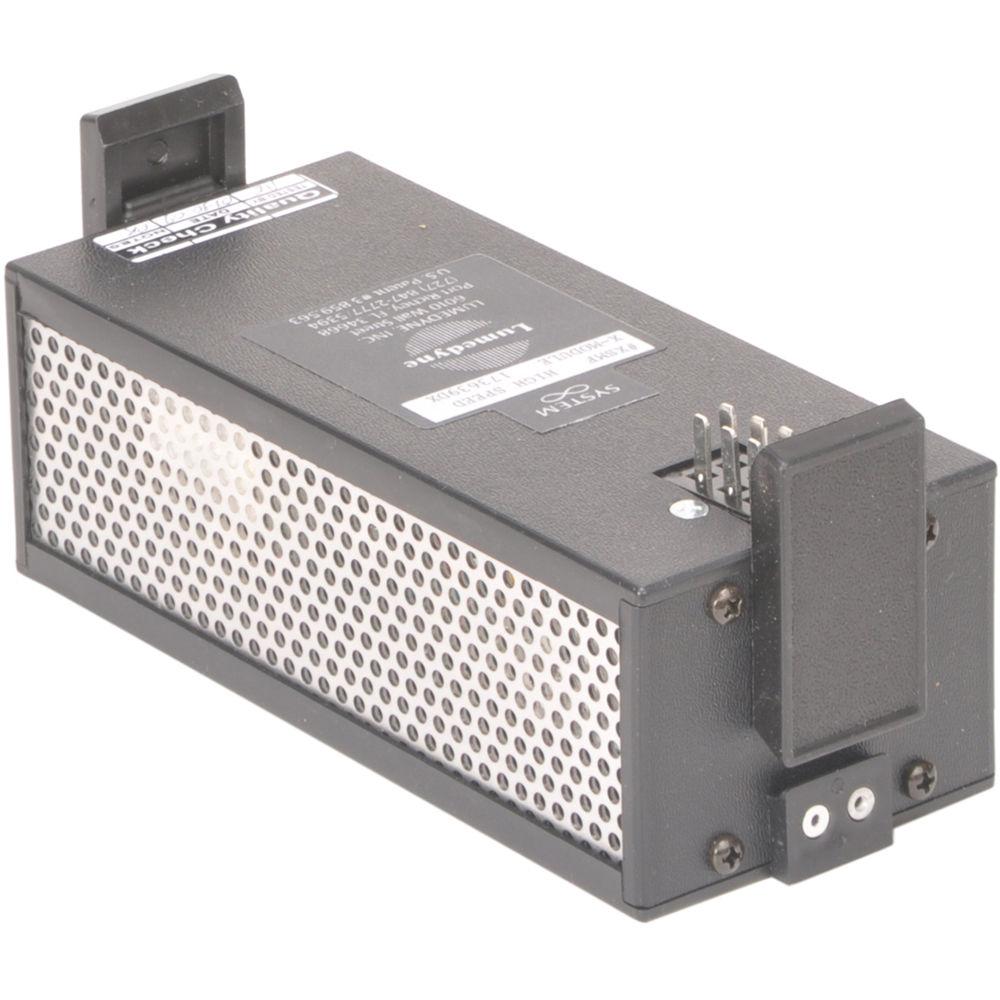

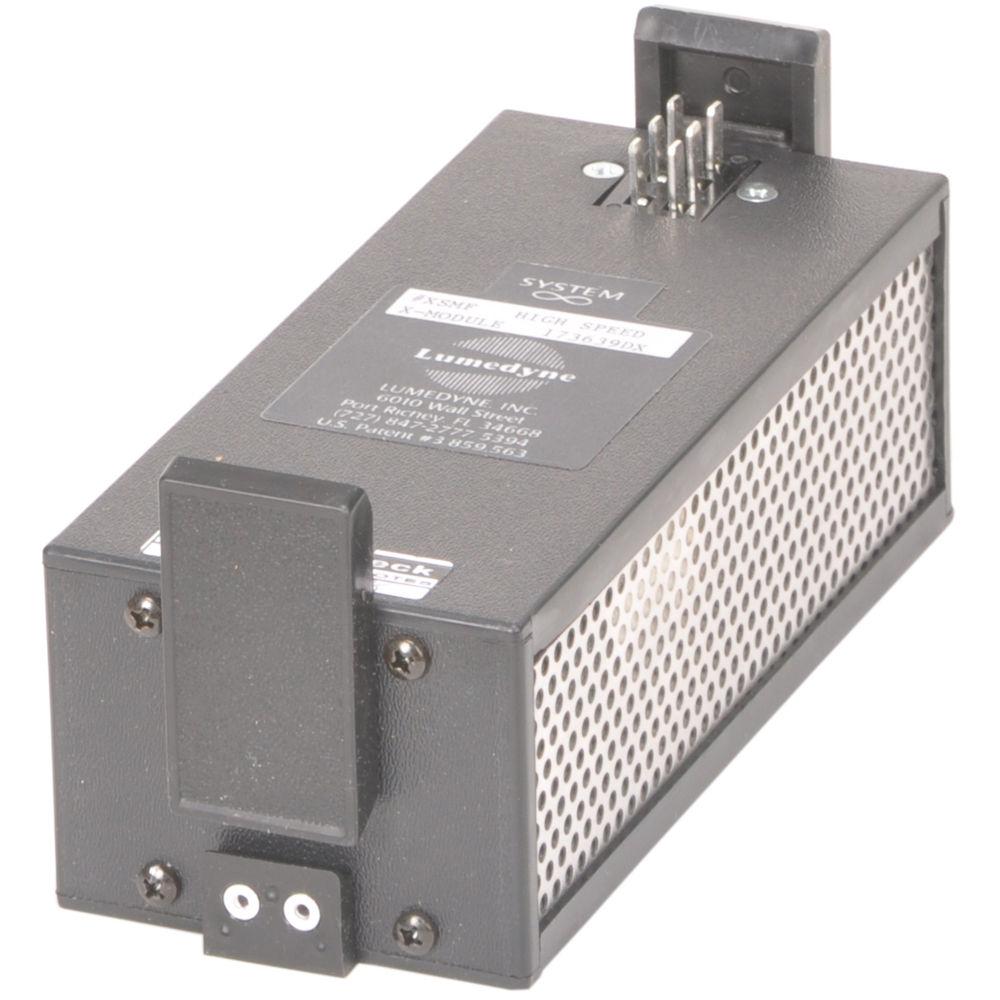

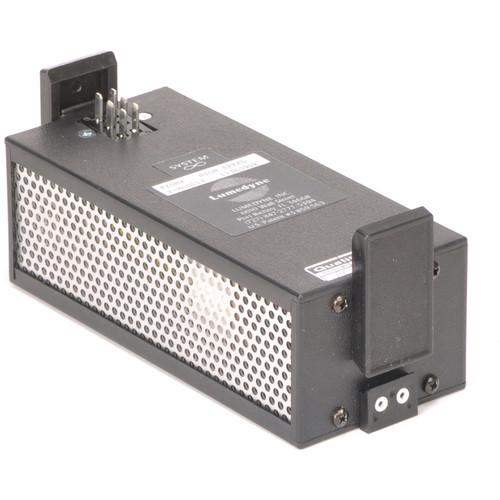

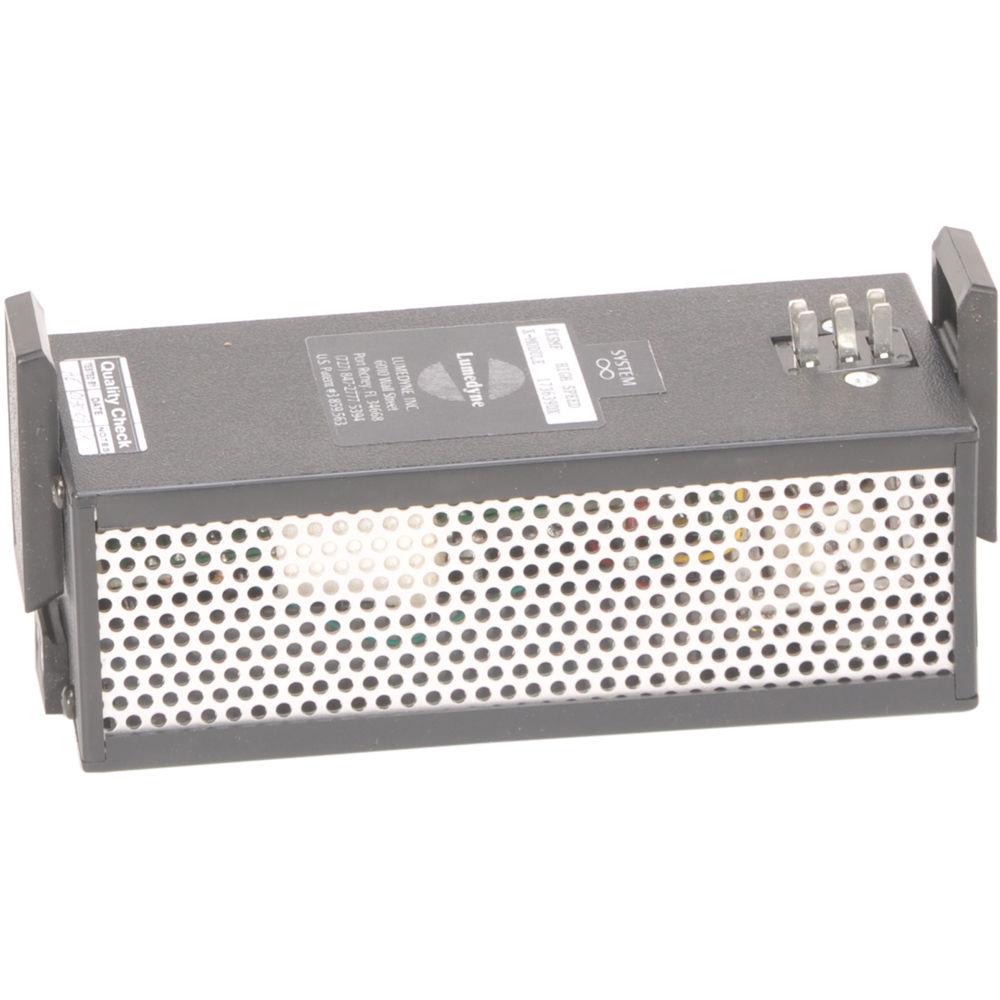

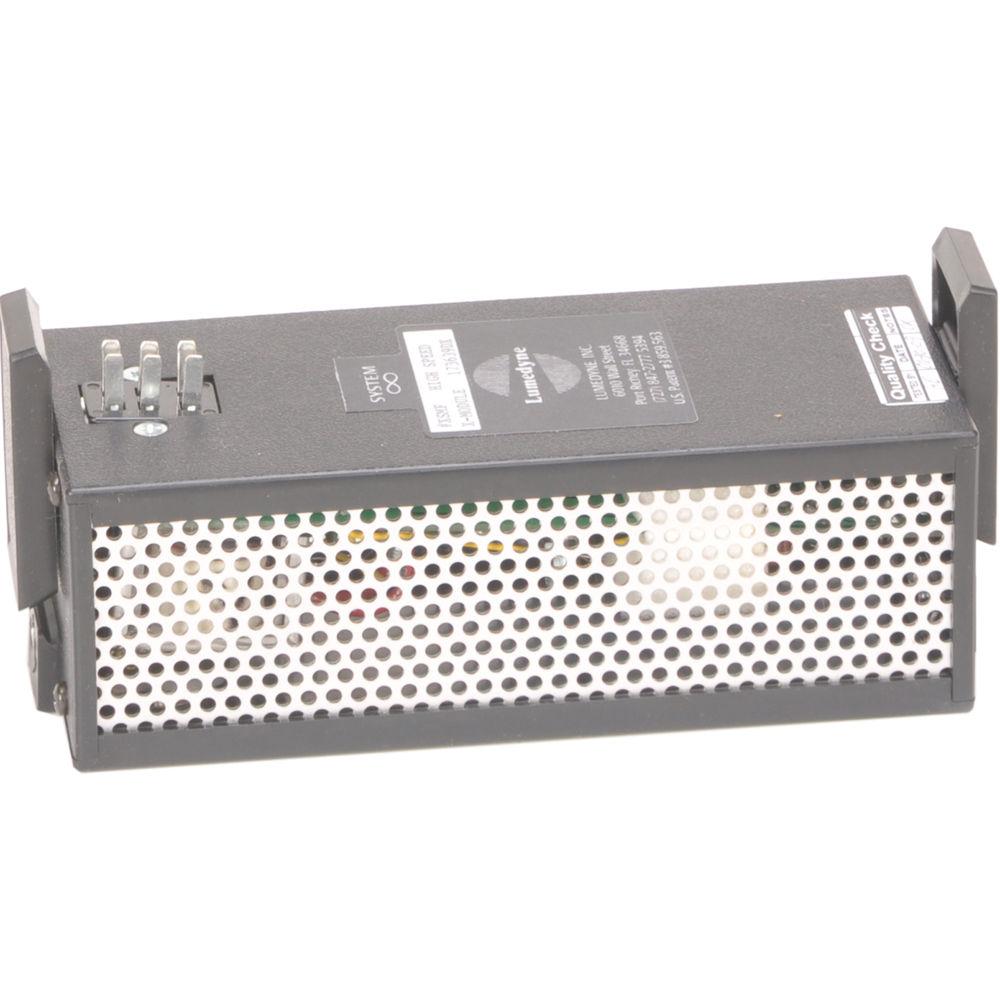

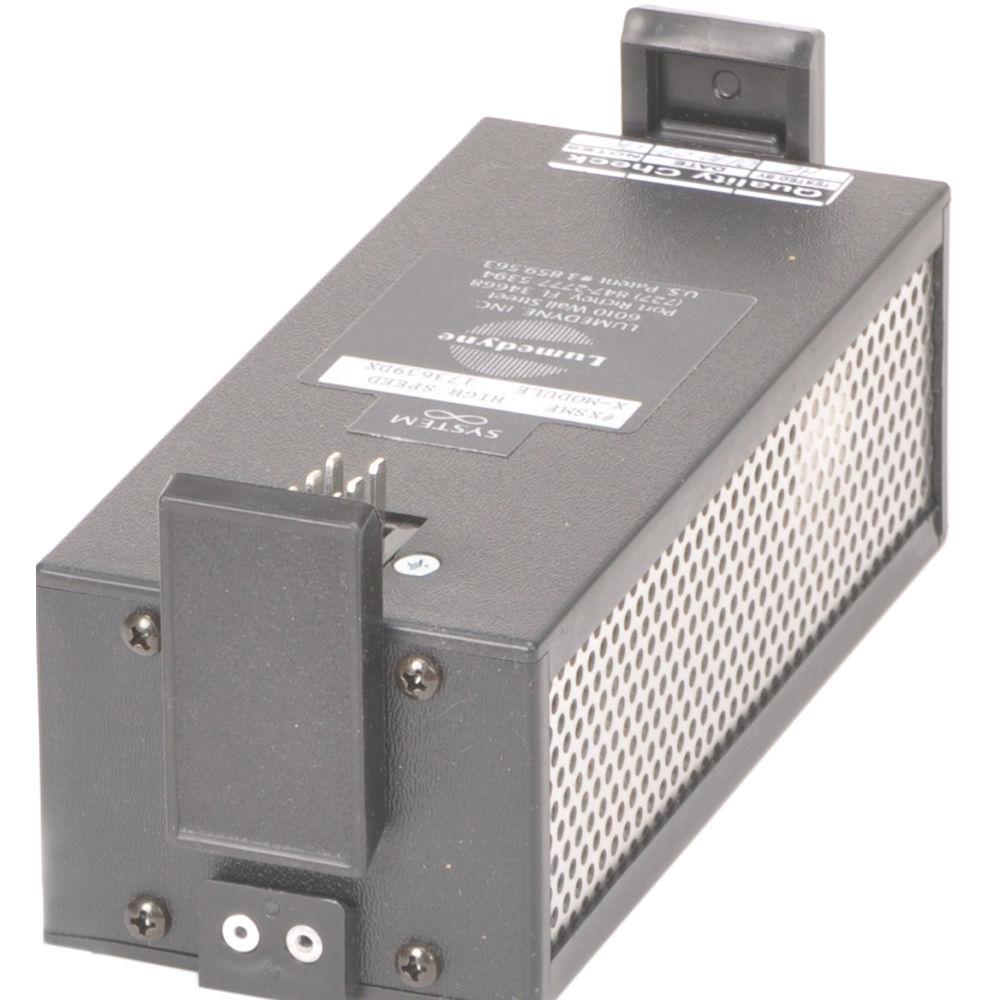

User Manual for Lumedyne High Speed Module for Power Packs Click to enlarge the picture
Contents of the user manual for the Lumedyne High Speed Module for Power
- Product category: DC Power Supplies Lumedyne
- Brand: Lumedyne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumedyne DC Power Supplies
 |
User manual for the Lumedyne High Speed Module for Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumedyne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumedyne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumedyne product will considerably shorten its lifespan!
|
Product description Operates from a Super or Ultra Battery. 50% Faster than older HSMs made a few years ago. Recycles twice as fast as most packs alone. Two 054Xs can be combined with an Ultra Battery for the same recycling times as the 054Z unit alone. High Speed Modules allow you to make the recycling times faster than any other brand of portable flashes at any power level offered. - HSMs speeds up the recycle for any power pack
- Only use HSMs with larger Batteries- Never a Mini or a Regular
- The Vehicle Battery Kompartment (029K) may be used with HSMs, with the same results obtained from a Ultra Battery
- HSMs are not for use with the AC Supplies or Vehicle Adapters
- Put the HSMs at the bottom of the system and the system automatically recycles faster in every setting.
In the Box Lumedyne High Speed Module for Power Packs One (1) LU054X High Speed Module Instruction Pamphlet One (1) Year Warranty Registration Card. Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumedyne High Speed Module for Power Packs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumedyne XSMF Specs | | RECYCLING TIMES IN SECONDS | | With LU065 | 50 W/S= .35 With One (1) LU054X, .26 With Two (2) LU054X
200 W/S= 1.3 With One (1) LU054X, 1 With Two (2) LU054X
800 W/S= 5 With One (1) LU054X, 3.8 With Two (2) LU054X
2400 W/S= 15 With One (1) LU054X, 11.3 With Two (2) LU054X | | With LU065/7 (X,L,Q) | 50 W/S= .25 With One (1) LU054X, .2 With Two (2) LU054X
200 W/S= 1 With One (1) LU054X, .8 With Two (2) LU054X
800 W/S= 4 With One (1) LU054X, 3 With Two (2) LU054X
2400 W/S= 12 With One (1) LU054X, 9 With Two (2) LU054X | | With LU065/7 Z | 50 W/S= .2 With One (1) LU054X, .15 With Two (2) LU054X
200 W/S= .8 With One (1) LU054X, .6 With Two (2) LU054X
800 W/S= 3.2 With One (1) LU054X, 2.4 With Two (2) LU054X
2400 W/S= 9.6 With One (1) LU054X, 7.2 With Two (2) LU054X | | Note | For all Flash Heads Operating above 800 Watt Seconds, a LU090Q Standard Quartz or LU097Q Modeling Quartz Flash Tube must be installed. | | Warning 1 | Not for use with AC Supplies, Vehicle Adaptors or batteries smaller than the SuperBattery. | | Warning 2 | An Ultra Battery or larger must be used if two #054X's are used at the same time. | | Weight | 1.1 lbs. (0.5kg). | | Dimensions | 2.5 x 3 x 7.4" (6.4 x 7.6 x 18.8cm). | | | | Package Weight | 1.32 lb | | Box Dimensions (LxWxH) | 9.0 x 4.5 x 3.5" |
