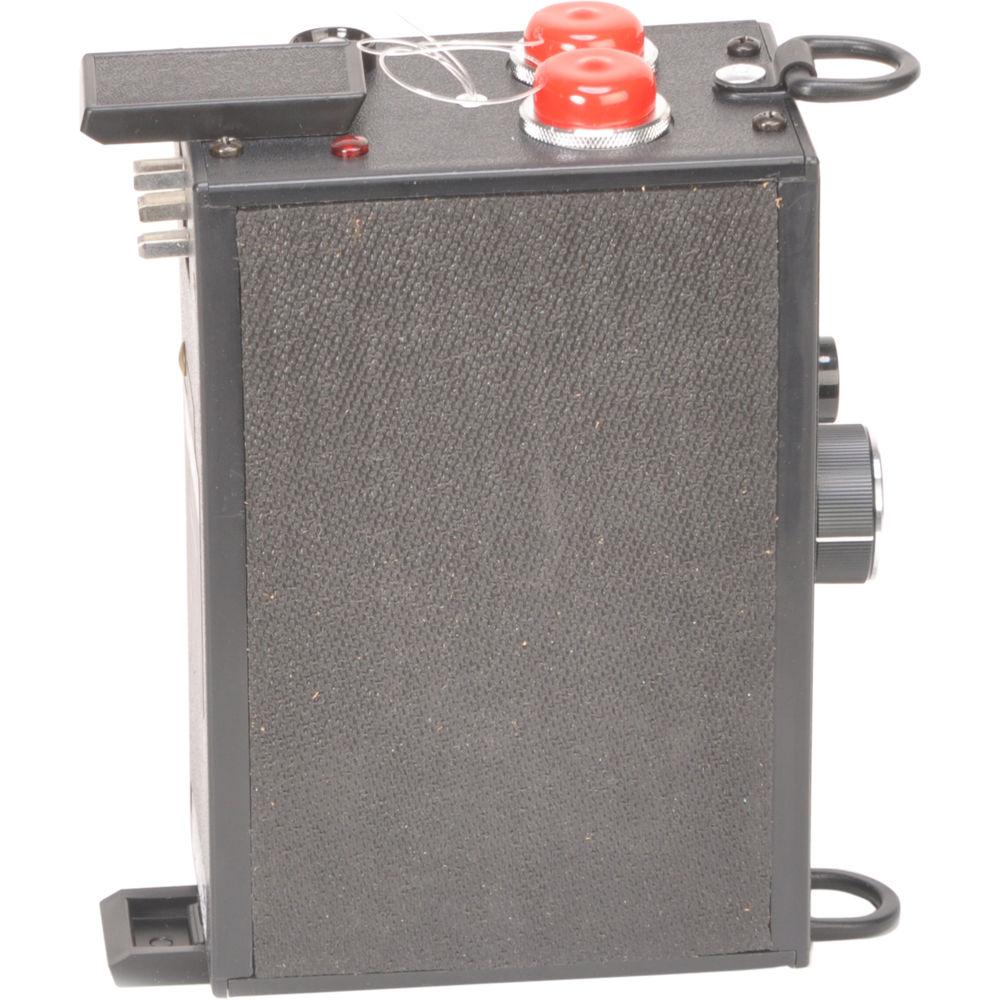

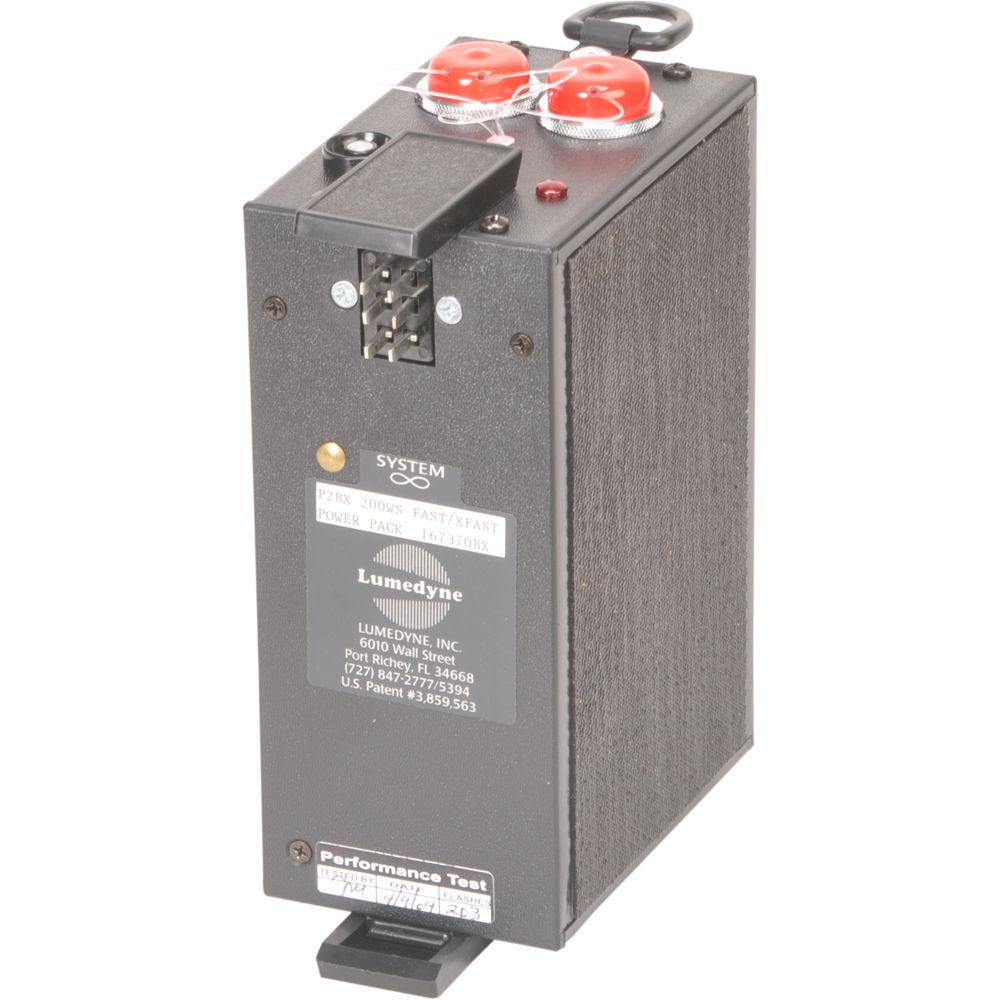

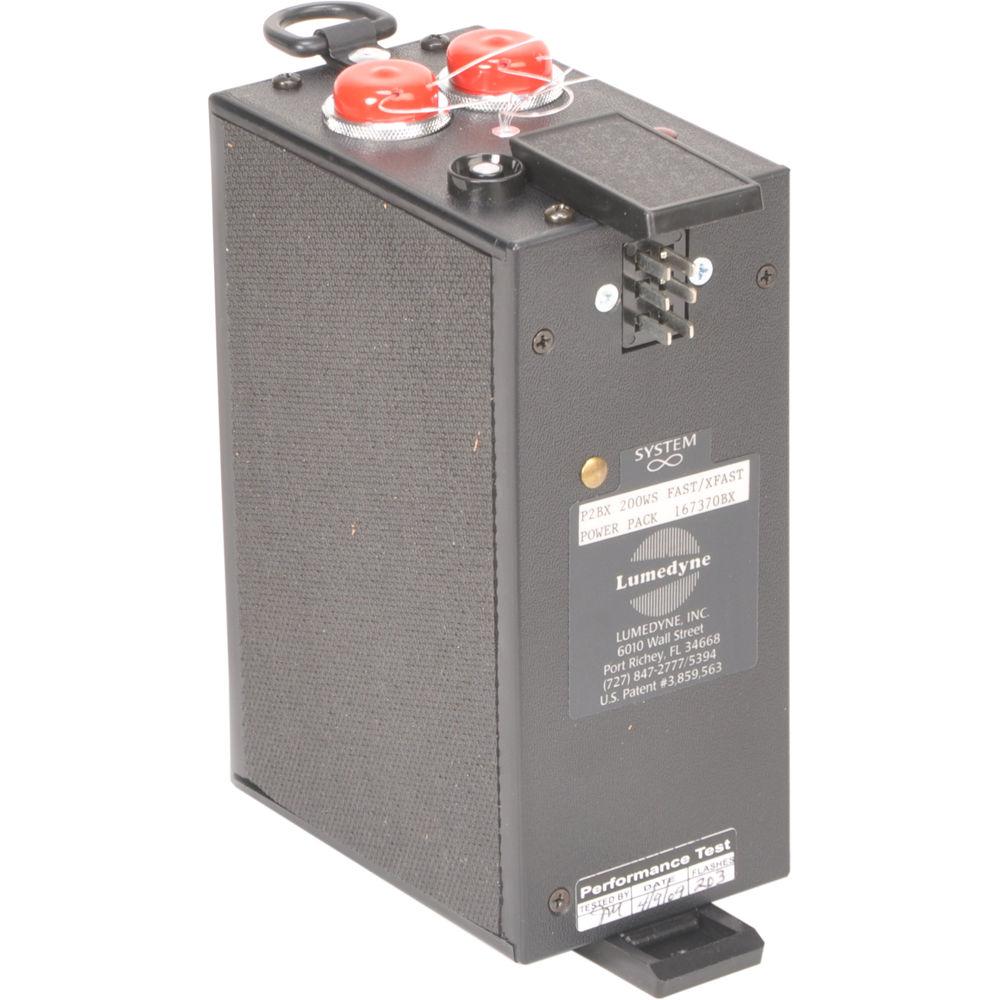

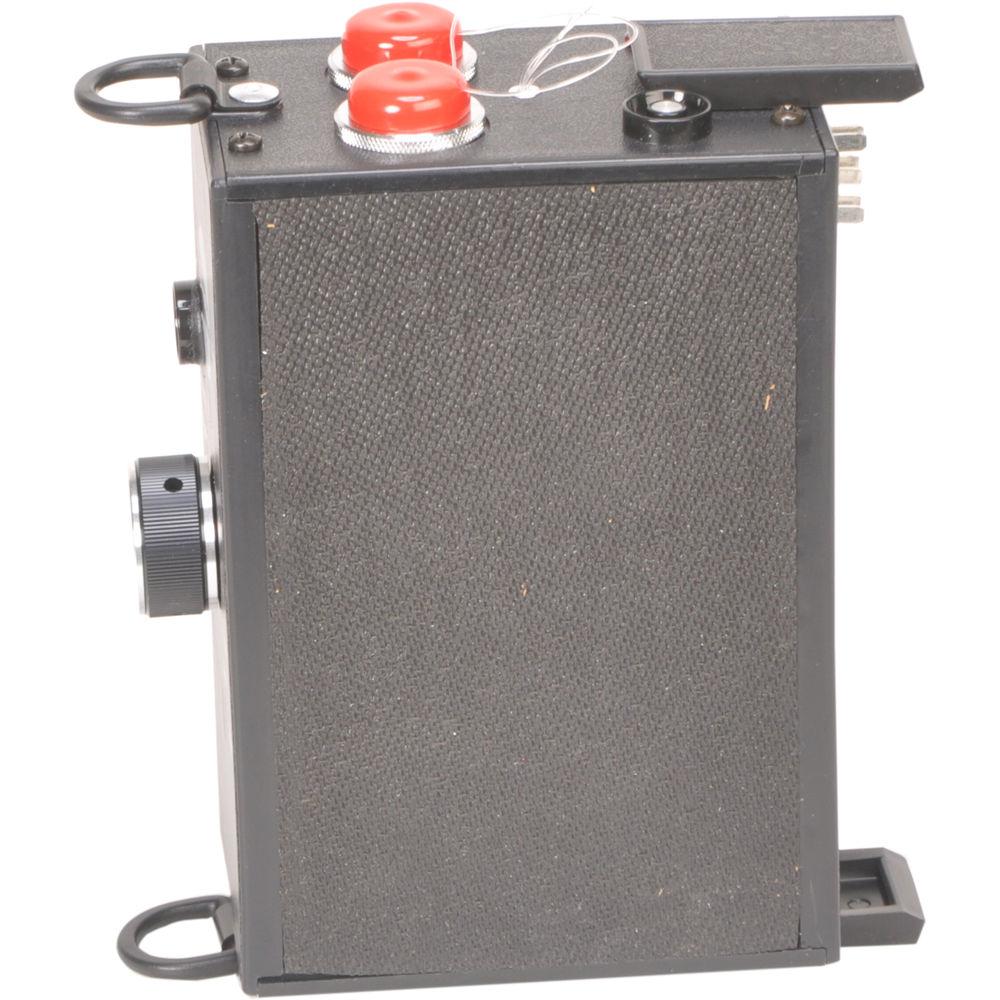

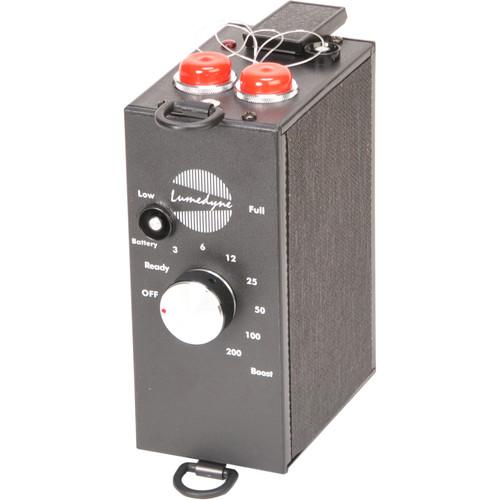

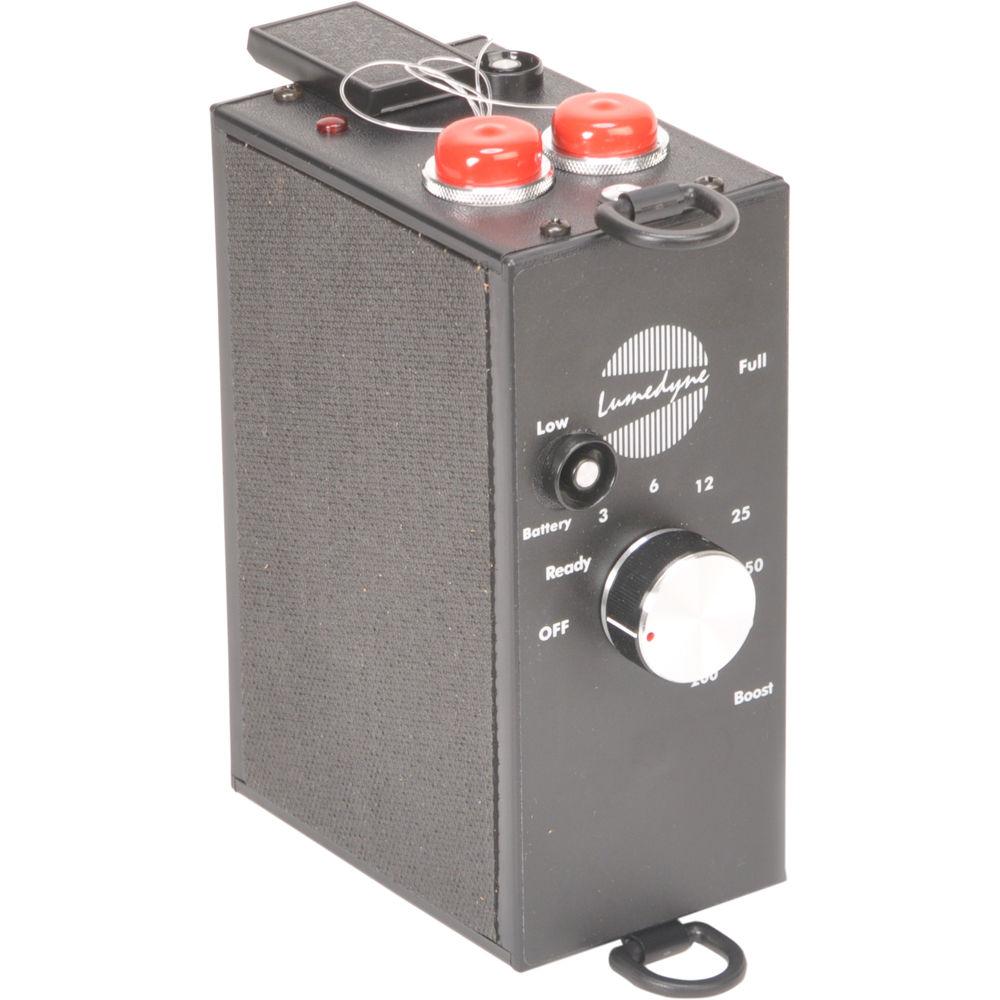

User Manual for Lumedyne P2BX - Signature Series 200 Watt Second Basic X-tra Fast Power Supply Click to enlarge the picture
Contents of the user manual for the Lumedyne P2BX - Signature Series 200
- Product category: Battery Power Packs Lumedyne
- Brand: Lumedyne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumedyne Battery Power Packs
 |
User manual for the Lumedyne P2BX - Signature Series 200 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumedyne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumedyne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumedyne product will considerably shorten its lifespan!
|
Product description The Lumedyne Signature Series power packs are the natural evolution of the existing Lumedyne system. Existing boosters and high speed modules are compatible. Existing heads plug directly into the pack, while the Signature Series heads use an extension cord or head cable to plug into the pack. Packs are available in 200 w/s or 400 w/s. Basic or Deluxe Packs can be purchased with fast or "x-tra" fast recycling. These can be purchased individually or as part of a kit. The Basic Pack offers a 4-light battery gauge and 7 F-stops of manual control through one or two flash heads. It operates with one main control and an On/Off button for the battery gauge. This pack is for manual exposures or can be teamed up with an Auto Module for an automatic F-stop selection. - 7 F-Stop Range
- Using manual control.
- Water Resistant
- Lumedynes are not waterproof, but they are splash and rain resistant.
- Threaded Inserts for Belt Clip
- Attach a belt clip or other accessory to the 1/4-20 drilled holes.
- Power and Flexibility Increased with Booster Modules
- Add on a 200 or 400 w/s booster up to a total of 2400 w/s.
Power up to 2400 w/s by switching to a 2400 w/s flashtube. Adapters are available to run the Quantum Q-flash X(2) up to 400 w/s. - Asymmetrical Distribution
- The booster modules allow asymmetrical power distribution between different flash heads.
- Optional AC and Vehicle Power Adapters
- A variety of AC adapters is available.
- 100% Charge Recycle Indication
- Lights up during recycling and goes out when the pack has achieved 100% charge.
In the Box Lumedyne P2BX - Signature Series 200 Watt/Second Basic X-tra Fast Power Supply Power Pack Reversible Shoulder Strap D-Rings Riveted Securely to Pack Two Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumedyne P2BX - Signature Series 200 Watt Second Basic X-tra Fast Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumedyne P2BX Specs | Maximum Watt/Seconds | 200 w/s | | Guide Number | 113 @ 10 Feet with ISO 100 | | Recycle Time | 1.3 seconds @ 200 w/s | | Distribution | Symmetrical | | Flash Ready Indicator | Yes | | Built-in Slave | No | | Auto Dump | Yes | | Fan Cooled | No | | Dimensions | 5 x 3 x 7.4" (12.7 x 7.6 x 18.7cm) | | Weight | 2.6 lbs (1.2 Kg) | | Number of Flashes | Dependant on the removable battery in use | | Battery Charge Time | Dependant on the battery and charger used | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 8.8 x 8.4 x 4.4" |
