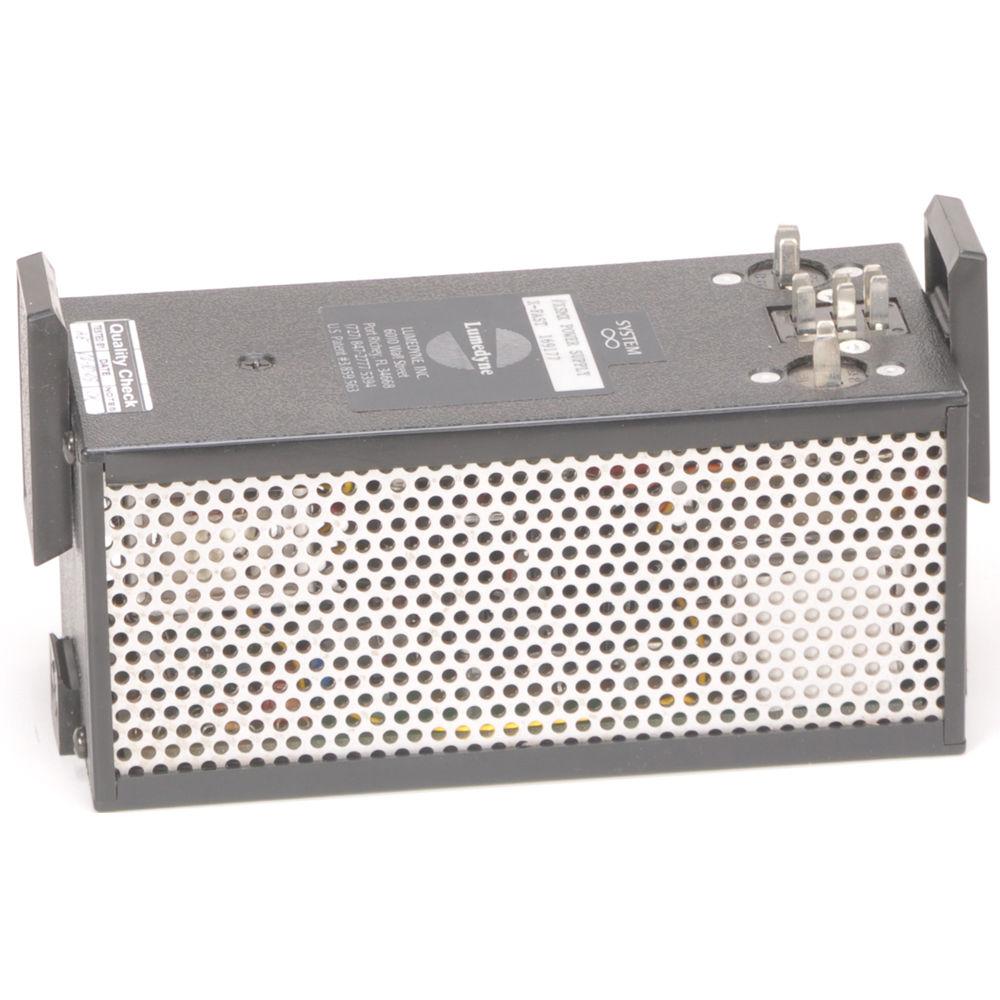

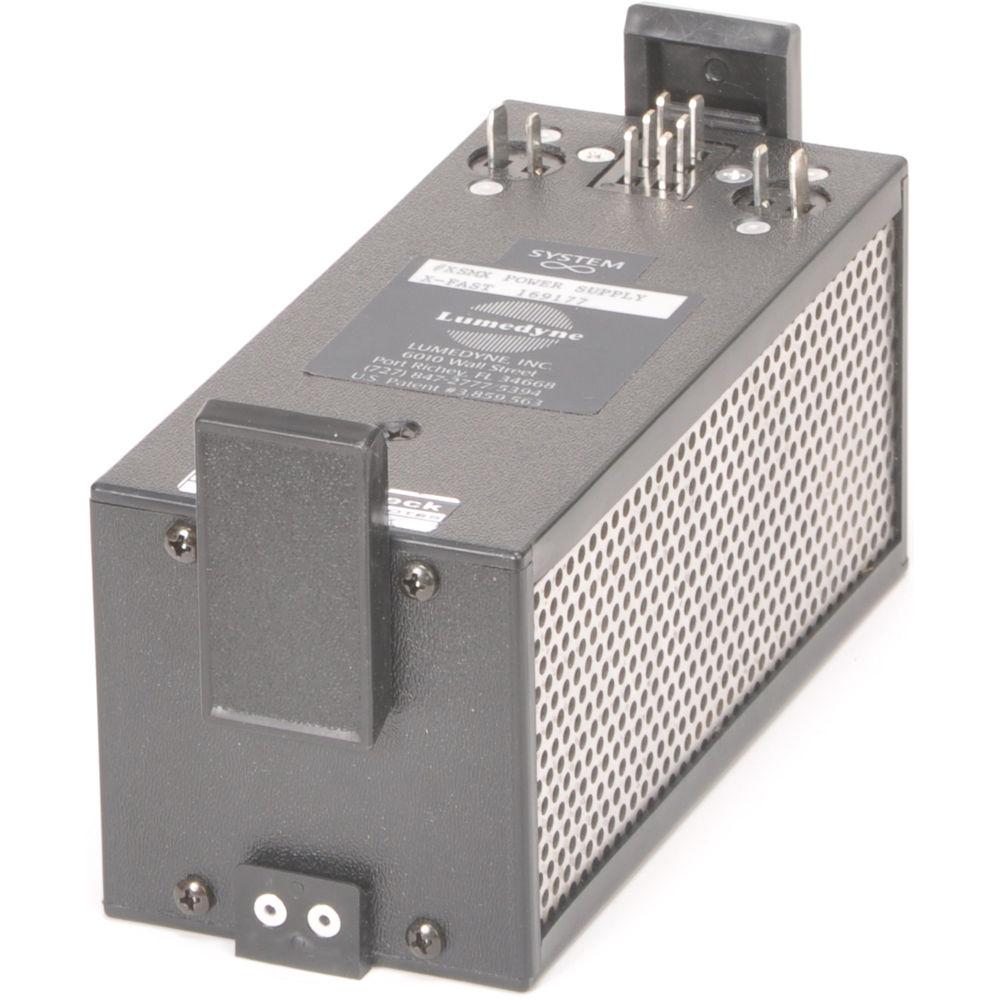

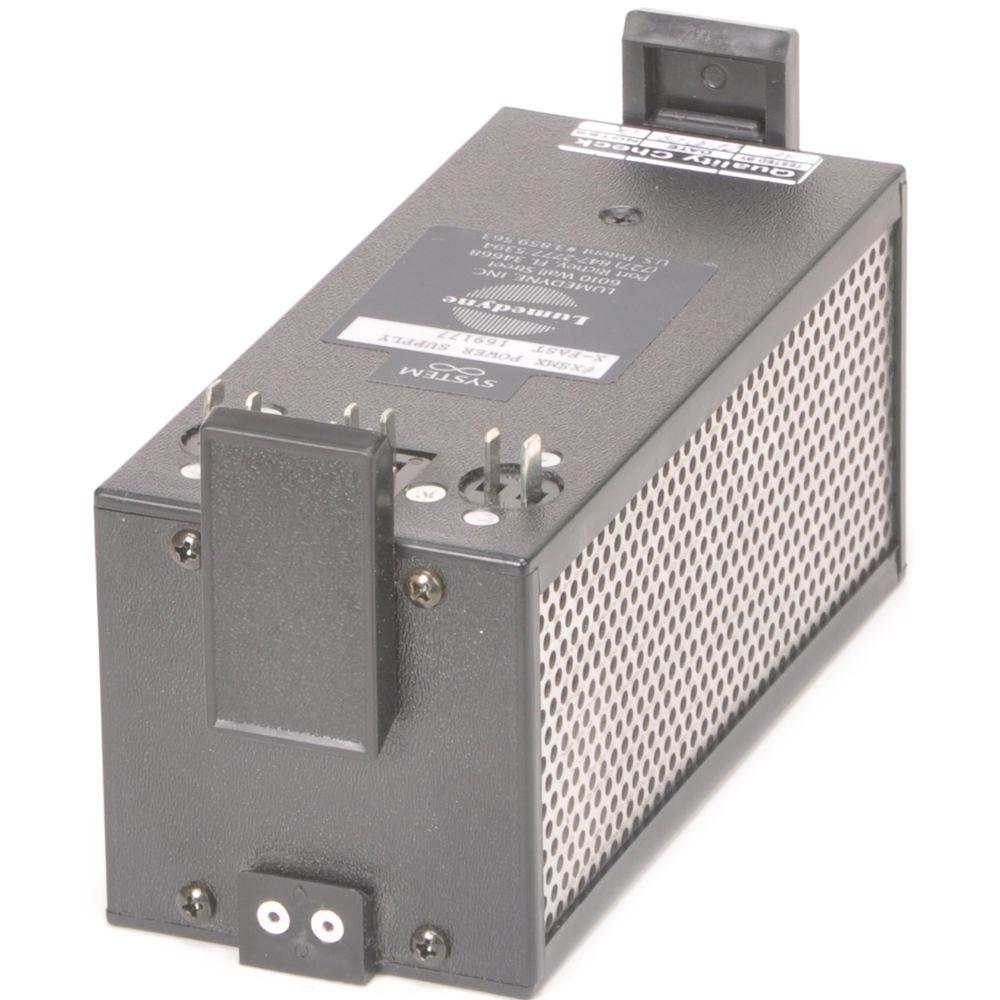

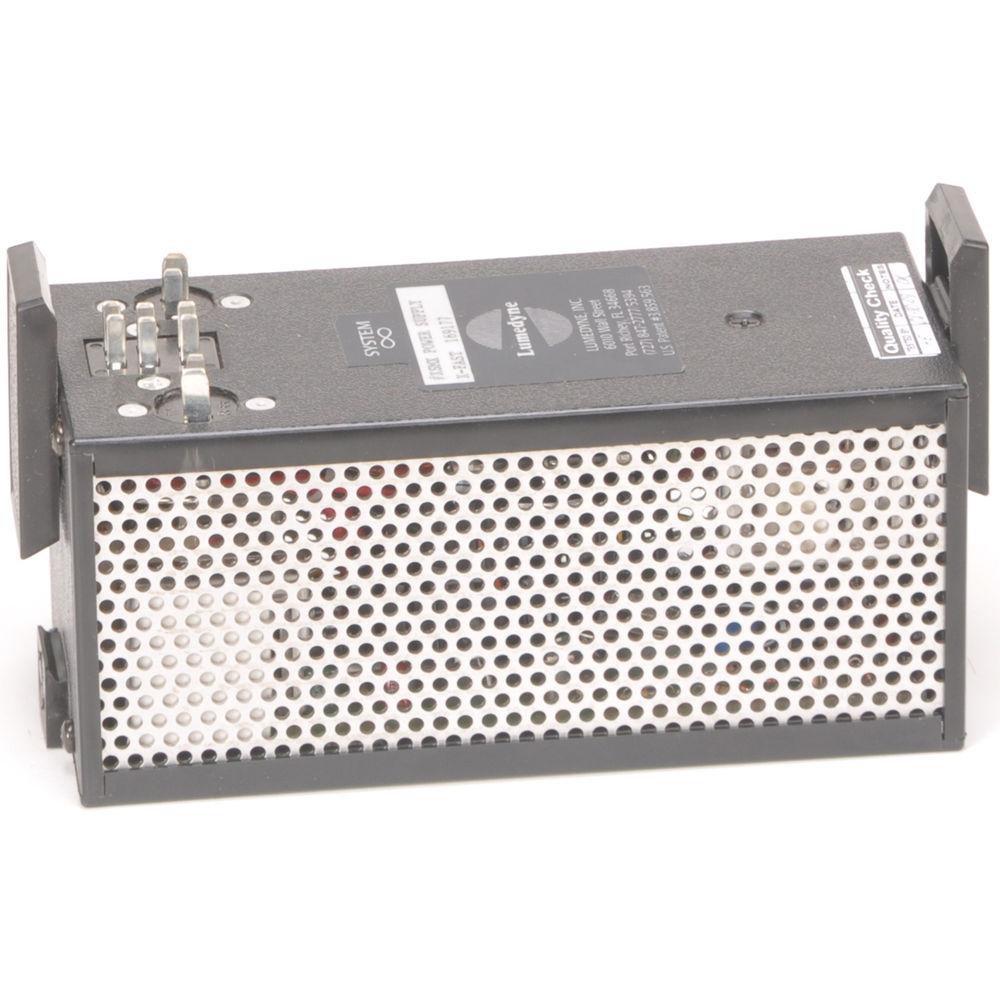

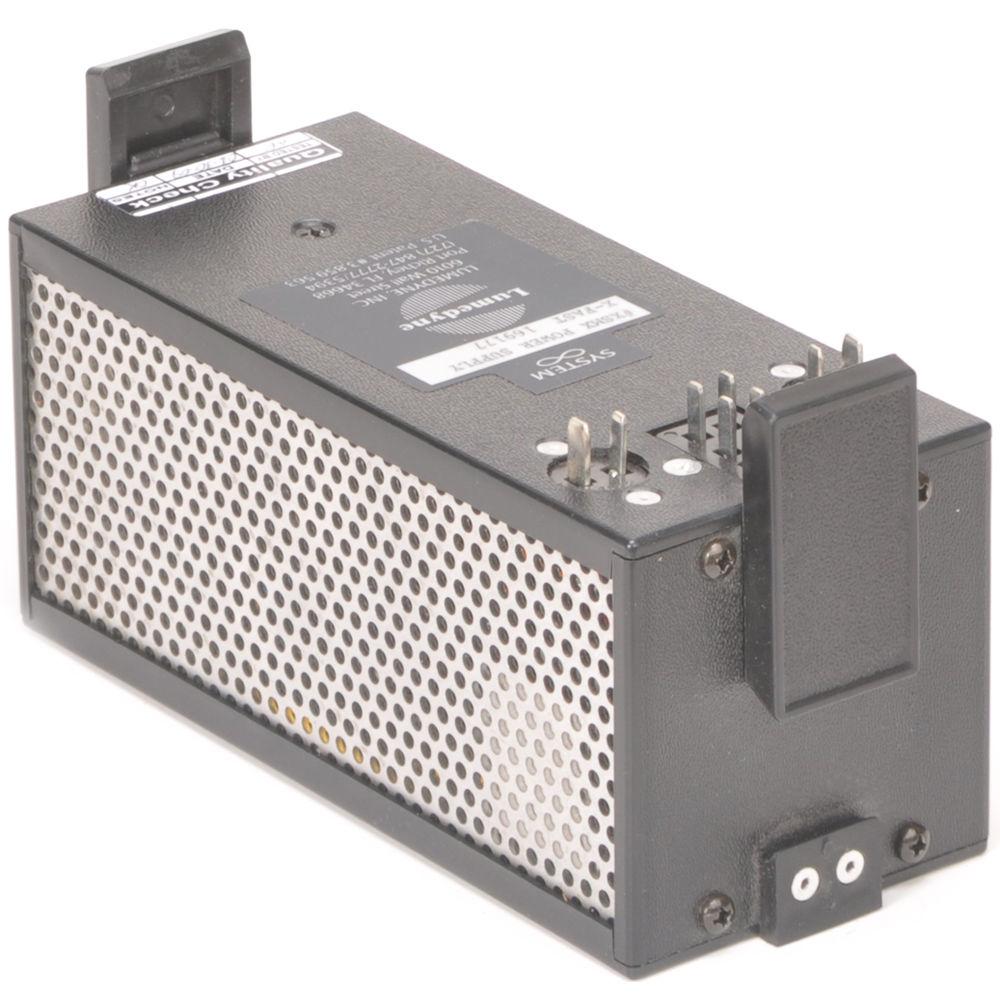

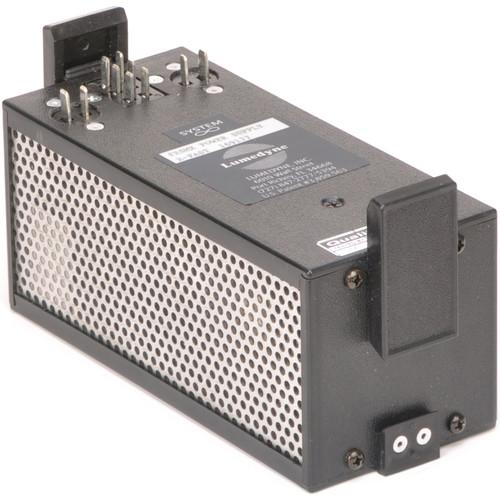

Product description This unit is twice as fast as the 054X. Special connectors to handle the high current necessary for this amazing recycling rate will only fit the current style (028/C Ultra Battery) or (029K). This is strongly recommended for anyone who really plans to push the equipment hard. High Speed Modules allow you to make the recycling times faster that any other brand of portable flashes at any power level offered. - HSMs speed up the recycle for any power pack
- Only use HSMs with larger Batteries- Never a Mini or a Regular
- The Vehicle Battery Kompartment (029K) may be used with HSMs as if it were an Ultra Battery
- HSMs are not for use with the AC Supplies or Vehicle Adapters
- Put the HSMs next to the Battery at the bottom of the system and the system automatically recycles faster in every setting.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumedyne Ultra Speed Module for Power Packs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumedyne XSMX Specs | | RECYCLING TIMES IN SECONDS | | With LU065 | 50 W/S= .26 With One (1) LU054Z, .26 With Two (2) LU054X
200 W/S= 1 With One (1) LU054Z, 1 With Two (2) LU054X
800 W/S= 3.8 With One (1) LU054Z, 3.8 With Two (2) LU054X
2400 W/S= 15 With One (1) LU054Z, 11.3 With Two (2) LU054X | | With LU065/7 (X,L,Q) | 50 W/S= .2 With One (1) LU054Z, .2 With Two (2) LU054X
200 W/S= .8 With One (1) LU054Z, .8 With Two (2) LU054X
800 W/S= 3 With One (1) LU054Z, 3 With Two (2) LU054X
2400 W/S= 12 With One (1) LU054Z, 9 With Two (2) LU054X | | With LU065/7 Z | 50 W/S= .15 With One (1) LU054Z, .15 With Two (2) LU054X
200 W/S= .8 With One (1) LU054Z, .6 With Two (2) LU054X
800 W/S= 2.4 With One (1) LU054Z, 2.4 With Two (2) LU054X
2400 W/S= 7.2 With One (1) LU054Z, 7.2 With Two (2) LU054X | | Note | For all Flash Heads Operating above 800 Watt Seconds, a LU090Q Standard Quartz or LU097Q Modeling Quartz Flash Tube must be installed. | | Warning 1 | Not for use with AC Supplies, Vehicle Adaptors or batteries smaller than the SuperBattery. | | Warning 2 | An Ultra Battery or larger must be used if two #054X's are used at the same time. | | Weight | 1.7 lbs. (0.77kg) | | Dimensions | 2.5 x 3 x 7.4" (6.4 x 7.6 x 18.8cm). | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 8.8 x 4.5 x 3.5" |
