User Manual for Lumens 4K UHD 12x Optical Zoom PTZ Video Camera Click to enlarge the picture
Contents of the user manual for the Lumens 4K UHD 12x Optical Zoom
- Product category: PTZ Cameras Lumens
- Brand: Lumens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumens PTZ Cameras
|
User manual for the Lumens 4K UHD 12x Optical Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumens product will considerably shorten its lifespan!
|

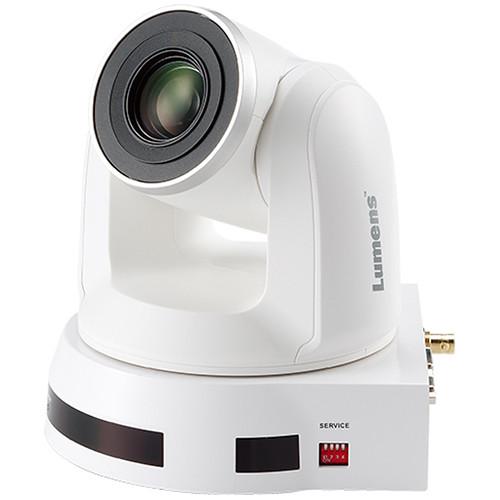

Product description This white 4K UHD 12x Optical Zoom PTZ Video Camera from Lumens is well suited for use as a video conference camera, and with its 12x zoom lens it is also suitable for use in auditoriums, lecture halls and production environments thanks to its tally light. It incorporates a 1/2.3" 9MP CMOS sensor for clear output. The camera utilizes a highly efficient DC motor servo controller to achieve high-speed, quiet positioning, and you can program up to 128 position presets.
With an approximate 0.4" minimum object distance on the wide end of the zoom, you can use this in a small conference room, or mount it in a lecture hall using the 12x optical (12x digital) reach of the zoom lens to get close to your subject. Camera control is via the built-in RS-232 / RS-422 interface with the camera supporting VISCA and Pelco-D protocols. Supporting PoE (Power over Ethernet), you can power it from a PoE RJ-45 connector. It also supports HDBaseT, which supplies control, power and video output. The camera supports WDR and 3D NR for a clean image, and the image flip feature allows you to mount the camera on a desktop or the ceiling and adjust the orientation of the image to keep it upright. -
- The camera supports a total of 128 programmable presets that you can distribute across pan, tilt, zoom, focus, exposure, and white balance modes
- 3D NR technology ensures a clear image
- WDR provides a clean image even when background is extremely bright
- UHD 4K up to 30 fps and Full HD up to 59.94 fps
- Automatic and manual white balance for complex lighting environments
- Simultaneous 3D-SDI, DVI, component, composite output
- Maximum tilt and panning speed of 300°/sec
- 340° pan range
- 120° tilt range
- Built-in tally light
UPC: 842183002057 In the Box Lumens 4K UHD 12x Optical Zoom PTZ Video Camera (White) Remote Control Power Supply Power Cord Ceiling Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumens 4K UHD 12x Optical Zoom PTZ Video Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumens VC-A70H Specs | Sensor | 1/2.3" 9 MP CMOS | | Video Output | UHD 4K: 3840 x 2160p 29.97/25
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
SD: NTSC/PAL | | Zoom | Optical: 12x
Digital: 12x | | Panning Range | -170 to 170° | | Panning Speed | 300°/sec | | Tilt Range | -30 to 90° | | Tilt Speed | 300°/sec | | Preset Positions | 128 | | HD Video Output | HDBaseT
HDMI | | Video S/N Ratio | >50 dB | | Camera Control Interface | RS-232 / RS-422 | | PTZ Camera Control | VISCA
Pelco D | | Shutter Speed | 1 to 1/10,000 sec | | Focal Length | 3.9-46.8mm | | Horizontal Viewing Angle | 74° | | Aperture | f/1.8 to f/2.0 | | Minimum Illumination | 3.0 lux (f/1.8 / 50 IRE / 30 fps) | | Minimum Object Distance (M.O.D.) | Tele: 59.1" / 150.0 cm
Wide: 0.4" / 1.0 cm | | Gain Control | Auto
Manual | | Exposure Control | Auto
Manual | | Focus System | Auto
Manual | | Image Flip | Yes | | Camera Control Interface | RS-232/RS-422 | | Control Protocol | VISCA, Pelco-D | | PoE | IEEE802.3af | | Dimensions | 6.9 x 6.7 x 7.4" / 17.5 x 17.0 x 18.8 cm | | Weight | 4.4 lb / 2.0 kg | | | | Package Weight | 8.7 lb | | Box Dimensions (LxWxH) | 12.6 x 10.6 x 10.6" |
