Lumens 4K UHD 12x Optical Zoom

Search your instruction manual in PDF to download

User Manual for Lumens 4K UHD 12x Optical Zoom PTZ Video Camera

Click to enlarge the picture
Lumens 4K UHD 12x Optical Zoom PTZ Video Camera Contents of the user manual for the Lumens 4K UHD 12x Optical Zoom
  • Product category: PTZ Cameras Lumens
  • Brand: Lumens
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lumens PTZ Cameras

Lumens 4K UHD 12x Optical Zoom PTZ Video Camera Lumens 4K UHD 12x Optical Zoom PTZ Video Camera Lumens 4K UHD 12x Optical Zoom PTZ Video Camera
User manual for the Lumens 4K UHD 12x Optical Zoom contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lumens product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lumens user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lumens product will considerably shorten its lifespan!



Product description

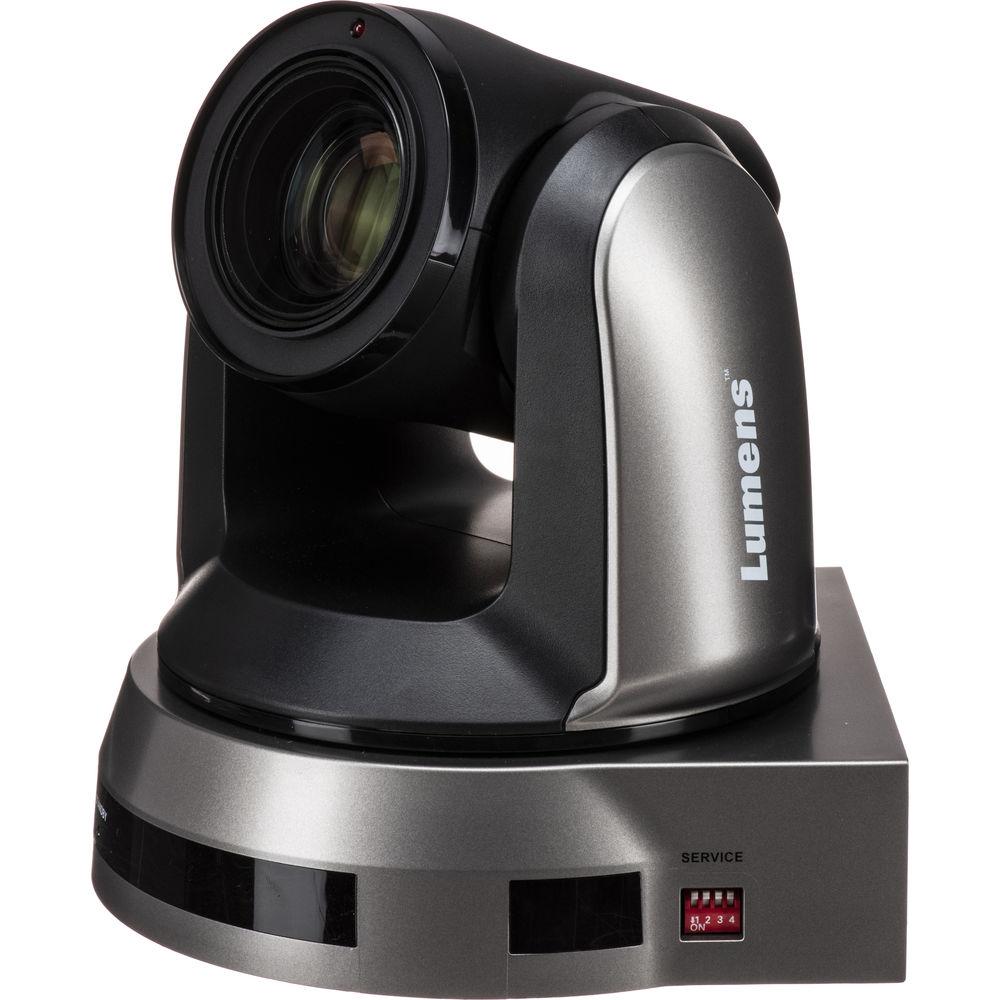

This black 4K UHD 12x Optical Zoom PTZ Video Camera from Lumens is well suited for use as a video conference camera, and with its 12x zoom lens it is also suitable for use in auditoriums, lecture halls and production environments thanks to its tally light. It incorporates a 1/2.3" 9MP CMOS sensor for clear output. The camera utilizes a highly efficient DC motor servo controller to achieve high-speed, quiet positioning, and you can program up to 128 position presets.

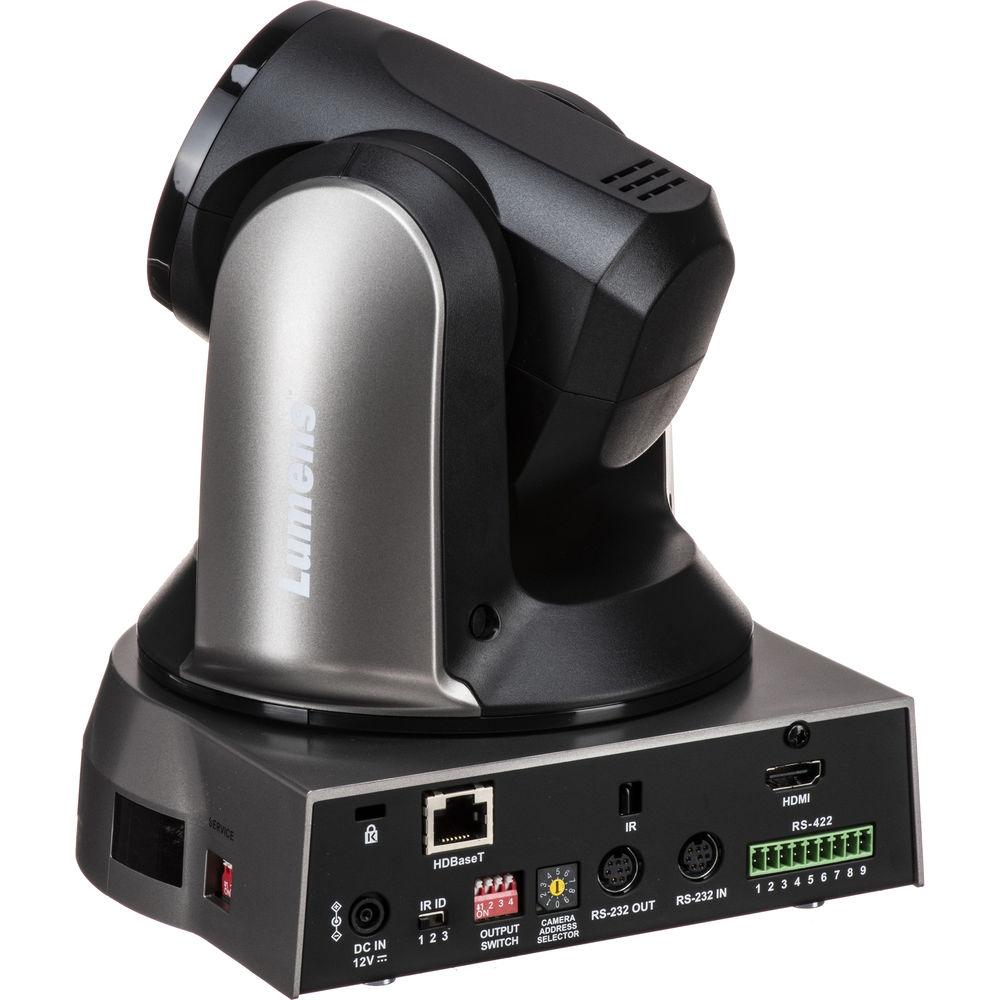

With an approximate 0.4" minimum object distance on the wide end of the zoom, you can use this in a small conference room, or mount it in a lecture hall using the 12x optical (12x digital) reach of the zoom lens to get close to your subject. Camera control is via the built-in RS-232 / RS-422 interface with the camera supporting VISCA and Pelco-D protocols. Supporting PoE (Power over Ethernet), you can power it from a PoE RJ-45 connector. It also supports HDBaseT, which supplies control, power and video output. The camera supports WDR and 3D NR for a clean image, and the image flip feature allows you to mount the camera on a desktop or the ceiling and adjust the orientation of the image to keep it upright.
    • The camera supports a total of 128 programmable presets that you can distribute across pan, tilt, zoom, focus, exposure, and white balance modes
    • 3D NR technology ensures a clear image
    • WDR provides a clean image even when background is extremely bright
    • UHD 4K up to 30 fps and Full HD up to 59.94 fps
    • Automatic and manual white balance for complex lighting environments
    • Simultaneous 3D-SDI, DVI, component, composite output
    • Maximum tilt and panning speed of 300°/sec
    • 340° pan range
    • 120° tilt range
    • Built-in tally light
UPC: 842183002033 In the Box Lumens 4K UHD 12x Optical Zoom PTZ Video Camera (Black)

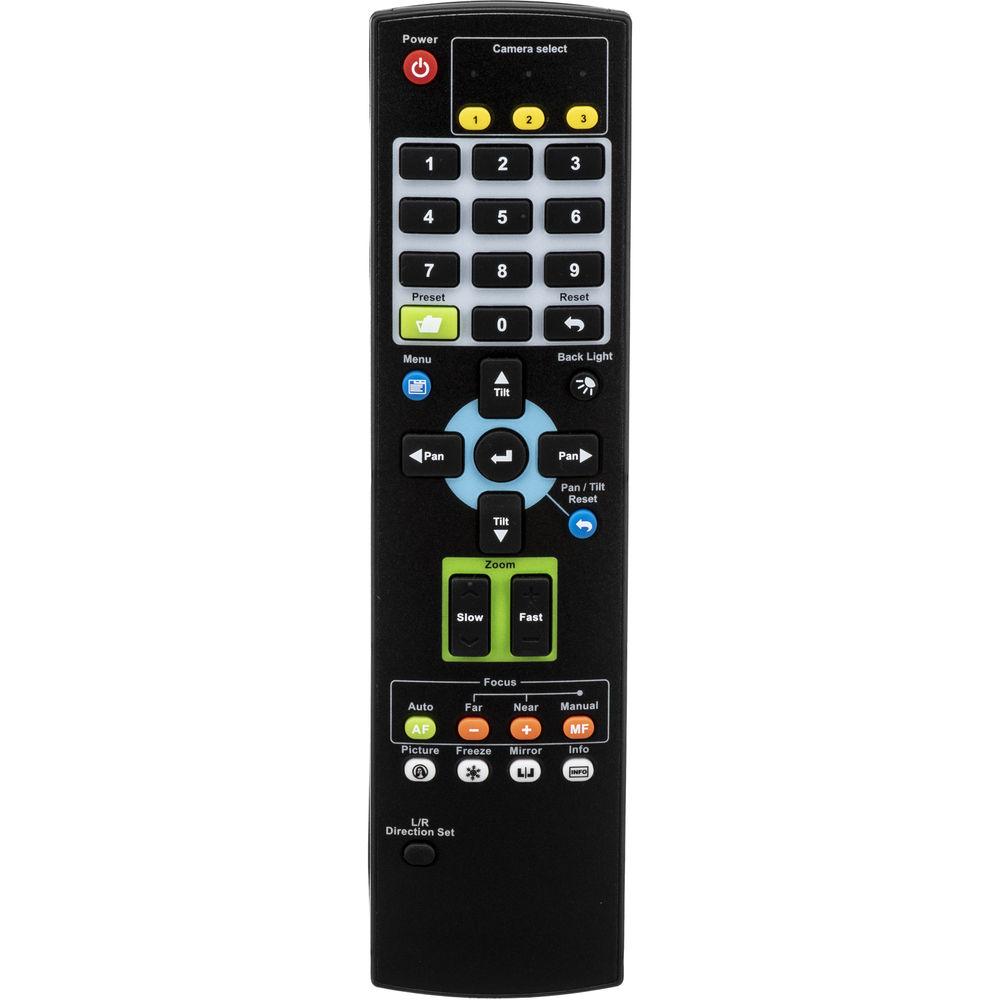

  • Remote Control
  • Power Supply
  • Power Cord
  • Ceiling Mount Kit
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lumens 4K UHD 12x Optical Zoom PTZ Video Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lumens VC-A70H Specs

    Sensor 1/2.3" 9 MP CMOS
    Video Output UHD 4K: 3840 x 2160p 29.97/25
    1080p: 59.94/50
    1080i: 59.94/50
    720p: 59.94/50
    SD: NTSC/PAL
    Zoom Optical: 12x
    Digital: 12x
    Panning Range -170 to 170°
    Panning Speed 300°/sec
    Tilt Range -30 to 90°
    Tilt Speed 300°/sec
    Preset Positions 128
    HD Video Output HDBaseT
    HDMI
    Video S/N Ratio >50 dB
    Camera Control Interface RS-232 / RS-422
    PTZ Camera Control VISCA
    Pelco D
    Shutter Speed 1 to 1/10,000 sec
    Focal Length 3.9-46.8mm
    Horizontal Viewing Angle 74°
    Aperture f/1.8 to f/2.0
    Minimum Illumination 3.0 lux (f/1.8 / 50 IRE / 30 fps)
    Minimum Object Distance (M.O.D.) Tele: 59.1" / 150.0 cm
    Wide: 0.4" / 1.0 cm
    Gain Control Auto
    Manual
    Exposure Control Auto
    Manual
    Focus System Auto
    Manual
    Image Flip Yes
    Camera Control Interface RS-232/RS-422
    Control Protocol VISCA, Pelco-D
    PoE IEEE802.3af
    Dimensions 6.9 x 6.7 x 7.4" / 17.5 x 17.0 x 18.8 cm
    Weight 4.4 lb / 2.0 kg
    Package Weight 8.7 lb
    Box Dimensions (LxWxH) 12.5 x 10.7 x 10.5"
