User Manual for Lumens DC170 Ladibug High-Definition Document Camera Click to enlarge the picture
Contents of the user manual for the Lumens DC170 Ladibug High-Definition Document Camera
- Product category: Video Presenters & Document Cameras Lumens
- Brand: Lumens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumens Video Presenters & Document Cameras
 |
User manual for the Lumens DC170 Ladibug High-Definition Document Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumens product will considerably shorten its lifespan!
|

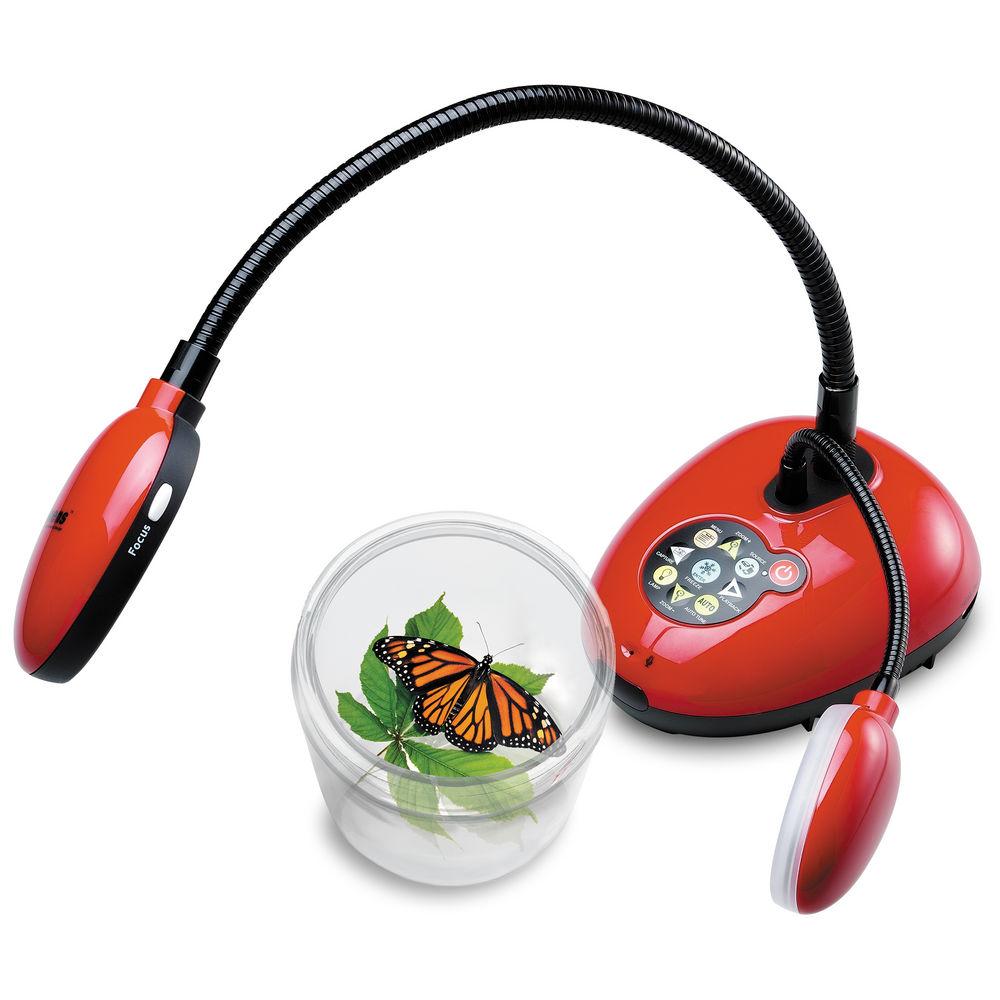

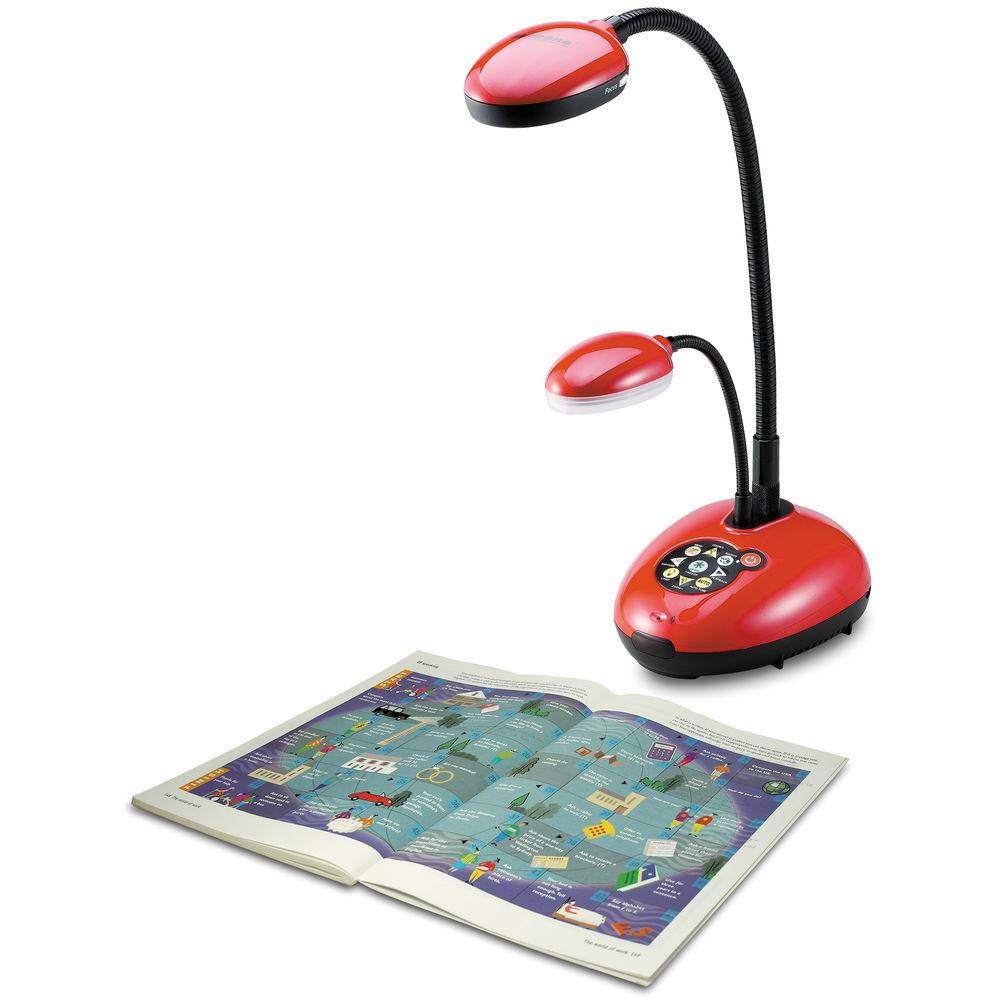

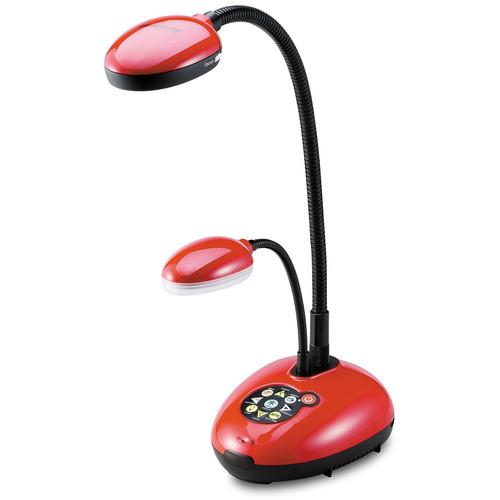

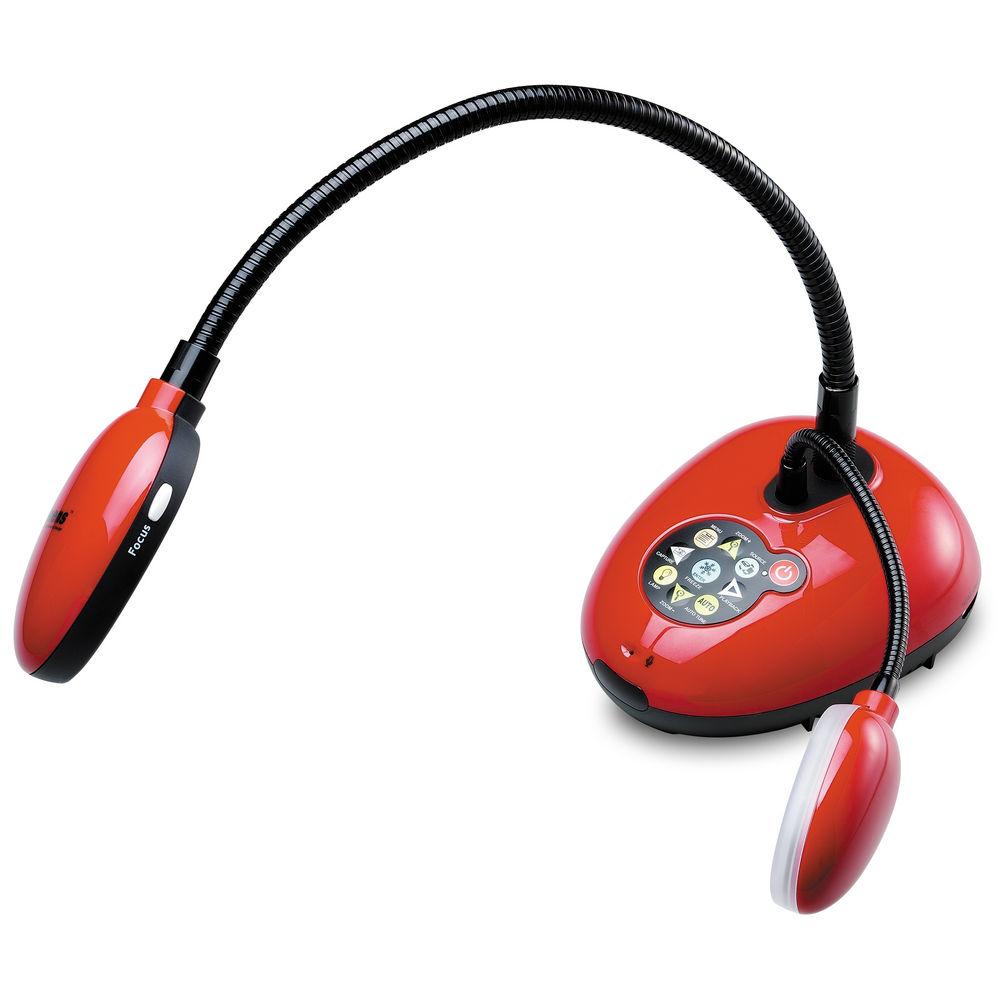

Product description Use the DC170 Ladibug HD Document Camera from Lumens to relay HD images of documents as well as 3D objects to your students or other audience. This HD camera captures still or video images, feeding them to a computer and/or projector, TV, or IWB (interactive whiteboard) for viewing. The DC170 Ladibug can also ingest images through its VGA input, and it outputs signals via VGA, HDMI, and USB 2.0 ports. The camera's flexible gooseneck enables a 360° viewing angle, and the attached gooseneck LED provides the "fill" light crucial for eliminating reflections from the imaged documents/objects. Thanks to its high-resolution sensor and 1080p/30fps HD video output, the DC170 Ladibug delivers smoothly streaming images in real time. Its internal memory holds up to 240 images and the document camera also has SD card-based storage expandable up to 64GB. One-touch video and audio recording lets you capture presentations without the need for a PC. The included remote control frees you to move about the room while using the DC170 Ladibug. The DC170 Ladibug allows you to focus down to 1.6" away from your document/object. Its maximum shooting area of 17.4" x 13" is larger than a standard A3-size print. An auto-tune feature optimizes image clarity, brightness, and color using a one-touch button. The DC170 Ladibug Document Camera has a built-in microphone and a discrete audio output. Other features include plug-and-play setup, compatibility with most IWBs, image rotation, and multiple modes such as photo, text, or microscope. The included downloadable Lumens Ladibug software supports Windows PCs, Macs, and WIA/TWAIN interfaces. - Gooseneck 360°–angle camera head and separate gooseneck LED light
- 1080p30 HD video resolution output
- SD card slot records to SDHC/SDXC up to 64GB
- One-touch audio/video recording
- One-touch auto-tune function for clarity, brightness, and color optimization
- Image rotation modes: 180°, flip, mirror
- Image modes: photo, text, normal, slide, gray, microscope, film
- Included Lumens Ladibug software compatible with PC Windows XP, Vista, 7, 8, and Mac OSX, plus WIA & TWAIN interfaces
- Kensington anti-theft lock slot
UPC: 842183001081 In the Box Lumens DC170 Ladibug High-Definition Document Camera VGA Cable USB Type-A to Type-B Cable Power Cord Remote Control for DC170 Ladibug Portable Document Camera setwquewafrevzrtvcbqxuzyrrzuu Remote Control Holder Microscope Adapter Accessory Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumens DC170 Ladibug High-Definition Document Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumens Ladibug Specs | | | Zoom | 12x (Digital)
9x (Optical) | | Frame Rate | 1920 x 1080 @ 30 fps | | Minimum Focusing Distance | 1.6" / 4.0 cm | | | | Capture Area | 17.3 x 13" / 44 x 33 cm | | Video Connections | 1 x HD15 VGA Input
1 x HD15 VGA Output
1 x HDMI Output | | Audio Connections | 1 x 1/8" / 3.5 mm Line Output | | I/O Connections | 1 x Proprietary RS232C
1 x USB 2.0 Type-B | | I/O Connections | 1 x Proprietary RS232C
1 x USB Type-B USB 2.0 | | Media Card Slots | SD | | Signal-to-Noise Ratio | 51 dBA | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Dimensions | 9.1 x 5.5 x 12.2" / 23.0 x 14.0 x 31.0 cm (Folded)
16.5 x 5.5 x 15.6" / 42.0 x 14.0 x 39.5 cm (In-Use) | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 7.5" |
