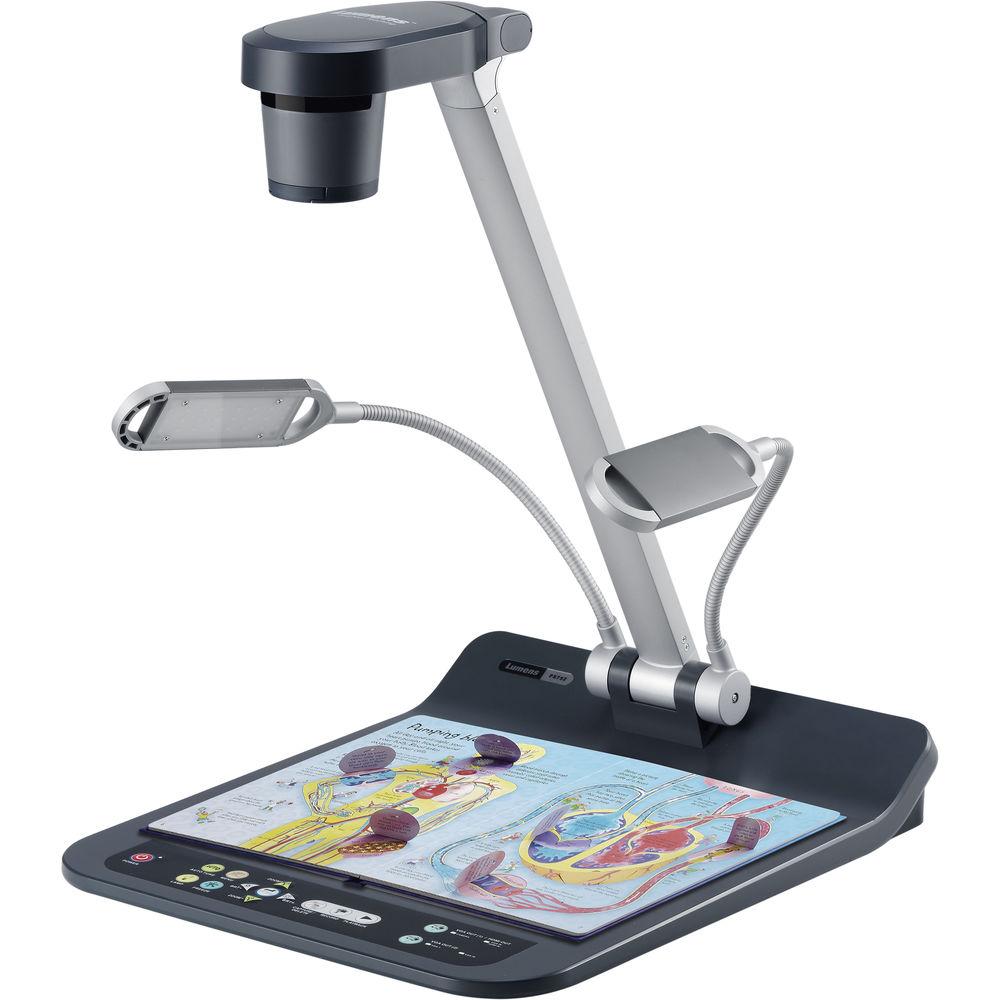

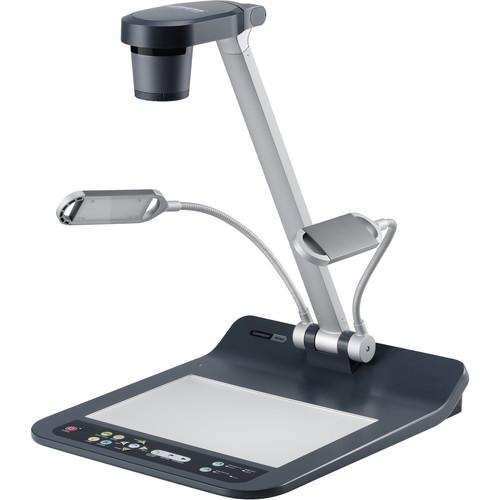

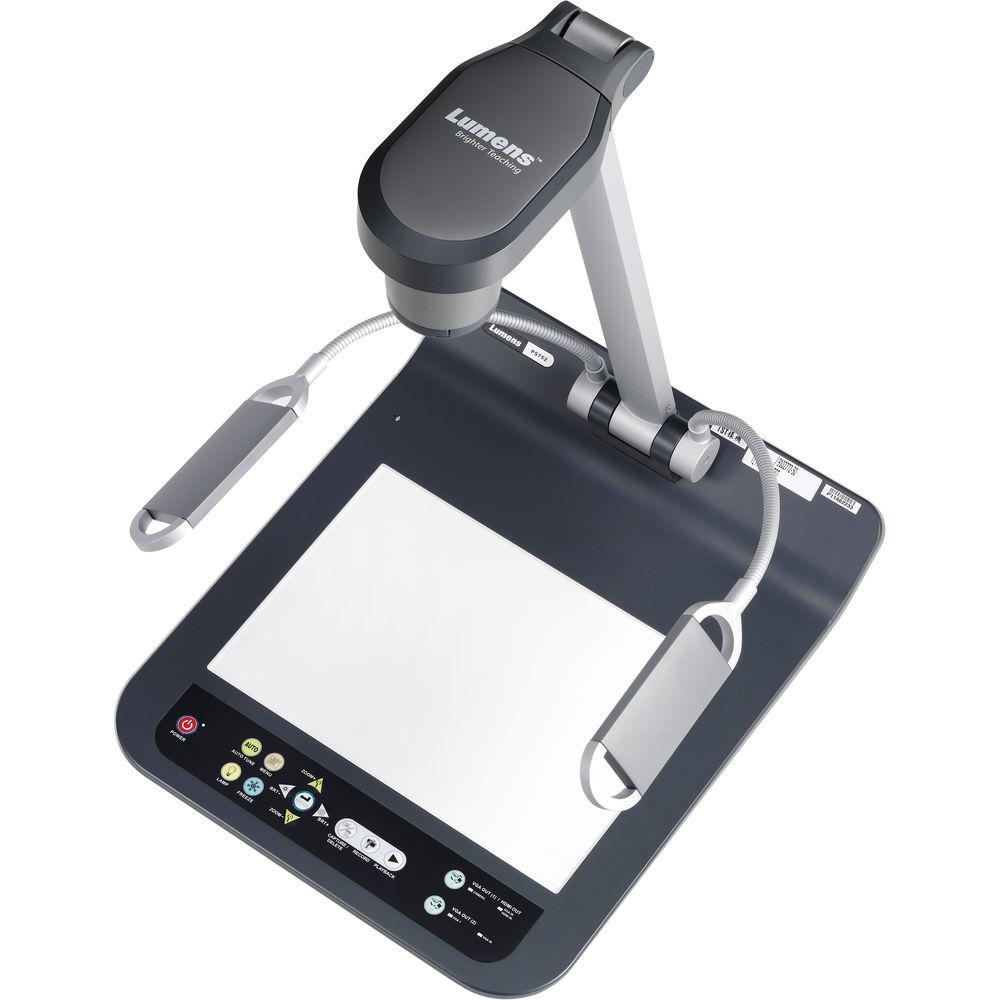

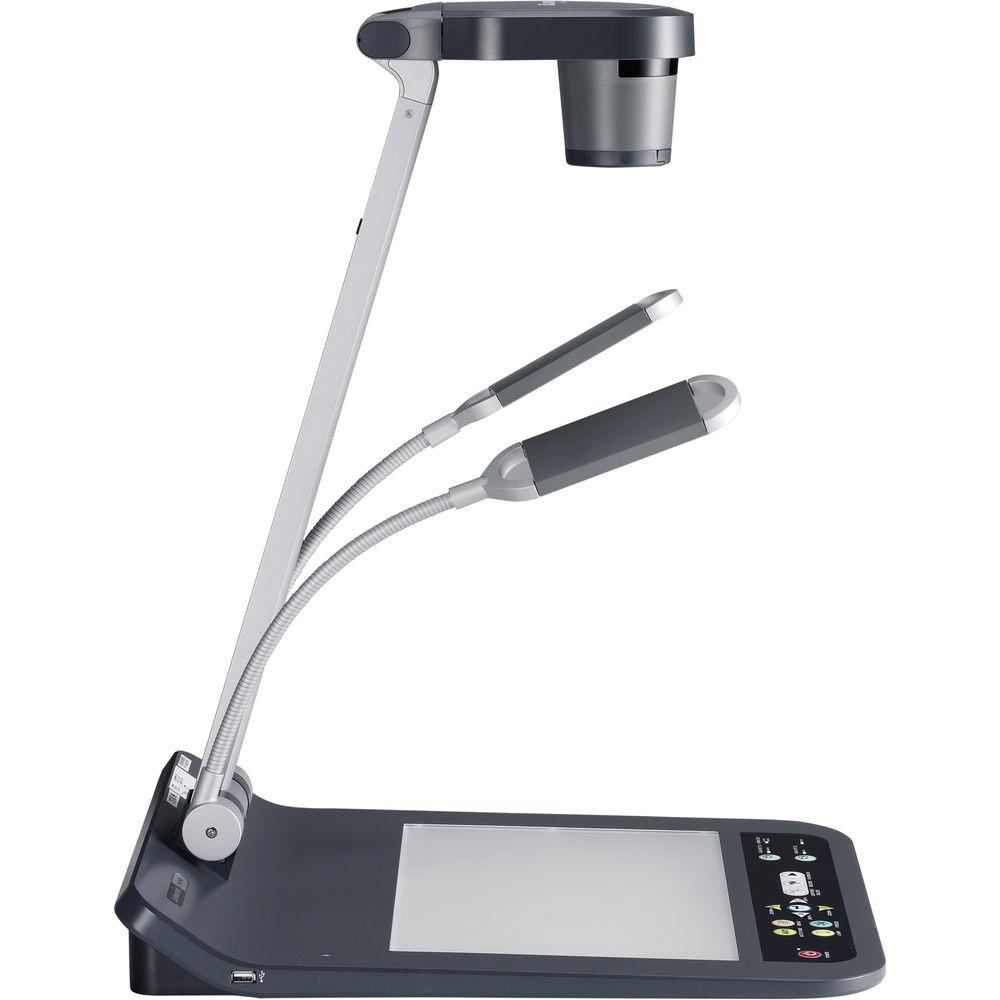

User Manual for Lumens PS752 Desktop Document Camera Click to enlarge the picture
Contents of the user manual for the Lumens PS752 Desktop Document Camera
- Product category: Video Presenters & Document Cameras Lumens
- Brand: Lumens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumens Video Presenters & Document Cameras
 |
User manual for the Lumens PS752 Desktop Document Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumens product will considerably shorten its lifespan!
|
Product description Featuring USB flash drive support, computer-free annotations, and much more, the Lumens PS752 Document Camera provides you with a cutting-edge, comprehensive presentation solution in a stylish and lightweight design.

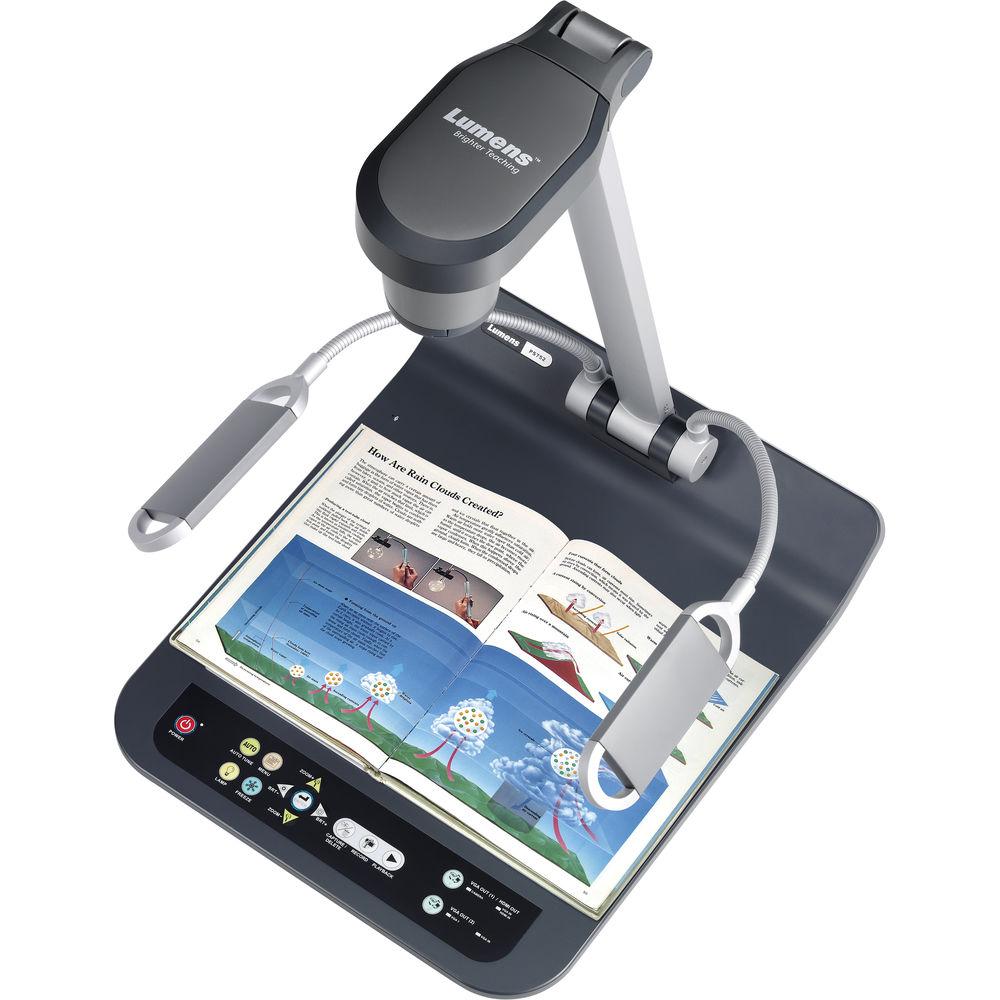

Unfold it in a meeting or classroom, and place a book, document, photo, or pretty much anything else on the large 17 x 13" shooting area. Set the overhead camera and two gooseneck lamps just right, zoom in by up to 20x (which is enough to clearly see some of the tiniest details), and project the image live on an HDTV, projector, or other display.
Using the included software on your laptop or desktop (Mac/Windows), annotate the image to point out specific details, and/or add various effects, such as picture-in-picture or mask, to highlight details, make comparisons, and much, much more. Alternatively, you can make annotations without a computer/software by plugging a mouse directly into a USB port on the side and using the mouse.
You can also take a photo of the image for various purposes. Furthermore, you can tilt up or otherwise adjust the camera head and record the entire presentation on video. You can point the camera at your audience or at yourself, and record everything in Full HD 1080p resolution at 30 fps, along with audio via a built-in mic. The video file can then be uploaded to YouTube or other platforms, or even a personal website. For example, if you delivered a presentation in class, you can post the recorded video online for those who were absent that day.
The PS752 allows you to save up to 240 JPEG images to built-in memory. But it also supports up to 4TB USB flash drives via the USB port on the side (the one that accepts the mouse for annotations). So you can store images as well as videos to a flash drive, sold separately, as well as to your computer via the included software.
VGA, HDMI, Composite, and audio ports on the rear allow you to connect Mac/Windows computers, laptops, tablets via optional adapters, projectors, HDTVs, and speakers systems.
The PS752 folds down to a height of 6" for transport and storage. A remote control, various cables, and other accessories are included. - Key Features
- Low Light Sensor
The professional image sensor captures Full HD 1080p resolution images with low video noise and highly accurate color reproduction even in low light conditions.
Real-Time Frame Rate
Video is recorded at the real-time frame rate of 30 fps, so everything is displayed smooth and without any delays in playback.
Annotation without a Computer
Lumens has developed a computer-free solution by allowing you to connect a mouse to the USB port on the side and edit the image directly.
Prevent Reflections
The dual gooseneck lamps can be adjusted to get around reflections.
Instant Image Adjustment
An Auto Tune button automatically adjusts clarity, brightness, and color according to the environment you're in. A particular object can in one moment change from a dull to a vivid color.
Built-In Microphone
A built-in mic allows you to capture audio along with video.
USB Flash Drive Support
The USB port on the side allows you to connect a mouse, but alternatively also supports a USB flash drive up to 4TB so you can store all your video/audio content.
HDMI Pass-Through
An HDMI input on the rear allows you to connect an input device like a notebook or iPad (Lighting to HDMI adapter would be required for an iPad), while an HDMI output lets you connect to an HDTV or projector.
LED Backlight
A large, built-in LED backlight ensures that you won't have to constantly adjust the position of X-rays, photos, negatives, and slides during a presentation. - Main Menu (via Included Software)
- Auto Tune
Automatically adjust the image to have the best brightness and focusing performance.
Slide Show
Show the photos or videos stored in the optional USB flash drive or internal memory in slide mode.
PAN
Enable/disable the partial enlarged mode.
Manual Focus
Focus the lens manually.
LAMP
Lamp mode toggle switch.
Rotate
Screen rotation: 0/180°, Flip, Mirror.
PIP
Picture-in-Picture image comparison (to compare live images with stored image files).
Settings
Set up various functions.
Brightness
Adjust the brightness of the image.
Photo/Text
Select Photo/Text/Gray mode.
Mask
Activate the mask mode.
Zoom
Increase or decrease the image size.
Mode
Select image mode.
Spotlight
Activate the spotlight mode. UPC: 842183002095 In the Box Lumens PS752 Desktop Document Camera Remote Control Remote Control Holder Power Adapter Power Cord USB Cable VGA Cable Audio Cable Composite Video Cable Microscope Adapter HDMI Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumens PS752 Desktop Document Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumens PS752 Specs | | | Zoom | 12x (Digital)
20x | | Frame Rate | 30 fps | | Output Resolution | 1920 x 1080 | | | | Capture Area | 17.3 x 13" / 44 x 33 cm | | Video Connections | 1 x HD15 VGA Input
1 x HDMI Input
1 x HDMI Output
1 x RCA Composite Output
2 x HD15 VGA Output | | Audio Connections | 1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output | | I/O Connections | 1 x DE-9/DB-9 RS232C
1 x USB 2.0 Type-A
1 x USB 2.0 Type-B | | I/O Connections | 1 x DE-9/DB-9 RS232C
1 x USB Type-A USB 2.0
1 x USB Type-B USB 2.0 | | Image Storage | 240 Images | | Signal-to-Noise Ratio | 51 dBA | | | | Image Rotation | 0
