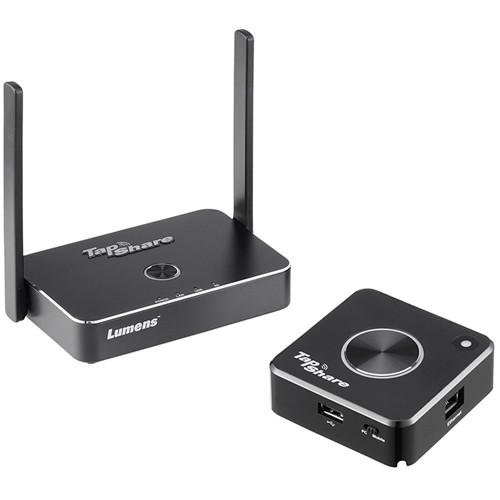

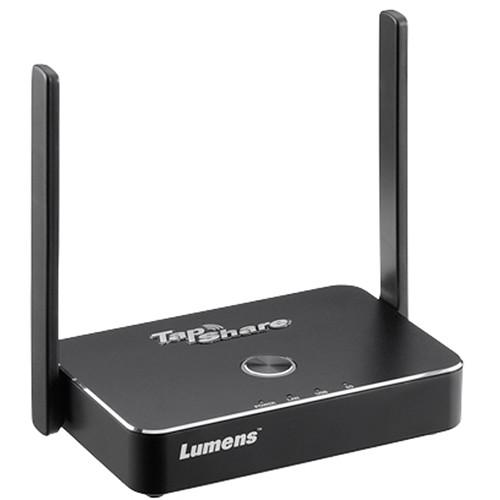

User Manual for Lumens TapShare TS20 Wireless Presentation System with Two Transmitter Pods Click to enlarge the picture
Contents of the user manual for the Lumens TapShare TS20 Wireless Presentation System
- Product category: Projector Accessories Lumens
- Brand: Lumens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumens Projector Accessories
 |
User manual for the Lumens TapShare TS20 Wireless Presentation System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumens product will considerably shorten its lifespan!
|

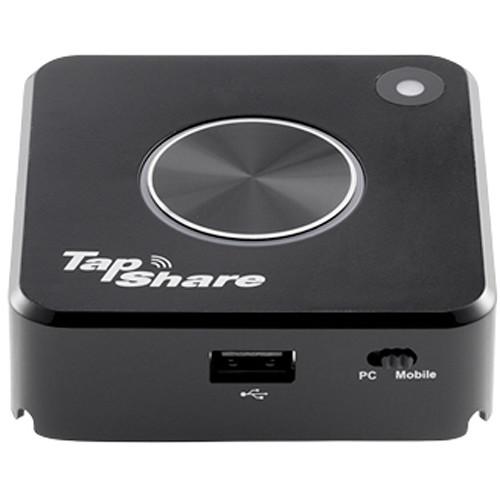

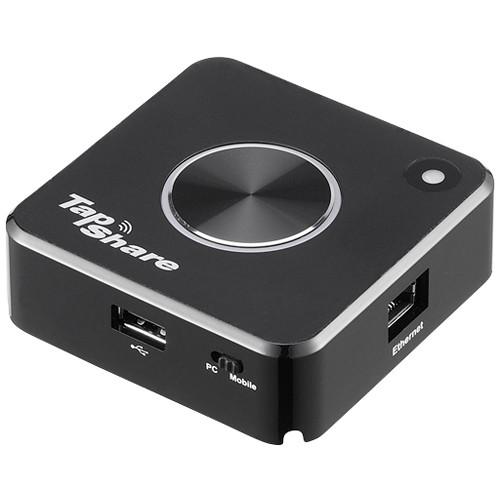

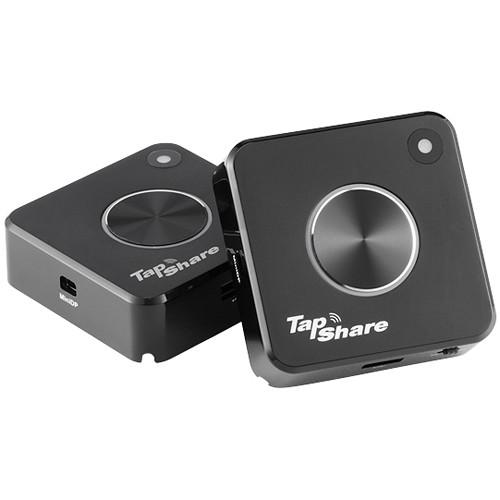

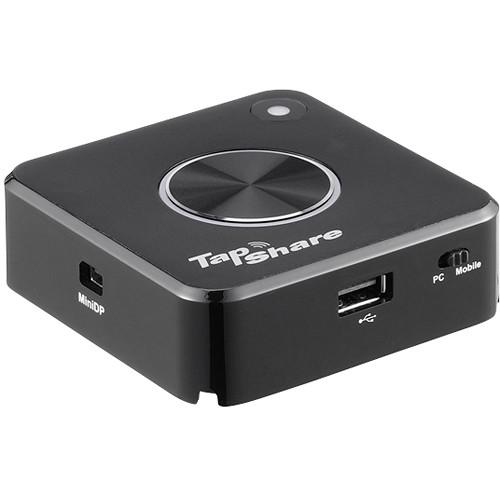

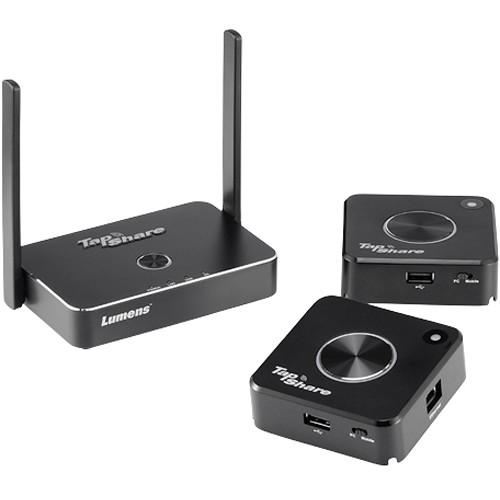

Product description Share presentations securely via Wi-Fi or Ethernet with the Lumens TapShare TS20 Wireless Presentation System. It includes two transmitter pods and enables wireless or wired streaming of media at up to 4K resolution. Each TapShare Pod has an HDMI and Mini DisplayPort input to support a variety of device types. Since it transmits video via its own Wi-Fi network or Ethernet, presenting in locations where network security is a priority is virtually hassle-free. - Designed for Easy Installation & Use

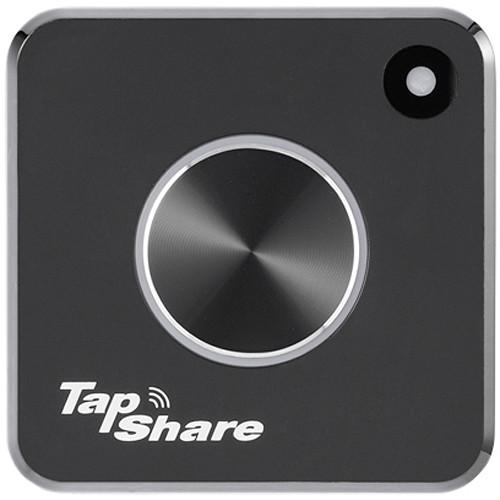

- The TapShare system features a plug-and-play design and doesn't need additional software or drivers. The Pod features a single button, the tap of which initiates immediate projection via Wi-Fi. iOS devices require the connection of just one cable.
- Supports Split-Screen Display of up to Four Sources
- The TapShare allows up to four input sources to share the screen.
- Engineered for Easy Management
- The host can manage the display and content from different sources with the host control system.
- Enhanced Compatibility
- The TapShare supports any input device with HDMI or DisplayPort with resolutions up to 4K.
- WPA/WPA2 Security
- The TapShare supports WPA/WPA2 security, transmitting over its own Wi-Fi network, plus a wired connectivity option that supports PoE.
UPC: 842183002545 In the Box Lumens TapShare TS20 Wireless Presentation System with Two Transmitter Pods 2 x 1' HDMI Cables 2 x 1' Mini DisplayPort Cables USB Cable with Detachable Power Brick Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumens TapShare TS20 Wireless Presentation System with Two Transmitter Pods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumens TS20 2T1R Specs | Transmission Range | Not specified by manufacturer | | Connections | Transmitter: 1 x HDMI in
1 x Mini DisplayPort in
1 x USB Type-A
1 x RJ45 Ethernet LAN

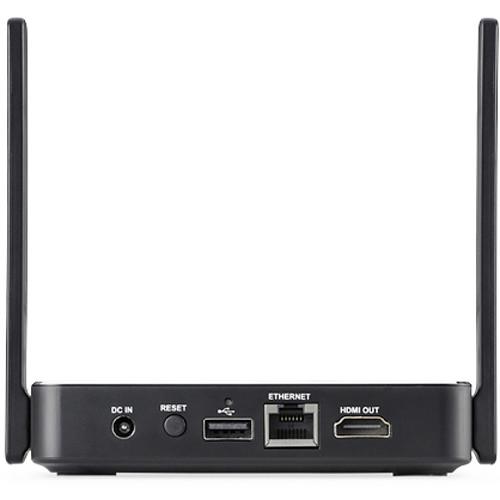

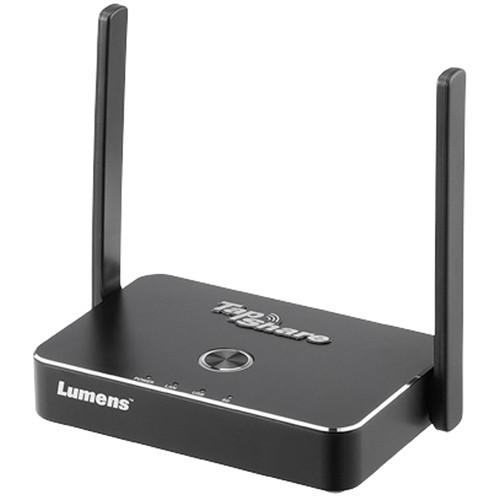

Receiver: 1 x HDMI out
1 x USB Type-A
1 x RJ45 Ethernet LAN | | Resolution Output | Up to 4096 x 2160 @ 24 Hz
3840 x 2160 @ 30 Hz
1920 x 1080 @ 60 Hz | | Wi-Fi Protocol | IEEE 802.11ac | | Wi-Fi Bands | 5 GHz | | Wi-Fi Security | WPA/WPA2 | | AirPlay | Yes | | Simultaneous Sources on Screen | 4 | | Simultaneous Connections | 64 | | Power Requirements | Transmitter: 5 VDC / 1 A via USB 2.0 or PoE (IEEE 802.3AT)
Receiver: 5 VDC / 2 A via DC or PoE (IEEE 802.3AT) | | Dimensions (W x H x D) | Transmitter: 3.1 x 0.9 x 3.1" / 80 x 25 x 80 mm
Receiver: 5.5 x 0.9 x 3.3" / 140 x 25 x 85 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.375 lb | | Box Dimensions (LxWxH) | 9.8 x 7.0 x 3.3" |
