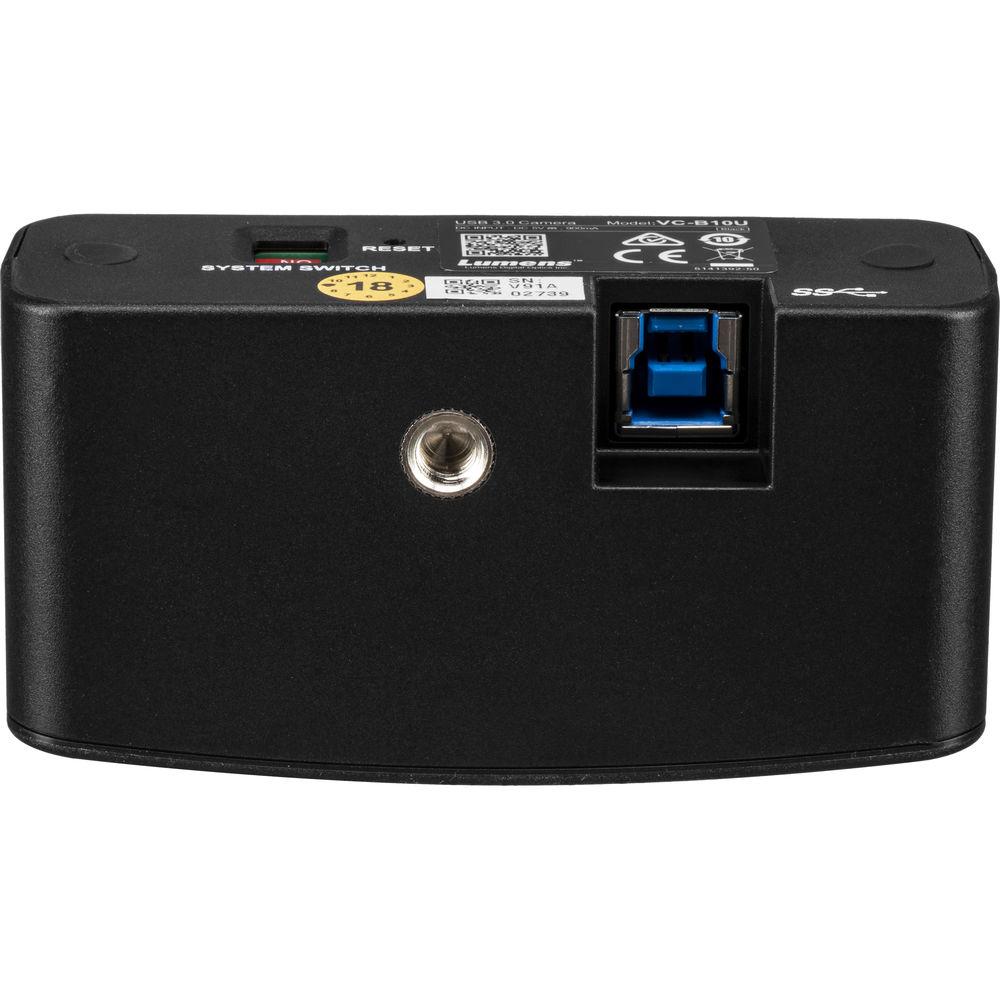

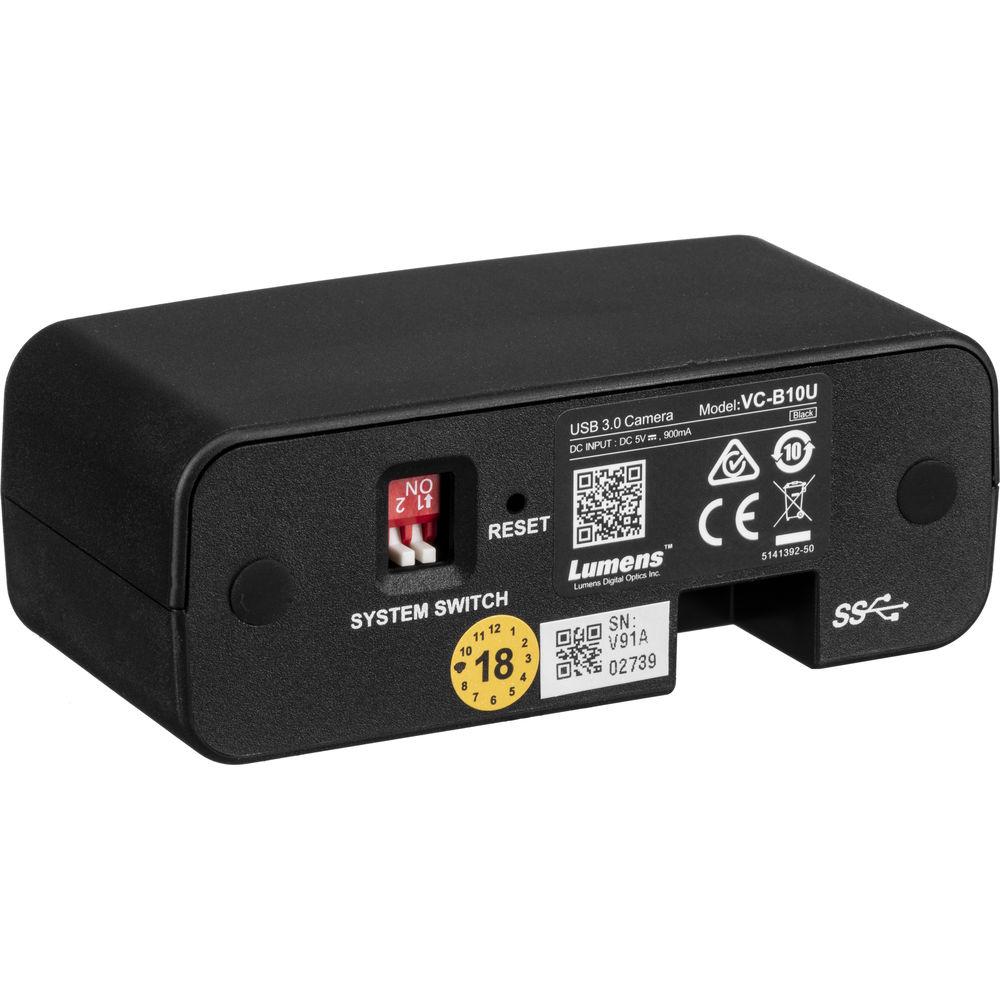

User Manual for Lumens VC-B10U ePTZ Camera, USB 3.0 Click to enlarge the picture
Contents of the user manual for the Lumens VC-B10U ePTZ Camera, USB 3.0
- Product category: Video Conferencing Cameras Lumens
- Brand: Lumens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumens Video Conferencing Cameras
 |
User manual for the Lumens VC-B10U ePTZ Camera, USB 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumens product will considerably shorten its lifespan!
|
Product description The black Lumens VC-B10U ePTZ Camera is an HD camera well suited for small meeting rooms as well as classrooms and distance learning. It connects to your computer via USB 3.0 (USB 2.0 compatible) and supports UVC and UAC video, which makes it a simple plug-and-play video conference solution. A 120° viewing angle makes it well suited for use in small rooms. If you need to zoom in on an image, the camera offers 2x lossless zoom functionality in 1080p, with an additional 8x digital zoom.
The two built-in microphones provide good pickup of the audio in a room, while alleviating the need to set up external mics. The camera can support up to 64 position presets, and it can be controlled by IR remote or over USB. An included mounting shelf supports the camera so it does not have to sit on top of a table. - USB 3.0 Plug-and-Play
- The VC-B10U uses standard UVC drivers, which means there is no need to install drivers on your system to use the camera.
- 12MP Sensor
- The 12 megapixel image sensor features low noise, high resolution, and vivid color reproduction, and it is well-suited for low light conditions.
- Wide Viewing Angle
- The VC-B10U has a panoramic 120° viewing angle suitable for rooms large and small.
- Easy Control
- Pan, Tilt, Zoom, and other settings can be controlled via IR remote controller and Lumens USB PTZ camera controller software. The software supports Windows, macOS, and Android.
- Position Presets
- You can set up to 6 position presets via the included IR remote, or up to 64 presets for pan, tilt, zoom, focus, and white balance modes when using the Lumens USB PTZ camera controller software.
- Built-In Microphone
- Two built-in microphones make the camera suitable for distance learning and videoconferencing. Speech enhancement can be utilized with Microphone Beamforming and noise suppression technology.
- Mounting
- The VC-B10U has a built-in TV mount that can securely install on a TV or on screen.
UPC: 842183002569 In the Box Lumens VC-B10U ePTZ Camera, USB 3.0 (Black) Remote Control TV Stand USB 3.0 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumens VC-B10U ePTZ Camera, USB 3.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumens VC-B10UB Specs | Sensor | 1/2.3" 12 MP CMOS | | Video Format | YUV
MJPEG | | Video Output | 3264 x 2448 10 fps
3264 x 1836 10 fps
1920 x 1080 30 fps
1280 x 720 60/30 fps
960 x 540 30 fps
640 x 480 30 fps
640 x 360 30 fps | | Video Output Connector | USB 3.0 (USB 2.0 Compatible) | | Aperture | f/1.8 | | View Angle | 120° | | Minimum Object Distance (M.O.D.) | 19.69" / 50.00 cm | | Zoom | Optical
1080p: 2x
720p: 3x
640 x 480: 4x
Digital
8x | | Camera Control Interface | IR Remote
USB | | Driver | UVC/UAC | | Preset Positions | IR: 6 Sets
USB: 64 Sets | | Microphone | Built In | | Dimensions | 3.74 x 1.38 x 1.89" / 9.5 x 3.5 x 4.8 cm | | Weight | Unit: 4.23 oz / 120 g
Unit and Shelf: 6.35 oz / 180 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.8 x 5.7 x 3.4" |
