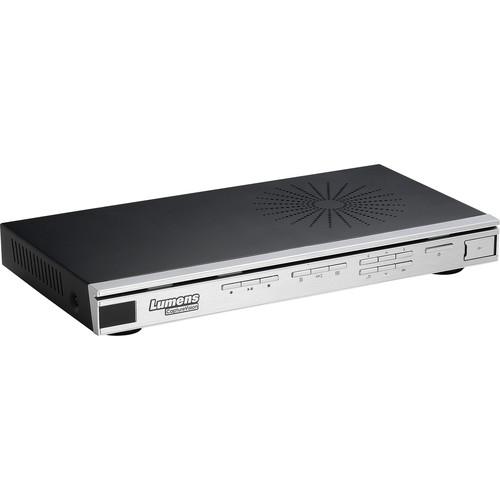

User Manual for Lumens VS-LC102 CaptureVision Station Click to enlarge the picture
Contents of the user manual for the Lumens VS-LC102 CaptureVision Station
- Product category: Camera Accessories Lumens
- Brand: Lumens
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumens Camera Accessories
|
User manual for the Lumens VS-LC102 CaptureVision Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumens product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumens user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumens product will considerably shorten its lifespan!
|
Product description Designed as a lecture capture device, the VS-LC102 CaptureVision Station from Lumens allows for multiple input signals to be recorded into a single file with audio. It is well-suited for use in a lecture hall, where it can be used to record the outputs from a camera, document camera, laptop, and other devices. Nine layouts allow you to arrange your input sources in a wide variety of combinations. The CaptureVision Station streams via Ethernet, supports HTML 5 for viewing the content on virtually any device with a web browser. The unit features front panel Hot Keys (buttons), and a web based GUI for set up and control. You can also manage the system via the included remote control.
You can start a recording manually, or the unit supports scheduled recordings. It features HDMI and VGA inputs, as well as four dedicated RJ-45 ports, separate from the Network port, for IP camera inputs. The IP camera inputs enable attaching IP devices so you can incorporate video and computer presentations/videos from a connected laptop/computer into your output video stream. The built-in 1TB HDD allows you record your program or you can connect external storage to either the USB or eSATA connector to record your program. - Distance Learning
- The CaptureVision Station supports live streaming of video, audio and instruction to another location simultaneously. Also, it supports HTML 5 for viewing the course content on virtually any device via web browser
- Easy Installation
- The CaptureVision Station is an embedded system, which makes it extremely stable. It supports Ethernet, allowing for integration with IP cameras and supports Full HD
- Professional Output
- Users can insert watermarks, titles and trailers so that film can be produced instantly without a lengthy post-production process. This helps create a professional looking video that won't distract the distance learner
- Backup & Scheduled Recording
- Recorded videos can be saved to a built-in hard disk (1TB) or external hard disk using a USB or eSATA drive. Afterwards, the files can be uploaded to an FTP/SFTP site or to a cloud platform such as YouTube, UStream and Twitch. The unit can be set to record at a specific time so the instructor can concentrate on giving the lecture and not setting up the recording
- Local Display
- Full screen/ picture-in-picture/multi-channel split screen, up to nine layouts
- Recording
- Index/Keyword Tagging: Automatic and manual index insertion
Auto Logo Insertion During Recording: Yes, through web-based back stage management setting - Live Broadcasting
- Multicast and share live streaming from CaptureVision Station. Supports YouTube Live, UStreaming, Adobe Media server
- Playback
-
- Local File Playback
- Select by Index
- View Content on any Device
- Lecture Editing
-
- Post Lecture Editing
- Post Index Points Editing
- Auto Logo, title, and Ending Insertion
- Operation
- You can control the VS-LC102 via an included remote control or via RS-232
UPC: 842183001821 In the Box Lumens VS-LC102 CaptureVision Station Remote Control Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumens VS-LC102 CaptureVision Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumens VS-LC102 Specs | Inputs | HDMI: 2 x HDMI type A
VGA: 2 x 15-pin D-Sub
Audio: 2 x RCA L/R pair | | Output | HDMI: 1 x HDMI type A
VGA: 1 x 15-pin D-Sub
Audio: 1 x RCA | | IP | 4 x RJ-45 ports for IP Cams | | Ethernet | 1 x RJ-45 for Internet | | Storage Connectivity | 1 x USB
1 x eSATA | | Remote Control | 1 x RS-232 5-pin Phoenix connector | | Internal Storage | 1 TB | | Video Processing | Compression: H.264/AVC
Frame Rate: 30 fps (maximum)
Bit rate: 64 Kb/s to 24 Mb/s
Resolution: 1080p (maximum) | | Audio Processing | Compression: AAC-LC
Bit Rate: 32 Kb/s to 512 Kb/s | | Video File Exporting | USB Flash/FTP/SFTP | | System Output | Streaming: RTP, RTMP
Video: HDMI/VGA 1080p/60 (maximum) | | Languages | English
Simplified Chinese
Traditional Chinese | | Power | Power Supply: 12 VDC, 2 A | | Environmental | Temperature: 32 to 113°F / 0 to 45°C
Humidity: 90% | | Dimensions | 13.9 x 7.4 x 1.8" / 35.3 x 18.8 x 4.5 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 20.1 x 10.8 x 4.4" |
