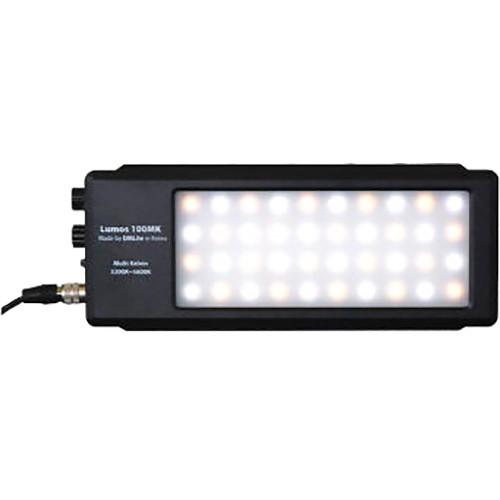

User Manual for Lumos 100 MK Variable Color LED Light with AC Adapter Click to enlarge the picture
Contents of the user manual for the Lumos 100 MK Variable Color LED
- Product category: On Camera Lights Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others On Camera Lights
|
User manual for the Lumos 100 MK Variable Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Lumos 100 MK Variable Color LED Light is a streamlined unit that can be powered by the included AC adapter or Lumos battery, or by a D-tap power source with an optional cable. The fixture produces an equivalent tungsten output of 150W at maximum brightness, yet draws only 23 watts. It also features a variable color temperature output from 3200 to 5600K.
A built-in two-digit display indicates dimming settings, and the fixture is capable of flicker-free dimming from 100 to 0% brightness. Threaded 1/4"-20 mounting holes allow you to mount it horizontally or vertically. - Two independent knobs allow you to control both color temperature and brightness simultaneously
- The fixture's variable color temperature adjusts from 3200 to 5600K
- At 3200K (tungsten) the light is rated with a CRI of 97 Ra, and 95 Ra at 5600K (daylight)
- The LEDs have a CCT (correlated color temperature) accuracy of ±150K
- Five 1/4"-20 threaded mounting holes on the top and bottom (10 total) of the unit enable a variety of horizontal mounting possibilities
- A single 1/4"-20 threaded hole on the side of the unit enables vertical mounting of the fixture
- The battery bracket mounts to the fixture's 1/4"-20 threaded mounting holes
UPC: 887515002213 In the Box Lumos 100 MK Variable Color LED Light with AC Adapter AC Adapter Battery Battery Bracket Battery Charger Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumos 100 MK Variable Color LED Light with AC Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumos LUMOS 100 Specs | | | Beam Angle | 85° | | Color Temperature | 3200 to 5600K ± 150K | | Photometrics | 85° at 5600K:
37 fc / 398.1 lux at 4' / 1.22 m
9.5 fc / 102.2 lux at 8' / 2.44 m
4.3 fc / 46.3 lux at 12' / 3.66 m
85° at 3200K:
30.7 fc / 330.3 lux at 4' / 1.22 m
7.7 fc / 82.8 lux at 8' / 2.44 m
3.6 fc / 38.7 lux at 12' / 3.66 m | | Dimming | Yes, 0 to 100% (Continuous) | | | | Battery Chemistry | Lithium-Ion | | Battery Runtime | 90 Minutes | | Operating Voltage | 12.0 to 24.0 VDC | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Battery Plate | 1 x Proprietary | | Max Power Consumption | 23 W | | Power Input Connector | Proprietary | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 8.7 x 3.4 x 1.2" / 220.3 x 86 x 30 mm | | Weight | 1.07 lb / 486 g |
