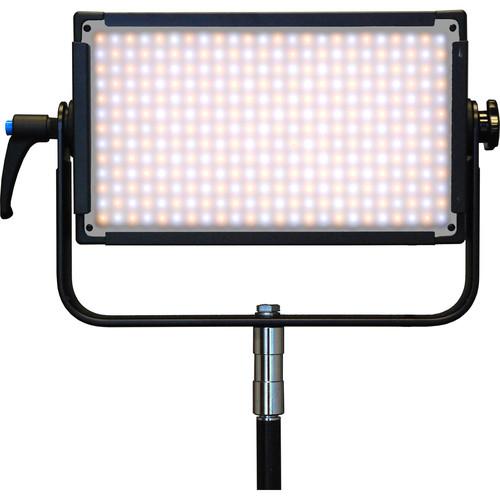

User Manual for Lumos 200GT Multi-Kelvin LED Panel Click to enlarge the picture
Contents of the user manual for the Lumos 200GT Multi-Kelvin LED Panel
- Product category: LED Lights Lumos
- Brand: Lumos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumos LED Lights
|
User manual for the Lumos 200GT Multi-Kelvin LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumos product will considerably shorten its lifespan!
|
Product description The 200GT-MK Multi-Kelvin LED Panel from Lumos is a 17 x 7.7 x 3.34" LED panel with a color balance variable from tungsten (3,200K) to daylight (5,600K) or anywhere in between. Since the 200GT generates little heat, weighs 8.8 lb and measures 3.34" in thickness, it can easily meet the challenge of tight spaces while eliminating concern about damage, hazard or talent discomfort and rendering a high CRI of 97 at 3200K. Variable color and 0-100% dimming also remove the need for repositioning the light or adding filtration while the 200GT's 260W tungsten-equivalent output and mere 30W draw mean you can run many lights at the same time and still realize a rapid return on investment.The 200GT MK is powered by the included multi-voltage AC adapter for worldwide use although Gold or V-mount plates are available as options to provide battery power when mains power is unavailable. - Photometrics
- 3200K Without lens: 85°
65.6 fc @ 4.0' (1.2 m)
16.3 fc @ 8.0' (2.4 m)
7.2 fc @ 12' (3.6 m)
3200K With lens: 55°
96 fc @ 4.0' (1.2 m)
24 fc @ 8.0' (2.4 m)
10.6 fc @ 12' (3.6 m)
3200K Without lens: 85°
1,050 lux @ 3.2' (1.0 m)
262 lux @ 6.5' (2.0 m)
116 lux @ 9.8' (3.0 m)
3200K With lens: 55°
1,135 lux @ 3.2' (1.0 m)
383 lux @ 6.5' (2.0 m)
170 lux @ 9.8' (3.0 m)
5600K Without lens: 85°
73.1 fc @ 4.0' (1.2 m)
18.2 fc @ 8.0' (2.4 m)
8.1 fc @ 12' (3.6 m)
5600K With lens: 55°
108.3 fc @ 4.0' (1.2 m)
27 fc @ 8.0' (2.4 m)
12 fc @ 12' (3.6 m)
5600K Without lens: 85°
1,170 lux @ 3.2' (1.0 m)
292 lux @ 6.5' (2.0 m)
130 lux @ 9.8' (3.0 m)
5600K With lens: 55°
1,734 lux @ 3.2' (1.0 m)
433 lux @ 6.5' (2.0 m)
192 lux @ 9.8' (3.0 m) UPC: 887515001469 In the Box Lumos 200GT Multi-Kelvin LED Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumos 200GT Multi-Kelvin LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumos 200GT-MK Specs | Rating | 260 W Tungsten equivalent | | Color Range | 3200 to 5600K (Manual) | | Dimming | 0-100% (Manual) | | Mount | 5/8" (16 mm) Receiver | | Operating Voltage | 100 to 240 VAC, 50/60 Hz
12 to 24 VDC | | Power Consumption | 30 W | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Dimensions | 17 x 7.7 x 3.34" (434 x 196 x 85 mm) Without yoke | | Weight | 8.8 lb (4.0 kg) | | | | Box Dimensions (LxWxH) | 19.5 x 13.0 x 6.5" |
