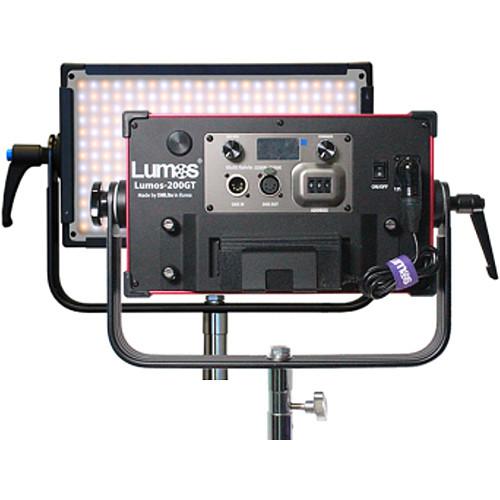

Product description The Lumos 200GT Tungsten Balanced LED Fixture with IP65 Connector and A/C Adapter is built into a metal chassis with rubberized corners protecting the LEDs and providing a durable fixture with enhanced features such as 100-10% flicker-free dimming and an LCD info display. Roughly equivalent to a 400W fixture, it produces a light with a CRI rating of 97, an 55° beam spread, and features an integrated diffusion screen to minimize multiple shadows. Built into the fixture is a knob to locally control dimming, or you may utilize the 5-pin XLR DMX ports to remotely control the unit's dimming from a compatible control panel (control panel not included).
The IP65 rated connectors and included rain cover allows the unit to work in wet conditions, although battery power as opposed to mains power is recommended. The fixture is DC-powered, incorporating a 4-pin XLR connector and including an AC/DC power supply for mains power. The power supply mounts on the back of the fixture and can be removed allowing you to attach optional Gold mount or V-mount plates to the light. A separately available set of barndoors permits you to control the light spill. Please note that battery plates and barndoors are not included and must be sourced separately. A combo Baby-pin receiver/Junior stud is attached to the yoke, so you can mount the fixture on a stand or hang it from a grid with optional clamps. - Soft Source, Single Shadow
- The diffusion softens the light and provides an 55° beam spread and a single source shadow.
- Battery Power
- The fixture accepts interchangeable Gold or V-mount battery plates.
- LCD Info Screen
- On the back of the fixture is an LCD info screen that displays the battery power remaining in numerals and not a battery gauge, likewise, dimming is displayed numerically as well.
- Lumos points out that not only do they manufacture the light fixture, but they also control the manufacture of the LEDs and do not purchase them from a third party.
- The fixture features a yoke with a combination Baby-pin receiver / Junior pin and a spring-loaded locking lever for securing your light once positioned.
In the Box Lumos 200GT Tungsten-Balanced LED Fixture with IP65 Connector and A/C Adapter Power Supply with 4-Pin XLR Cable Yoke with Stand Baby Receiver / Junior Pin Rain Hood Limited 1-Year Warranty for Field Use Limited 2-Year Warranty for Studio Use Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumos 200GT Tungsten-Balanced LED Fixture with IP65 Connector and A C Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumos 200GT Specs | Construction | Metal construction with rubberized corners | | Color Temperature | 3200K
CRI: 97 | | Beam Angle | 55° | | Photometrics | 3200K
4' / 1.2 m: 97FC
8' / 2.4 m: 25.7 FC
12' / 3.7 m: 11.4 FC | | Dimming | 0-100% (tested flicker-free up to 2400 fps) | | Power | Fixture: 12 to 24 VDC
Power Supply: 110 to 220 VAC 50/60 Hz
Connector: 4-pin XLR | | Control | Rotary knob
DMX 512: 1 x 5-pin XLR female, 1 x 5-pin XLR male | | Mount | Yoke with combo Baby/Junior Pin receiver: 5/8" (16 mm) / 1 1/8" (26 mm) | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions | 12.2 x 7.2 x 4.6" / 30.9 x 18.2 x 11.7 cm | | Weight | 8.8 lb / 4.0 kg |
