User Manual for Lumos 500GT 3200 to 5600K LED Panel with 55° Beam Angle Lens Click to enlarge the picture
Contents of the user manual for the Lumos 500GT 3200 to 5600K LED
- Product category: LED Lights Lumos
- Brand: Lumos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumos LED Lights
|
User manual for the Lumos 500GT 3200 to 5600K LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumos product will considerably shorten its lifespan!
|

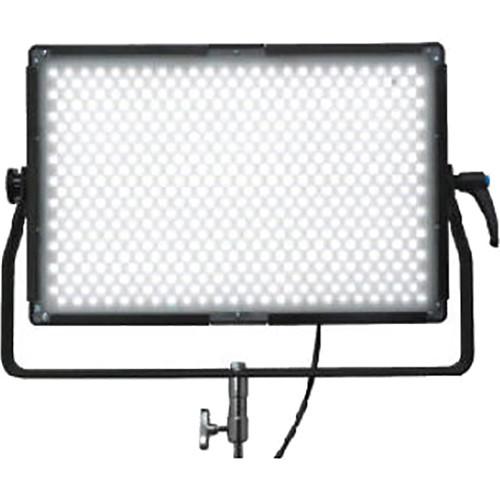

Product description The 500GT 3200 to 5600K LED Panel with 55° Beam Angle Lens from Lumos is a multi-functional panel suitable for field and studio use. You can control the light's functions either locally or remotely via DMX. The flicker-free panel has a 55° beam angle and a high CRI of 95. It can be powered by the included AC adapter and supports Gold mount or V-mount batteries (sold separately). - Photometrics
3200K 55°
355 fc at 4.0' (1.2 m)
94.1 fc at 8.0' (2.4 m)
41.8 fc at 12' (3.6 m)
23.5 fc at 16' (4.9 m)
17.6 fc at 20' (6.0 m)
3200K 55°
5680 lux at 3.2' (1.0 m)
1505 lux at 6.5' (2.0 m)
669 lux at 9.8' (3.0 m)
376 lux at 13.1' (4.0 m)
282 lux at 16.4' (5.0 m)
5600K 55°
390 fc at 4.0' (1.2 m)
103.3 fc at 8.0' (2.4 m)
45.9 fc at 12' (3.6 m)
25.8 fc at 16' (4.9 m)
18.9 fc at 20' (6.0 m)
5600K 55°
6240 lux at 3.2' (1.0 m)
1654 lux at 6.5' (2.0 m)
735 lux at 9.8' (3.0 m)
413 lux at 13.1' (4.0 m)
303 lux at 16.4' (5.0 m) UPC: 887515002268 In the Box Lumos 500GT 3200 to 5600K LED Panel with 55° Beam Angle Lens AC Adapter Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumos 500GT 3200 to 5600K LED Panel with 55° Beam Angle Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumos 500GT Specs | Color Temperature | 3200 to 5600K | | CCT Tolerance | ±150K at 3200K and ±200K at 5600K | | CRI | 95 | | Color Controls | Manual or DMX512 | | Dimming | 0-100% Manual or via DMX512 | | Mount | Supports Gold mount or V-mount battery | | Operating Voltage | 100-240 VAC, 50/60 Hz
12-24 VDC | | Power Consumption | 120 W | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Dimensions | 16.2 x 10.8 x 5.1" (411 x 276 x 129 mm) | | Weight | 13.2 lb (6 kg) |
