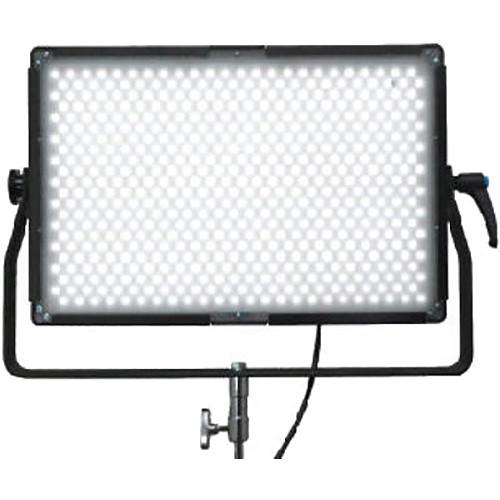

Product description The Lumos 700GT Tungsten-Balanced LED Fixture with A/C Adapter is built into a metal chassis with rubberized corners protecting the LEDs and providing a durable fixture with enhanced features such as 100-10% flicker-free dimming and an LCD info display. Roughly equivalent to a 1500W fixture, it produces a light with a CRI rating of 97, an 85° beam spread, and features an integrated diffusion screen to minimize multiple shadows. Built into the fixture is a knob to locally control dimming, or you may utilize the 5-pin XLR DMX ports to remotely control the unit's dimming from a compatible control panel (control panel not included).
The fixture is DC-powered, incorporating a 4-pin XLR connector and including an AC/DC power supply for mains power. The power supply mounts on the back of the fixture and can be removed allowing you to attach optional Gold mount or V-mount plates to the light. An available set of barndoors permits you to control the light spill. Please note that battery plates and barndoors are not included. A combo Baby / Junior pin adapter is attached to the yoke, so you can mount the fixture on a stand or hang it from a grid with optional clamps. - Soft Source, Single Shadow
- The diffusion softens the light and provides an 85° beam spread and a single source shadow.
- Battery Power
- The fixture accepts interchangeable Gold mount or V-mount battery plates.
- LCD Info Screen
- On the back of the fixture is an LCD info screen that displays the battery power remaining in numerals and not a battery gauge, likewise, dimming is displayed numerically as well.
- Lumos points out that not only do they manufacture the light fixture, but they also control the manufacture of the LEDs and do not purchase them from a third party.
- The fixture features a yoke with a combination Baby / Junior pin adapter and a spring-loaded locking lever for securing your light once positioned.
In the Box Lumos 700GT Tungsten-Balanced LED Fixture with A/C Adapter Power Supply with 4-Pin XLR Cable Yoke with Baby Receiver / Junior Pin Stand Adapter Limited 1-Year Warranty for Field Use Limited 2-Year Warranty for Studio Use Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumos 700GT Tungsten-Balanced LED Fixture with A C Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumos 700GT Specs | Construction | Metal construction with rubberized corners | | Color Temperature | 3200K
CRI: 97 | | Beam Angle | 85° | | Photometrics | 3200K
4' / 1.2 m: 368.7 fc
8' / 2.4 m: 97.7 fc
12' / 3.7 m: 43.4 fc | | Dimming | 0-100% (tested flicker-free up to 2400 fps) | | Power | Fixture: 12 to 24 VDC
Consumption: 200 W
Power Supply: 110 to 220 VAC 50/60 Hz
Connector: 4-pin XLR | | Control | Rotary knob
DMX 512: 1 x 5-pin XLR female, 1 x 5-pin XLR male | | Mount | Yoke with combo Baby/Junior Pin receiver: 5/8" (16 mm) / 1 1/8" (26 mm) | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions | 19.40 x 13.90 x 5.40" / 49.28 x 35.31 x 13.72 cm | | Weight | 19.4 lb / 8.8 kg |
