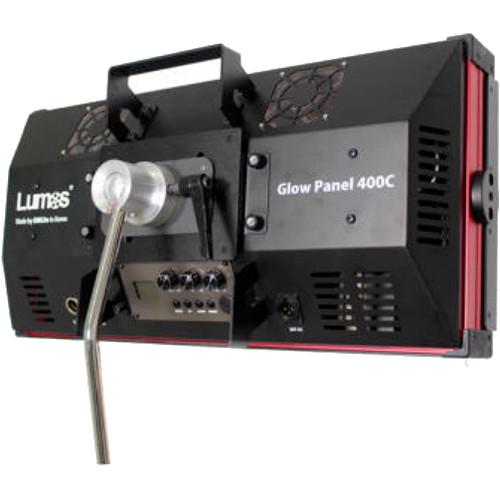

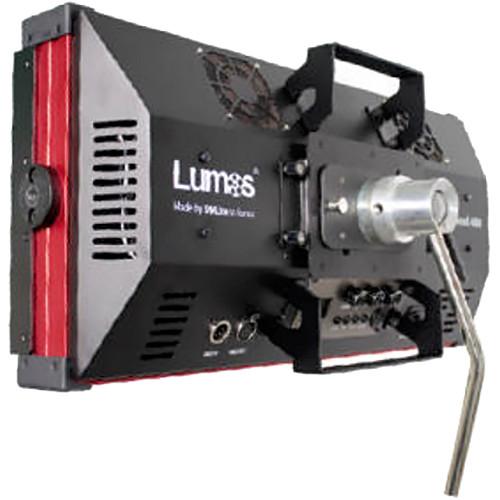

User Manual for Lumos Glow Panel RGBW LED 400C Panel Click to enlarge the picture
Contents of the user manual for the Lumos Glow Panel RGBW LED 400C
- Product category: LED Lights Lumos
- Brand: Lumos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumos LED Lights
 |
User manual for the Lumos Glow Panel RGBW LED 400C contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumos product will considerably shorten its lifespan!
|

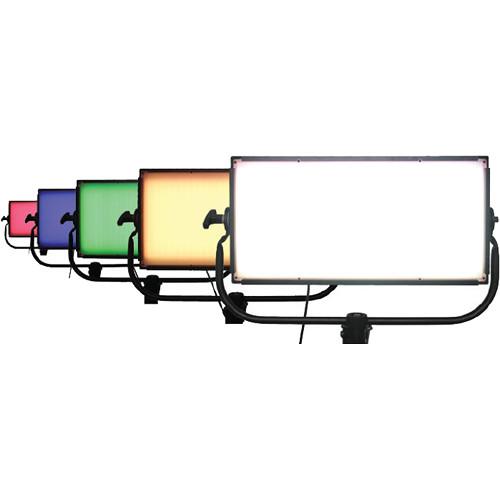

Product description Featuring wide-ranging color control, the Glow Panel RGBW LED 400C Light from Lumos has impressive Kelvin color control from a warm 2800 to an icy blue 10,000K to meet the challenge of matching other sources or ambient light conditions. But color control doesn't stop there. Unlike standard configurations, the RGBW LED design gives you access and control over literally millions of colors, while saturation control handles the intensity of the chosen color. There are even ten presets to allow you to quickly access often-used settings. The 400C boasts a high CRI of 96 at 3200K, an indication of accuracy in rendition of color. Adjustable Green/Magenta is available as well. Light intensity is also variable from 0-100%. You can control both color and dimming functions locally on the fixture, or remotely from a console using onboard DMX. A smart design feature is separation of the fixture from its power supply, increasing mounting options for the all-metal panel. The 400C is ready for worldwide use, thanks to its 90 to 264 VAC power supply, but it can also be powered by optional batteries when mains power is unavailable. UPC: 887515002329 In the Box Lumos Glow Panel RGBW LED 400C Panel Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumos Glow Panel RGBW LED 400C Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumos Glow Panel 400C Specs | | | Color Temperature | 10,000 to 2800K ± 150K | | Color Accuracy Standard | CRI 96 at 3200K | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Metal | | Photometrics | 130 fc / 1398.8 lux at 9.84' / 3 m | | Fixture Dimensions | Flood: 23.6 x 11.7 x 5.9" / 59.9 x 29.7 x 15.0 cm | | Fixture Weight | 27.3 lb / 12.38 kg | | | | Battery Plate | None | | Power Input Connector | powerCON | | | | Yoke Mount | None | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 400 W | | | | Power Supply Output | 36 VDC | | Power Supply Power Connector | powerCON Input | | Power Supply Dimensions | 6.0 x 4.0 x 13.0" / 15.2 x 10.2 x 33.0 cm | | Power Supply Weight | 7.1 lb / 3.22 kg | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | | | Package Weight | 45.5 lb | | Box Dimensions (LxWxH) | 33.0 x 24.0 x 9.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
