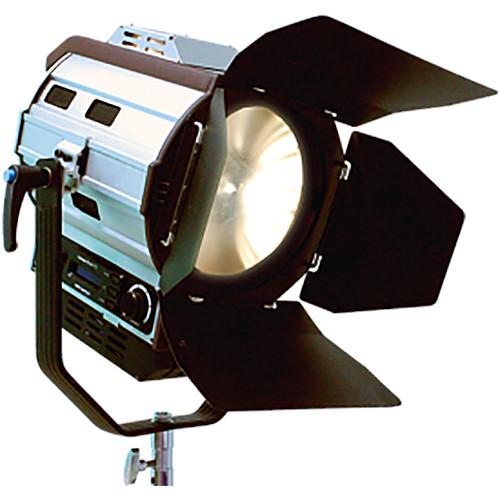

User Manual for Lumos Hawk 200 LED Fresnel Click to enlarge the picture
Contents of the user manual for the Lumos Hawk 200 LED Fresnel
- Product category: LED Lights Lumos
- Brand: Lumos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumos LED Lights
|
User manual for the Lumos Hawk 200 LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumos product will considerably shorten its lifespan!
|
Product description Illuminate your production with the 3200K tungsten-balanced Hawk 200 LED Fresnel from Lumos. Delivering a tungsten-equivalent output of 1500W on a power draw of just 200W, this yoke-mounted Fresnel fixture is designed for both field and small-studio work. The Hawk 200 offers a 15-50º beam angle range and boasts a CRI of 96. The light allows for full-range smooth dimming with no flickering, either on-board or remotely via DMX 512.
A combination of natural convection and a built-in fan, which engages automatically when a threshold is reached, keeps the LED light running cool. The Hawk 200 can be powered with the included 100-240 VAC power supply. In the Box Lumos Hawk 200 LED Fresnel (3200K) Yoke Baby Pin 100-240 VAC Power Supply Limited 1-Year Warranty Limited 2-Year Warranty for Studio Use Only Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumos Hawk 200 LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumos Hawk 200 Specs | Lamp Type | LED | | Rating | 1500 W tungsten equivalent | | Lens | 7.48" (190 mm) PMMA Fresnel | | Beam Angle | 15-50° | | Color Temperature | 3200K | | CRI | 96 | | Dimming | 0-100% manually or via DMX | | Cooling | Natural convection with fan | | Power Consumption | 200 W max | | Power Source | AC Adapter: 100-240 VAC, 50/60 Hz | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Photometrics | Spot (15° Beam Angle): 51,420 lux @ 3.28' (1 m)
Flood (50° Beam Angle): 8205 lux @ 3.28' (1 m) | | Dimensions | 15.2 x 20.3 x 13.7" (38.5 x 51.5 x 34.8 cm) | | Weight | Body Alone: 15.2 lb (6.9 kg)
With Yoke: 17.6 lb (8 kg) |
