User Manual for Lumu Power 2 Lite Light Meter for iPhone Click to enlarge the picture
Contents of the user manual for the Lumu Power 2 Lite Light Meter
- Product category: Other Accessories Lumu
- Brand: Lumu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumu Other Accessories
 |
User manual for the Lumu Power 2 Lite Light Meter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumu product will considerably shorten its lifespan!
|

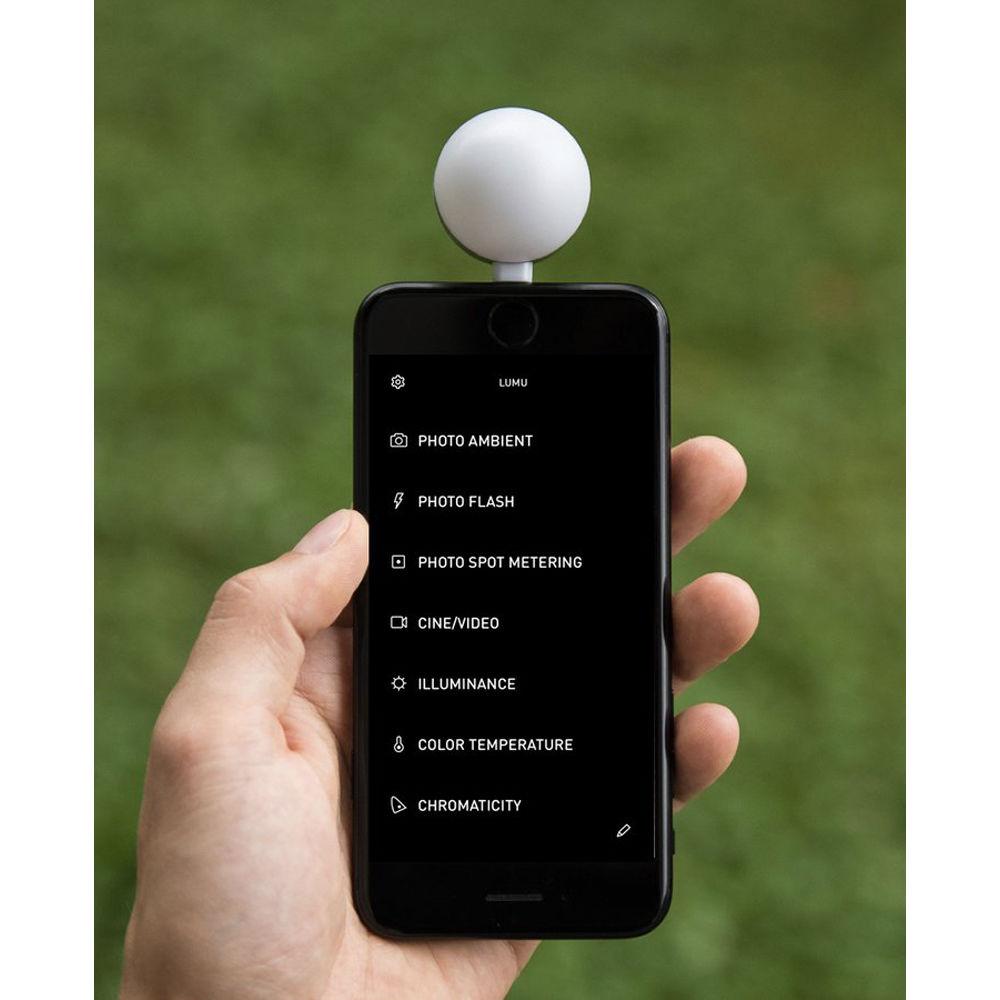

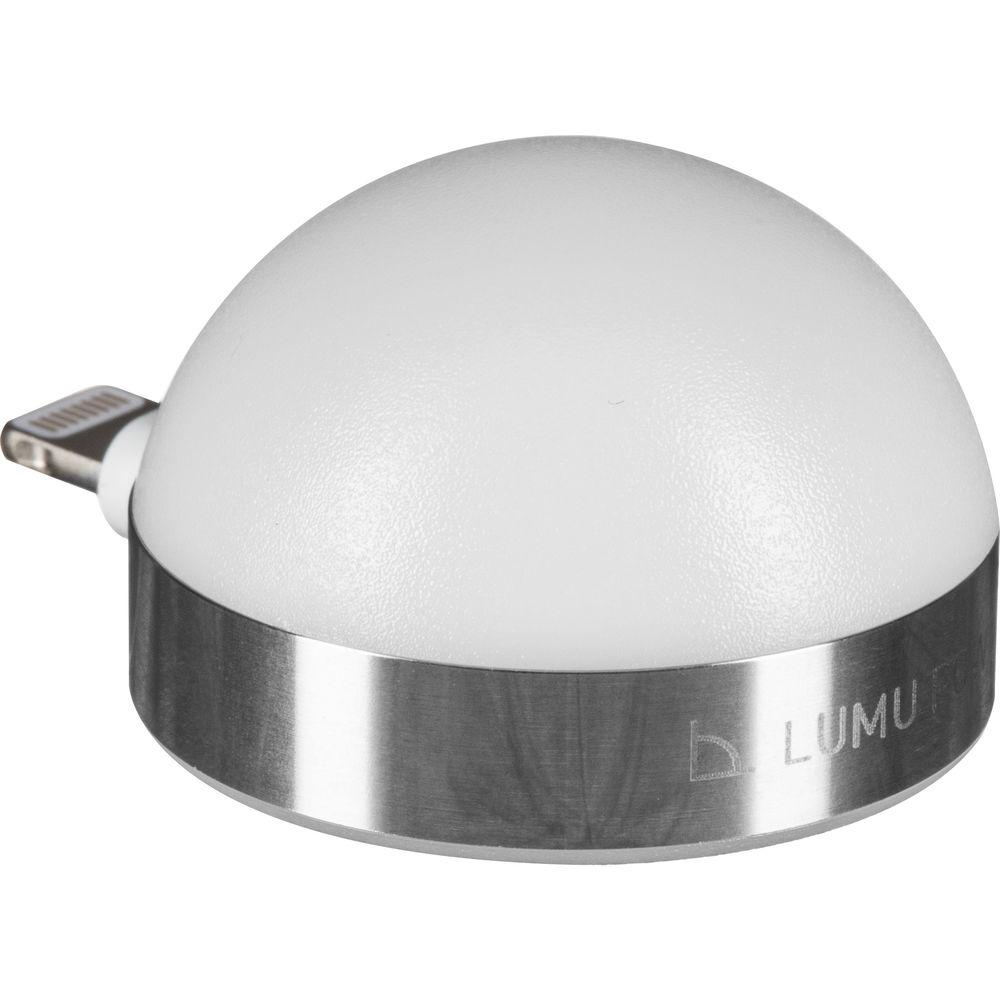

Product description Turn Your iPhone into a Light Meter with the Lumu Power 2 Read More sdezcxfcsrzrra The Lumu Power 2 Lite is a light meter for your iPhone. It connects using the lightning port and is made of stainless steel, which helps it withstand demanding uses. It uses two sensors, one of which is based on the CIE 1931/DIN 5033 color standard, while the second is a silicon photodiode that captures light at 750000 measurements per second. Each Lumu unit is calibrate before shipping and comes in a leather bag.
Other technical features include the ability to measure color temperatures from 1600 to 18000K and an exposure range of -4 to 20 EV at 100 ISO with an accuracy of ±0.1 EV. It also syncs with flash units anywhere from 1/40000 to 1/250 sec in duration and can measure illuminance ranging from -0.15 to 250000 lux with an accuracy of ±3%.
While this is the Lite model of the Power 2, users can upgrade to either the Power or Pro model from within Lumu's app for an additional fee. Lite Model Features General Features - Build Quality
- Made of durable stainless steel housing and polycarbonate lexan diffusers, the Lumu Light Meter can withstand demanding use.
- Accurate
- Lumu Power incorporate two sensors. A True Color sensor, based on the CIE 1931/DIN 5033 color standard, and a fast silicon photodiode both capture light at 750000 measurements per second. Each Lumu is calibrated before leaving the manufacturing line and comes with a calibration certificate.
In the Box Lumu Power 2 Lite Light Meter for iPhone Leather Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumu Power 2 Lite Light Meter for iPhone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumu LPLM3LITE Specs | | | Light Receptor | True Color Sensor, CIE 1931 Color Standard, Human Eye Perception | | Sensitivity | Visible Light | | Measuring Range | 1600 to 18000K | | Accuracy | ΔE < 0.6 | | Repeatability | ΔE < 0.2 | | Response | Flat Diffuser, Cosine-Type Response | | | | Light Receptor | Fast-Response Silicon Photo Diode, CIE Spectral Luminous Efficiency | | Sensitivity | Visible Light | | Measuring Range | -4 to 20 EV at 100 ISO | | Accuracy | ±0.1 EV | | Flash Duration | 1/40000 to 1/250 sec | | Response | Hemispherical Diffuser, Cardioid-Type Responses | | | | Light Receptor | True Color Sensor, CIE 1931 Color Standard, Human Eye Perception | | Sensitivity | Visible Light | | Measuring Range | -0.15 to 250000 lux | | Accuracy | ±3% | | Response | Flat Diffuser, Cosine-Type Response | | | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.285 lb | | Box Dimensions (LxWxH) | 7.05 x 3.6 x 1.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
