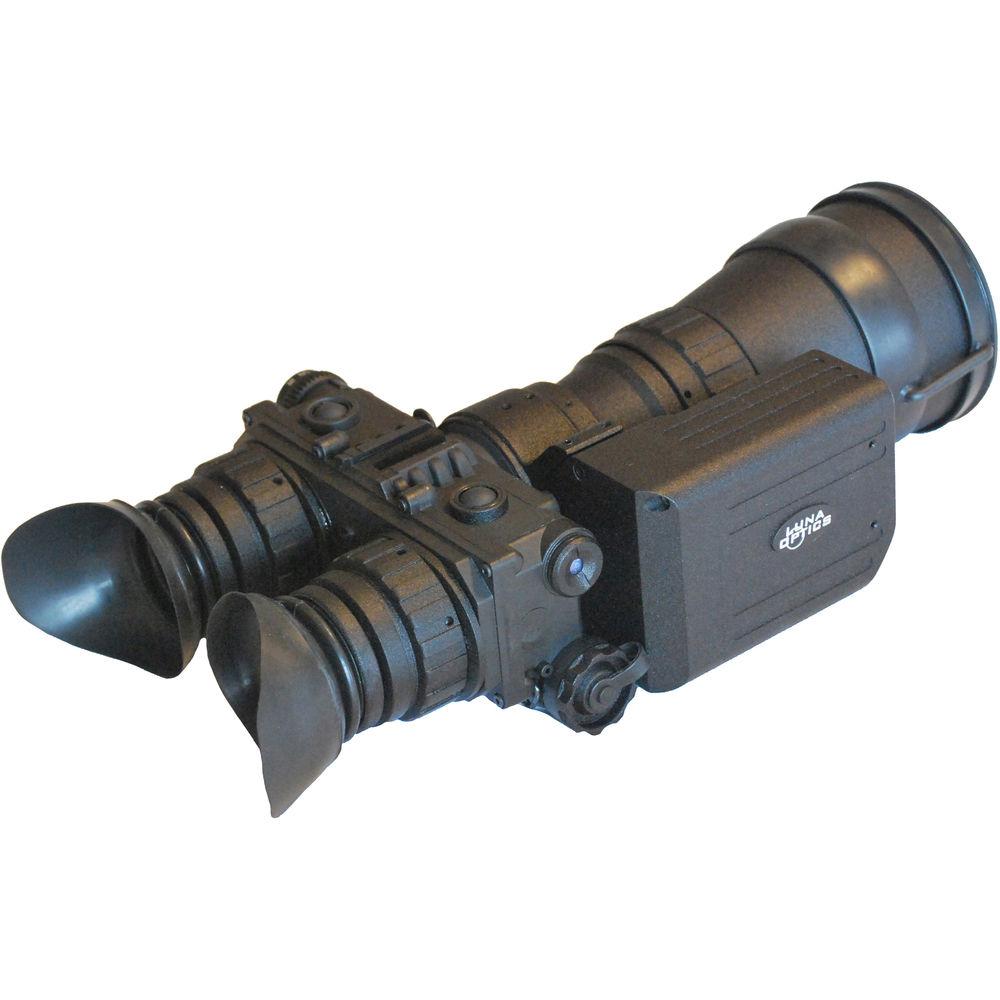

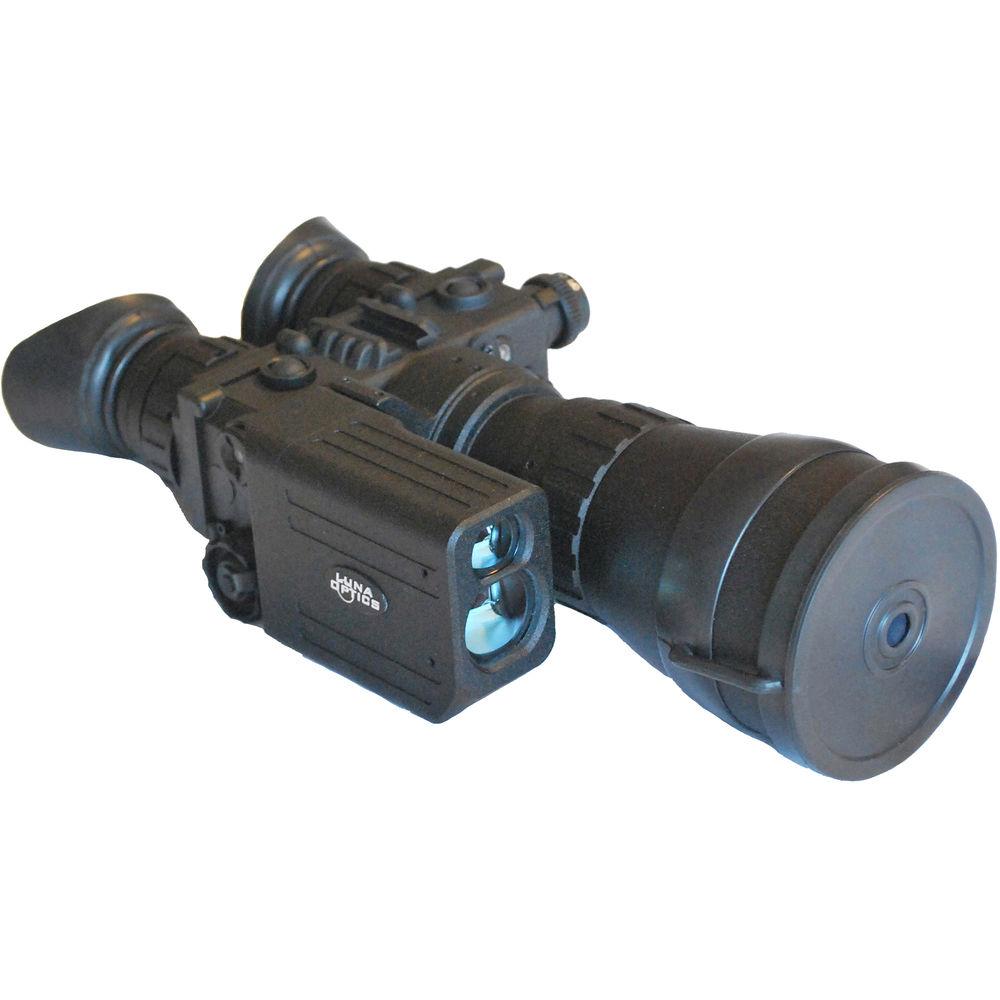

User Manual for Luna Optics 5x Elite 2nd-Generation Bi-Ocular with Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Luna Optics 5x Elite 2nd-Generation Bi-Ocular
- Product category: Night Vision Binoculars Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Night Vision Binoculars
 |
User manual for the Luna Optics 5x Elite 2nd-Generation Bi-Ocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|
Product description Own the night using Luna Optics 5x Elite 2nd-Generation Bi-Ocular with Laser Rangefinder. This night vision device offers users a comprehensive nighttime observational experience with its long-range capabilities, a quality all-glass objective, multi-element low distortion eyepieces, and sliding interpupillary adjustment. For conversion of the infrared night scene profile to visible images, this device employs a high-resolution 2nd-generation intensifier tube that is enhanced with automatic gain and bright light protection. While the automatic gain frees you from constantly adjusting image brightness due to changing scene conditions, the bright light protection prevents accidental burnout of the tube due to sudden flashes of light. Other highlights of this night vision device are its integrated laser rangefinder, which measures distances to your targets, and an LED infrared illuminator, which casts extra infrared light on objects of interest and improves image visibility and brightness. A special feature of the illuminator is its momentary-on capability that enables you to turn on and off the illuminator instantly, minimizing possible exposure to your adversaries. To enhance durability and strength, the housing is made from water-resistant and impact-resistant polymer. The design incorporates interchangeable desiccant cartridges for eliminating internal moisture and fogging-up of the optical elements. - Intensifier Tube
-
- 2nd generation
- 45-57 lp/mm resolution
- Automatic gain control
- Bright light protection function
- Built-in close-range LED infrared illuminator
- Integrated 905nm laser rangefinder
- Optical Performance
-
- 5x magnification
- All-glass objective lens
- f/1.5 lens system with a 110mm focal length
- 21-element eyepieces deliver edge-to-edge clarity
- Close focus: 33'
- Use and Handling
-
- Momentary IR-on button
- LED low-battery and IR on indicators
- Adjustable sliding interpupillary distance
- Desiccant cartridges remove internal moisture
- Construction Details
-
- Durable polymer housing
- Fold-down winged rubber eyecups
- Tethered objective cover
- Mounting point on the top for optional accessories
- Impact resistant
- Water resistant
In the Box Luna Optics 5x Elite 2nd-Generation Bi-Ocular with Laser Rangefinder (Matte Black) - Carry Case
- 2 x AA Batteries
- Neck Strap
- 2 x Desiccant Cartridges
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics 5x Elite 2nd-Generation Bi-Ocular with Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-EB5-LRF Specs | Intensifier Tube | 2nd-generation tube | | Resolution | 45-57 lp/mm | | Sensitivity | 350-600 μA/lm | | Magnification | 5x | | Lens System | f/1.5, 110mm focal length | | Minimum Focus Distance | 33' / 10.0 m to infinity | | Dioptric Correction | +4 to -4 | | Interpupillary Adjustment | 58-72 mm | | Infrared Illuminator | Type: LED
Wavelength: 805-810 nm | | Rangefinder Basis | 905 nm (rangefinder)
Eye safe | | Battery / Runtime | 2 x AA batteries / 50 hours | | Weatherproofing | Water resistant, rated IPX4 | | Moisture Protection | Desiccant cartridge | | Operating Temperature | -40 to 122°F / -40 to 50°C (device only)
-4 to 122°F / -20 to 50°C (device and remote) | | Dimensions | 11.2 x 5.7 x 3.2" / 28.4 x 14.4 x 8.1 cm | | Weight | 40.6 oz / 1.15 kg |
