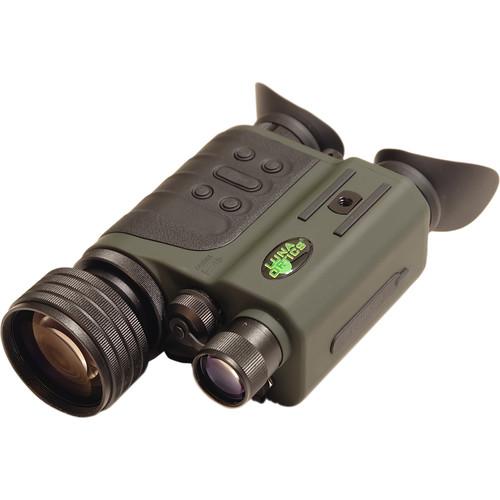

Product description With 6x optical magnification, and 1-5x digital, the Luna Optics 6x50 Digital Daytime/Night Vision Bi-Ocular is capable of bringing subjects up to 30x closer with the ability to see as far as 650 yards at night. This versatile device is ideal for daytime use; or nighttime surveillance, varmint hunting, patrols, or other activities that require stealth. An integrated IR illuminator provides additional invisible illumination on extremely dark or cloudy nights, and its variable intensity ensures the right amount of IR light is used for changing conditions and situations. To provide more vivid color during daytime use, a removable front filter is included.Dual 0.26" micro-flat HR 800 x 640 displays in the oculars show views in full color during the day, with conventional night vision green or higher-contrast black-and-white options when used in the dark. An integrated microSD card slot allows users to capture and save images and video, and to get started, Luna Optics includes an 8GB card with this unit. The bi-ocular runs on two included disposable CR123 batteries with a runtime of 4-hours, and can also be powered by a single optional 18650 rechargeable battery. The 18650 battery can be charged externally, using the included adapter. - Digital Night Vision
-
- SONY HD CMOS sensor
- 1920x1080 resolution
- Sensitivity: 0.002 lux
- Viewing Distance: 656 yards (600m) with clear skies under a full moon / 437 yards (400m) under 1/4 moon / 219 yards (200m) in total darkness
- Built-in 805nm, 100mW IR illuminator with variable brightness control
- Transition between Full-Color Image and super light sensitive Night Vision Green, or Black & White Image when using built-in IR illuminator
- Optical Performance
-
- Full-color images when used during the day
- Magnification: 6x optical, 1-5x digital; 30x max
- Focusing Distance: 2.6' to infinity
- Field of View: 7°
- 367.5' field of view at 1000 yards
- 6' close-focus distance
- Long 20mm eye relief
- Use and Handling
-
- Dual 0.26" Micro-flat HR 800 x 640 displays
- Full-Color, NV Green and B&W image options
- Wi-Fi 802.11b/g/n compatible
- Operating Time: 4 hours
- Low-battery indicator
- Manual brightness control to provide for the best viewing in any ambient light conditions
- ±4 dioptric correction
- Imaging
-
- Still Image resolution 2.1MP, JPEG
- Video resolution: Full-HD 1080p, 60 fps, AVI
- Signal Output: PAL / NTSC
- USB and video cables included to show the images on a computer, TV, or monitor
- microSD card slot, supports up to 128GB cards
- Includes one 8GB card
- Construction Details
-
- Plastic housing
- Aluminum lens housing
- Broad 14 to 122°F (-10 to 50°C) operating temperature
- Color enhancing filter for vivid daylight color-rendering
- Runs on two included disposable CR123 lithium batteries
- Can use one 18650 rechargeable battery
UPC: 898995001979 In the Box Luna Optics 6x50 Digital Daytime/Night Vision Bi-Ocular Carrying Case Battery Charger Lens Cover Wrist Strap 8GB microSD Card Daylight Color-Enhancing Filter Video Cable USB Cable AC Adaptor Lens Cloth 2 x CR123 Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics 6x50 Digital Daytime Night Vision Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-DB60-HD Specs | Sensor | SONY Full-HD CMOS, 0.002lux | | Resolution | 1920 x 1080 | | Magnification | 6x, optical
1-5x, digital | | Angle of View | 7°, actual | | Field of View | 367.5' @ 1000 yd / 122.0 m @ 1000 m | | Lens System | Not specified by manufacturer | | Minimum Focus Distance | 6.0' / 1.8 m | | Eye Relief | 20.0 mm | | Dioptric Correction | ±4 | | Interpupillary Adjustment | N/A | | Infrared Illuminator | Integrated
805 nm, 100 mW | | Memory Card | microSD card, up to 128 GB | | Battery | 2 x CR123 | | Runtime | 4.0 h, max | | Weatherproofing | IPX4-rated, weather-resistant | | Operating Temperature Range | 14 to 122°F / -10 to 50°C | | Dimensions | 7.2 x 4.7 x 2.3" / 18.0 x 120 x 60 cm | | Weight | 25.6 oz / 725.0 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 8.8 x 6.6 x 4.6" |
