User Manual for Luna Optics 6x86 3rd Generation Special Purpose Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Luna Optics 6x86 3rd Generation Special
- Product category: Thermal Scopes Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Thermal Scopes
|
User manual for the Luna Optics 6x86 3rd Generation Special contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|

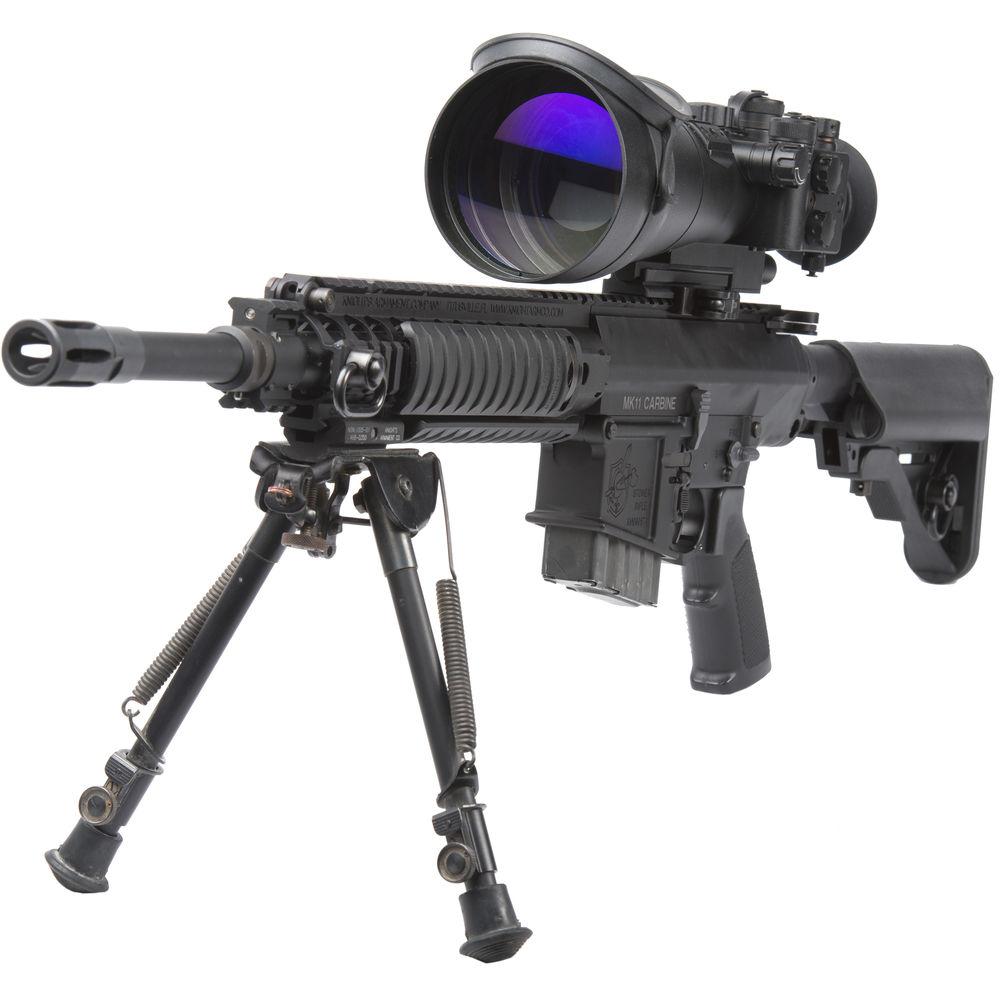

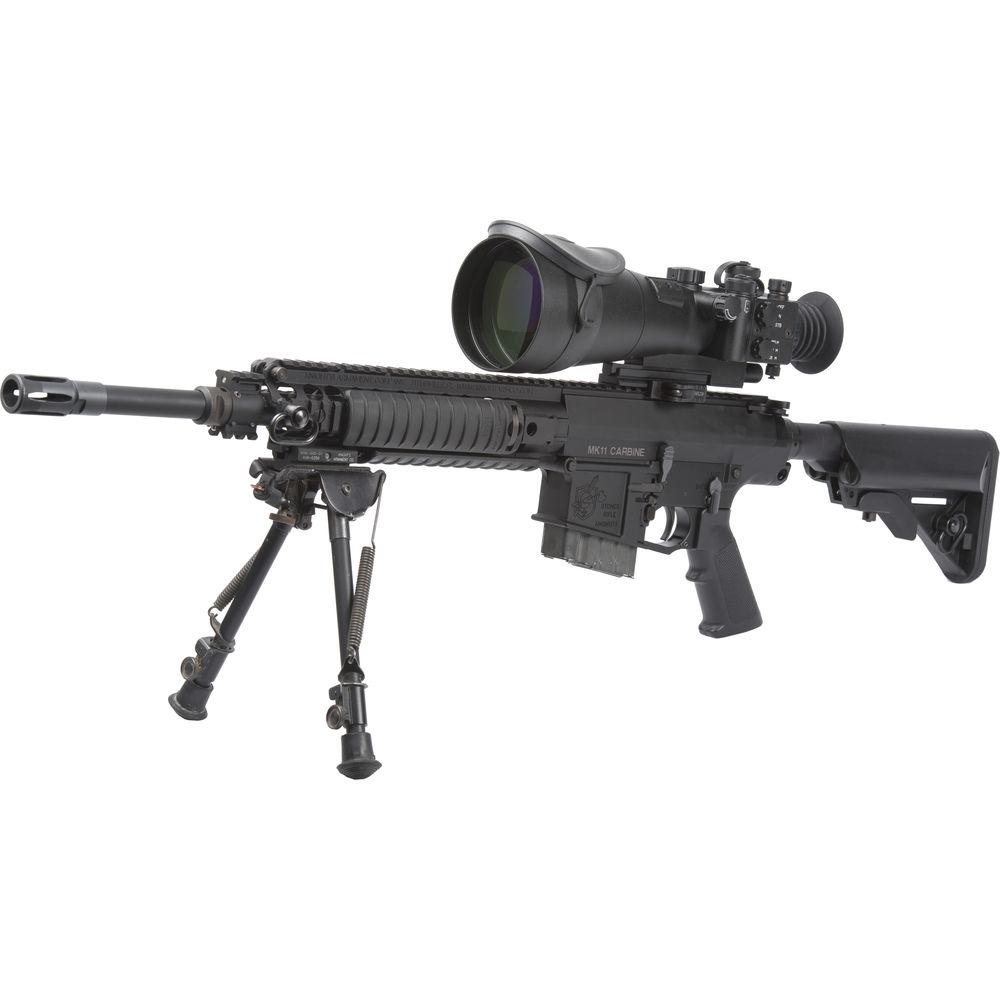

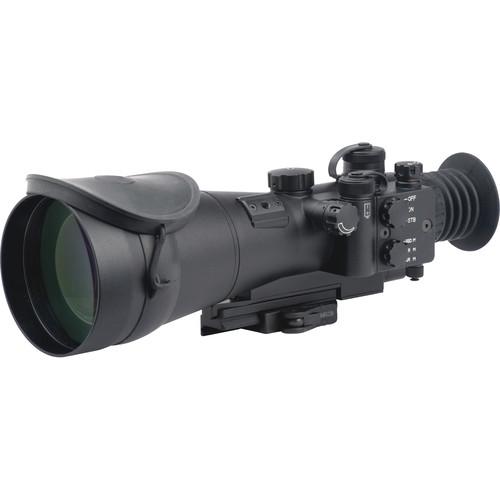

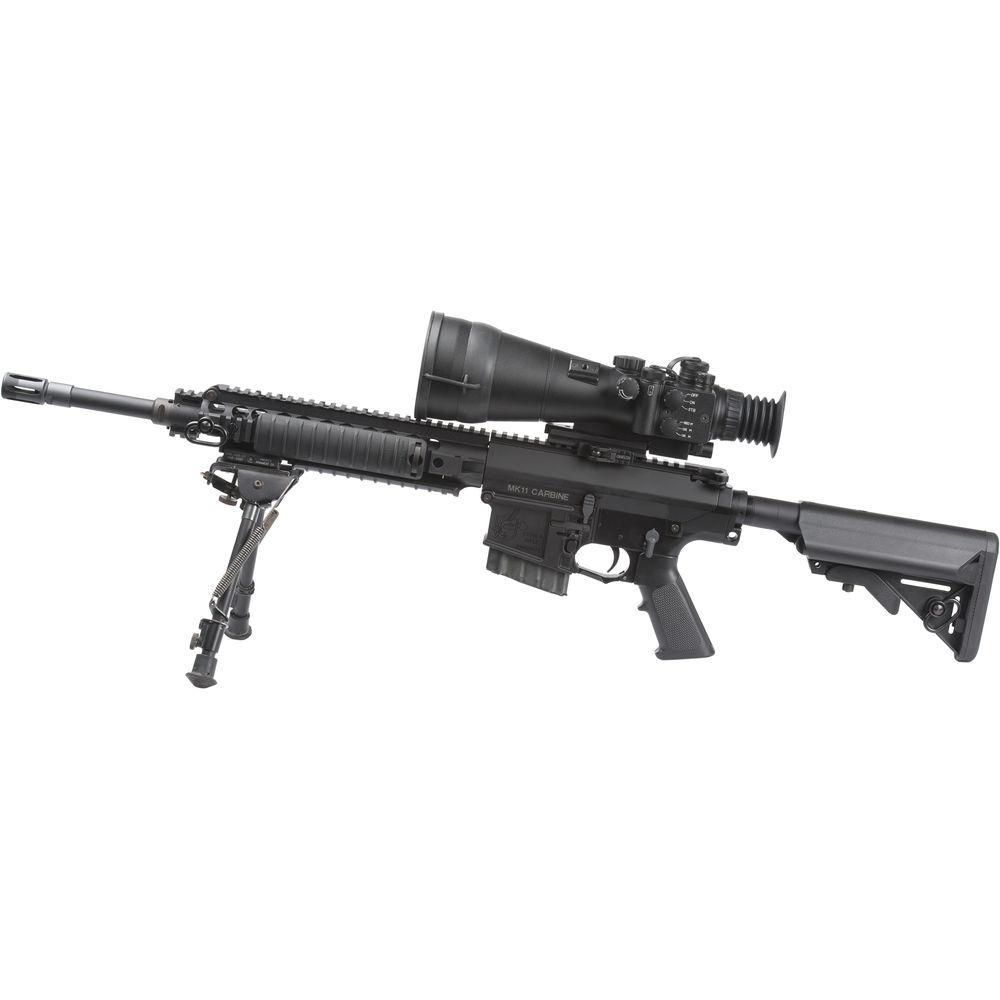

Product description Add stealth to your night operations with the Luna Optics 6x86 3rd Generation Special Purpose Night Vision Riflescope. This robust, waterproof riflescope features a high-performance 3rd generation image intensifier with a manual gain, which together with a wide aperture provides an ideal night riflescope for long-range target acquisitions. Unlike most IITs with green outputs, this image intensifier tube also features a White Phosphor technology that produces black and white images. In addition to tube's high edge-to-edge image clarity, the optical system muscles up a notable 6x magnification with a 6.2° angular field of view. Helping you with precise target acquistion, Luna Optics added an illuminated Mil-Dot reticle to the scope's inventory of features. The reticle features three illumination colors (red, orange, and green) and has adjustable brightness. For improved visibility in total darkness, you can also attach an optional infrared illuminator to a short mounting point provided on the left side of the body.
To withstand most unforgiving conditions for years to come, the aluminum housing delivers strength, water-tightness, and impact-resistance. It provides oversized knurled windage and elevation turrets, a textured focusing ring, battery compartments with tethered caps, a tethered objective cap, and a modified American Defense Auto Lock mount. This precision mount is made of 6061-T6 aluminum and features a maximum rail engagement. To ensure dryness inside this optic, two desiccant cartridges are included. - Image Intensifier
-
- 3rd generation
- 64-72 lp/mm resolution
- L3 white phosphor filmless IIT produces high-resolution, high-contrast black and white images
- Manual gain control
- Optical Performance
-
- 86mm objective
- 165mm, f/1.8 lens system
- 4x low-distortion optical system
- 6.2° angular field of view
- Minimum focus: 82'
- Reticle
-
- Mil-Dot reticle
- Red, orange, and green colors
- Adjustable illumination
- Use and Handling
-
- 1/3 MOA impact point correction
- Windage and elevation turrets
- Red-green LED battery status indicator
- Construction
-
- Aluminum housing
- Knurled adjusters
- Tethered objective cover
- Short mounting point on the left side
- American Defense QD Auto Lock Picatinny modular mount with a single lever
- Desiccant cartridge ensures internal dryness
- Rubber wide eyecup
- Shock-resistant
- Waterproof
UPC: 898995001764 In the Box Luna Optics 6x86 3rd Generation Special Purpose Night Vision Riflescope (Filmless White Phosphor Tube, Matte Black) - 2 x Desiccant Cartridges
- CR-123 Battery
- AA Battery
- Padded Carry Case
- American Defense QD Auto Lock Mount
- Flip-Up Lens Cover
- Pressure Pad Remote Control
- Limited 2-Year Warranty
- Limited 1-Year Warranty for Image Intensifier
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics 6x86 3rd Generation Special Purpose Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-SPRS-6-WP Specs Thermal Sensor | 3rd generation tube by L3 Filmless white phosphor 64-72 lp/mm resolution 2000 µA/lm sensitivity 26 SNR 1700 FOM | Magnification | 6x | Field of View | 6.2° | Focusing Range | 82' (25 m) to infinity | Reticle | Mil-Dot reticle | Windage/Elevation Adjustment | Yes | Impact Point Correction | 1/3 MOA | Battery / Runtime | 1 x CR-123 lithium battery / 30 hours 1 x AA lithium battery / 10 hours | Waterproofing | Waterproof | Impact Resistance | Shock-resistant | Operating Temperature | -22 to 122°F / -30 to 50°C | Dimensions | 12.9 x 3.8 x 3.7" / 32.8 x 9.7 x 9.5 cm | Weight | 2.6 lb / 1.2 kg |
