User Manual for Luna Optics Elite 1x 2nd-Generation Clip-On Monocular Click to enlarge the picture
Contents of the user manual for the Luna Optics Elite 1x 2nd-Generation Clip-On
- Product category: NV Monoculars & Multi-Systems Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics NV Monoculars & Multi-Systems
 |
User manual for the Luna Optics Elite 1x 2nd-Generation Clip-On contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|

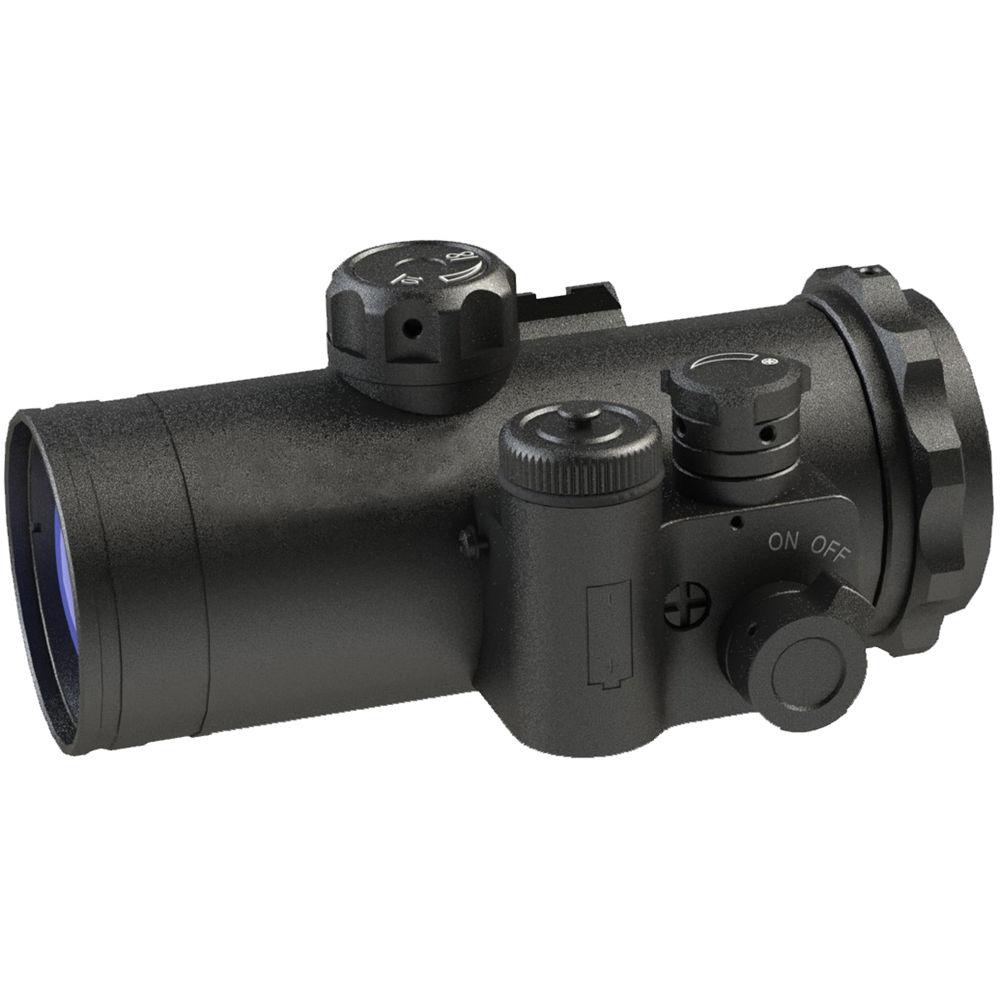

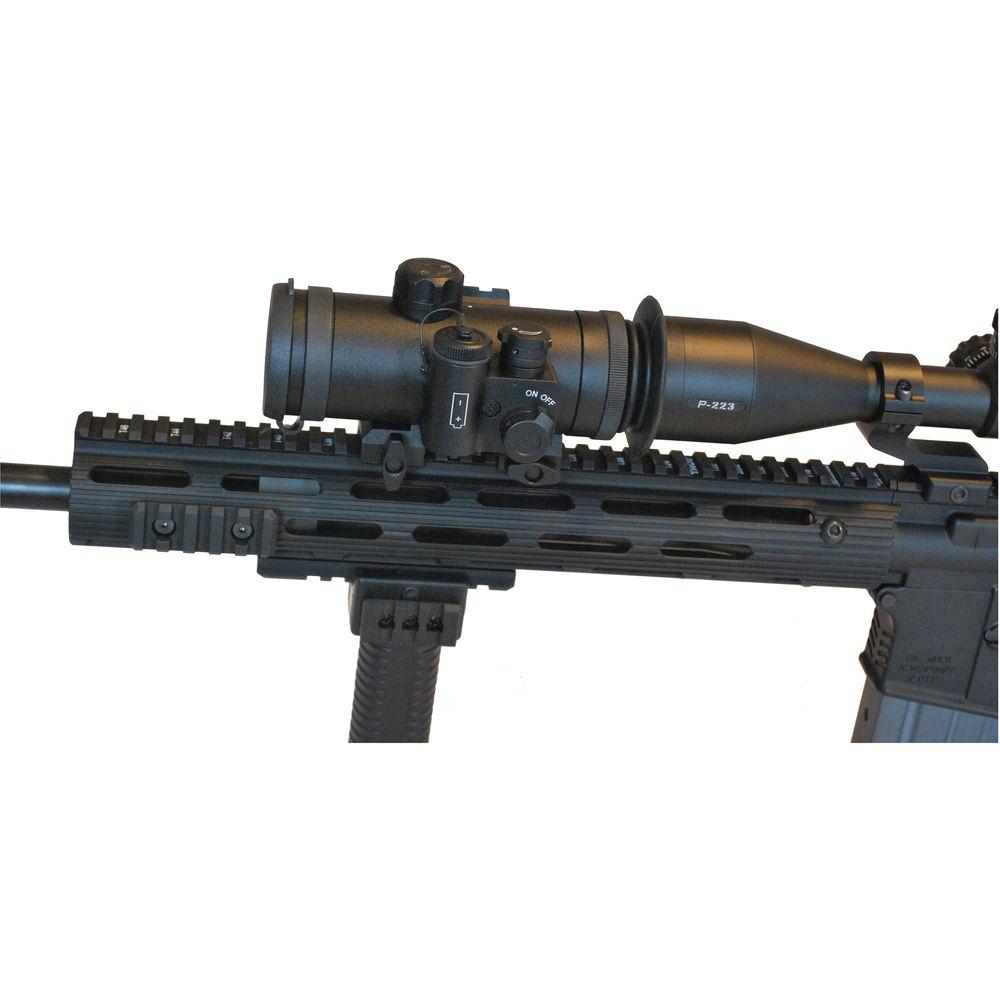

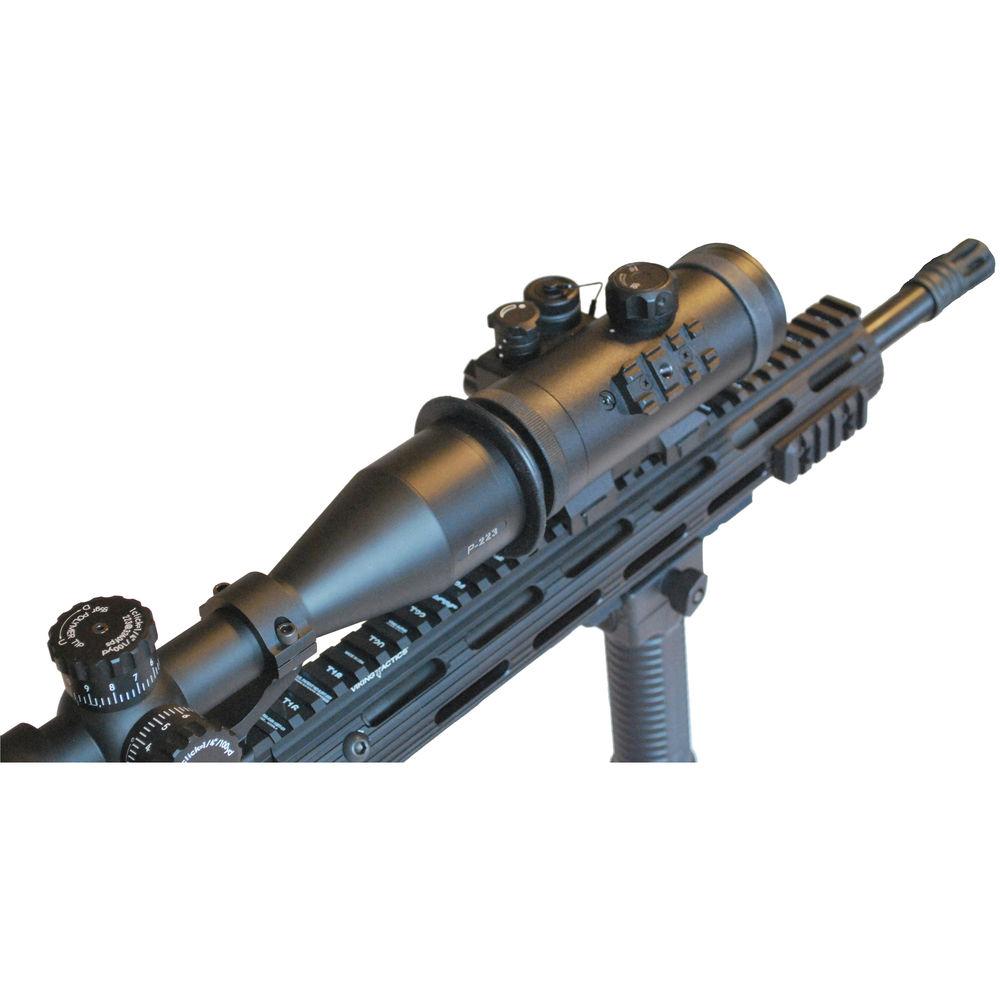

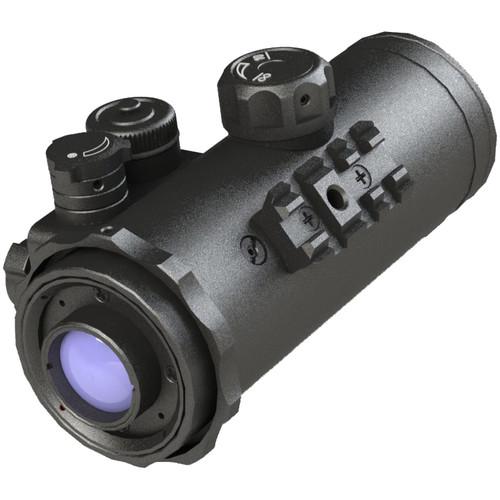

Product description Adapt your day scope for night vision use with the Luna Optics Elite 1x 2nd-Generation Clip-On Monocular. This device attaches directly to a Picatinny/Weaver rail right in front of your day scope (with up to 10x magnification) and delivers high-resolution night vision images of your targets. The included sleeve ensures a more precise end-to-end coupling of the clip-on to the objective bell of your scope and reduces leakage of light from the image-intensifier tube (IIT) screen. To provide sharp and bright night images, the device carries a second-generation night vision IIT with manual gain control for adjusting brightness. The tube and electronics run on one CR123A battery for up to 55 hours of uninterrupted operation. The 1x optical system features a wide field of view, all-glass lenses, and a minimum focus of 39.4'. For durability and to withstand recoil, the housing is made from a light alloy and has an IPX6 water-resistance rating. - Compatibility
-
- For 1-10x or 4-7x day scopes
- Image-Intensifier Tube
-
- 2nd-generation IIT
- 45-57 lp/mm resolution
- Manual gain control
- Optical Performance
-
- 1x magnification
- All-glass optics
- 40mm objective diameter
- f/1.2, 50mm lens system
- 19° angle of view
- 39.4' minimum focus distance
- 22.1mm exit pupil
- Construction Detail
-
- Light alloy housing
- Built-in Picatinny/Weaver accessory rail
- Water-resistant, rated IPX6
- Parallax adjustment wheel
- Picatinny/Weaver mount included
- Impact resistant to 600 g
UPC: 898995001733 In the Box Luna Optics Elite 1x 2nd-Generation Clip-On Monocular (Matte Black) - Accessory Sleeve
- Picatinny/Weaver Mount
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics Elite 1x 2nd-Generation Clip-On Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-CLS1 Specs | Intensifier Tube | 2nd-generation tube | | Resolution | 45-57 lp/mm | | Sensitivity | 350-600 μA/lm | | Magnification | 1x | | Angle of View | 19° | | Exit Pupil Diameter | 21.2 mm | | Lens System | f/1.2, 50mm | | Objective Diameter | 40mm | | Minimum Focus Distance | 13.1 yd / 12.0 m | | Compatibility | Day Scopes: 1-10x, 4-7x | | Battery / Runtime | 1 x CR123A battery / 50-55 hours | | Water Resistance | Rated IPX6 | | Impact Resistance | 600 g | | Temperature Ranges | -22 to 122°F / -30 to 50°C | | Dimensions | 5.4 x 3.2 x 2.7" / 13.8 x 8.1 x 6.9 cm | | Weight | 18.7 oz / 530.0 g |
