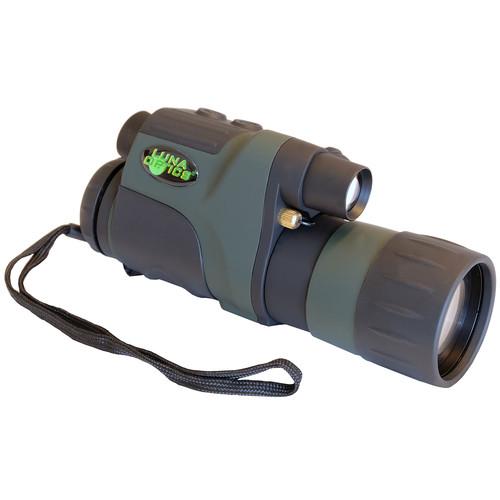

User Manual for Luna Optics LN-DM5-HRV 5x50 Digital High-Resolution Night Vision Monocular

Click to enlarge the picture
Luna Optics LN-DM5-HRV 5x50 Digital High-Resolution Night Vision Monocular Contents of the user manual for the Luna Optics LN-DM5-HRV 5x50 Digital High-Resolution
  • Product category: NV Monoculars & Multi-Systems Luna Optics
  • Brand: Luna Optics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Luna Optics NV Monoculars & Multi-Systems

User manual for the Luna Optics LN-DM5-HRV 5x50 Digital High-Resolution contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Luna Optics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!



Product description

Explore night scenery using the LN-DM5-HRV 5x50 Digital High-Resolution Night Vision Monocular. This digital handheld night vision device offers a unique combination of notable 5x magnification, light-resistant digital night vision sensor, and an ergonomic and lightweight design. With this monocular you will be able to explore the outdoors at night while hunting or glassing. Additionally, to improve visibility in total darkness or at longer ranges, it has a built-in infrared illuminator. You can view, record, or relay videos and image to an external display or a recording device. The control pad, located on top, is easy to use and can be operated with either hand. To insure image stillness and to accommodate prolonged observations, the monocular also has a 1/4"-20 tripod socket.
    Image Sensor & IR Illuminator
    • 762 x 504 CMOS sensor
    • Digital sensor is immune to bright light
    • Built-in infrared illuminator
      Optics, Display, & Video Performance
      • Glass optics
      • 9° angular field of view
      • 6' minimum focusing distance
      • 640 x 480 VGA color display
      • Takes still images and videos
      • Video recording resolution: 762 x504
        Use and Handling
        • RCA video out port
        • NTSC/PAL video formats
        • Control pad is located on the top
          Construction
          • Ergonomic body
          • Built-in rubber eyecup
          • 1/4"-20 socket for tripod
          • Water-resistant
          UPC: 898995001948 In the Box Luna Optics LN-DM5-HRV 5x50 Digital High-Resolution Night Vision Monocular (Green-Black)
        • CR-123 Battery
        • Carry Case
        • Video Cable
        • Wrist Strap
        • Limited 1-Year Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Luna Optics LN-DM5-HRV 5x50 Digital High-Resolution Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Luna Optics LN-DM5-HRV Specs

Imager 762 x 504 CMOS sensor
Magnification 5x
Display 640 x 480 VGA color display
Video Recording Resolution 762 x 504
Video Out RCA port
Format: PAL / NTSC
Objective Lens Diameter 50mm
Angle/Field of View
Minimum Focus Distance 6.0' / 2.0 m
Infrared Illuminator Type: LED
Wavelength: 805 nm
Battery / Runtime 1 x CR-123 battery / 4 hours
Weatherproofing IPX4-rated, water-resistant
Dimensions 7.3 x 3.0 x 2.3" / 18.5 x 7.6 x 5.8 cm
Weight 13.2 oz / 375.0 g
Package Weight 1.6 lb
Box Dimensions (LxWxH) 10.1 x 5.3 x 4.2"
