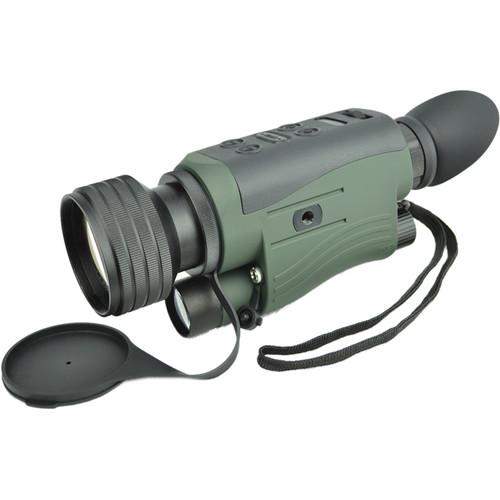

User Manual for Luna Optics LN-DM60-HD 6-30x50 Digital HD Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-DM60-HD 6-30x50 Digital HD
- Product category: NV Monoculars & Multi-Systems Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics NV Monoculars & Multi-Systems
|
User manual for the Luna Optics LN-DM60-HD 6-30x50 Digital HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|
Product description Take advantage of HD video recording and Wi-Fi capability of the Luna Optics LN-DM60-HD 6-30x50 Digital HD Night Vision Monocular. This power (6-30x), digital night vision monocular not only provides you with the imaging capability during the day or at night, but also allows you to record full HD (high definition) videos with its Sony 1920 x 960 CMOS imaging sensor. You can record your video data to a microSD memory slot (128GB maximum) or relay it to an external monitor or a recording device via an RCA port. Additionally, by downloading and installing a free ConCam app, you can view and record images and videos remotely, using your iOS or Android device. Packed with features and function, the monocular also has a high-resolution built-in 800 x 680 color display. Among other highlights are an automatic or manual brightness control, color and monochrome black or green outputs, a wide 9° angle of view, and a 2.6' close focus distance. To increase visibility in total darkness, the device also has a built-in infrared illuminator.
To provide a pleasant user experience, the opto-electronics are packaged into an ergonomic waterproof housing. It features a rubberized covering for a sure grip, easy-to-reach control pad on the top, tethered objective cover, and a winged rubber eyecup. Also to ensure image stability and comfort, the body also has a 1/4"-20 tripod socket. - Image Sensor & IR Illuminator
-
- Sony 1920 x 1080 CMOS sensor
- Digital sensor is immune to bright light
- Built-in infrared illuminator
- Optics, Display, Video Performance
-
- Glass multi-coated optics
- 50mm objective
- 6 - 30x continuous zoom
- 7° angular field of view
- 2.6' minimum focus
- Color 0.26" Micro-Flat HR 800 x 640 LCD display
- Takes still images and videos
- Video resolution HD 1080p at 60 fps
- Color or green display output modes
- Intelligent picture optimization
- Manual brightness control
- Use and Handling
-
- Wi-Fi: 802.11 b/g/n
- 128GB microSD memory card slot
- NTSC/PAL video formats
- Mini-USB computer port
- Control pad is located on the top
- Battery status indicator
- External power port
- Construction
-
- Ergonomic body
- Built-in video RCA output port
- Built-in winged rubber eyecup
- 1/4"-20 socket for tripod
- Water-resistant, IPX4-rated
UPC: 898995001962 In the Box Luna Optics LN-DM60-HD 6-30x50 Digital HD Night Vision Monocular (Green-Black) - 2 x CR-123 Batteries (Non-Rechargeable)
- 8GB microSD Card
- USB Cable
- AC Power Adaptor
- Video Cable
- Carry Case
- Wrist Strap
- Daylight Color-Enhancing Filter
- Charger for Rechargeable Batteries
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-DM60-HD 6-30x50 Digital HD Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LU6X24X50DM Specs | Imager | Sony 1920 x 960 CMOS sensor
Sensitivity: 0.002 lux | | Magnification | 6 - 30x | | Objective Diameter | 50mm | | Display | 0.26" Micro-Flat HR 800 x 640 LCD display | | External Memory | Slot for up to 128 GB microSD cards | | Video | HD 1080p, at 60 fps | | Still Image Resolution | 2.1 MP, JPEG | | Video Out | PAL / NTSC | | Objective Lens | Not provided by manufacturer | | Angle/Field of View | 7° | | Eye Relief | Not provided by manufacturer | | Minimum Focus Distance | 2.6' / 0.8 m | | Infrared Illuminator | Yes | | Battery / Runtime | 2 x CR-123 batteries / 3.5 hours | | Weatherproofing | Water-resistant | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 7.6 x 3.3 x 2.3" / 19.3 x 8.4 x 5.8 cm | | Weight | 18.0 oz / 510.0 g | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 9.5 x 5.6 x 4.3" |
