User Manual for Luna Optics LN-EBG1 1x Generation 2 NV Biocular & Headgear Kit Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-EBG1 1x Generation 2
- Product category: Night Vision Bi-Oculars Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Night Vision Bi-Oculars
 |
User manual for the Luna Optics LN-EBG1 1x Generation 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|

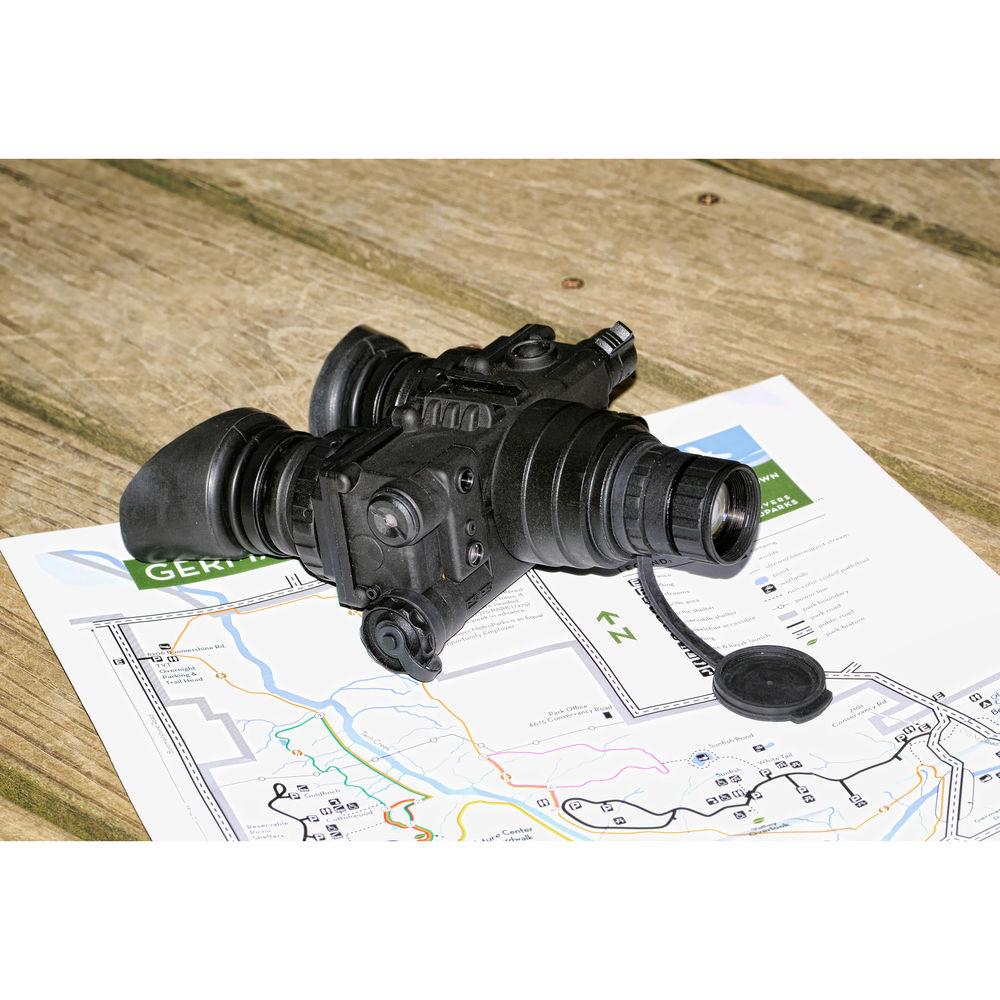

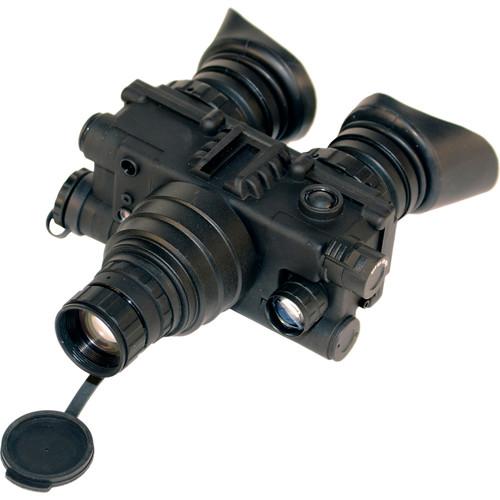

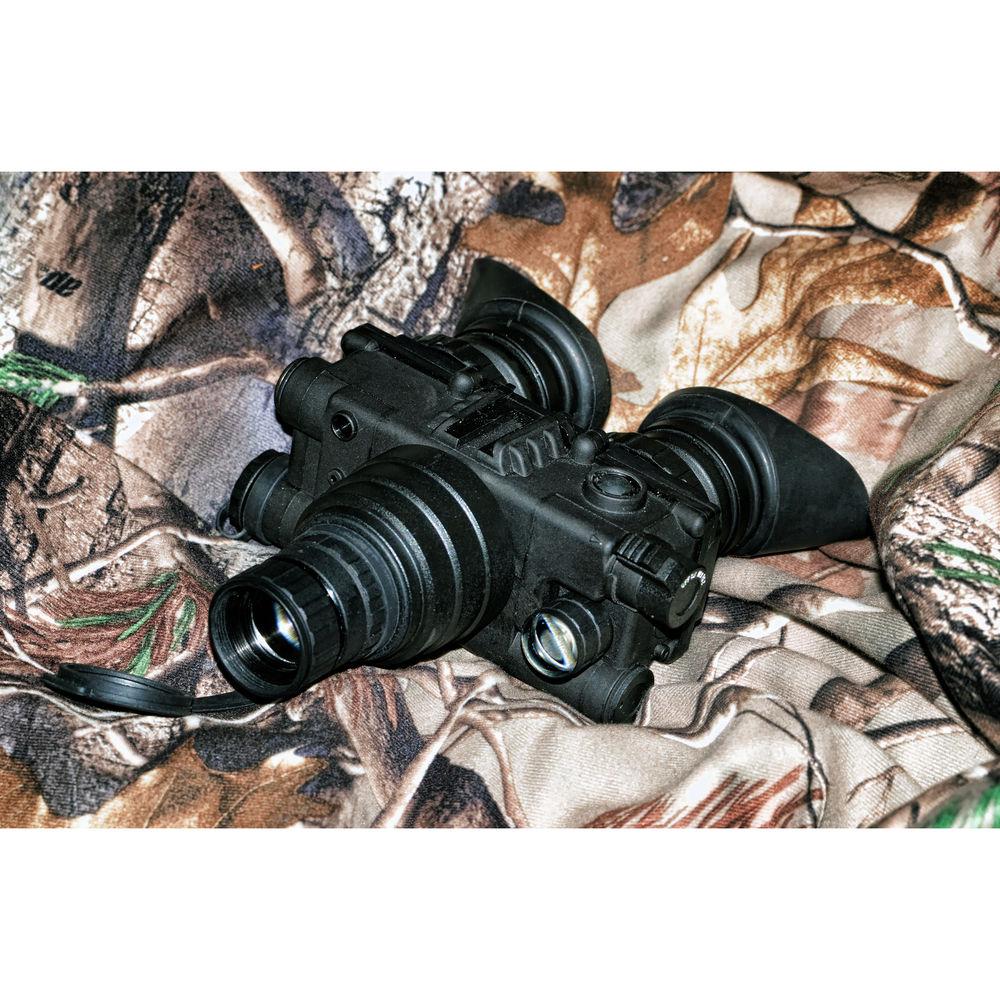

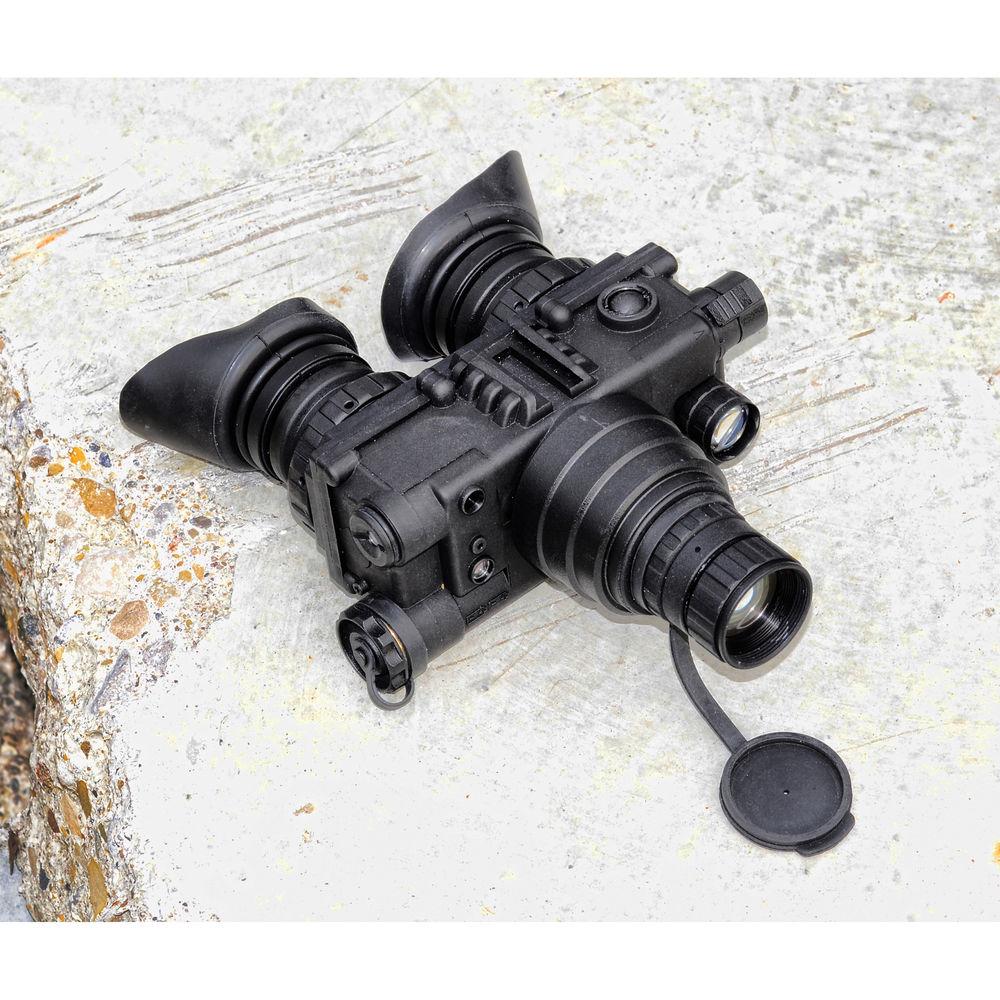

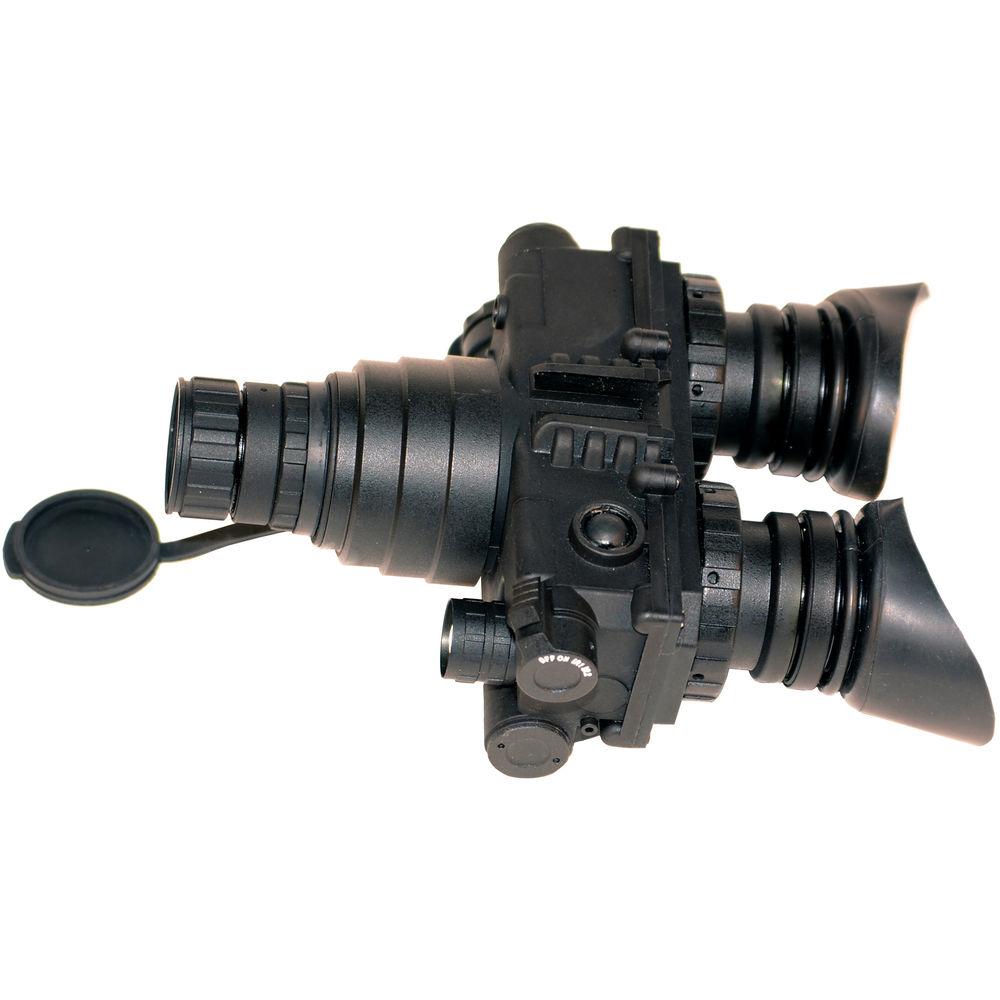

Product description Luna Optics' LN-EBG1 1x 2nd Generation Night Vision Biocular & Headgear Kit offers a versatile, compact, and rugged night vision device that can be used as a handheld device, mounted to a helmet, or worn with the included headgear. It features a 2nd generation intensifier tube with an automatic gain control. To maximize image brightness in nearly-total darkness, the device carries two built-in infrared illuminators, long-range and short-range, that cast extra infrared light on your targets. The NVD also has a dual bright light protection function. Its 1x lens system, upgradable to higher magnifications with optional lenses, offers a wide 40° field of view and an ultra-short minimal focusing distance of 10".
The housing is made of a lightweight and impact-resistant composite polymer, offers a fog-resistant and waterproof performance, and provides protection from adverse conditions and extreme temperatures. To prevent spill-over of light from the intensifier tube and to provide a comfortable cushion between your eyes and the eyepieces, the eyepieces offer wide-winged rubber eyecups. The body is ergonomic, has knurled adjustment rings, and has a 1/4"-20 socket for mounting the device on a tripod. Also noteworthy are a desiccant compartment and two included desiccant cartridges that remove moisture from the interior of the device. - Intensifier Tube
-
- 2nd generation tube
- 45 lp/mm resolution
- Automatic gain control
- Dual bright light protection: always on

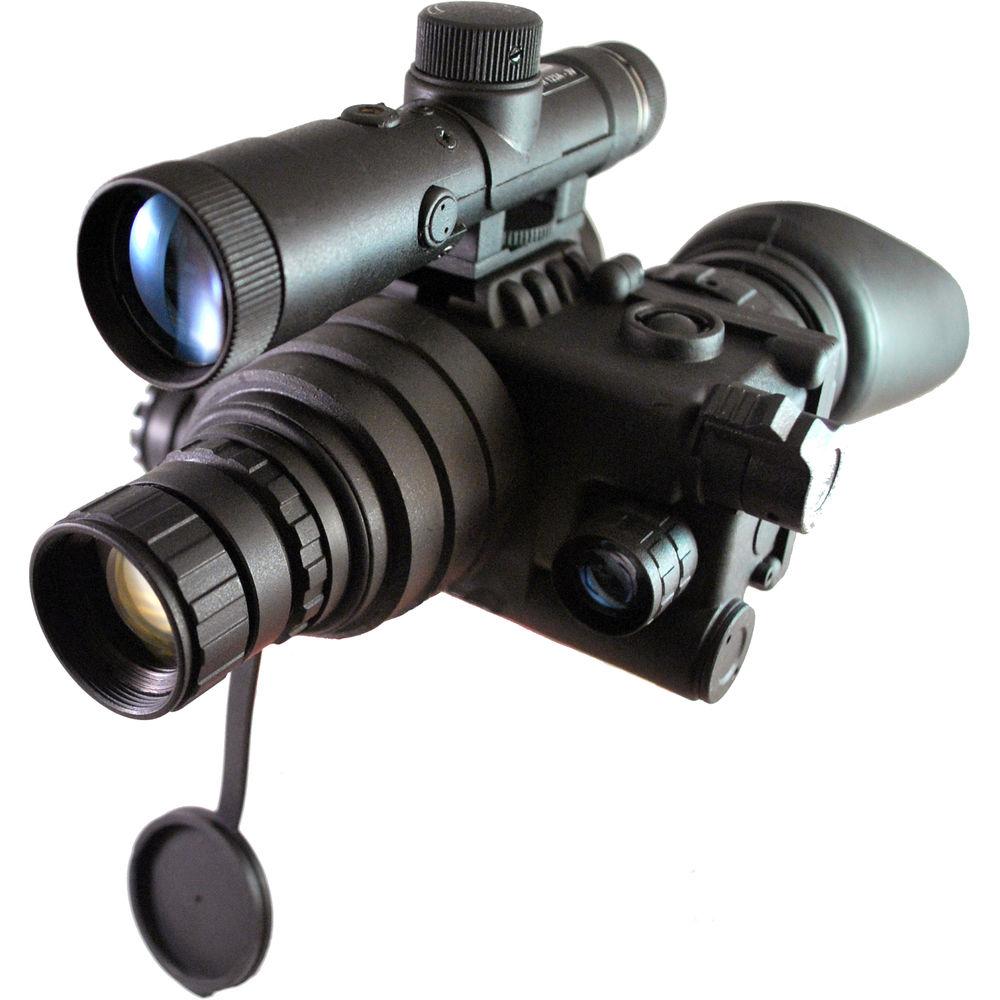

- 860nm short-range infrared illuminator
- 805nm long-range infrared illuminator with focusing lens
- Constant-on and momentary illumination functions
- Optical Performance
-
- Biocular optical design
- 1x magnification
- 27mm, f/1.1 multi-element lens system
- Edge-to-edge image clarity
- 0.8' minimum focusing distance

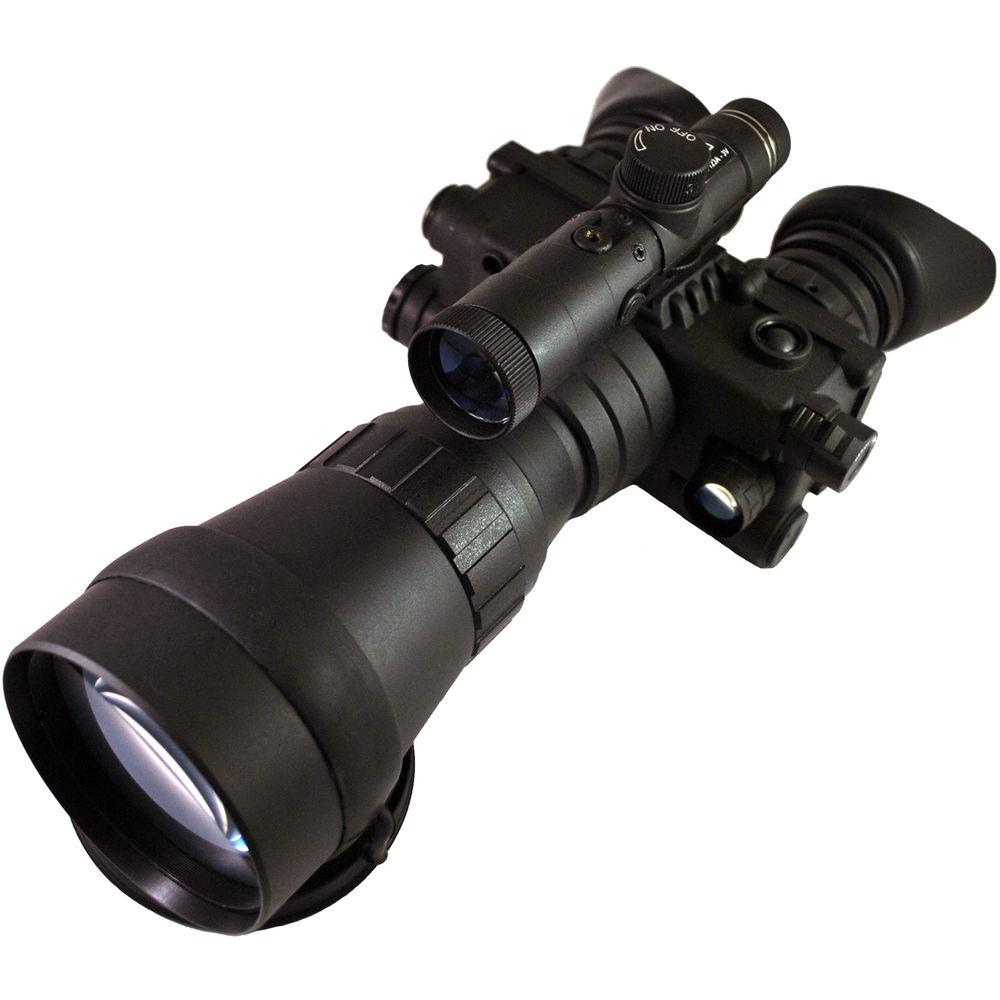

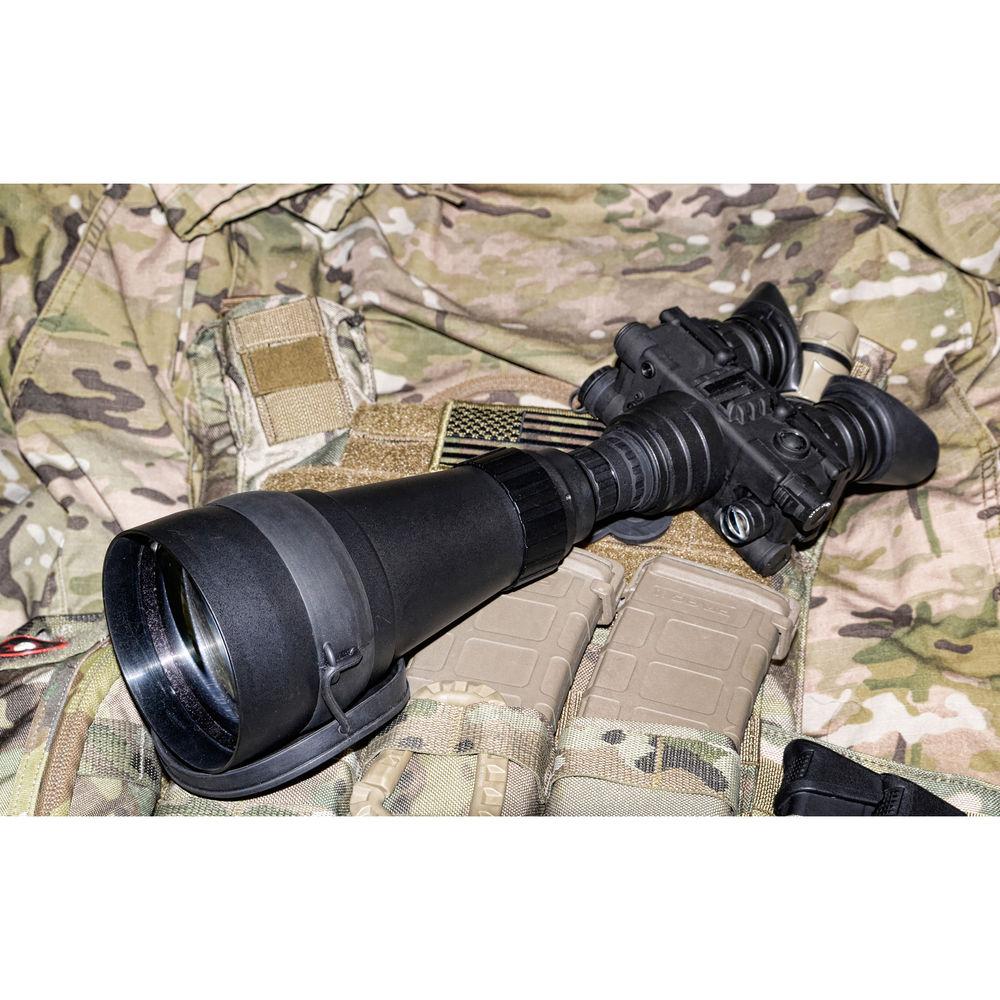

- Optional 4x and 7x lenses available
- Use and Handling
-
- Dioptric adjustment: ±4
- Interpupillary adjustment: 58-72mm
- Construction Details
-
- Composite polymer
- Lightweight and durable

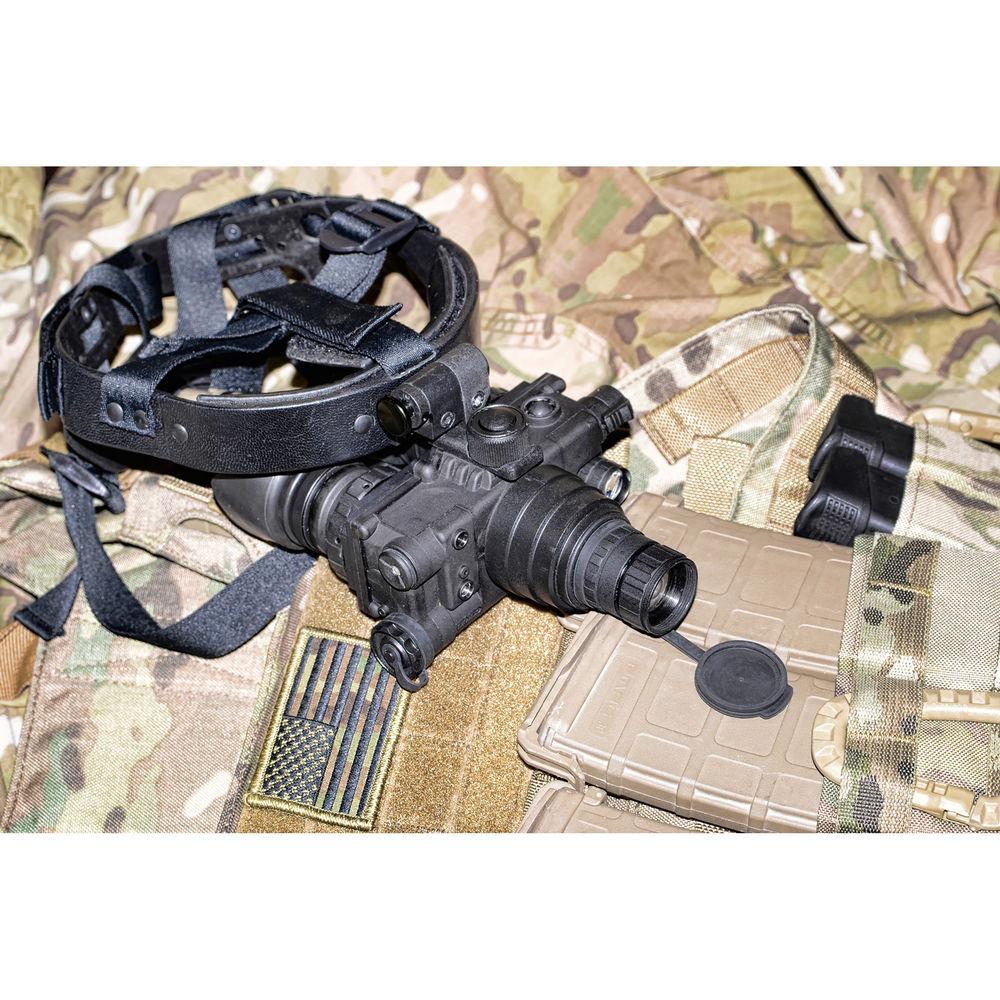

- Adjustable headgear included

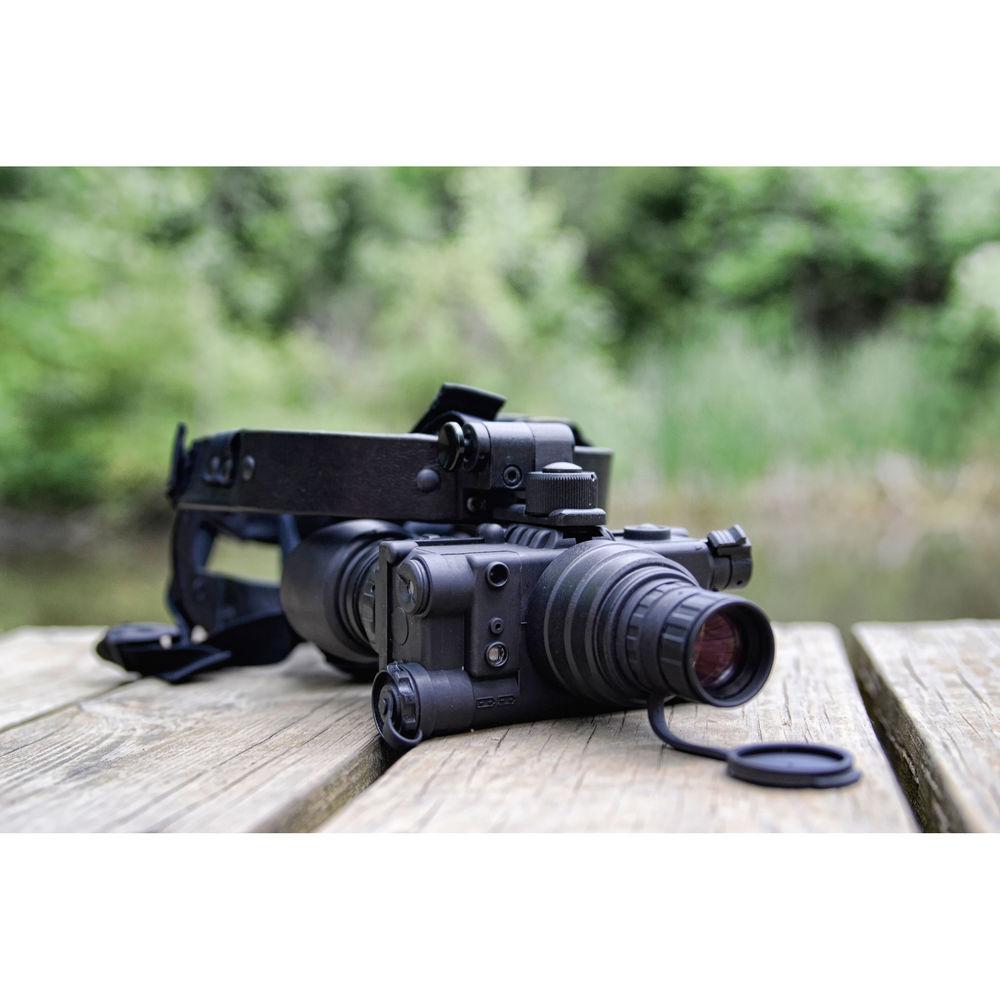

- Headgear has a flip-up adapter
- Desiccant cartridge ensures internal dryness
- Rubber winged eyecups
- Waterproof
UPC: 898995001115 In the Box Luna Optics LN-EBG1 1x Generation 2 NV Biocular & Headgear Kit (Black) - Padded Carry Case
- Tethered Objective Cap
- Headgear with Flip-Up Adapter
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-EBG1 1x Generation 2 NV Biocular & Headgear Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-EBG1 Specs | Intensifier Tube | 2nd generation
Resolution: 45 lp/mm
Sensitivity: 550 µA/lm | | Magnification | 1x | | Angle of View | 40° | | Lens System | f/1.1, 27mm | | Minimum Focus Distance | 9.8" / 25.0 cm | | Eye Relief | Not provided by manufacturer | | Dioptric Correction | +4 to -4 | | Interpupillary Adjustment | 58 - 72 mm | | Infrared Illuminator | Short-Range: 860 nm
Long-Range: 805 nm | | Battery / Runtime | 2 x AA batteries / 60 hours | | Weatherproofing | Waterproof | | Dimensions | 6.22 x 5.5 x 2.5' / 158.0 x 139.0 x 64 mm | | Weight | 19.4 oz / 550.0 g |
