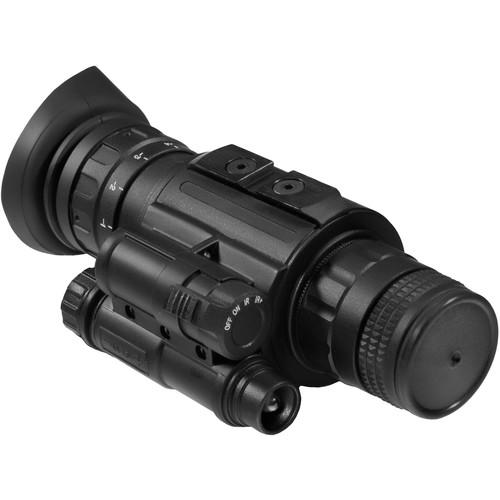

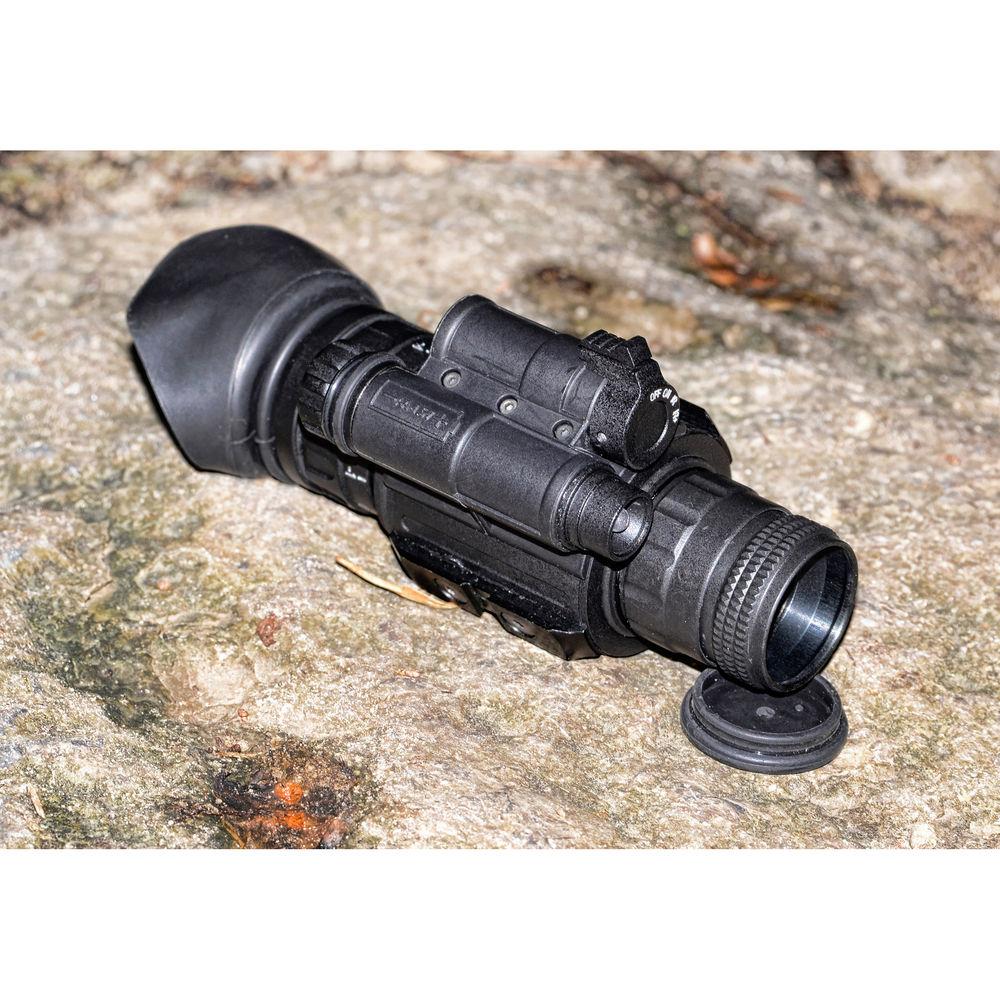

User Manual for Luna Optics LN-EM1-MS Elite Mini 1x Generation 2 Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-EM1-MS Elite Mini 1x
- Product category: NV Monoculars & Multi-Systems Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics NV Monoculars & Multi-Systems
 |
User manual for the Luna Optics LN-EM1-MS Elite Mini 1x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|

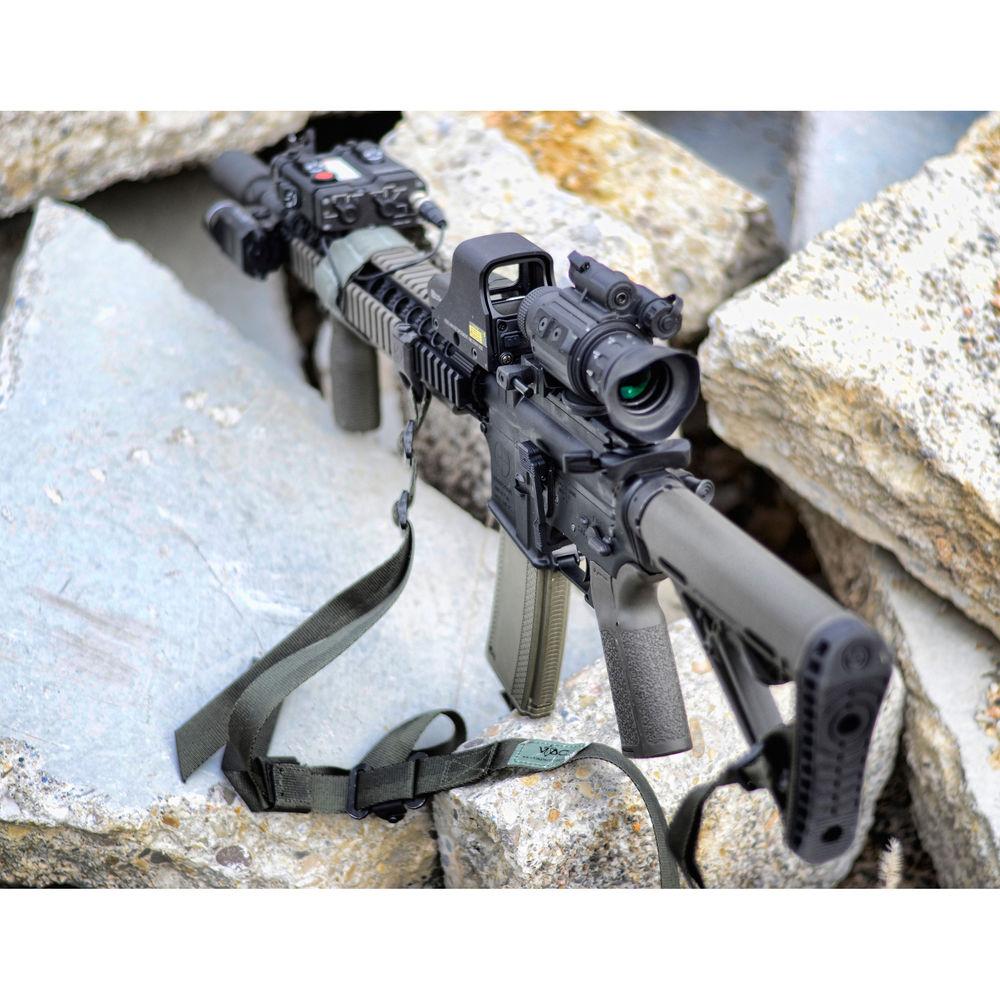

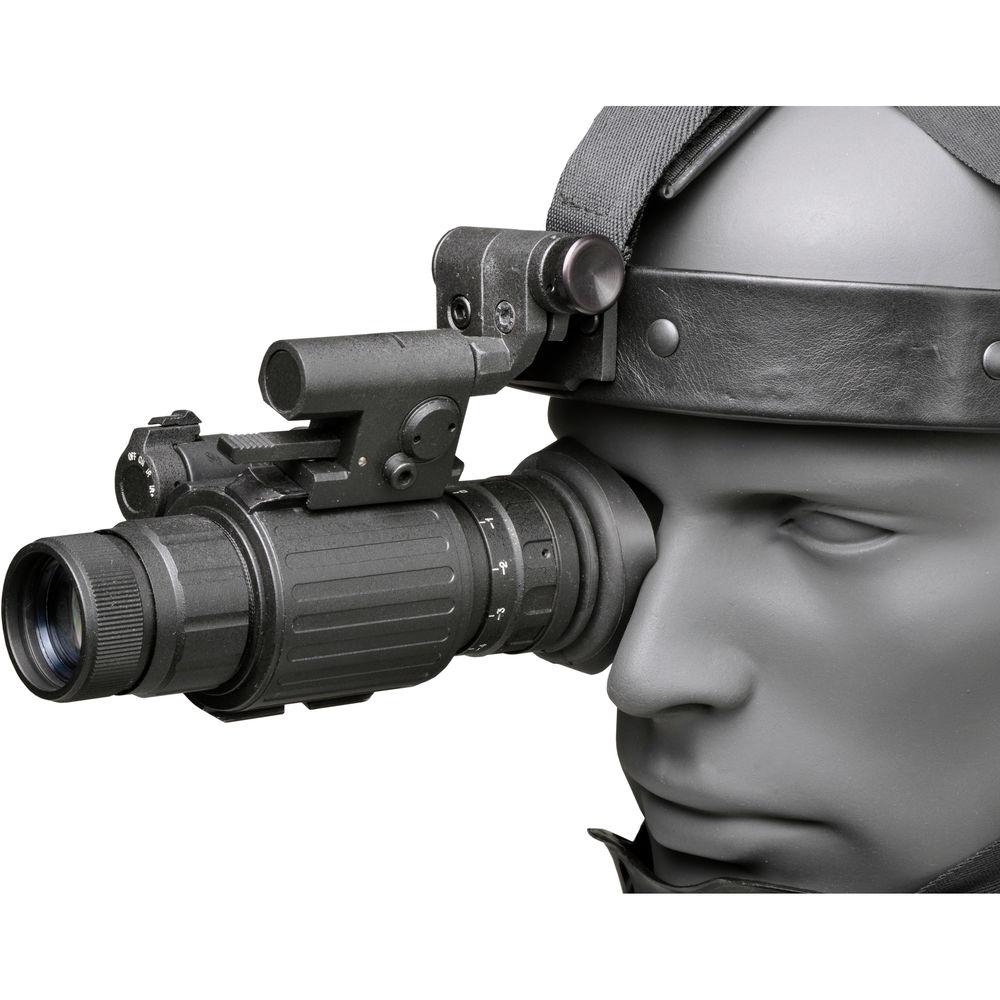

Product description Luna Optics Elite Mini 1x 2nd Generation Night Vision Monocular offers a versatile, compact, and rugged night vision device that can be used handheld, mounted to a helmet, weapon, or worn with an optional headgear. Additionally, two of these devices can be linked for binocular use. Its second generation intensifier tube provides images with 38-40 lp/mm resolution, good edge-to-edge clarity, and adequate brightness. The auto-gain control adjusts image brightness and controls detail according to external lighting conditions. To maximize image brightness in total darkness, or for reading maps, the monocular carries a short-ranger built-in IR illuminator that has two output settings: 15 and 30mW. The optical system features all-glass optics, full multi-coatings, a 1x wide angle lens (40°), and a short minimal focusing distance of 10".
The aluminum housing is lightweight and impact-resistant, and offers a weather-resistant performance. To accommodate your mounting style, the device has two mounting points and includes an adapter with a 1/4" socket. To prevent spill-over of light from the intensifier tube and to provide a comfortable cushion between your eye and the eyepiece, the eyepiece has a wide rubber eye cup. The body is ergonomic, has knurled adjustment rings, and has a 1/4"-20 socket for mounting the device on a tripod. - Intensifier Tube
-
- 2nd generation tube
- 38-40 lp/mm resolution
- Automatic gain control

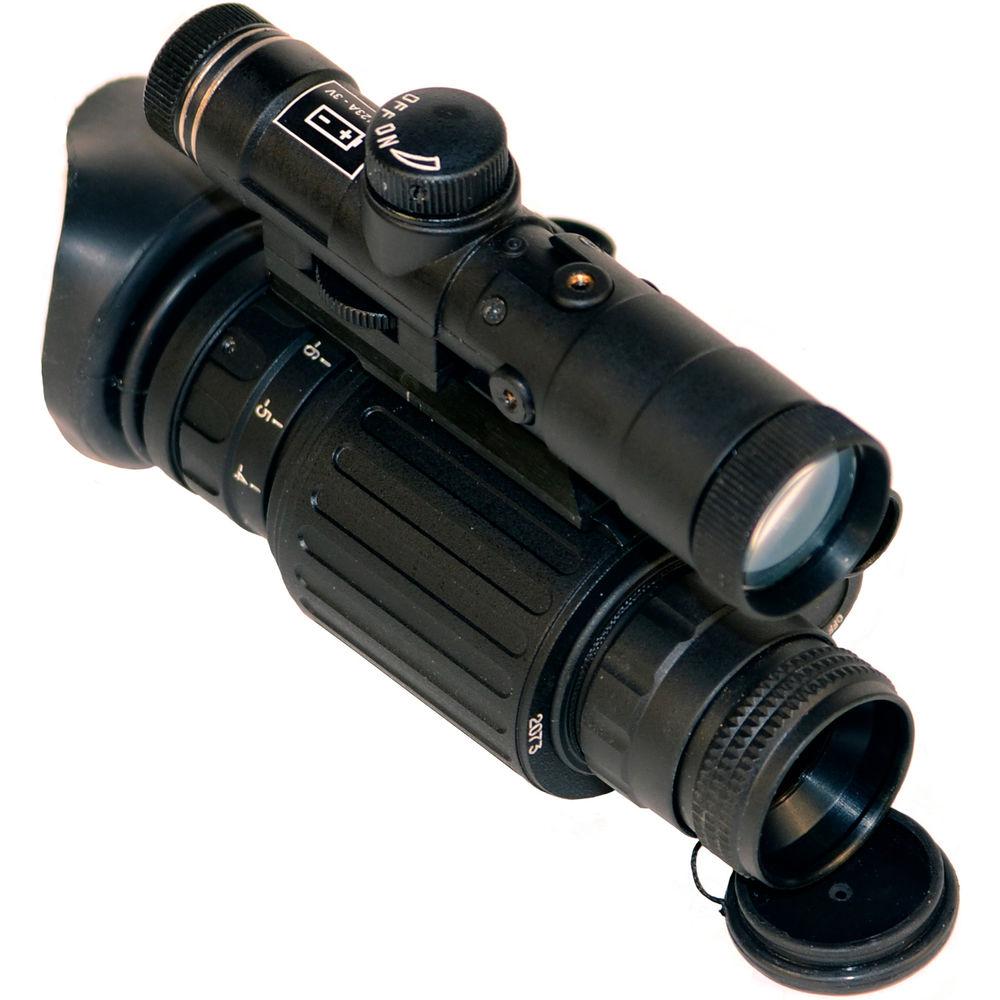

- IR illuminator with two settings: 15mW and 30mW
- Optical Performance
-
- All-glass optics
- Full multi-coatings
- 1x magnification
- 27mm, f/1.1 lens system
- 10" close focus distance
- Wide, 40° angular field of view

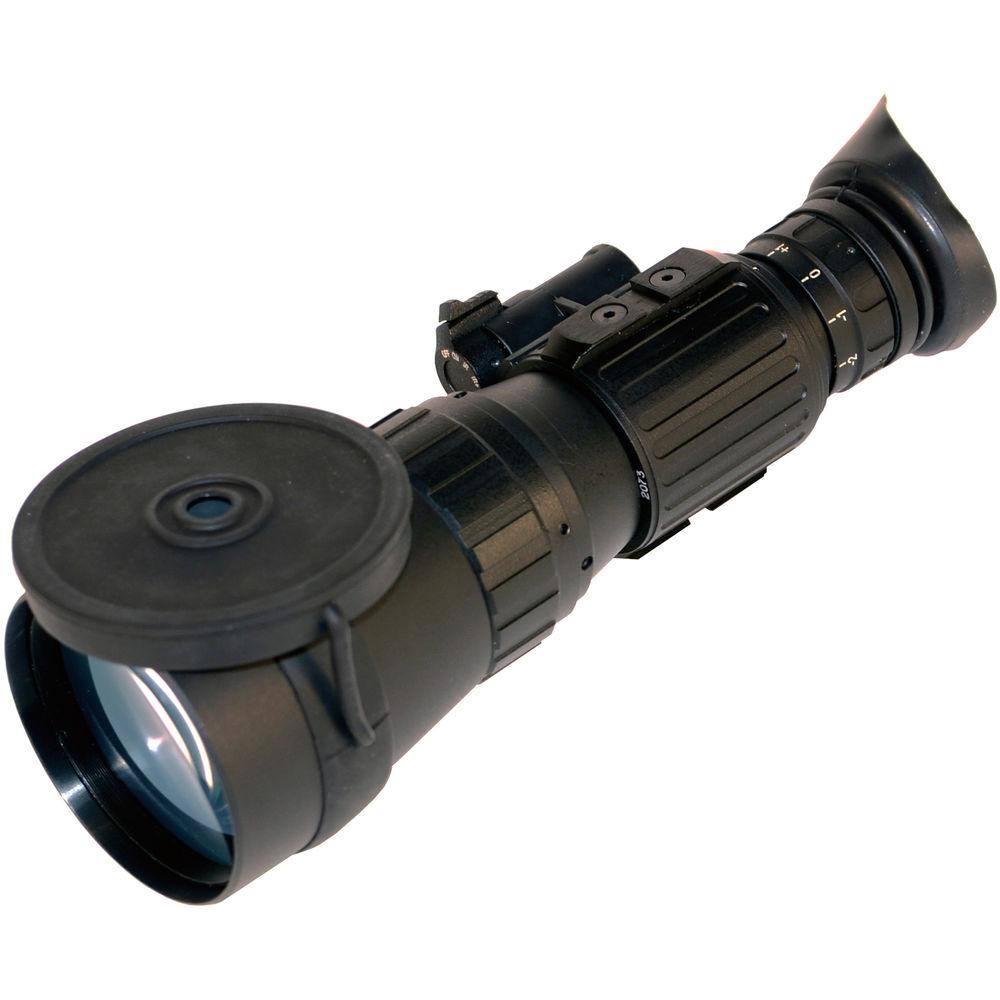

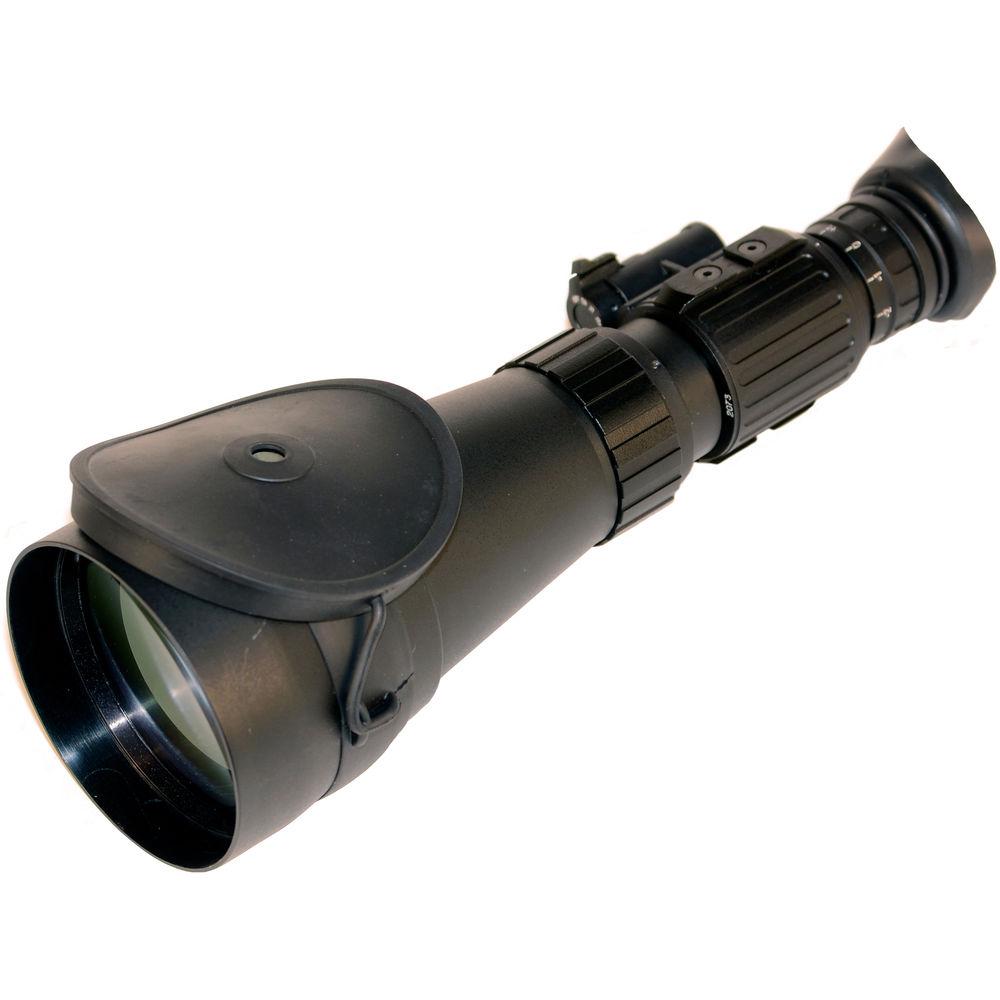

- Compatible with optional lenses
- Use and Handling
-
- One-touch power and IR controls
- Built-in indicators
- Diopter adjustment
- Construction Details
-
- Aluminum body
- Ergonomic, lightweight, and durable
- Two mounting points
- Adapter for 1/4"-20 accessories

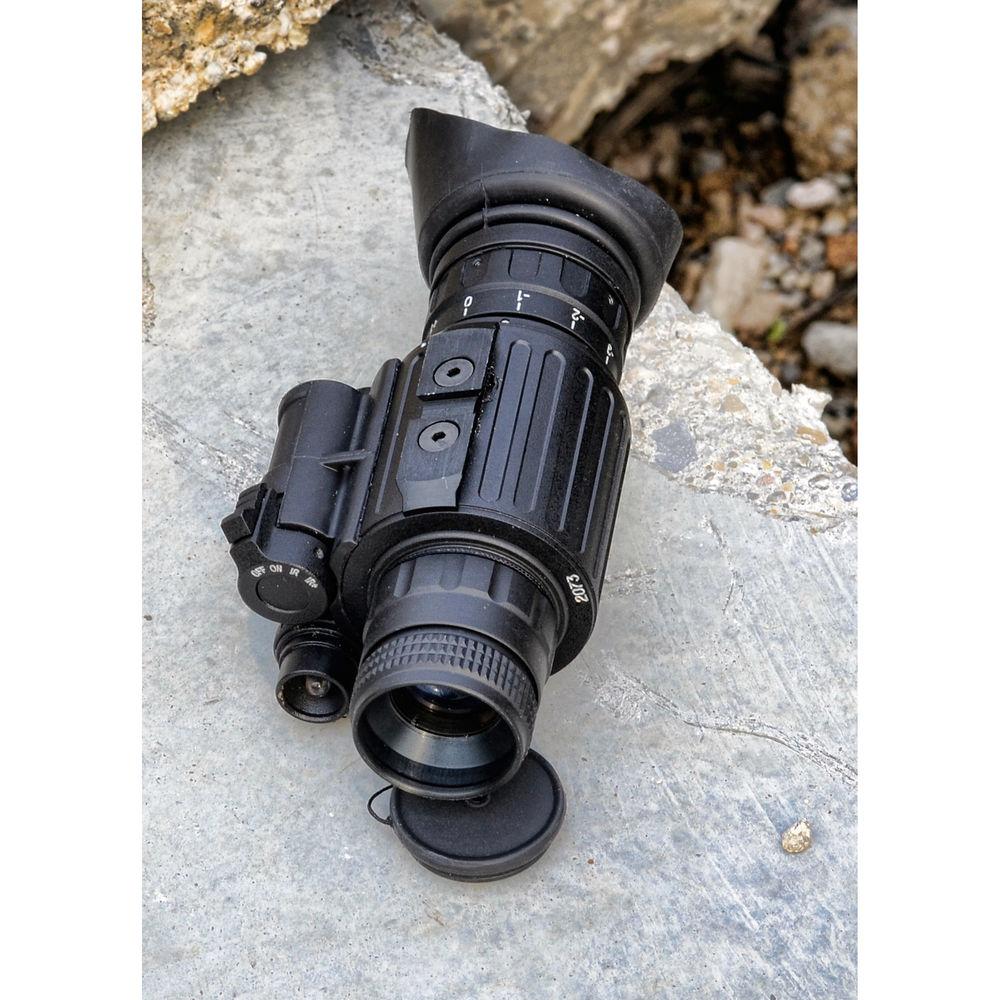

- Winged rubber eyecup
- Pinhole objective cover
- Weather-resistant
UPC: 898995001405 In the Box Luna Optics LN-EM1-MS Elite Mini 1x Generation 2 Night Vision Monocular (Black) - AA Battery
- Pinhole Objective Cover
- Adapter for 1/4"-20 Tripod
- Carry Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-EM1-MS Elite Mini 1x Generation 2 Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-EM1-MS Specs | Intensifier Tube | Resolution: 38 - 40 lp/mm
Sensitivity: 310 - 340 µA/lm | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | f/1.1, 27mm | | Minimum Focus Distance | 9.8" / 25.0 cm | | Dioptric Correction | Yes | | Infrared Illuminator | Yes, built-in
30 mW max | | Battery / Runtime | 1 x AA battery / 25 hours | | Weatherproofing | Weather-resistant | | Temperature Ranges | -4 to 122°F / -20 to 50°C | | Dimensions | 5.1 x 2.7 x 2.2" / 129.0 x 68.0 x 55.0 mm | | Weight | 12.0 oz / 340.0 g |
