User Manual for Luna Optics LN-ERS30M Elite Mini 3x54 2nd Generation NV Riflescope Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-ERS30M Elite Mini 3x54
- Product category: Night Vision Riflescopes Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Night Vision Riflescopes
 |
User manual for the Luna Optics LN-ERS30M Elite Mini 3x54 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|

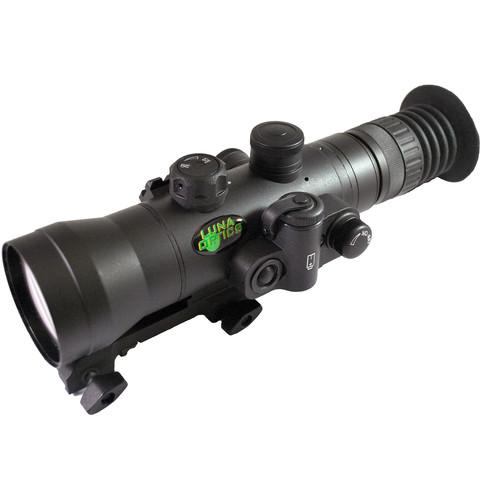

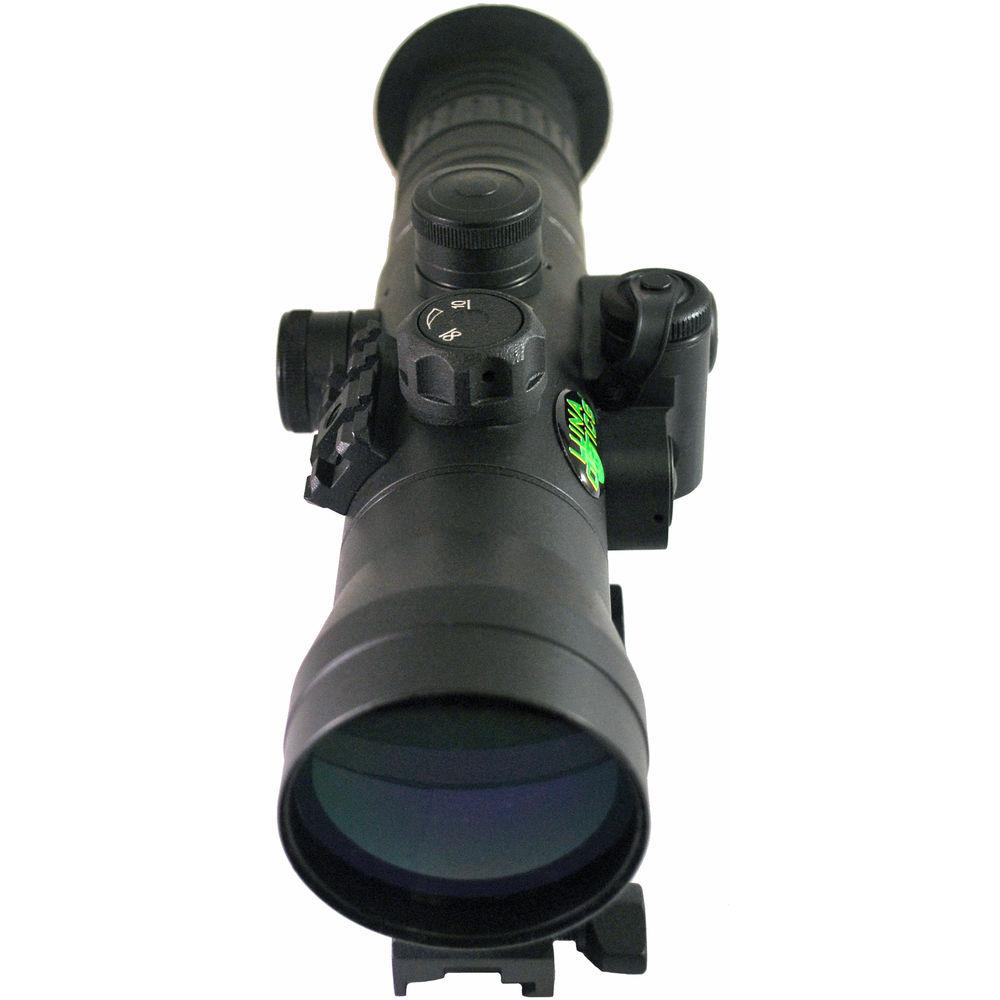

Product description Luna Optics' LN-ERS30M Elite Mini 3x54 2nd Generation NV Riflescope is a compact and shock-resistant night vision riflescope, designed to withstand heavy recoils. Featuring a 2nd generation image intensifier with automatic gain, the scope is able to provide images with edge-to-edge clarity while also delivering automatically adjustable brightness. The highlights of the optical performance are a 54mm objective lens, 3x magnification, a 12° angular field of view, and a 32' minimum focus distance. To improve target visibility in complete darkness, you can attach optional infrared illuminators a sort Picatinny/Weaver rail located on the right side. For faster and precise targeting, this night vision riflescope also offers a Mil-Dot reticle with adjustable brightness. To accommodate your personal preferences, this multi-color reticle can be lit in a red, orange, or green color.
To match the unforgiving conditions of the battlefields, the cast aluminum housing is waterproof and impact-resistant. For added comfort and slip-free operation, the knobs have textured knurling. To enable you to compensate for winds and ballistics, the scope also provides oversized windage and elevation adjustment turrets. For attachment to most standard firearms, the housing also provides Picatinny/Weaver style rail mount with two locking thumbscrews. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Image Intensifier
-
- 2nd generation
- 45-47 lp/mm resolution
- Automatic gain control
- Optical Performance
-
- 80mm, f/1.5 lens system
- 3x optical magnification
- 54mm objective lens diameter
- 12° angular field of view
- Minimum focus: 32'
- Use and Handling
-
- Mil-Dot ranging reticle
- Adjustable illumination: Red, orange, or green
- Windage and elevation turrets
- Construction
-
- Cast aluminum housing
- Knurled adjusters
- Tethered objective cover

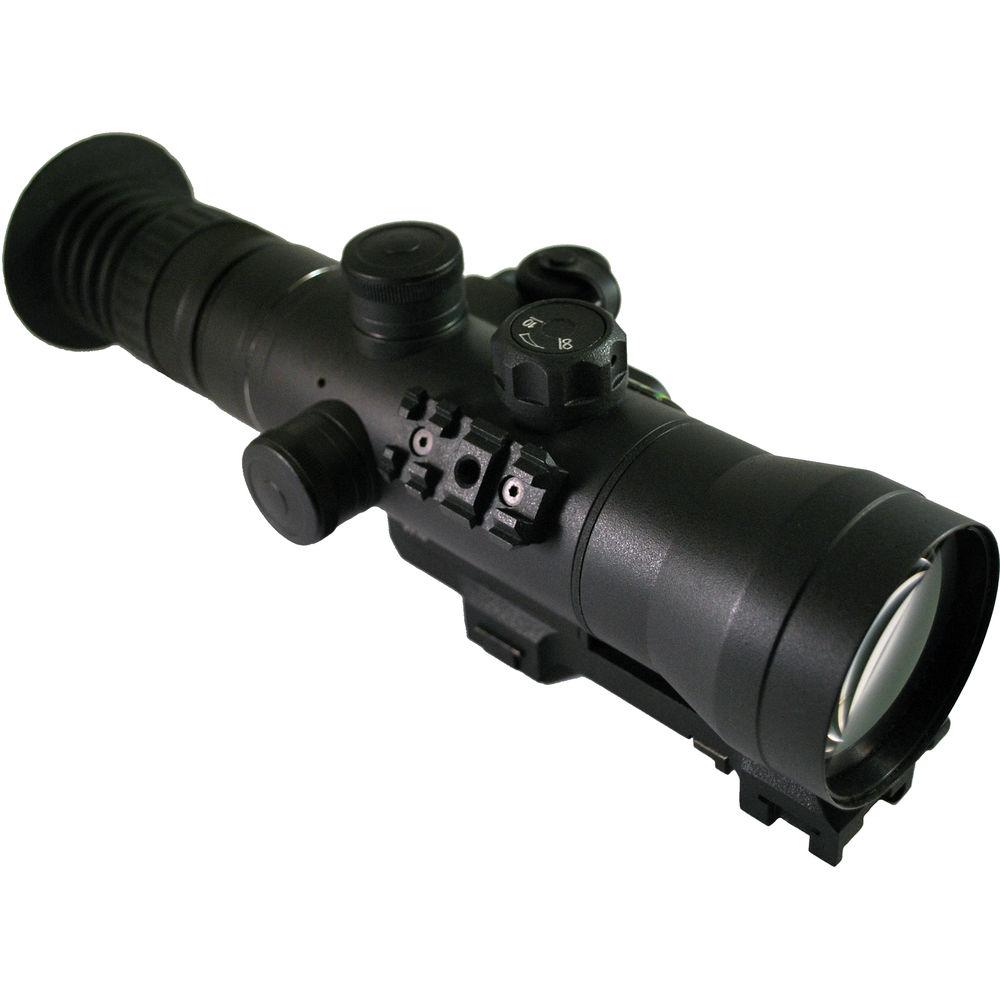

- Picatinny/Weaver accessory rail on the right side

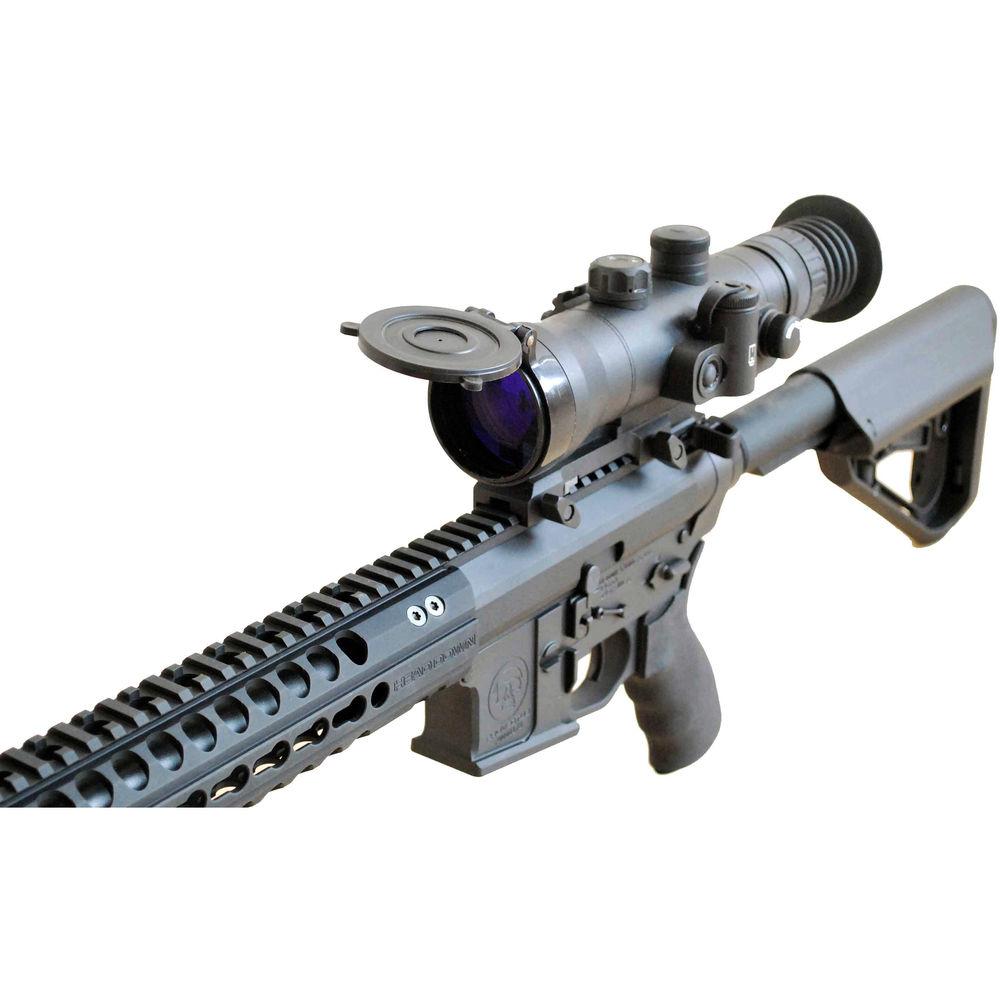

- Picatinny/Weaver mount with two locking thumbscrews
- Rubber wide eyecup
- Shock-resistant
- Waterproof
UPC: 898995001696 In the Box Luna Optics LN-ERS30M Elite Mini 3x54 2nd Generation NV Riflescope (Color Mil-Dot Illuminated Reticle, Black) - CR-123 Battery
- Flip-Up Lens Cover
- Carry Case
- Limited 2-Year Warranty
- Limited 1-Year Warranty on Intensifier Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-ERS30M Elite Mini 3x54 2nd Generation NV Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-ERS30M Elite Mini Specs | Thermal Sensor | 2nd generation
45-47 lp/mm resolution | | Magnification | 3x | | Field of View | 12° | | Focusing Range | 32.8' (10.0 m) to infinity | | Reticle | Illuminated Mil-Dot reticle | | Windage/Elevation Adjustment | Yes | | Battery / Runtime | 1 x CR-123 lithium battery / 60 hours | | Waterproofing | Waterproof | | Impact Resistance | Shock-resistant | | Dimensions | 10.2 x 3.5 x 2.8" / 26.0 x 9.0 x 7.0 cm | | Weight | 38.8 oz / 1.1 kg, with rail mount |
