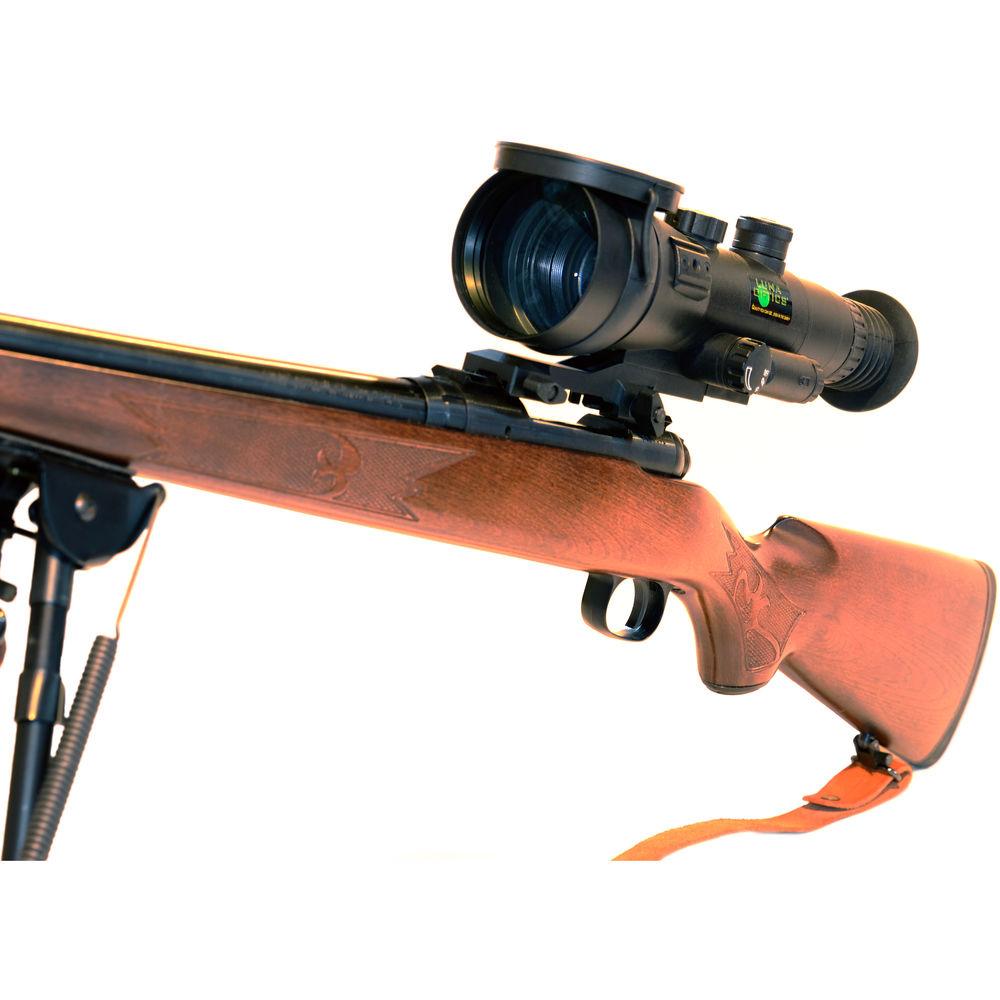

User Manual for Luna Optics LN-ERS40M Elite 4x 2nd Generation Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-ERS40M Elite 4x 2nd
- Product category: Night Vision Riflescopes Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Night Vision Riflescopes
 |
User manual for the Luna Optics LN-ERS40M Elite 4x 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|

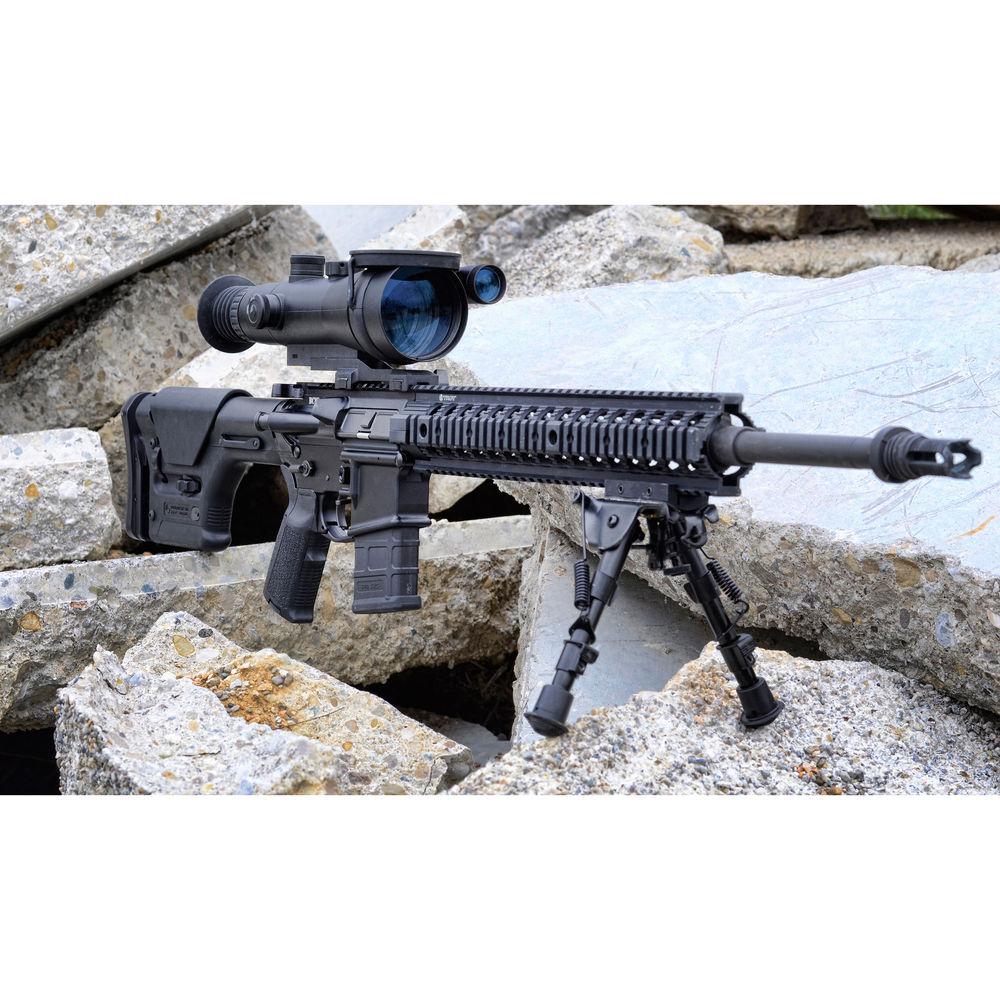

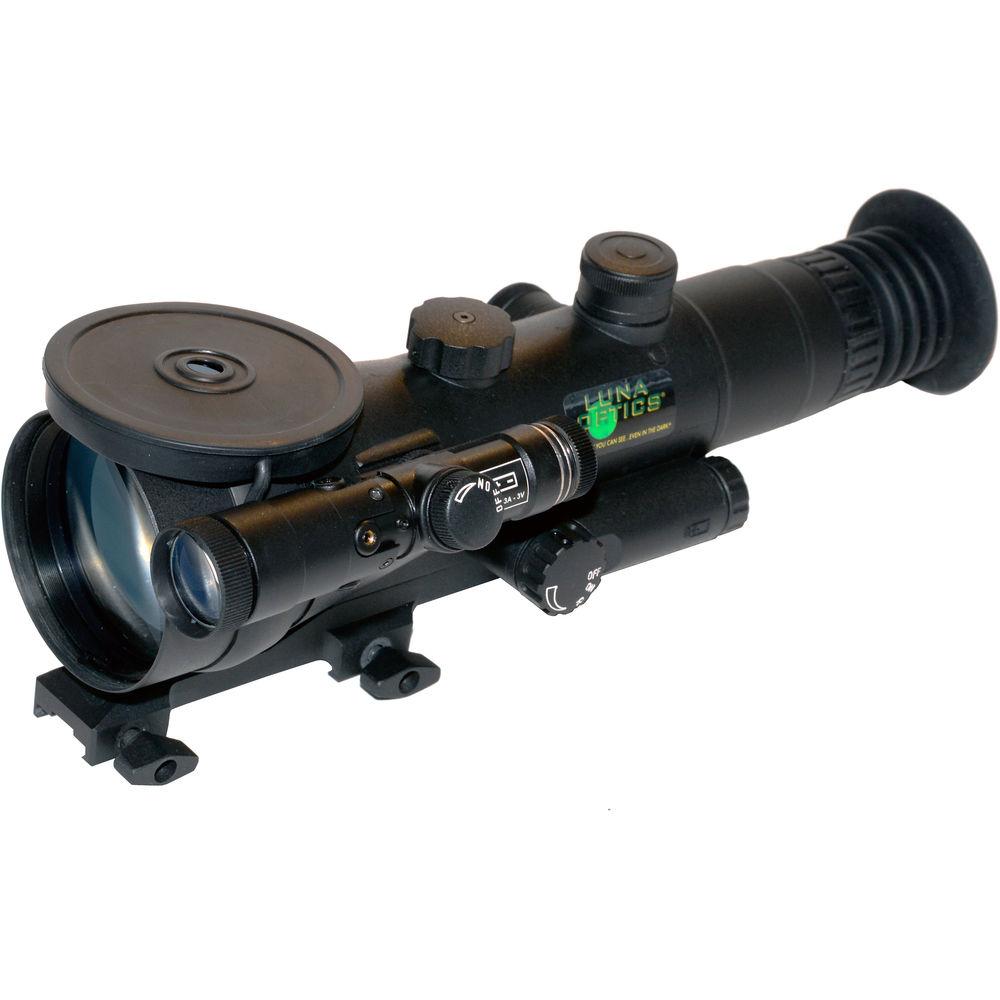

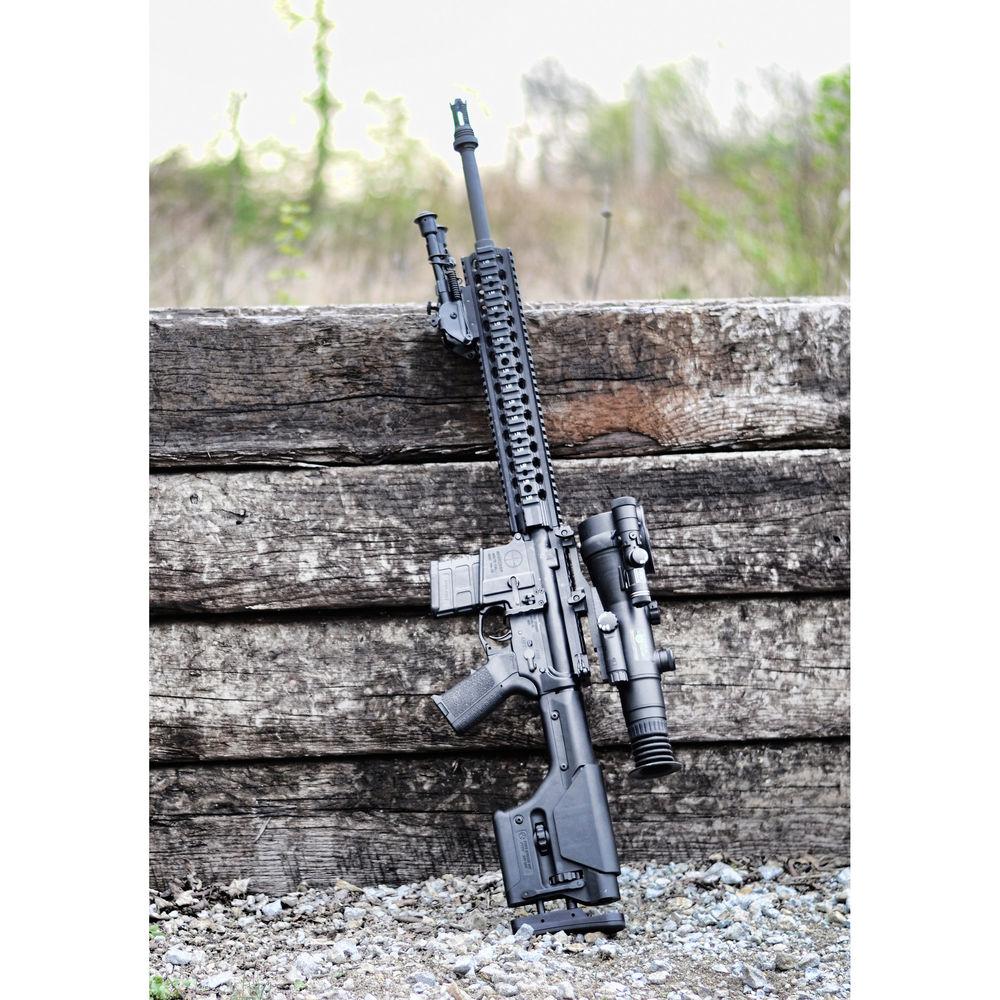

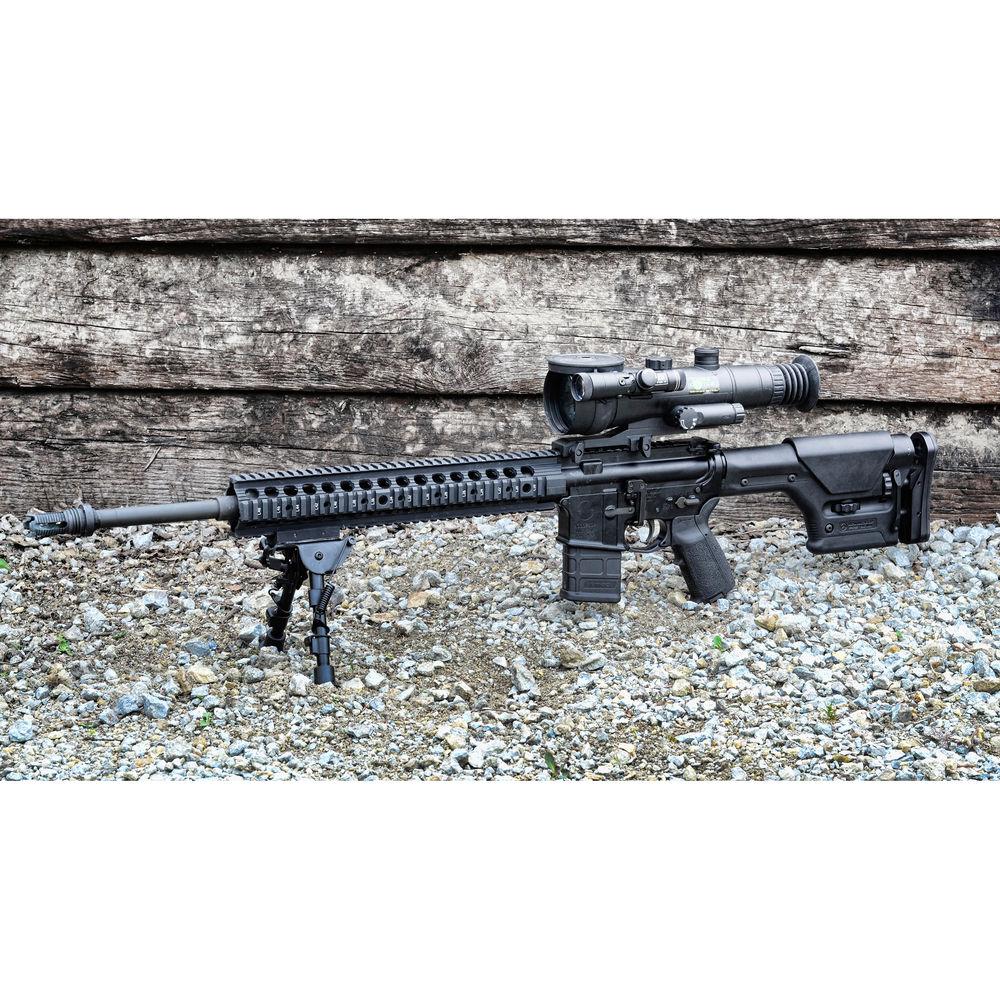

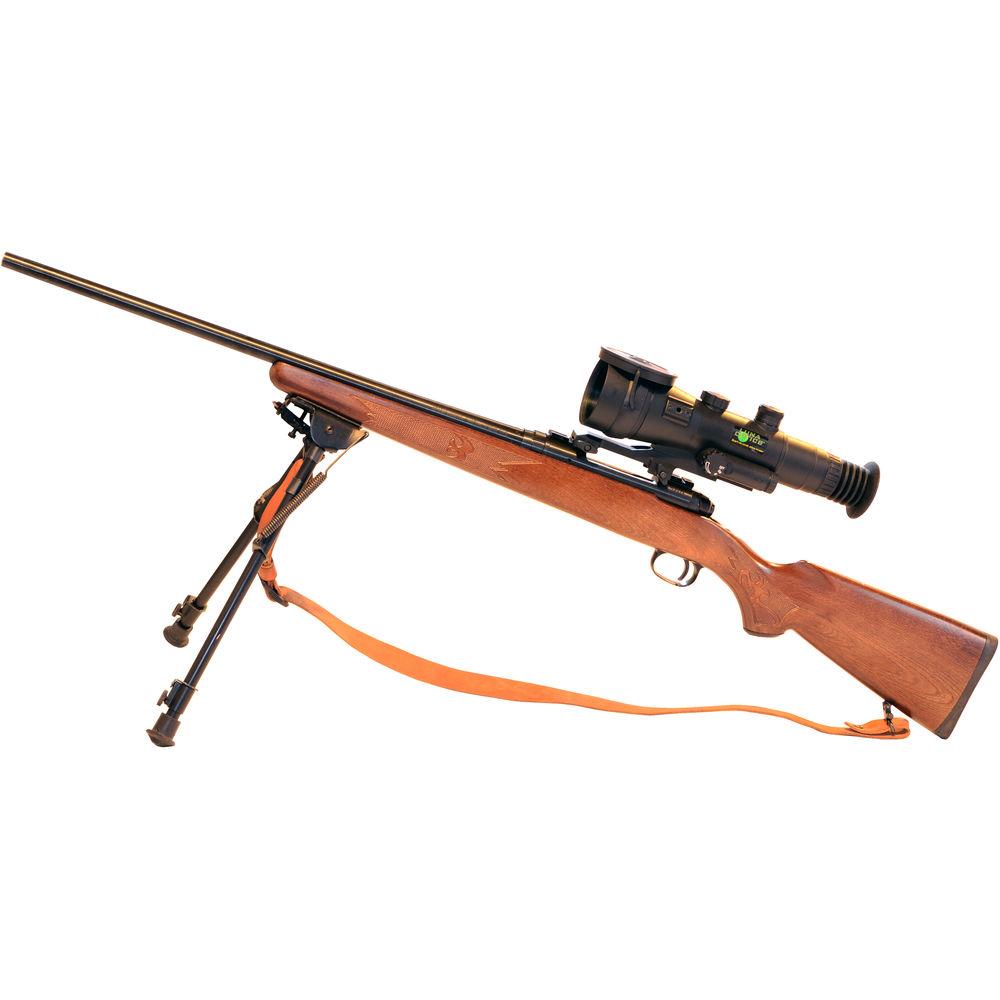

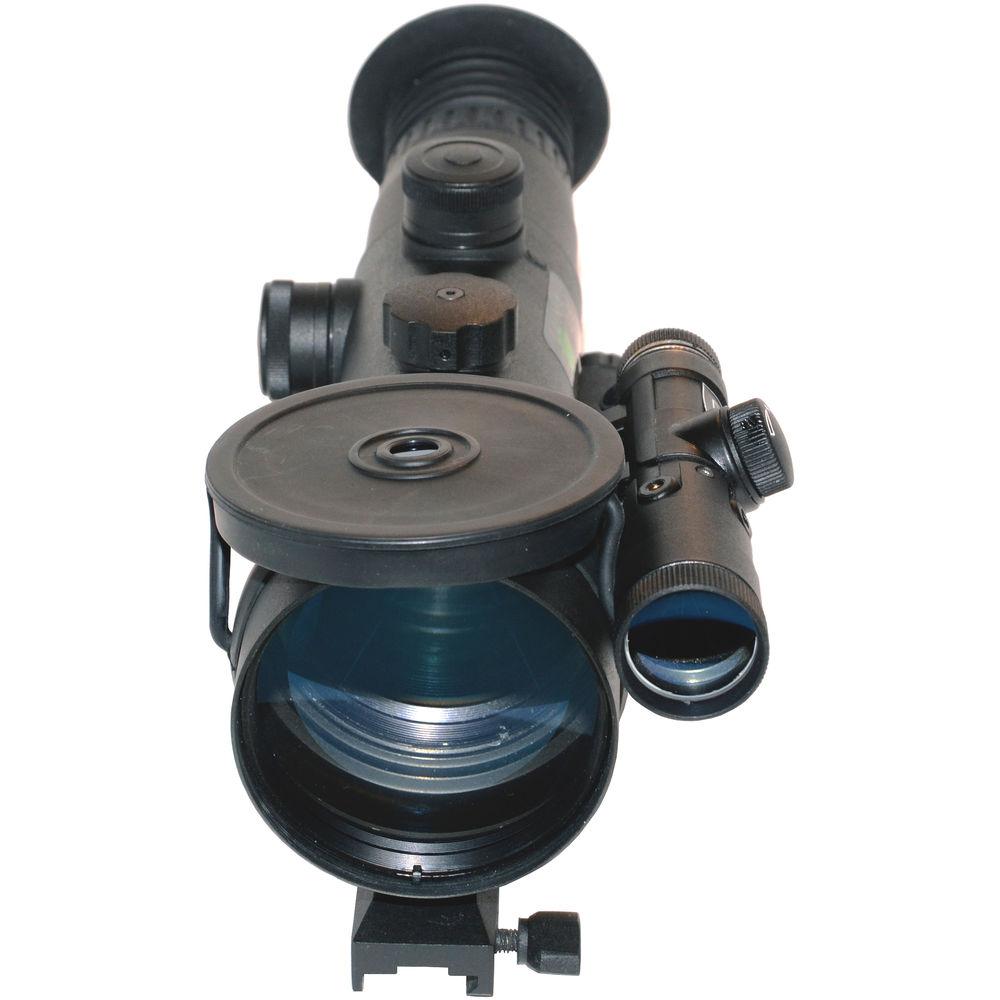

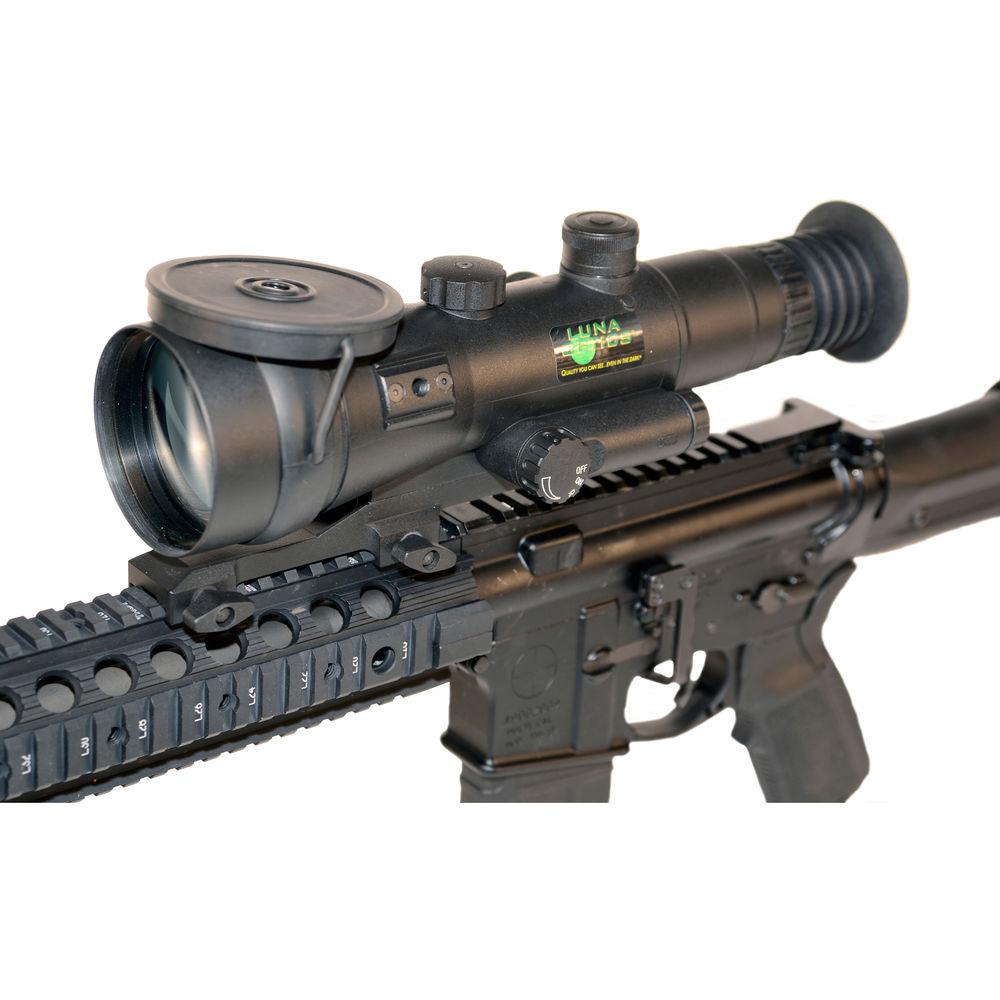

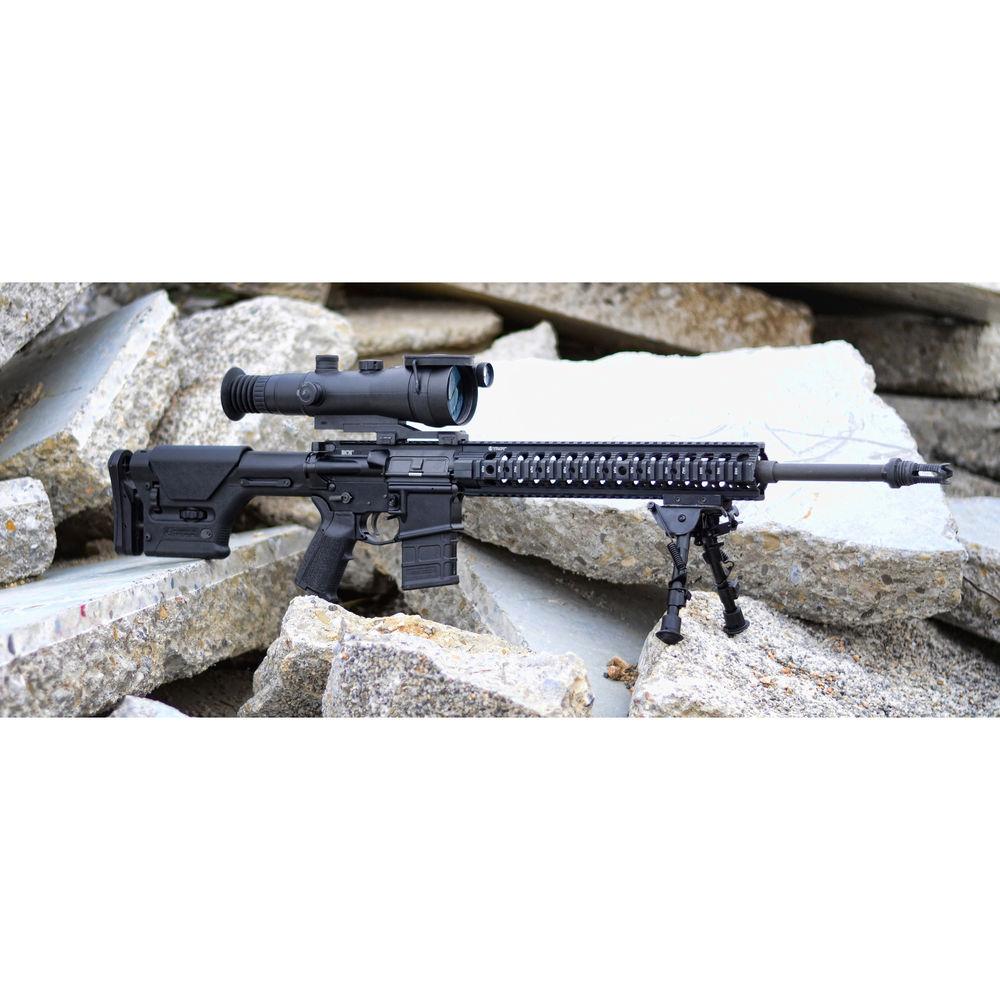

Product description Add stealth to your night operations with the glint-free Luna Optic LN-ERS40M Elite 4x 2nd Generation Night Vision Riflescope. This robust, waterproof riflescope features a 2nd generation image intensifier with automatic gain, which together with wide aperture (64mm) optics provides an ideal night riflescope for longer range target acquisitions. In addition to the tube's good edge-to-edge image clarity, the optical system muscles up to a notable 4x magnification with a 52.6' (at 100 yd) viewable field. To make your aiming laser sharp, Luna Optics added an illuminated Mil-Dot style ranging reticle to the scope's inventory of features. For improved visibility in complete darkness (or longer ranges), you can also attach an optional infrared illuminator to a short mounting point provided on the right side of the body.
To accompany you in the most unforgiving conditions, the aluminum housing is made to be waterproof and impact-resistant. It provides oversized knurled windage and elevation turrets, a textured focusing ring, a tethered objective cap, a wide compressible eyecup, and a Picatinny/Weaver mount with two locking thumbscrews. Additionally, to help you maintain a low-profile during critical missions, the matte black finish has anti-glare properties. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Image Intensifier
-
- 2nd generation
- 45 lp/mm resolution
- Automatic gain control
- Optical Performance
-
- 100mm, f/1.5 lens system
- 4x optical magnification
- 64mm objective lens diameter
- 10° angular field of view
- Minimum focus: 33'
- Use and Handling
-
- Mil-Dot style ranging reticle
- Adjustable illumination
- Windage and elevation turrets
- Construction
-
- Aluminum housing
- Knurled adjusters
- Tethered objective cover
- Short mounting point on the left side
- Picatinny/Weaver mount with two locking thumbscrews
- Rubber wide eyecup
- Shock-resistant
- Waterproof
UPC: 898995001153 In the Box Luna Optics LN-ERS40M Elite 4x 2nd Generation Night Vision Riflescope (Matte Black) - CR-123 Battery
- Flip-Up Lens Cover
- Carry Case
- Limited 2-Year Warranty
- Limited 1-Year Warranty on Intensifier Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-ERS40M Elite 4x 2nd Generation Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-ERS40M Elite Specs | Thermal Sensor | 2nd generation
45 lp/mm resolution
340 µA/lm sensitivity | | Objective Lens Diameter | 64mm | | Magnification | 4x | | Field of View | 10° | | Focusing Range | 32.8' (10 m) to infinity | | Reticle | Mil-Dot reticle | | Windage/Elevation Adjustment | Yes | | Battery / Runtime | 1 x CR-123 lithium battery / 60 hours
1 AA lithium battery / 25 hours | | Waterproofing | Waterproof | | Impact Resistance | Shock-resistant | | Dimensions | 11.4 x 3.4 x 3.3" / 29.0 x 8.6 x 8.4 cm | | Weight | 34.6 oz / 980.9 g |
