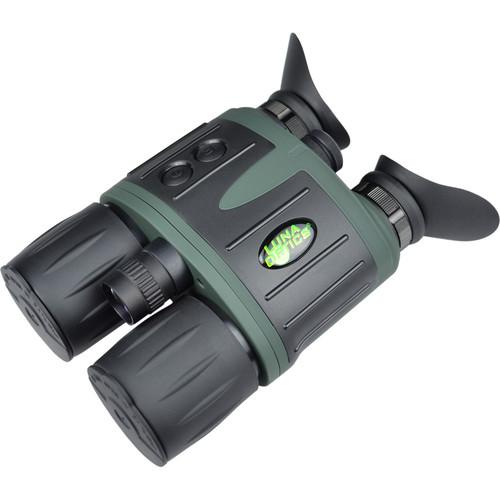

User Manual for Luna Optics LN-NVB3 3x42 Gen-1 Night Vision Binocular Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-NVB3 3x42 Gen-1 Night
- Product category: Night Vision Binoculars Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Night Vision Binoculars
|
User manual for the Luna Optics LN-NVB3 3x42 Gen-1 Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|
Product description Representing the mid-sized model in the series and striking a nice balance of magnification and objective lens size, the Luna Optics LN-NVB3 3x42 Gen-1 Night Vision Binocular is equipped with dual Gen 1 intensifier tubes and a relatively low magnification, that ensures a wide field of view, to produce a dedicated nighttime observation tool that can reach out beyond 270 yards with a full-moon. An adjustable IR illuminator allows you to change the beam shape from a wide flood for close-up use, to a tight spot for a maximum throw, in complete darkness. For safety, Luna installed a sensor that constantly measures the amount of ambient light to prevent the unit from being turned on in daylight — protecting against damage to the tubes and prolonging their life.Individually focusing eyepieces and objectives ensure crisp and clear images, while winged eye-cups prevents ambient peripheral light from leaking into the corners of your vision for brighter images with improved contrast. A standard 1/4"-20 tripod mount on the bottom enables easy hands and fatigue-free use for long-duration observation sessions. The housing is IPX4-rated to be water-resistant, and raised textured palm-pads provide an improved slip-resistant grip. This NVD is powered by a single included CR123 lithium disposable battery — use of rechargeable batteries is prohibited as damage to the system can result - Night Vision Capabilities
-
- Dual Gen-1 intensifier tubes
- Resolution: 36lp/m
- Viewing distance: 270 yards (250m), full-moon; 220 yards (200m), 1/4 moon with IR illuminator
- Integrated invisible IR illuminator with 110 yd (100m) range, and LED indicator to show when active
- Focusable illuminator beam: Adjust from wide flood for close range work, or tight spot to maximize throw distance
- Ambient light sensor monitors the amount of light and prevents the unit from being turned on in daylight to protect against damage and prolong tube life
- Optical Performance
-
- Low 3x magnification ensures a wide field of view
- Large 42mm objective lens diameter
- Multi-coated optics improve light transmission
- 525' field of view at 1000 yards
- Comfortable 15mm eye relief
- Use and Handling
-
- Simple user-interface: On/off button; IR illuminator on/off button; Illuminator focusing dial
- Individually focusing eyepieces and objectives ensure tack-sharp images
- ±4 right-eye dioptric adjustment
- Winged eyecups block peripheral light to improve image brightness, color, and contrast
- Eyecups can be folded back and out of the way for use with eyewear
- Construction Details
-
- IPX4-rated, water-resistant
- 1/4"-20 tripod mount
- Textured palm-pads improve slip-resistance and grip security
- Broad 14 to 122°F operating temperature range
- Disposable lithium CR123 batteries (rechargeable batteries prohibited)
- Up to 120 hours operating time, without using IR illuminator
- Weight: 29 ounces
UPC: 898995001719 In the Box Luna Optics LN-NVB3 3x42 Gen-1 Night Vision Binocular Carrying Case CR123 Battery 2 x Objective Lens Covers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-NVB3 3x42 Gen-1 Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-NVB3 Specs | Intensifier Tube | Gen-1
Resolution: 36 lp/mm | | Magnification | 3x | | Angle of View | 10°, actual | | Field of View | 525' @ 1000 yd / 175 m @ 1000 m | | Lens System | 42mm | | Minimum Focus Distance | 4.9' / 1.5 m | | Maximum Range | Full moon: 270.0 yd / 250.0 m
1/4 moon with IR: 220.0 yd / 200.0 m | | Eye Relief | 15.0 mm | | Dioptric Correction | ±4 | | Interpupillary Adjustment | Not specified by manufacturer | | Infrared Illuminator | Integrated
Range: 100 yd / 91 m, max | | Battery | 1 x CR123 | | Weatherproofing | IPX4-rated, water resistant | | Temperature Ranges | 14 to 122°F / -10 to 50°C | | Focus Adjustment | Individual | | Tripod Mount | 1/4"-20 | | Dimensions | 8.0 x 4.7 x 2.5" / 20.2 x 12.0 x 6.4 cm | | Weight | 28.8 oz / 816.0 g | | | | Package Weight | 2.605 lb | | Box Dimensions (LxWxH) | 8.85 x 6.5 x 4.5" |
