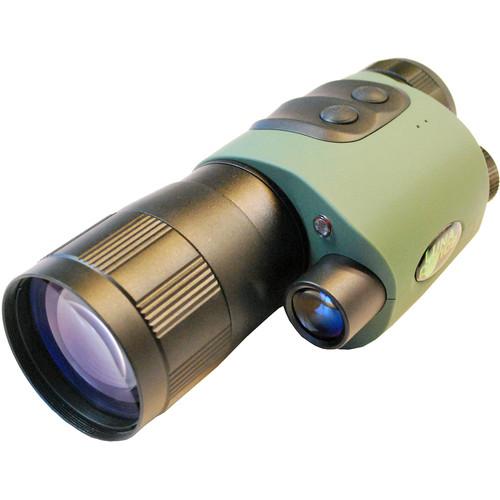

User Manual for Luna Optics LN-NVM5-HR 5x50 1st Generation Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-NVM5-HR 5x50 1st Generation
- Product category: NV Monoculars & Multi-Systems Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics NV Monoculars & Multi-Systems
 |
User manual for the Luna Optics LN-NVM5-HR 5x50 1st Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|

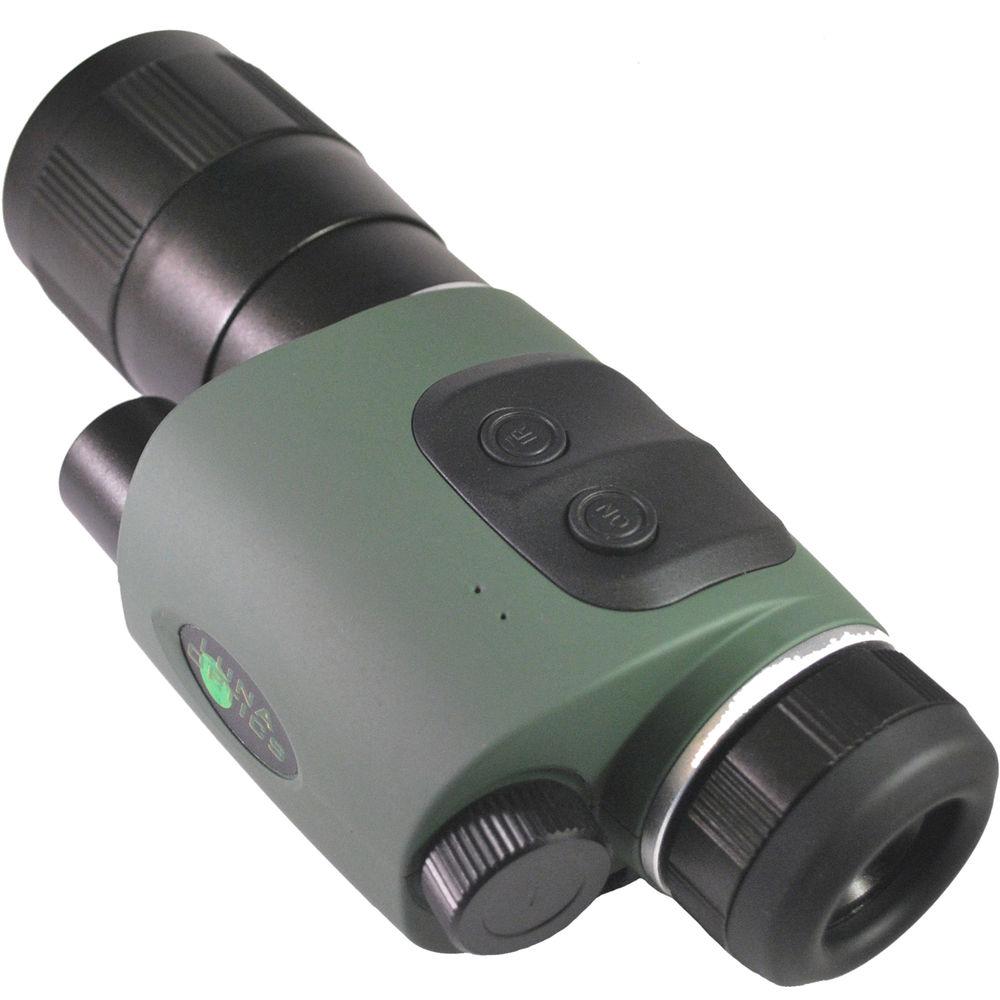

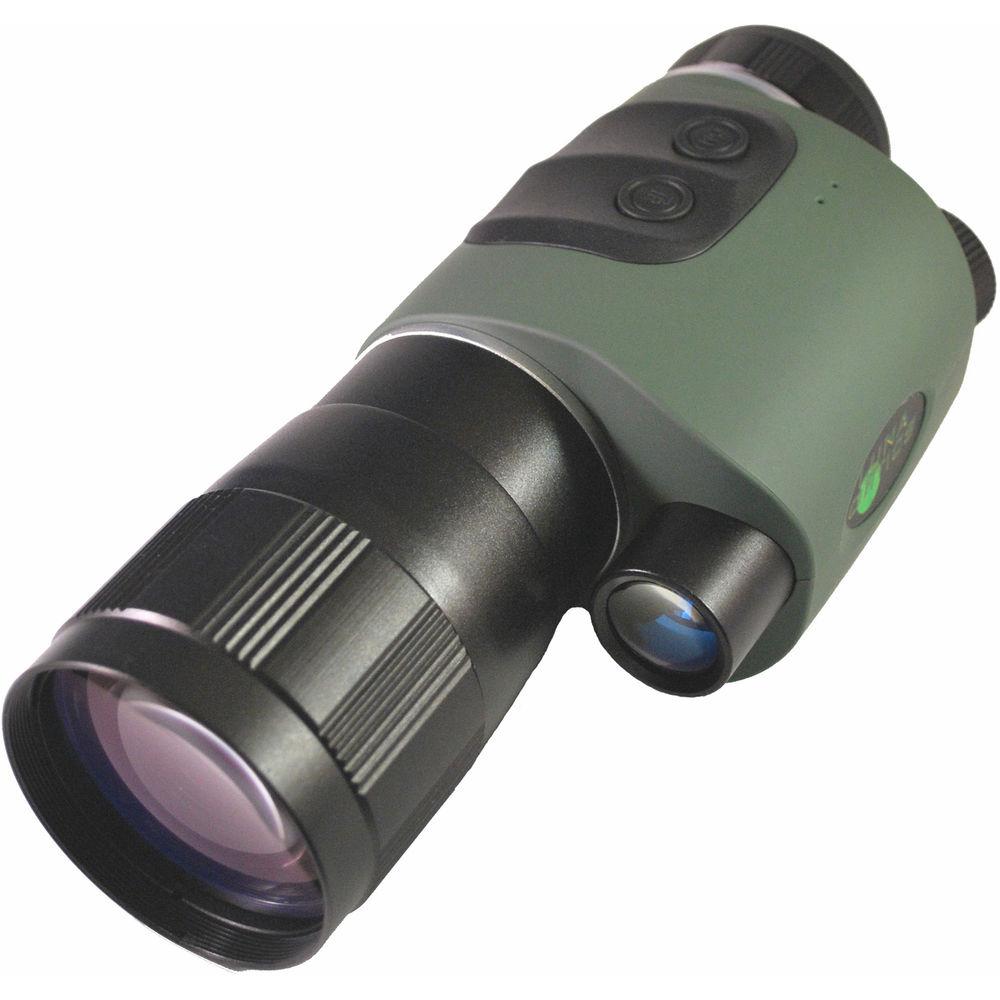

Product description Designed for outdoor enthusiasts, nature observers, and hunters, the Luna Optics' LN-NVM5-HR 5x50 1st Generation Night Vision Monocular can make a handy addition to your night gear and can be used as a handheld or tripod-mounted device for your activities. Featuring a 1st generation intensifier tube and five-element multi-coated optics, this device is designed to deliver crisp and vivid images while reducing distortions. To help achieve improved brightness in low-light conditions, the objective lens offers a wide 50mm diameter. With notable a 5.0x magnification, the optic also gives your eye a wide 15° field of view to look at, which helps to grasp more of a night scene.
The housing is ergonomic and has a rubberized covering that provides a secure and pleasing tactile contact. Being waterproof, it also protects your night monocular from damage due to adverse weather conditions or an accidental drop into water. For securing the NVD to a tripod or for attaching accessories like an external long-range IR illuminator, the body also has a 1/4"-20 screw socket. - IIT and IR Illuminator
-
- 1st generation tube
- Resolution of 32-34 lp/mm
- Built-in infrared illuminator
- Optical Performance
-
- 5.0x magnification
- Multi-coated lenses
- 50mm objective diameter
- Angular field of view of 15°
- Minimum focus of 4.9'
- Use and Handling
-
- Ergonomic, easy-to-reach mounted menu pad
- Power and infrared LED status indicators
- Dioptric adjustment: ±5
- Construction
-
- Ergonomic contoured housing
- Rubberized covering for a sure grip
- Built-in 1/4"-20 tripod socket
- Waterproof
UPC: 898995001535 In the Box Luna Optics LN-NVM5-HR 5x50 1st Generation Night Vision Monocular (Green-Black) - Wrist Strap
- CR-123 Battery
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-NVM5-HR 5x50 1st Generation Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-NVM5-HR Specs | Intensifier Tube | 1st generation | | Resolution | 32-34 lp/mm | | Sensitivity | 250 µA/lm | | Maximum Gain | 500 | | Magnification | 5x | | Linear Field of View | 15° | | Objective Lens Diameter | 50mm | | Lens System | Not provided by manufacturer | | Minimum Focus Distance | 4.9' / 1.5 m | | Dioptric Correction | ±5 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR-123 lithium battery / 75 hours without IR, 10 hours with IR | | Weatherproofing | Waterproof | | Tripod Compatibility | 1 x 1/4"-20 socket | | Dimensions | 7.7 x 3.3 x 2.2" / 19.6 x 8.4 x 5.6 cm | | Weight | 24.0 oz / 680.0 g | | | | Package Weight | 1.81 lb | | Box Dimensions (LxWxH) | 9.9 x 4.4 x 4.15" |
