User Manual for Luna Optics LN-PBG1M 1x Generation 1 NV Binocular and Headgear Kit Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-PBG1M 1x Generation 1
- Product category: Night Vision Bi-Oculars Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Night Vision Bi-Oculars
|
User manual for the Luna Optics LN-PBG1M 1x Generation 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|

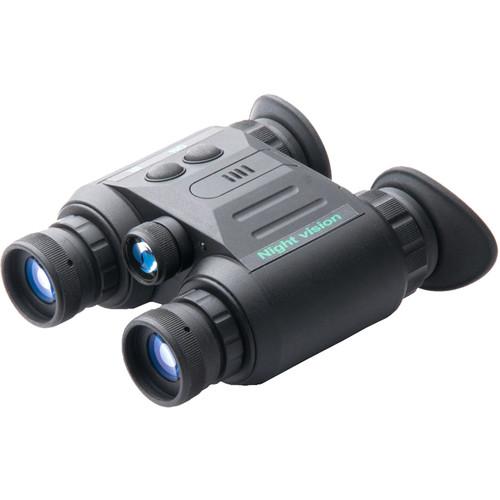

Product description Luna Optics' LN-PBG1M 1x Generation 1 NV Binocular and Headgear Kit is a versatile, compact, and sturdy device that can be used as a handheld device or mounted to a tripod. It features a 1st generation intensifier tube with an automatic gain control. To maximize image brightness in near-total darkness, the binocular carries a built-in infrared illuminator that casts extra light on your targets. Its 1x optical system consists of all-glass elements and has a wide 40° angular field of view.
The housing is made of a lightweight and impact-resistant aluminum and offers a weather-resistant performance. To prevent spillover of light from the eyepieces and to provide comfortable cushions for your eyes, it has wide winged rubber eyecups. The body is ergonomic and has knurled adjustment rings that are conveniently located on the top menu pad. The 1/4"-20 socket serves as a mounting adapter for tripods. - Intensifier Tube
-
- 1st generation tubes
- 32-38 lp/mm resolution
- LPS: Light Protection System prevents activation in bright light and damage to tubes
- 40mW infrared illuminator with a collimating lens
- Optical Performance
-
- 1x magnification
- Binocular optical design
- 26mm, f/1.1 all-glass lens systems
- Multi-coated optical elements
- 40° wide angular field of view
- Use and Handling
-
- Dioptric adjustment: ±4
- Interpupillary adjustment: 59 - 69 mm
- Construction Details
-
- Aluminum housing
- Lightweight and durable
- Rubberized for a sure grip
- Included headgear has a flip-up adapter
- Rubber winged eyecups
- Weather-resistant
UPC: 898995001856 In the Box Luna Optics LN-PBG1M 1x Generation 1 NV Binocular and Headgear Kit (Black) - Padded Carry Case
- Headgear with Flip-Up Adapter
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-PBG1M 1x Generation 1 NV Binocular and Headgear Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-PBG1M Specs | Intensifier Tube | 1st generation
Resolution: 32 - 38 lp/mm
Sensitivity: 280 - 300 μA/lm | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | 26mm, f/1.1 | | Dioptric Correction | +4 to -4 | | Interpupillary Adjustment | 59 - 69 mm | | Infrared Illuminator | LED
Wavelength: 805 nm
Power: 40 mW | | Battery / Runtime | 1 x CR-123 lithium battery / 120 hours without IR | | Weatherproofing | Weather-resistant | | Dimensions | 5.2 x 4.4 x 2.6" / 130.0 x 113.0 x 68.0 mm | | Weight | 17.0 oz / 480.0 g | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 10.0 x 7.8 x 5.2" |
