User Manual for Luna Optics LN-SPRS-3-MINI-WP 3x54 3rd Gen Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-SPRS-3-MINI-WP 3x54 3rd Gen
- Product category: Night Vision Riflescopes Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Night Vision Riflescopes
|
User manual for the Luna Optics LN-SPRS-3-MINI-WP 3x54 3rd Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|

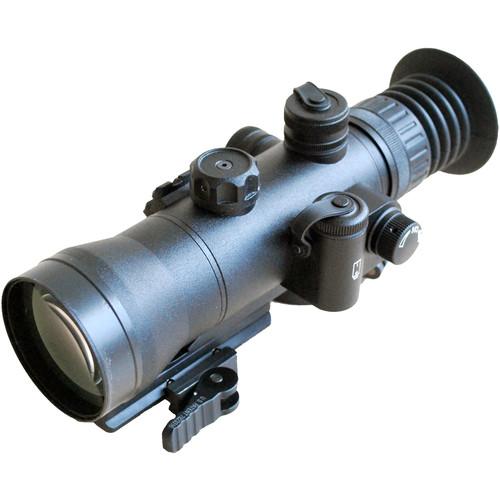

Product description Luna Optics' LN-SPRS-3-MINI-WP 3x54 3rd Gen Night Vision Riflescope can serve as an upgrade for your night vision inventory due to its high-resolution L3 3rd generation intensifier tube, compact form, easy-to-use controls, ruggedized battle-ready aluminum construction, and a single-lever quick release (QR) mount. Being a top performer in the realm of the night vision devices, the 3rd generation image intensifier tube provides unparalleled edge-to-edge clarity and delivers bright, crisp, and high-resolution (64-72 lp/mm) images. Unlike most IITs with green outputs, this image intensifier tube also features a White Phosphor technology that produces black and white images. Not lagging behind in performance, the optical system features a 54mm objective lens, 3x magnification, a 12° angular field of view, and a 32' minimum focus distance. To improve target visibility in complete darkness, you can attach optional infrared illuminators on short rail located on the right side. For faster and precise targeting, this night vision riflescope also offers a red Mil-Dot style reticle with adjustable brightness.
To match the unforgiving conditions of the battlefields, the aluminum housing is waterproof and impact-resistant. For added comfort and slip-free operation, its knobs have a textured knurling. To compensate for winds and ballistics, the scope also has oversized windage and elevation adjustment turrets with 1/3 MOA click values. Another highlight and improvement in tactical performance is a single-lever quick release QD Auto Lock mount for Picatinny/Weaver style rails. - Image Intensifier
-
- 3rd generation
- 64 - 72 lp/mm resolution
- Automatic gain control
- Filmless white phosphor generates black and white images
- Optical Performance
-
- 80mm, f/1.5 lens system
- 3x optical magnification
- 54mm objective lens diameter
- 12° angular field of view
- Minimum focus: 32'
- Reticle
-
- Red Mil-Dot pattern
- Adjustable brightness
- Use and Handling
-
- 1/3 MOA impact point correction
- Windage and elevation adjustment
- Construction
-
- Aluminum housing
- Knurled adjusters
- QD Auto Lock quick release Picatinny/Weaver mount
- Rubber wide eyecup
- Shock-resistant
- Waterproof
UPC: 898995001870 In the Box Luna Optics LN-SPRS-3-MINI-WP 3x54 3rd Gen Night Vision Riflescope (Filmless White Phosphor, Red Mil-Dot Reticle, Matte Black) - CR-123 Batteries
- Flip-Up Lens Cover
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-SPRS-3-MINI-WP 3x54 3rd Gen Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-SPRS-3-MINI-WP Specs | Thermal Sensor | 3rd generation
64-72 lp/mm resolution
2000 µA/lm sensitivity
26 - 30 SNR
1700 FOM | | Reticle | Mil-Dot reticle | | Magnification | 4x | | Field of View | 12° | | Focusing Range | 32' (10 m) to infinity | | Windage/Elevation Adjustment | Yes | | Battery / Runtime | 1x CR123 lithium battery / 30 hours | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Waterproofing | Waterproof | | Impact Resistance | Shock-resistant | | Dimensions | 9.2 x 3.7 x 3.6" / 23.8 x 9.6 x 9.1 cm | | Weight | 27.5 oz / 780.0 g |
