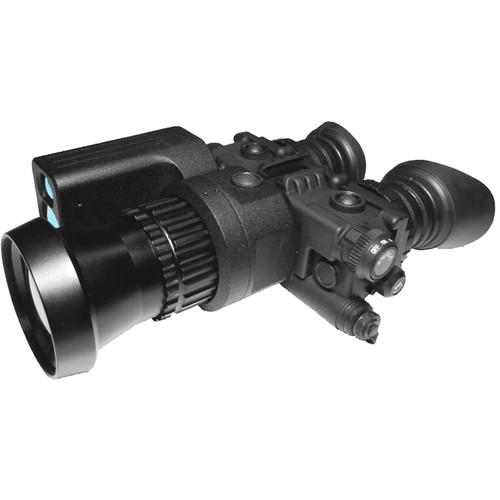

User Manual for Luna Optics LN-TB35-LRF 3.5-14x50 Thermal Biocular with Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-TB35-LRF 3.5-14x50 Thermal Biocular
- Product category: Thermal Imagers Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Thermal Imagers
|
User manual for the Luna Optics LN-TB35-LRF 3.5-14x50 Thermal Biocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|
Product description Luna Optics' LN-TB35-LRF 3.5-14x50 Thermal Biocular with Laser Rangefinder allows you to see thermal imagery and accurately measure range during the day or at night. It enables you to observe thermal images from humans, game, livestock, and inanimate hot or warm objects like running engines, exhaust fumes, and hot wires. It can help you conduct tactical, surveillance, or search and rescue missions by letting you see through smoke, fog, or dust. At the core of this device is a 384 x 288 uncooled microbolometer, which processes thermal images at a 50 Hz refresh rate. After processing, video data is delivered for viewing via the built-in 800 x 600 color OLED display. You can also relay it (in PAL or NTSC formats) to an external display or a recording device. The infrared optical system features a 50mm, f/1.0 lens with a 3.5x optical magnification and up to 4x digital zoom, allowing you to see your targets at up to 14x combined magnification. Another highlight is a user-friendly control pad for operating the device and switching between image processing function and palettes such as white hot, black hot, and nine other color palettes. To add versatility, the thermal unit also features a precision laser rangefinder with a maximum range of 656 yards.
For strength, durability, and water-resistance, the housing is made from cast aluminum alloy. To provide a sure grip, all adjustment rings are knurled. Depending on your application, you can use the imager as a handheld device or mount on a tripod by its 1/4"-20 socket. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Thermal Imager
-
- Uncooled microbolometer
- 384 x 288 resolution
- Manual gain sensor
- 8-14µm spectral response
- Pixel pitch: 17μm
- 50 Hz frame rate
- Shutter-free technology
- Optical Performance
-
- Biocular design allows viewing with both eyes
- 50mm objective diameter
- 50mm, f/1.0 lens system
- 3.5 optical magnification
- 2x, 4x digital zoom
- 25 mm eye relief
- ±4 diopter adjustment
- 6.2 x 4.6° angular field of view
- Central focusing
- 11 to 656 yards laser rangefinder range
- Use and Handling
-
- In-view menu and status panel
- White hot, black hot, and 9 additional color palettes
- Manual display brightness
- External power port for 12V input
- Video out port
- Construction
-
- Cast aluminum housing
- Rubber winged eyecups
- Water-resistant, rated IPX5
- Cartridge with desiccant ensures internal dryness
- 1/4"-20 socket for mounting on tripods
UPC: 898995001924 In the Box Luna Optics LN-TB35-LRF 3.5-14x50 Thermal Biocular with Laser Rangefinder (50 Hz, Black) - Padded Carry Case
- Neck Strap
- 3 x CR-123A Batteries
- Objective Cover
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-TB35-LRF 3.5-14x50 Thermal Biocular with Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-TB35-LRF Specs | Array Configuration | 384 x 288 | | Pitch | 17 µm | | Frame Rate | 50 Hz | | Spectral Response | 8 - 14 µm | | Magnification | 3.5x optical
2x, 4x digital zoom | | Field of View | 6.2 x 4.6° | | Lens System | 50mm, f/1.0 | | Minimum Focus Distance | 8.2" / 2.5 m | | Eye Relief | 25 mm | | Diopter Adjustment | +4 to -4 | | Measurement Range | 11 - 656.2 yd / 10 - 600 m | | Displays | 800 x 600 Color OLED | | Video Output | NTSC/Pal | | Power Source | 3 x CR-123A batteries
12 V external power supply | | Run Time | 6 hours on batteries | | Weatherproofing | Water-resistant, IPX5 | | Temperature Ranges | -4 to 122 / -20 to 50 | | Dimensions | 6.5 x 5.5 x 2.6" / 16.5 x 13.9 x 6.6 cm | | Weight | 3.1 lb / 1.4 kg |
