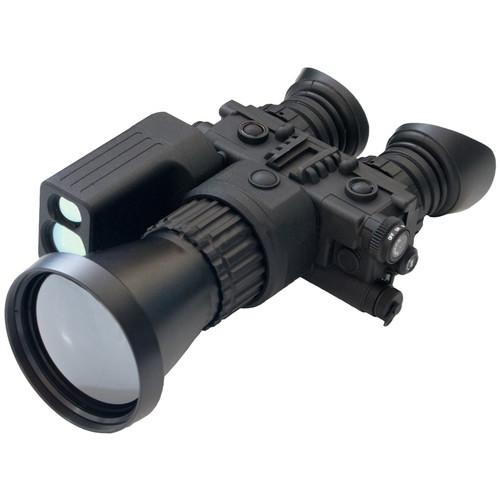

User Manual for Luna Optics LN-TB50-LRF 5-20x75 Thermal Biocular with Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Luna Optics LN-TB50-LRF 5-20x75 Thermal Biocular
- Product category: Thermal Imagers Luna Optics
- Brand: Luna Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luna Optics Thermal Imagers
|
User manual for the Luna Optics LN-TB50-LRF 5-20x75 Thermal Biocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luna Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luna Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luna Optics product will considerably shorten its lifespan!
|
Product description Use Luna Optics LN-TB50-LRF 5-20x75 Thermal Biocular with Laser Rangefinder to follow your targets movements during the day or at night and through smoke, fog, or dust. Among many nightlights are a 384 x 288 uncooled microbolometer, which captures thermal imagery with a 50 Hz refresh rate, and a 800 x 600 color OLED display. The infrared optical system features a wide 75mm germanium lens with 5x optical magnification. Together with a 4x digital zoom, the biocular can produce images with total magnification of 20x. Another highlight is a user-friendly control pad for operating the device and switching between image processing function and palettes such as white hot, black hot, and nine other color palettes. To add versatility, the thermal unit also features a precision laser rangefinder with a maximum range of 656 yards.
For strength, durability, and waterproof performance, the housing is made from thermoplastic. To provide a sure grip, all adjustment rings are knurled. Depending on your application, you can use the imager as a handheld device or mount on a tripod by its 1/4"-20 socket. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Thermal Imager & Laser Ragefinder
-
- Uncooled microbolometer
- 384 x 288 resolution
- 8-14µm spectral response
- Pixel pitch: 17μm
- 50 Hz refresh rate
- 11 to 656 yards laser rangefinder range
- Optical Performance
-
- 75mm objective diameter
- 5x optical magnification
- 10' minimum focus
- 2x, 4x digital zoom
- 25 mm eye relief
- +4 to -4 diopter adjustment
- Display, Reticle, Video Performance
-
- 800 x 600 color OLED display
- In-view menu and status panel
- White hot and black hot palettes
- External power port
- Construction
-
- Thermoplastic body
- Cast aluminum lens housing
- Built-in laser rangefinder
- Knurled adjusters
- Rubber wide eyecup
- 1/4"-20 tripod socket
- Waterproof, rated IPX7
UPC: 898995001931 In the Box Luna Optics LN-TB50-LRF 5-20x75 Thermal Biocular with Laser Rangefinder (50 Hz, Matte Black) - 3 x CR-123 Batteries
- Desiccant Cartridge
- Neck Strap
- Padded Carry Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Luna Optics LN-TB50-LRF 5-20x75 Thermal Biocular with Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuna Optics LN-TB50-LRF Specs | Thermal Sensor | Uncooled bolometer
Resolution: 384 x 288
Pixel Pitch: 17 µm
Spectral Sensitivity: 8 - 14 µm
Frame Rate: 50 Hz
Manual Gain | | Display | 800 x 600 color OLED display
Adjustable brightness | | Magnification | 5x optical
2x, 4x digital zoom | | Field of View | 6.2 x 4.6° | | Diopter Adjustment | +4 to -4 | | Eye Relief | 25 mm | | Minimum Focus Distance | 10' / 3.0 m | | Battery / Runtime | 3 x CR-123A batteries / 6 hours runtime | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Laser Sensor | Laser Rangefinder
Class I, eye-safe laser
Wavelength: 905 nm
Range: 656 yd / 600 m
Accuracy: ±1.1 yd/ ±1.0 m | | Waterproofing | IPX7, waterproof | | Dimensions | 6.5 x 5.5 x 2.6" / 16.5 x 13.9 x 6.6 cm | | Weight | 49.4 oz / 1.4 kg |
