User Manual for Lupo Dayled 1000 Daylight LED Fresnel with DMX Click to enlarge the picture
Contents of the user manual for the Lupo Dayled 1000 Daylight LED Fresnel
- Product category: LED Lights Lupo
- Brand: Lupo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lupo LED Lights
 |
User manual for the Lupo Dayled 1000 Daylight LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lupo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lupo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lupo product will considerably shorten its lifespan!
|

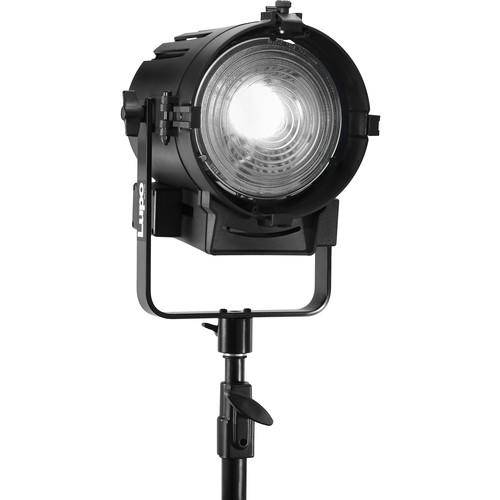

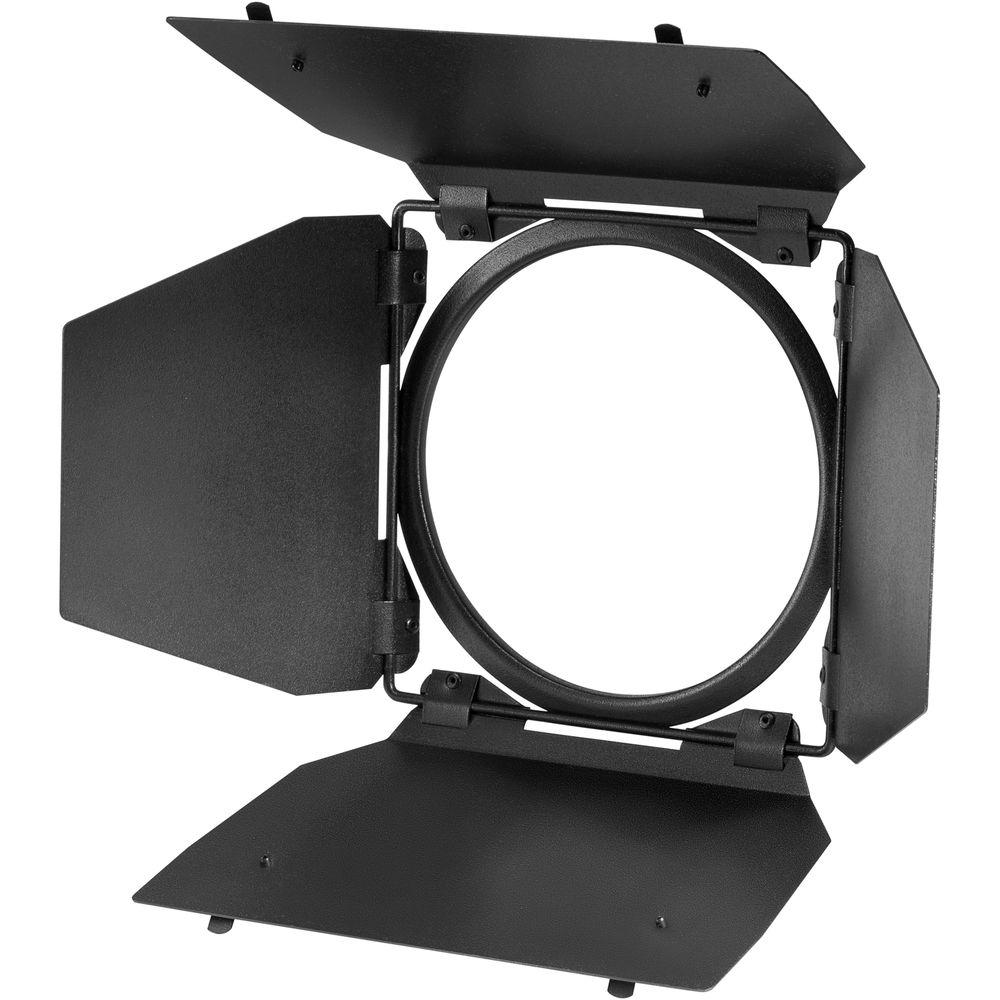

Product description Whether you're flooding a silk or tightening the beam into a spot for long throw work, sometimes you just need the flexibility of a Fresnel. The Dayled 1000 Daylight LED Fresnel from Lupo has a 6.0" lens that can be focused from 15 - 55° spot-to-flood, and can be further controlled using the included 4-way barndoors for selective lighting. Every effort has been made to make the fixture strong but lightweight. The light has a carbon fiber reinforced techno polymer shell that provides high resistance to rigorous use while weighing 7.7 lb.These key features are backed by economy and power. The Dayled consumes just 110W and outputs the equivalent of a 1000W tungsten fixture, while it maintains a high CRI of 92 indicating an accurate rendition of color down to the subtlest hue. The Dayled is also fully dimmable from 0-100% without color shift. You can control light intensity locally on the fixture, or remotely via onboard DMX.Another important benefit is the light's power options. The Dayled is ready for worldwide use thanks to the inclusion of a multi-voltage AC adapter, but it can also run on an optional, dedicated battery for up to 1.5 hours when mains power is unavailable. - Fresnel Lens Offers Wide Coverage
- With its 15 - 55° degree focusing Fresnel, you can flood an area, fill a silk, or tighten the beam for sharp-shadow sunlight effects.
- High Output. Low Power Draw
- The Dayled 1000 draws just 110W while it outputs the tungsten equivalent of 1000W.
- Ideal for All Types of Photo and Video Work
- Lupo LED Fresnels are a wise solution for all types of photographic and video shooting. They are also ideal for use in TV studios of small and medium sizes.
- Dimmable

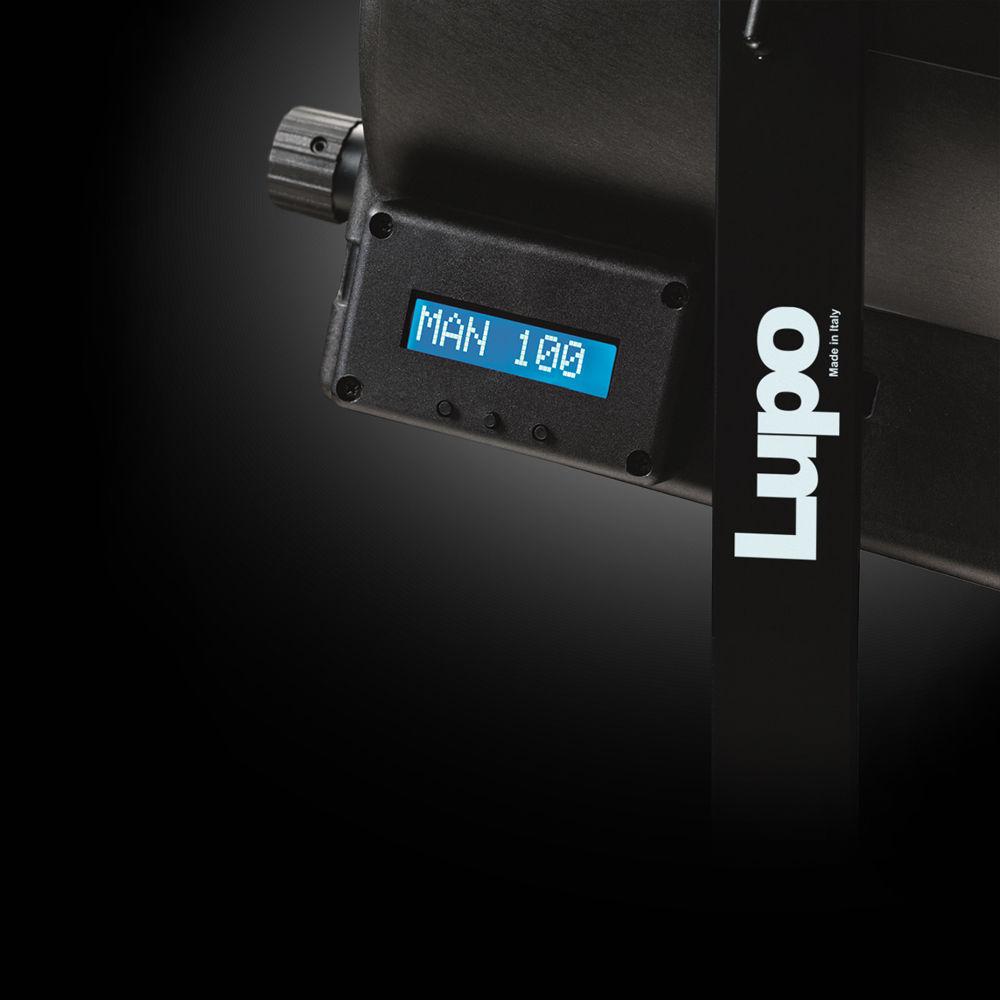

- Light intensity is variable from 0-100% without color shift. Your adjustments are displayed on the light's LED screen.
- Rugged but Lightweight Construction
- The carbon fiber reinforced techno polymer shell guarantees high resistance to any type of rigorous use.
- High Color Fidelity
- True Color Technology makes possible Color Rendering Index (CRI) of 92 indicating accurate color.
- Battery or AC Option
- The Dayled 1000 comes with a multi-voltage AC adapter for worldwide use but you can also run the light with a separately purchased battery.
UPC: 815206023650 In the Box Lupo Dayled 1000 Daylight LED Fresnel with DMX Yoke AC Adapter 4-Way Barndoors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lupo Dayled 1000 Daylight LED Fresnel with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLupo Dayled 1000 Specs | Light Source | 110 W COB LED | | Color Range | Daylight Balance: 5600K | | Color Accuracy | CRI: 92 | | Lens | 6.0" / 150 mm | | Beam Angle | 15 - 55° | | DMX | Yes, DMX In/Out: 5-pole XLR | | Operating Voltage | Mains Operation: 90-240 VAC, 50/60 Hz
Battery Operation: 14.8 V | | Battery Run Time | With Dedicated Battery: 1.5 hours | | Battery Connector | 4-Pole XLR | | Power Consumption | 110 W | | Dimming | 0-100% | | Mount | Yoke with 5/8" / 16 mm receiver | | Dimensions | 8.0 x 10 x 9.0" / 210 x 260 x 230 mm | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 10.89 lb | | Box Dimensions (LxWxH) | 16.1 x 12.3 x 12.0" |
