User Manual for Lupo Superpanel Dual Color LED Panel Click to enlarge the picture
Contents of the user manual for the Lupo Superpanel Dual Color LED Panel
- Product category: LED Lights Lupo
- Brand: Lupo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lupo LED Lights
 |
User manual for the Lupo Superpanel Dual Color LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lupo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lupo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lupo product will considerably shorten its lifespan!
|

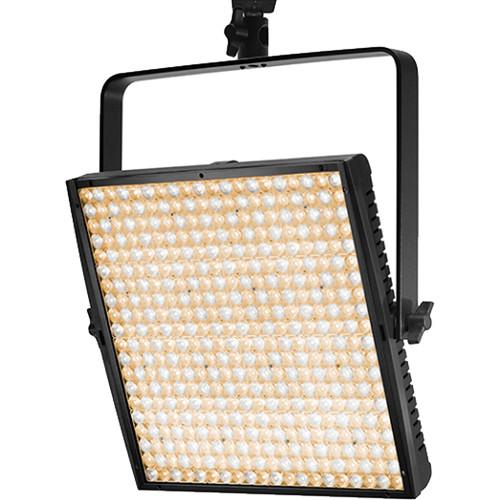

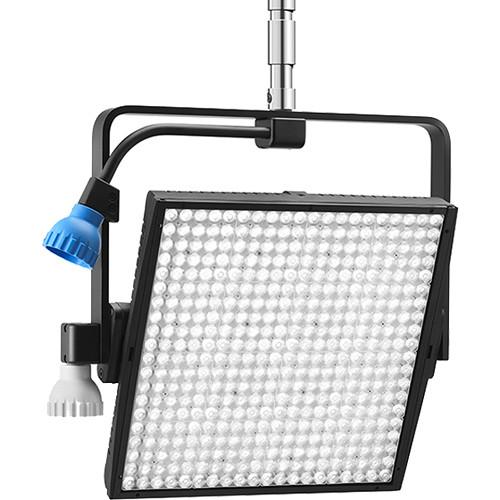

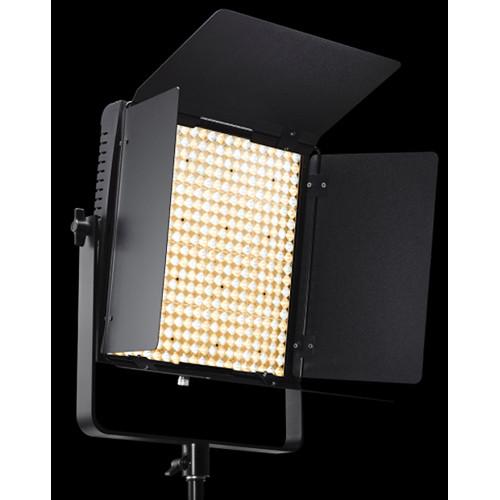

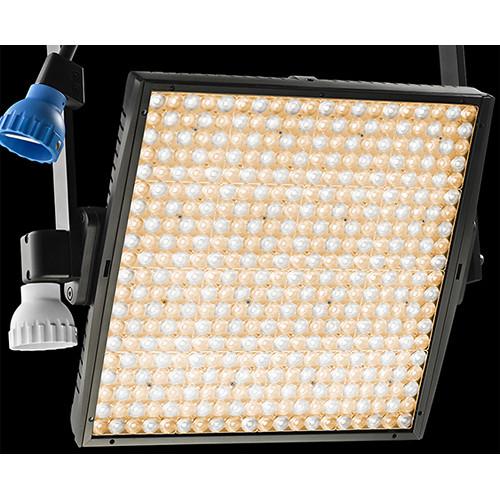

Product description A solution for all types of photographic and video shooting such as weddings, portraiture, fashion, interiors and still life, the Superpanel Dual Color LED Panel from Lupo has color temperature that's variable from 3200-5600K or anywhere in between to match other fixtures, ambient light conditions, or just for creative effect. Light intensity is variable too from 0-100% without color shift. Every effort has been made to combine strength with light weight. The Superpanel has a carbon fiber reinforced techno polymer shell that provides high resistance to rigorous use while keeping its weight down to 5 lb. The 12.5 x 13 x 2.5" panel consumes just 110W and outputs the equivalent of a much higher rated tungsten fixture, while it maintains a high CRI rating of 95 indicating an accurate rendition of color down to the subtlest hue. Under normal working conditions the Superpanel's fan is barely perceptible but it can simply be turned off for silent, passive heat dispersion and dead quiet operation in sound-sensitive environments. Another important benefit is the light's power options. The Superpanel Dual Color is ready for worldwide use, thanks to the inclusion of a multi-voltage AC adapter, but it can also run on an optional, dedicated battery for up to 1.7 hours when mains power is unavailable. - Variable Color Temperature and Dimmable

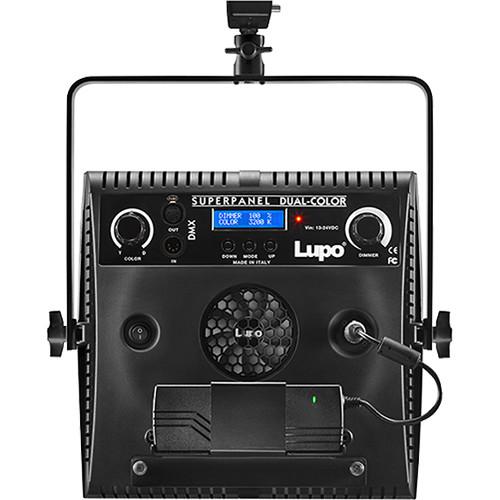

- The Superpanel's color balance can be adjusted from 3200-5600K or anywhere in between to match other fixtures, ambient light conditions, or just for creative effect. Light intensity is variable too from 0-100% without color shift. Your adjustments are displayed on the fixture's rear LED screen.
- Ideal for All Types of Photo and Video Work
- Lupo LED panels are a wise solution for all types of photographic and video shooting: weddings, portraiture, fashion, interiors and still life. They are also ideal for use in TV studios of small and medium sizes or in spaces with low ceilings, thanks to the panel's compact form factor.
- Rugged but Lightweight Construction
- The carbon fiber reinforced techno polymer shell guarantees high resistance to any type of intense use while weighing 5 lb.
- High Color Fidelity
- True Color Technology makes possible a Color Rendering Index (CRI) rating of 95 for all models of the Superpanel range.
- Battery or AC Option
- The Superpanel comes with a multi-voltage AC adapter for worldwide use but you can also run the light with a separately purchased battery.
- Silent Running
- Under normal working conditions the Superpanel's fan is barely perceptible but it can simply be turned off for silent, passive heat dispersion and dead quiet operation in sound-sensitive environments.
UPC: 815206023704 In the Box Lupo Superpanel Dual Color LED Panel Yoke AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lupo Superpanel Dual Color LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLupo Superpanel Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 0 to 100% | | Display | None | | Photometrics | 2043.8 fc / 22,000 lux at 3.28' / 1 m | | Fixture Dimensions | Flood: 12.5 x 13.0 x 2.5" / 31.8 x 33.0 x 6.3 cm | | Fixture Weight | 5 lb / 2.27 kg | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | DC Input Power | 14.8 to 34 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 110 W | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 20.3 x 17.8 x 5.5" |
