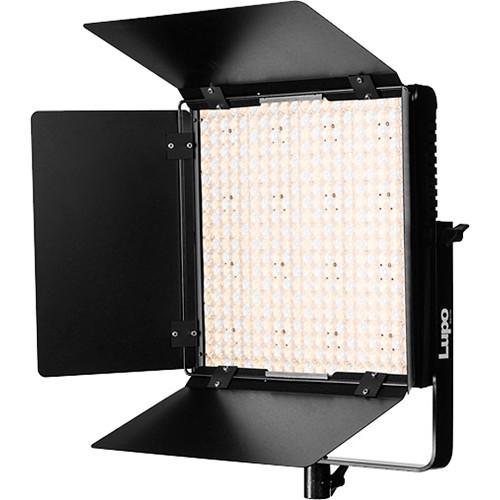

Product description A solution for all types of photographic and video shooting such as weddings, portraiture, fashion, interiors and still life, the Superpanel Tungsten LED Panel with DMX from Lupo has a carbon fiber reinforced techno polymer shell that provides high resistance to rigorous use while keeping its weight down to 5 lb. The 12.5 x 13 x 2.5" panel consumes just 110W and outputs the equivalent of a much higher rated tungsten fixture, while it maintains a high CRI rating of 95 indicating an accurate rendition of color down to the subtlest hue. The Superpanel is also fully dimmable from 0-100% without color shift. Light intensity adjustments can be made locally on the unit, but they can also be done remotely via onboard DMX and a console. During normal operation, Superpanel's quiet fan dissipates what little heat is generated, but it can also run dead quiet for fan-less, passive heat dispersion - an important asset on quiet sets or other sound-sensitive environments. Another important benefit is the light's power options. The Superpanel is ready for worldwide use, thanks to the inclusion of a multi-voltage AC adapter, but it can also run on an optional, dedicated battery for up to 1.7 hours when mains power is unavailable. - Ideal for All Types of Photo and Video Work
- Lupo LED panels are a wise solution for all types of photographic and video shooting: weddings, portraiture, fashion, interiors and still life. They are also ideal for use in TV studios of small and medium sizes or in spaces with low ceilings, thanks to the panel's compact form factor.
- Dimmable

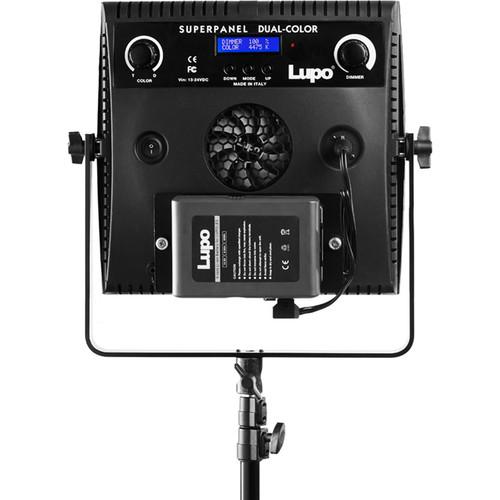

- Light intensity is variable from 0-100% without color shift. Your adjustments are displayed on the light's rear LED screen.
- Rugged but Lightweight Construction
- The carbon fiber reinforced techno polymer shell guarantees high resistance to any type of intense use while weighing 5 lb.
- High Color Fidelity
- True Color Technology makes possible Color Rendering Index (CRI) of 95 and a rating of 96 for all models of the Superpanel range.
- Battery or AC Option
- The Superpanel comes with a multi-voltage AC adapter for worldwide use but you can also run the light with a separately purchased battery.
- Fan or Fanless Option
- The Superpanel's fan is barely audible under normal operation but you can also turn it off for fanless passive heat dispersion, a valuable feature in sound sensitive environments.

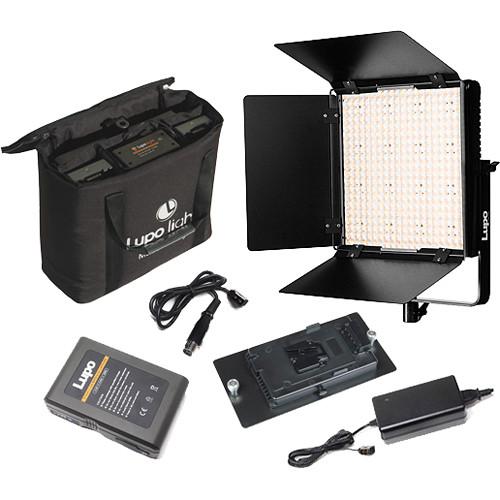

UPC: 815206023711 In the Box Lupo Superpanel Tungsten LED Panel with DMX Yoke AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lupo Superpanel Tungsten LED Panel with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLupo Superpanel Specs | | | Beam Angle | 120° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 95 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 0 to 100% | | Display | None | | Photometrics | 2044 fc / 21,993.4 lux at 3.28' / 1 m | | Fixture Dimensions | Flood: 12.5 x 13.0 x 2.5" / 31.8 x 33.0 x 6.3 cm | | Fixture Weight | 5.07 lb / 2.3 kg | | | | Battery Plate | None | | DMX Connector | 4-Pin XLR | | | | Yoke Mount | None | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 240 VAC, 50 / 60 Hz | | DC Input Power | 14 to 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 110 W |
