User Manual for Luxli Cello 10" RGBAW LED Light Click to enlarge the picture
Contents of the user manual for the Luxli Cello 10" RGBAW LED Light
- Product category: On Camera Lights Luxli
- Brand: Luxli
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Luxli On Camera Lights
 |
User manual for the Luxli Cello 10" RGBAW LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Luxli product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Luxli user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Luxli product will considerably shorten its lifespan!
|
Product description - Behind the Scenes: How We Lit Liam Singer's Test Tone with 5 Luxli Cellos
- Forget Gels. Create Color with the Luxli Cello
- Liam Singer's Test Tone: Lit Exclusively with Luxli Cellos (Music Video)
- How to Update the Firmware On Your Luxli Lights

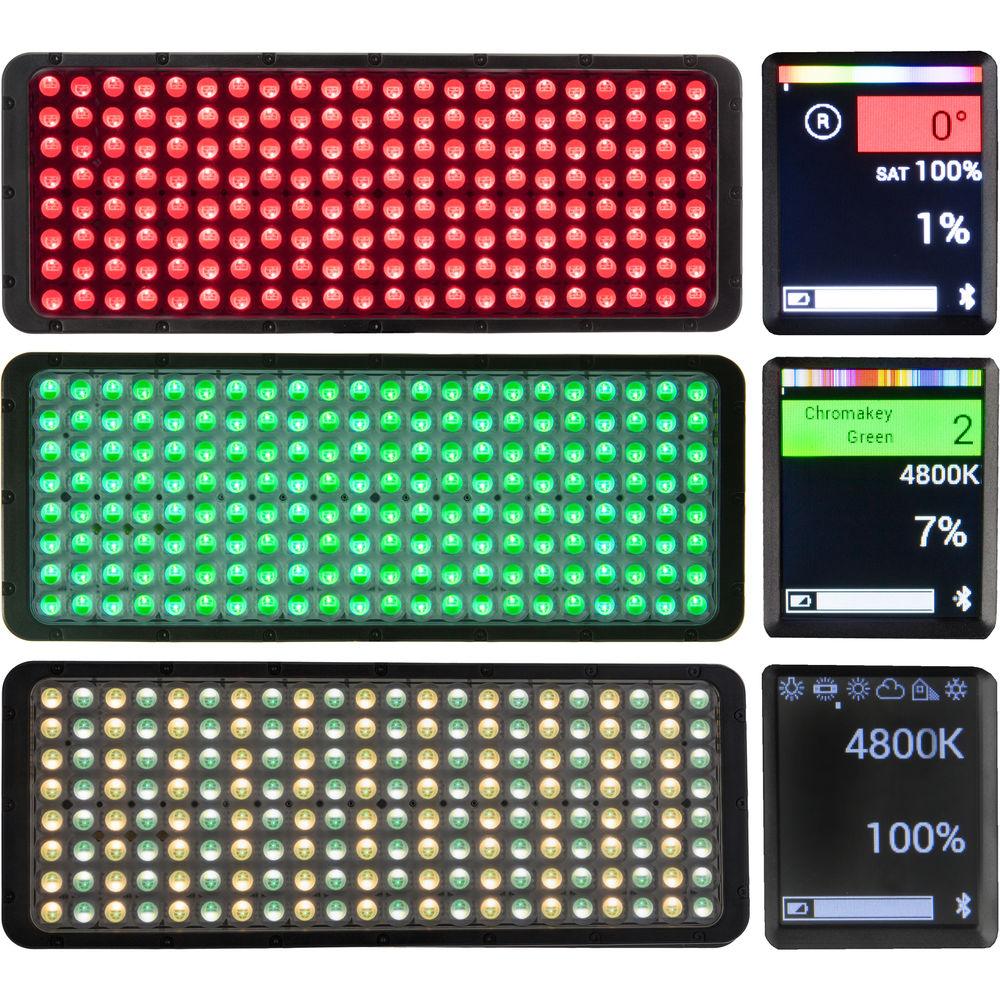

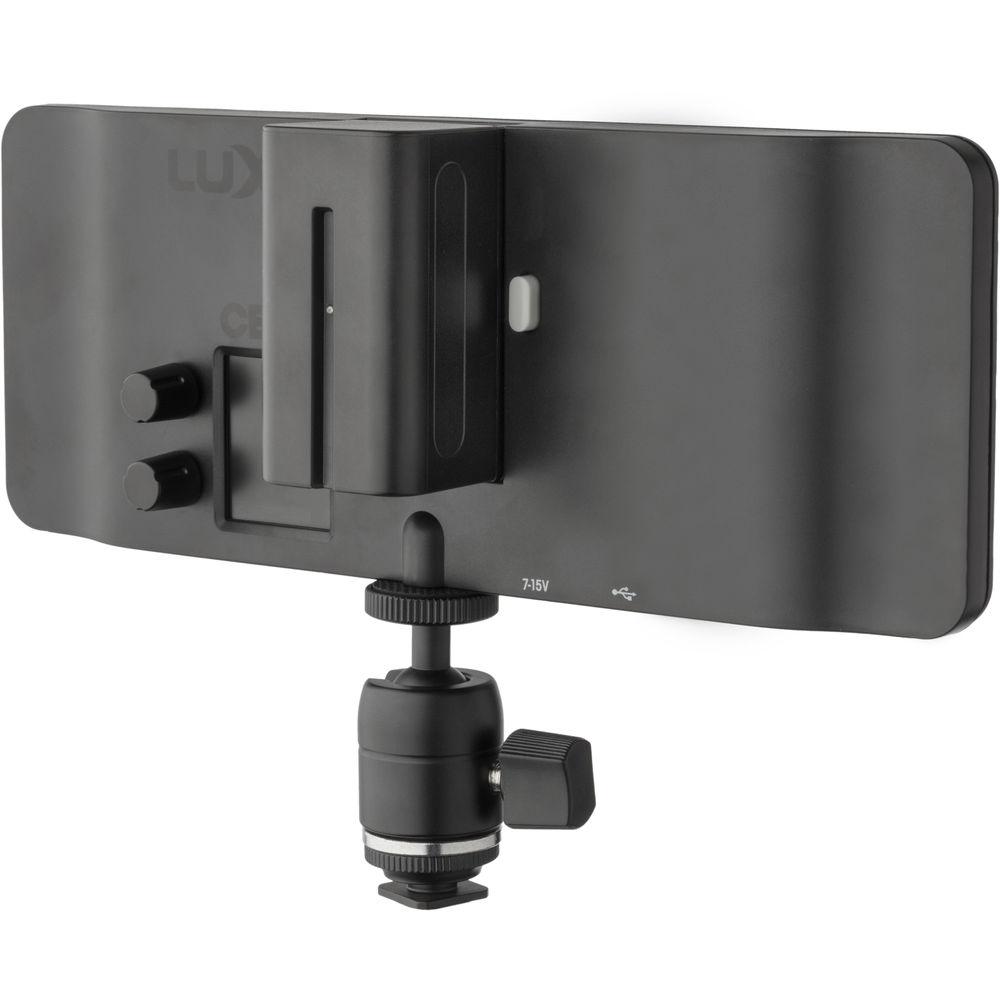

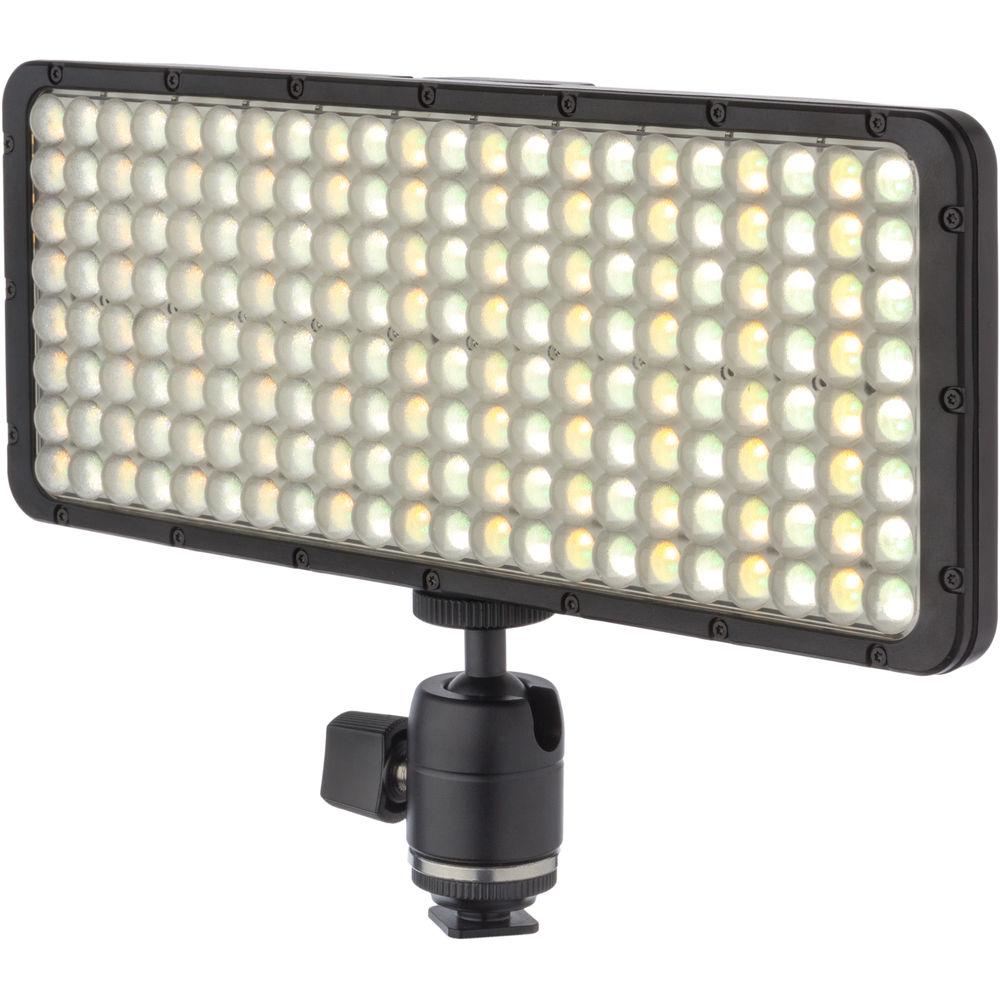

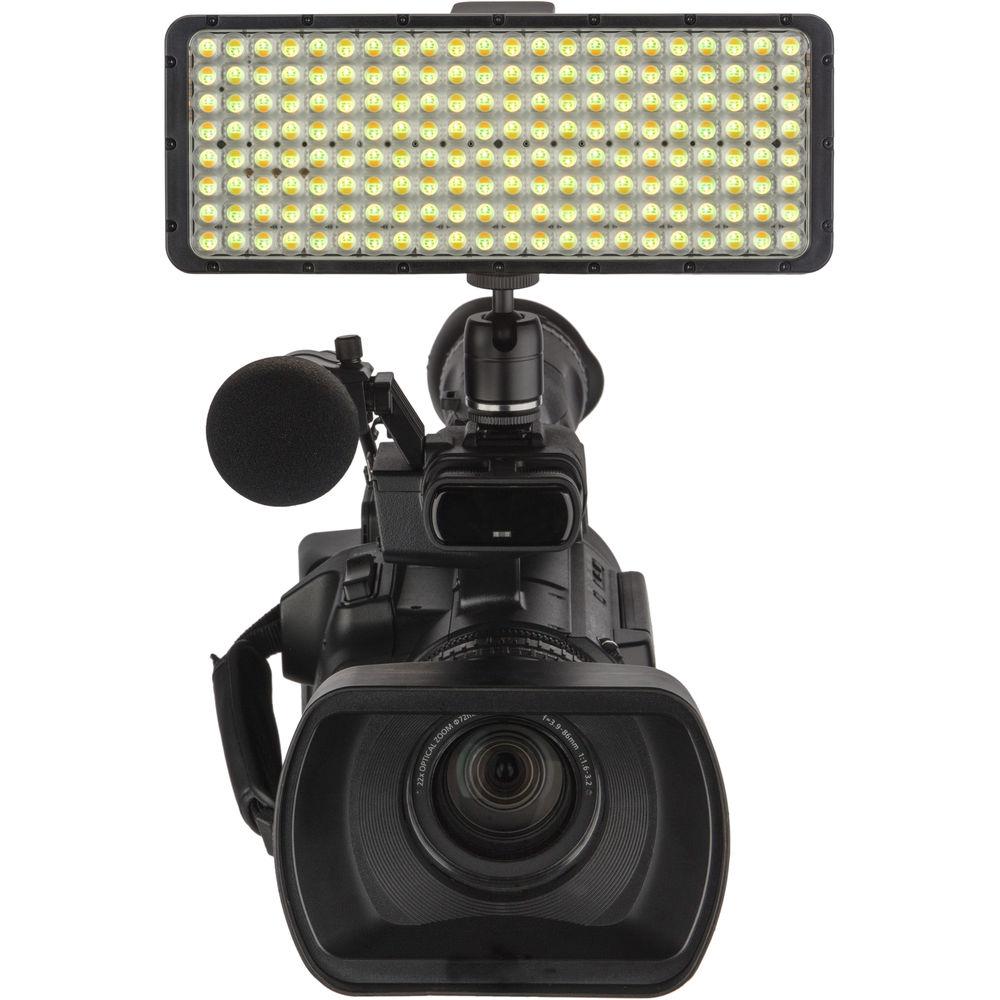

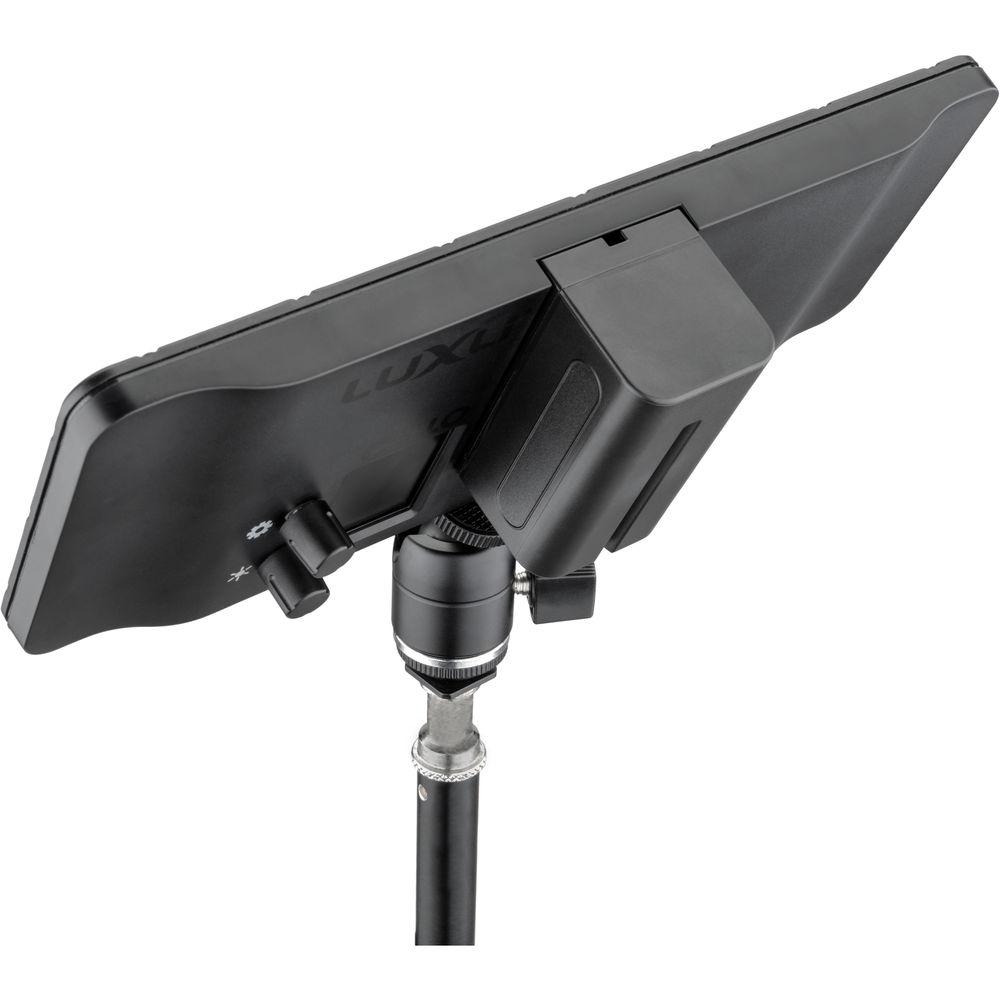

The Luxli Cello 10" RGBAW LED Light offers a wide array of functionality inside a compact, camera-mountable form factor. Each of the 176 individual LEDs inside the panel can reproduce red, green, blue, or white. These color options can be mixed using three modes—white (or color temperature) mode, RGB mode, or filter mode.While the intuitive LCD and knob controls are available on the back of the fixture, the Cello comes into its own when controlled via smartphone. Download the free conductor app for iOS or Android, and your phone can then pair with the Cello via Bluetooth for precise wireless control.Use the included ball head to secure the Cello to your camera's accessory shoe. While the fixture is compact enough to fit atop a camera or camcorder, it can also be mounted to light stands for creative, off-camera lighting scenarios. Operating Modes - RGB Color Mode
- Scroll through the RGB color wheel in 1° increments. Dial in nearly any color in the visible spectrum.
- CCT Mode
- The traditional correlated color temperature (CCT) mode allows you to accurately adjust your color temperature from 3000 to 10,000K in 50K increments. This lets you emulate any lighting condition, from the cool hues of bright sunlight to the warmth of a tungsten bulb.
- Gel Filter Mode
- The gel filter mode is one of the new and innovative modes introduced with the Cello. Set your white balance and then select between 150 colored gels. The Cello displays the color, taking your CCT temperature setting into account. It's as realistic as if you're putting a gel in front of the actual light.
Features - Accurate and Versatile RGBAW LED Panel
- The highly accurate and incredibly versatile RGBAW LED panel opens up a whole new range of creative possibilities. CCT (correlated color temperature) mode is perfect for setting traditional lighting temperatures from 3000 to 10,000K, and the expansive RGB mode is ideal for producing nearly every hue in the visible spectrum.
- Bicolor Phosphor LED
- The white LEDs in the array are comprised of two types of diodes. The composite of their color temperatures furnishes superb color accuracy throughout the white color spectrum.
- Intuitive On-Unit Interface with LCD Display
- The built-in LCD display offers a simple and intuitive interface that you'll pick up immediately. Easily adjust brightness and color, and switch between the RGB, gel filter, and CCT modes with the touch of a button.

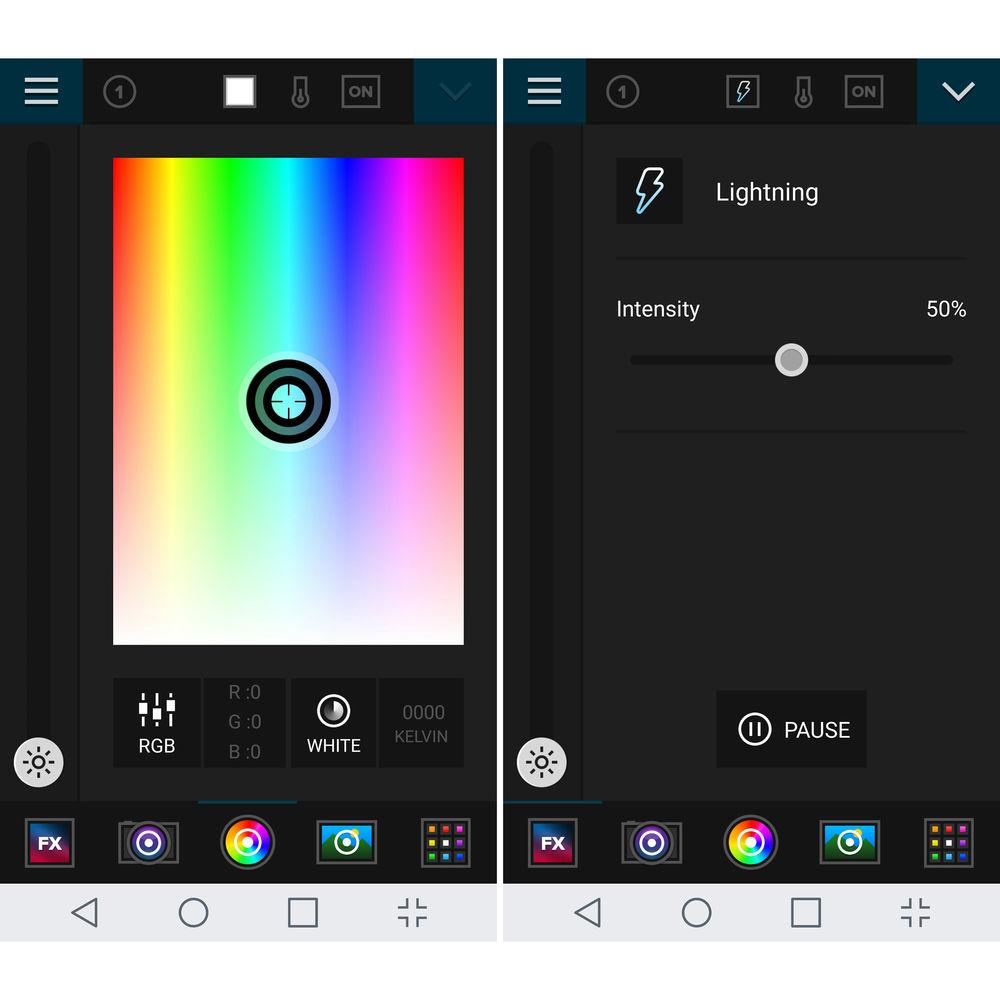

- Conductor App
- Install the Conductor app on your mobile device and explore incredible lighting effects. Illuminate your subject with any hue of light you can imagine. Create customized lighting animation effects. Use the eyedropper feature to match any color within an image or a video. Combine multiple Luxli Orchestra units and synchronize them to operate them at once.

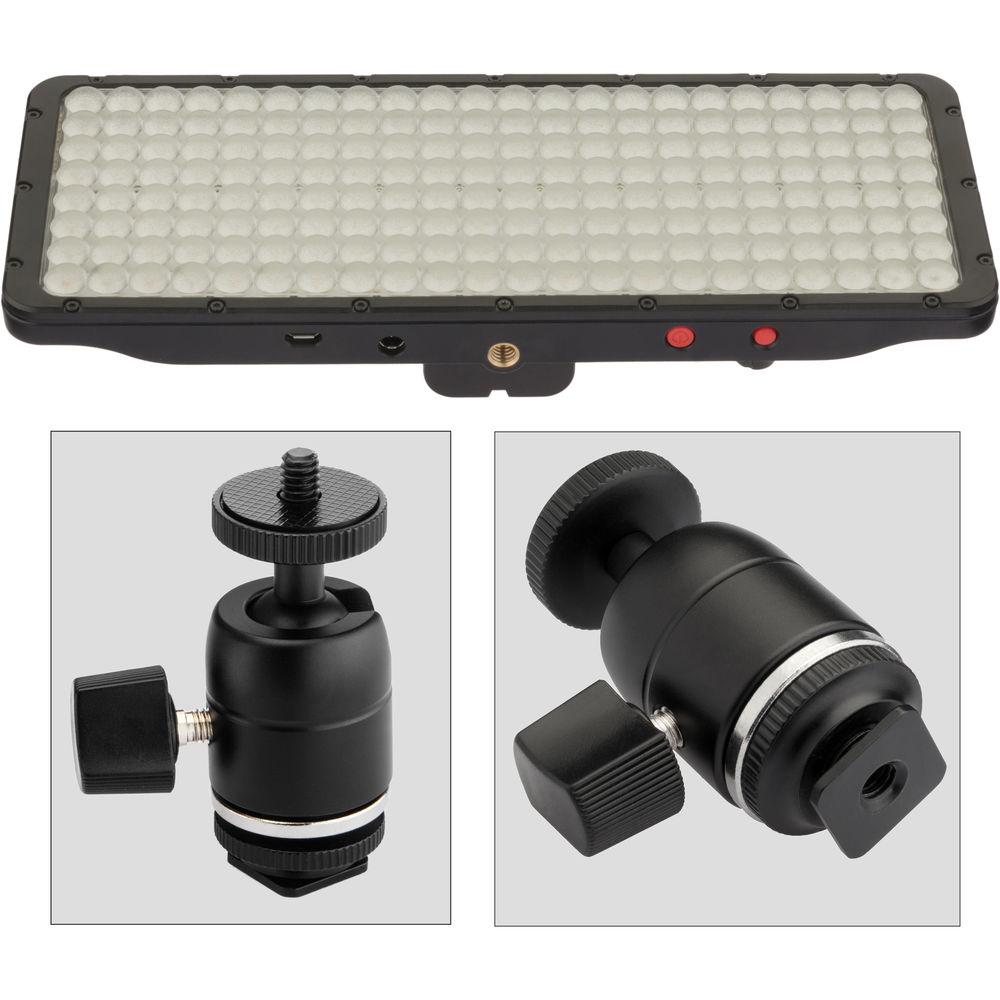

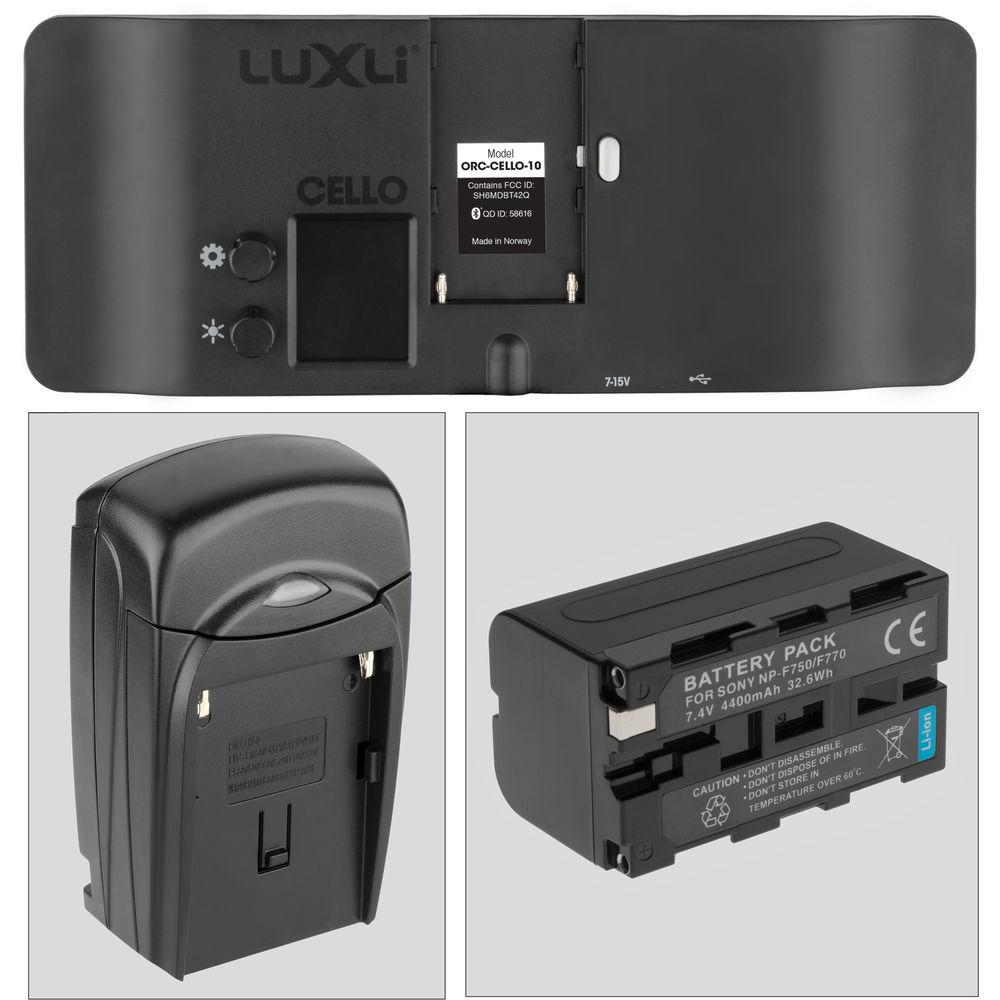

UPC: 847628003392 In the Box Luxli Cello 10" RGBAW LED Light Shoe-Mount Ball Head NP-F750 Battery Battery Charger Limited 1-Year Warranty Guides & Manuals tqyvqxacvesceczrtyddsqaqtsfrweczxqcy Table of Contents
|
Upload User Manual
Have you got an user manual for the Luxli Cello 10" RGBAW LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Luxli Cello 10" RGBAW LED Light can be downloaded in PDF format at the link stated below.
Technical parametersLuxli Cello Specs | | | Color Temperature | 3000 to 10,000K | | Color Accuracy Standard | CRI 95
TLCI 97 | | Lumens | 1500 | | Photometrics | 115.2 fc / 1239.6 lux at 3.29' / 1 m | | Dimming | Yes, 100 to 0% (Continuous) | | Display | LCD | | Number of LEDs | 176 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7 to 15 VDC at 2 A | | Max Power Consumption | 24 W | | Power Input Connector | Barrel | | Power Source | AC Adapter, External Battery | | | | Wireless Protocol | Bluetooth (Unspecified Type) | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 9.5 x 3.6 x 0.8" / 24.1 x 9.1 x 2 cm | | Weight | 13.2 oz / 374 g | | | | Package Weight | 2.125 lb | | Box Dimensions (LxWxH) | 12.1 x 9.8 x 2.35" |
