Product description - Construct Your LED Panel with Luxli's Constructor Lights

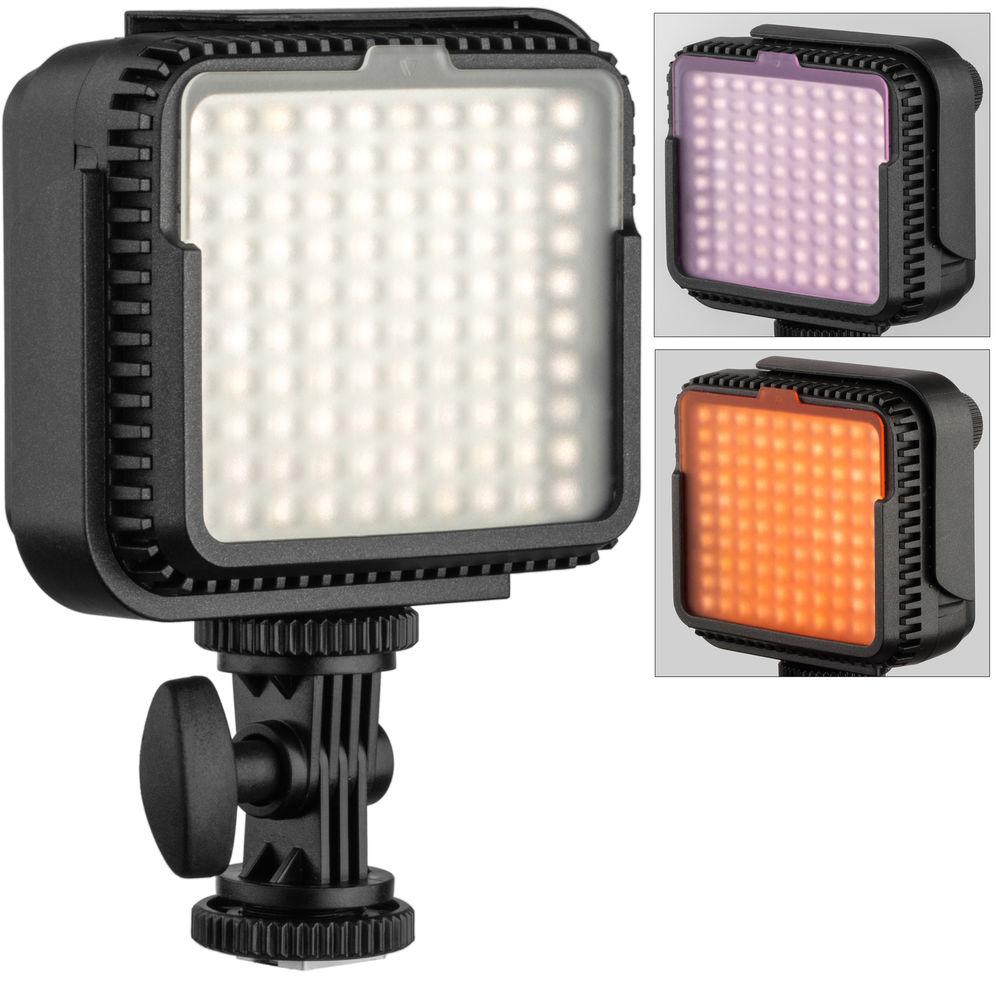

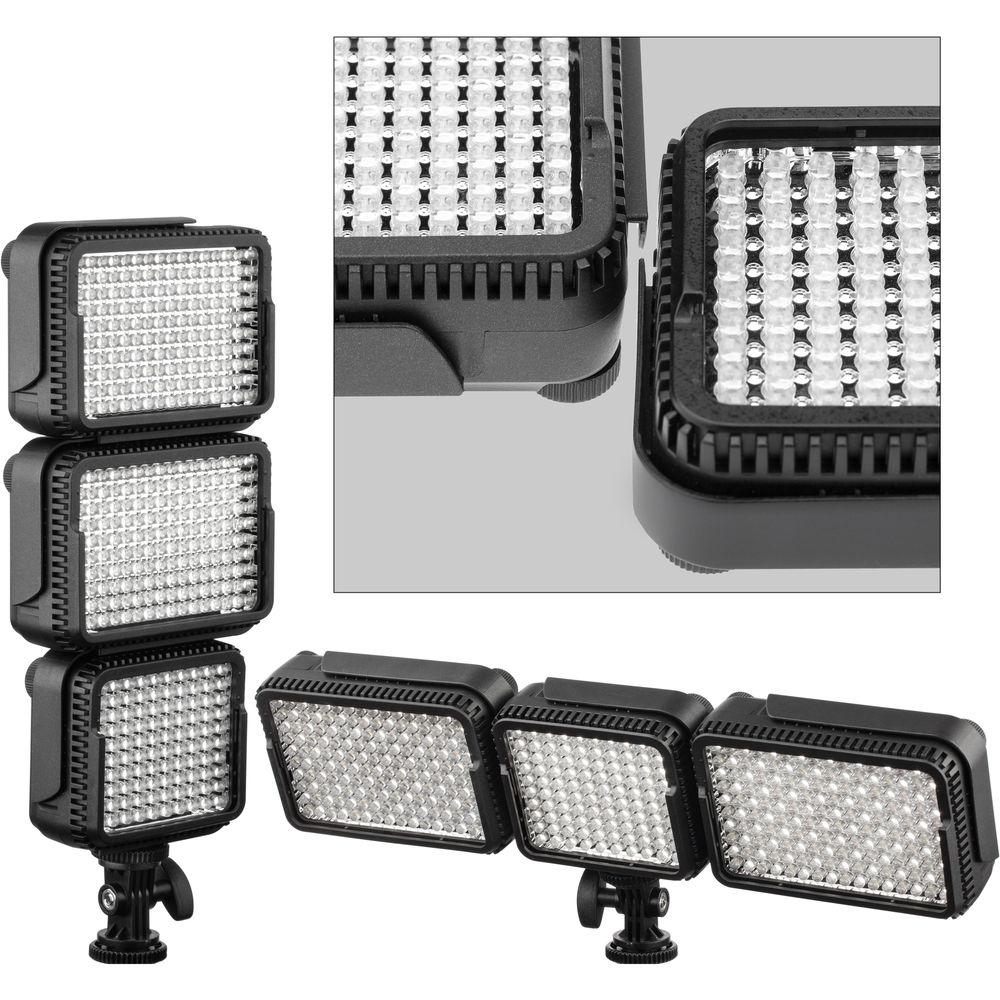

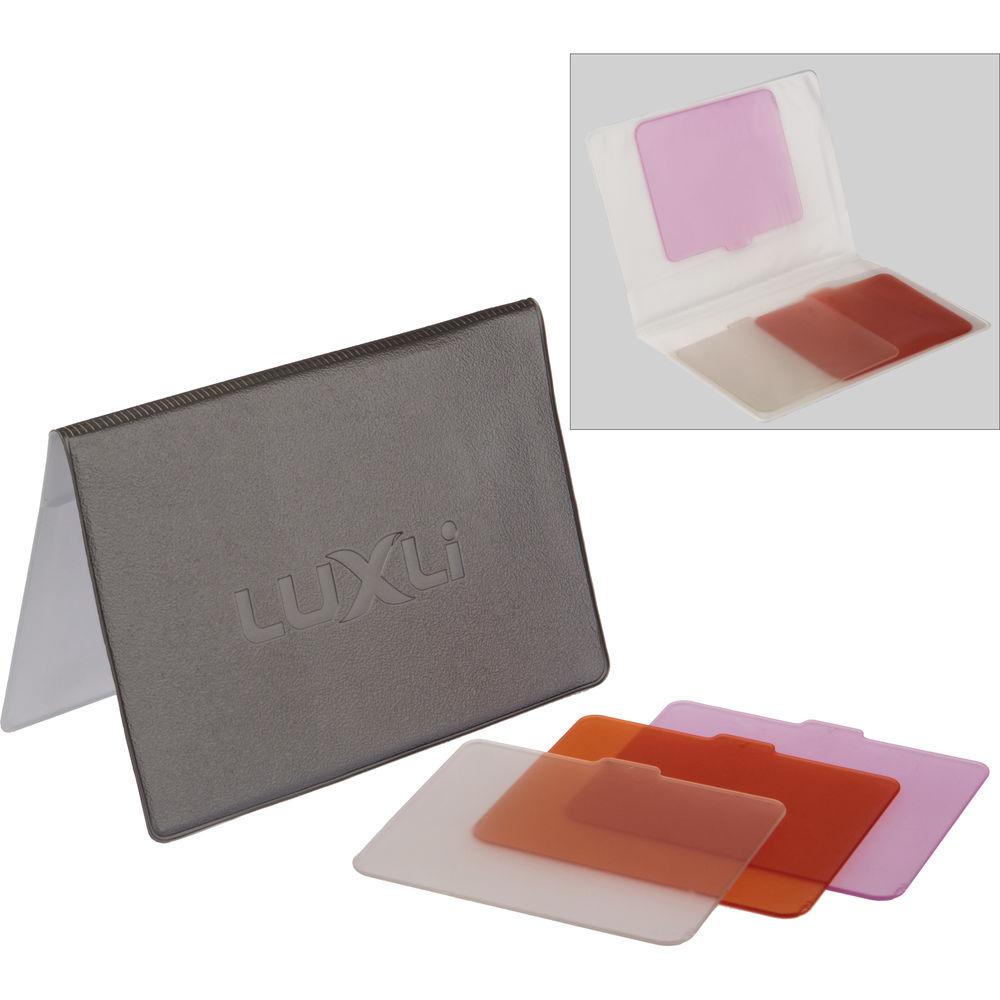

The CNS-20D Constructor Medium Block On-Camera Daylight Balanced LED Light from Luxli is a compact on-camera light suitable for video and photo applications. It features 100-daylight balanced dimmable LEDs. The interlocking wing clips of the unit allow you to mount optional Constructor series light to form a physically bigger array with greater light output. Included with the fixture are three filters: one a neutral diffusion, as well as a tungsten filter and a minus green filter for matching the light's output to tungsten or fluorescent light respectively.

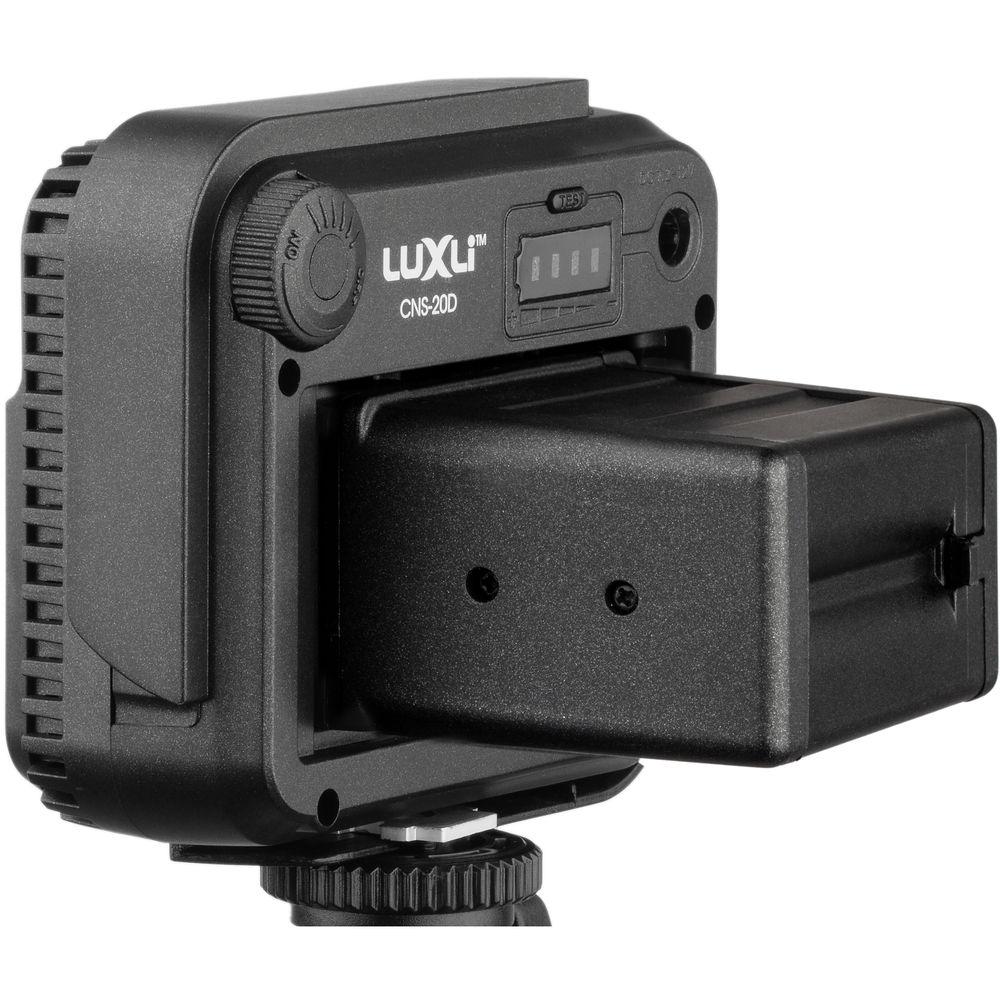

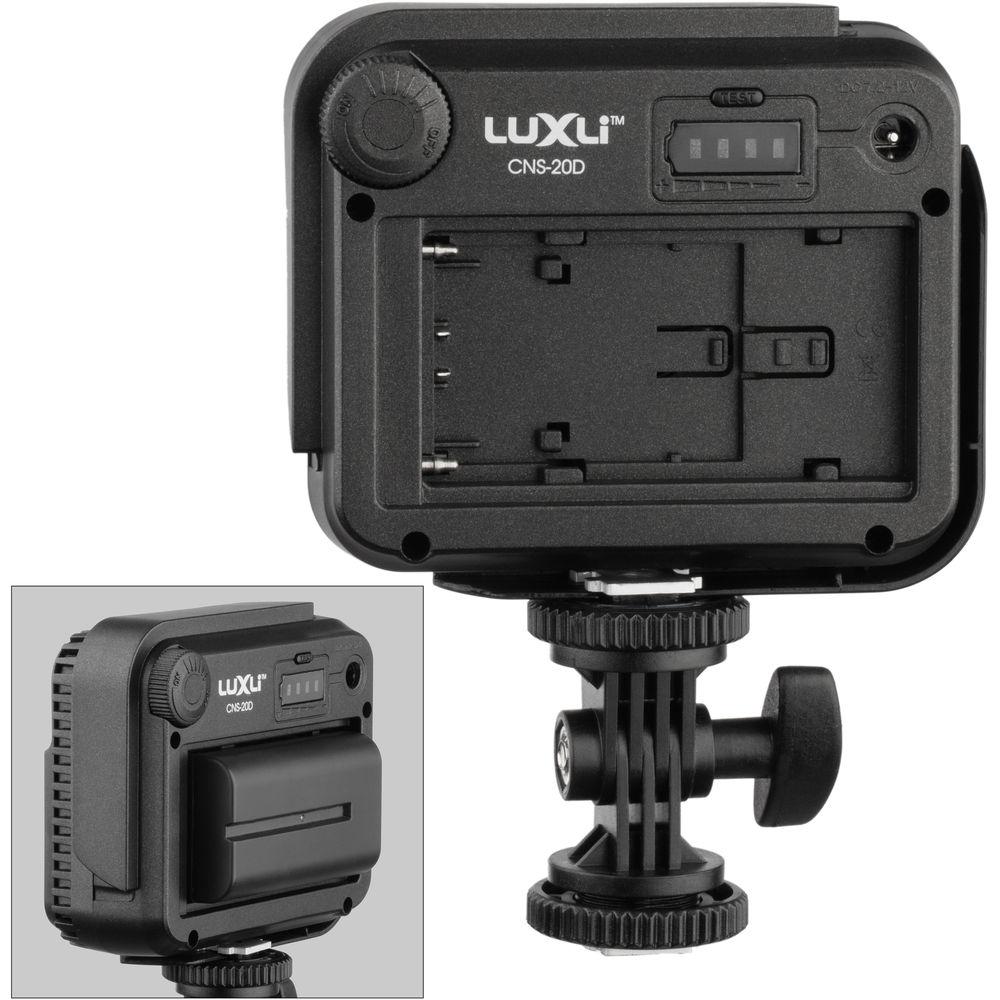

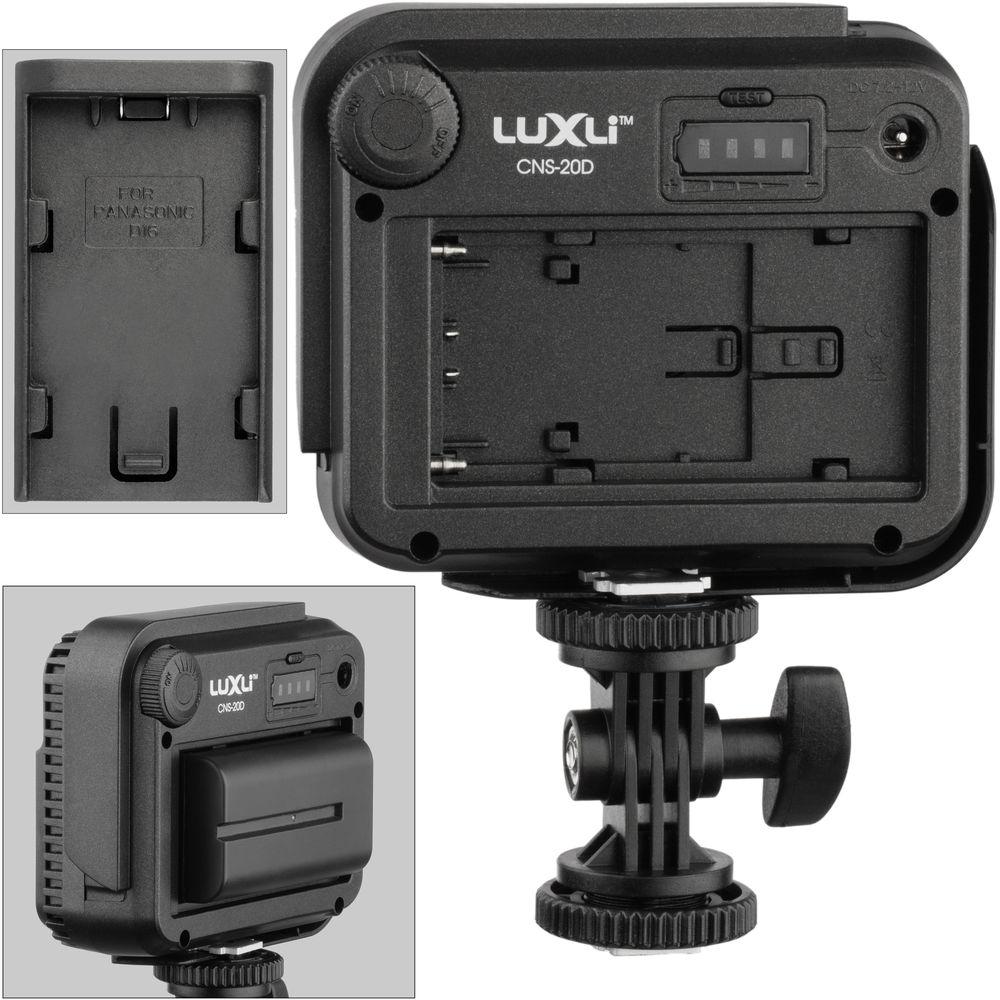

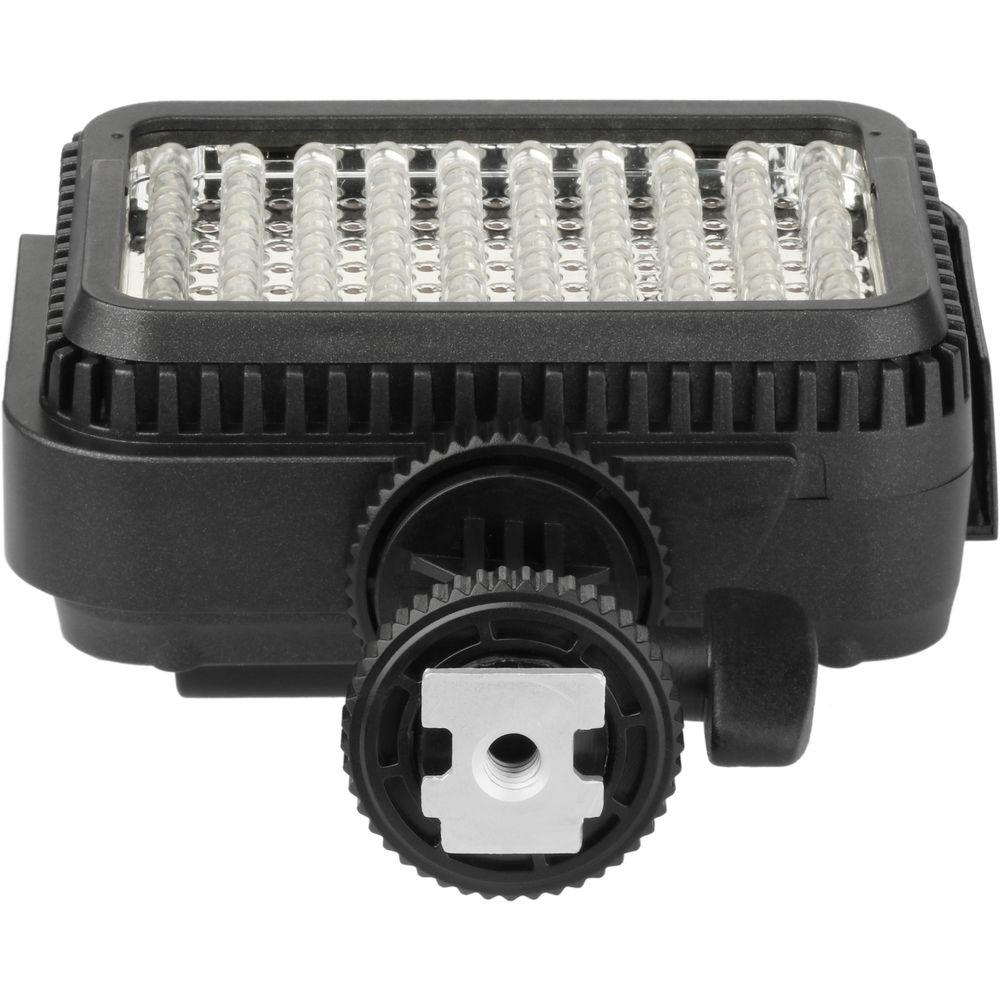

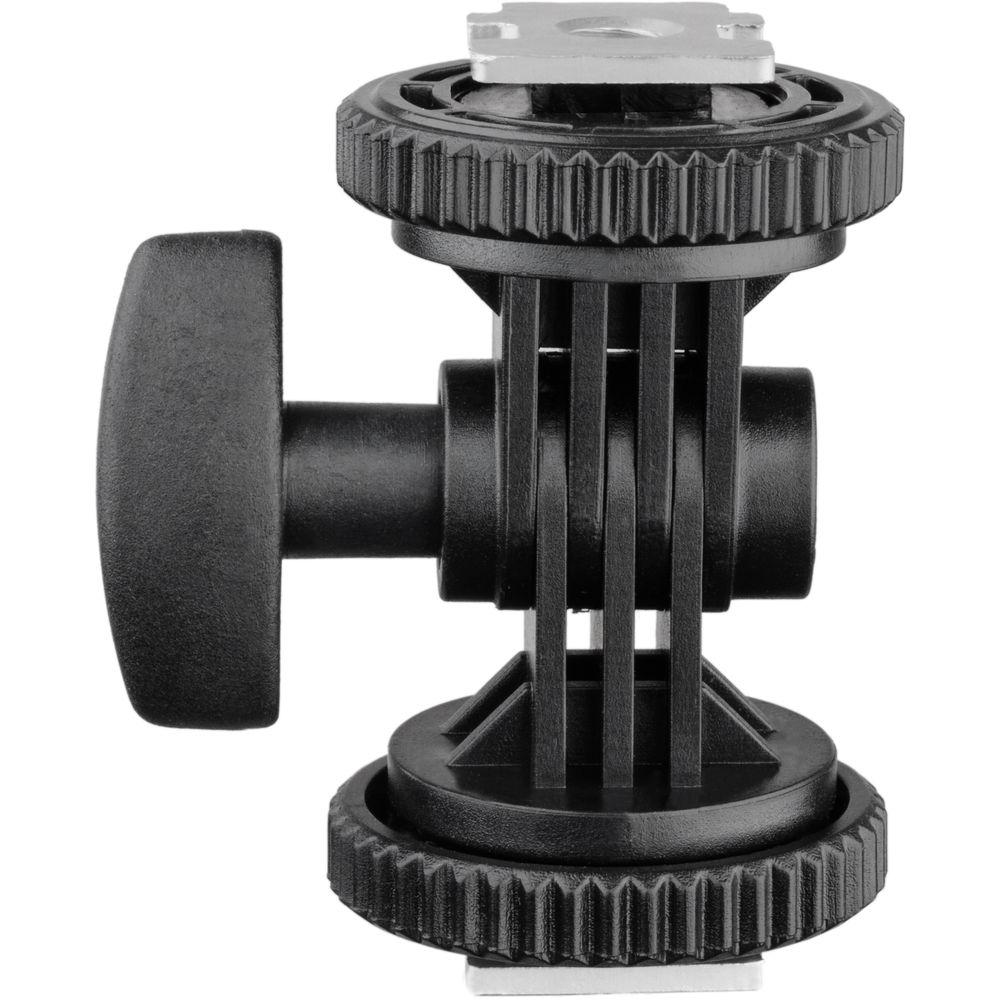

The CNS-20D incorporates a slot that accepts the included articulating shoe mount. A 1/4"-20 threaded mounting hole is incorporated into one side of the mount, enabling you to attach it to either a cold shoe on your camera or use an optional accessory arm with 1/4"-20 threaded stud for mounting. The fixture natively supports Sony L-series, M-series, and H-series batteries and includes adapters that allow you to power it from six-AA batteries or use a Panasonic D16/D28 battery for power. Built into the unit is a combination on/off dimming knob and a four-LED battery gauge. - Key Features
-
- 100 individual daylight LEDs
- Interlocking design for connecting multiple units together
- Four-LED battery gauge
- Supports L, M, and H-series batteries
- Shoe mount adapter
- On/Off/Dimming power knob
UPC: 847628595750 In the Box Luxli CNS-20D Constructor Medium Block On-Camera Daylight Balanced LED Light Articulating Shoe Mount D16/28 Battery Adapter AA Battery Adapter (NP-F-Type) Limited 1-Year Warranty Diffusion Filter User Manual PDF 361.8kbbwsdcwcawzzyzedxfxwrcbduwufafzrcexdxz Table of Contents
|
Upload User Manual
Have you got an user manual for the Luxli CNS-20D Constructor Medium Block On-Camera Daylight Balanced LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLuxli CNS-20D Specs | Light Source | 100-individual LEDs | | Color Temperature | 5600K | | Interlocking | Yes | | Mount Type | Removable shoe mount | | Battery | NativeSony L-Series
Sony M-Series
Sony H-Series
Adapters
Panasonic D16/D28
6 x AA | | Dimensions | 4.0 x 1.5 x 3.5" / 10.2 x 3.8 x 8.9 cm | | Weight | 5.7 oz / 163 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.378 x 6.063 x 2.992" |
