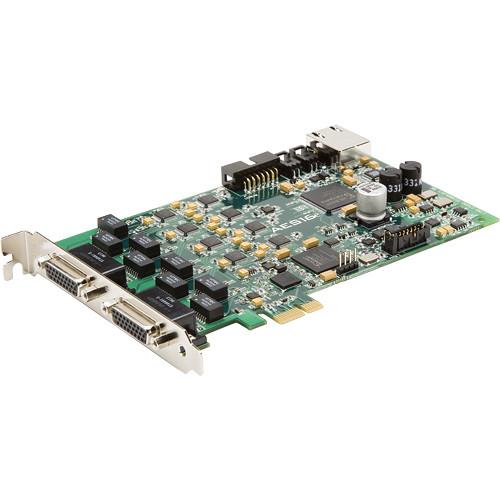

Product description The AES16e-50 from Lynx Studio Technology is a PCI express AES/EBU digital computer interface card, with 32 channels of AES50 inputs and outputs, and 16 channels of sample rate conversion. It's a powerful tool for integrating with digital consoles, multi-channel A/D and D/A converters, and digital audio workstations. It features an integrated 64 channel software mixer that provides zero-latency monitoring. Whether you're working with dual-wire 96 kHz or 192 kHz devices, or single-wire AES/EBU 192 kHz standards, the AES16e-50 will support them. For larger installations, the AES50/SuperMac port enables long runs on CAT-5 cable that are free of degradation, even when passing high channel counts. It also enables connected devices to be monitored and controlled through networked browsers. The on-board mixer software supplies you with a virtual patch-bay functionality, and enables you to save and recall an unlimited number of routing configurations and mixer scenes. Exclusive SynchroLock technology provides excellent tolerance to jitter when syncing to an external clock. Four cards can be installed on a single computer for a total of 64 inputs and outputs of low latency, high bandwidth audio. - x1 PCI Express interface works with Mac or Windows with PCI Express slots (x1 - x16)
- Eight stereo inputs and eight stereo outputs (16 mono I/O), AES/EBU format, 24-bit, single wire and dual wire, transformer coupled
- Extensive on-board digital mixer
- Sixteen channels of sample rate conversion, supports conversion ratios up to 16:1 with 144 dB dynamic range and -140dB THD+N
- All relevant settings, such as sample rate selection, sync source selection, channel routing, and buffer size are enabled, controlled and monitored from the host computer
- Multi-channel support of 5.1 and 7.1 surround playback formats
- Includes Lynx-exclusive SynchroLock sample clock generator for 3000:1 jitter rejection on external clock sources
- Supports ASIO and WDM for Windows and CoreAudio for Mac OS X
UPC: 690534000302 In the Box Lynx Studio Technology AES16e-50 - 32 Channels of AES50 I/O, 16 Channel Sample Rate Converter Installation CD 1 Year Warranty User Manual PDF 2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Studio Technology AES16e-50 - 32 Channels of AES50 I O, 16 Channel Sample Rate Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Studio Technology AES16e-50 Specs | Connections | Two bracket-mounted 26-pin high-density female D-sub connectors for AES/EBU
Board mounted RJ45 jack and accessory RJ45 bracket | | Digital Signal I/O | Eight inputs and eight outputs
24-bit AES/EBU format, transformer coupled Channels: 16 in/out in single-wire mode, 8 in/out in dual-wire mode AES50:
One AES50 port, 24-bit audio, 100 Mbit/second data rate on Cat5e or Cat6 cabling AES50 Channels:
48kHz / 44.1kHz: 48 inputs available to 32 record channels, 32 outputs
96kHz / 88.2kHz: 24 inputs, 24 outputs
192kHz / 176.4kHz: 12 inputs, 12 outputs | | Clock | Sources: Any AES/EBU digital input, internal word clock on header, on-board low-jitter crystal oscillator, AES50 port SynchroLock: Multi-stage, VCXO-based clock generation system with high jitter attenuation. Wide mode tracks off-frequency clocks, narrow mode generates ultra-low jitter output for standard frequencies. | | Sample Rates | All standard rates and variable rates up to 192 kHz in both single wire and dual-wire modes | | Sample Rate Conversion | Sixteen channels available with support for conversion ratios up to 16:1 | | Dynamic Range | 142 dB | | Dimensions | Standard half-size PCI Express card:
5 x 7.4 x 0.75" (127 x 187.96 x 19.05mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 11.1 x 7.5 x 2.7" |
