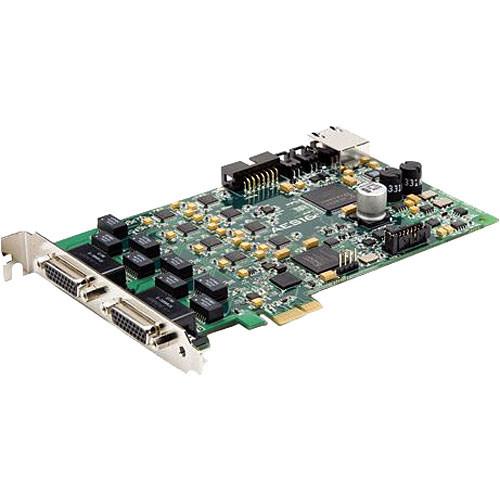

Product description The AES16e-SRC from Lynx Studio Technology is a PCI Express card that provides up to sixteen channels of AES/EBU input and output to and from a computer. The card helps integrate digital consoles, multi-channel A/D and D/A converters and hard disk recorders with computer-based workstations. The AES16e supports the single-wire, 192kHz standard and is compatible with existing dual-wire AES/EBU devices. Up to four cards can be installed into a single computer and with the included digital software mixer, the AES16 can turn a computer into a powerful digital router or patchbay with extensive flexibility and minimal cabling. Offering a solution for jitter problems in AES signals, the card incorporates SynchroLock technology that provides extreme jitter tolerance at all inputs. By coupling statistical analysis with low-noise clock generation techniques, SynchroLock is able to extract a very clean clock from AES signals affected by long cable lengths and other noise sources. The AES16e-SRC provides sixteen channels of sample rate conversion, which may be switched on for any or all of the eight digital inputs. Note: Requires two CBL-AES1604 cables (not included) for full sixteen channel operation - PCI Express (PCIe) card that provides up to transformer-coupled sixteen-channels of AES/EBU digital input and output
- 24-bit/192kHz single-wire and dual-wire modes
- SynchroLock provides extreme jitter tolerance at all inputs
- Sixteen channels of mastering-quality sample rate conversion. Support for conversion ratios up to 16:1 with 144dB dynamic range and -140dB THD+N
- Wordclock and multi-card synchronization
- Multiple dither algorithms per channel
- Features a zero-latency on-board digital mixer which allows flexible patch-bay style routing and digital mixing
- Multi-channel support of 5.1 and 7.1 surround playback formats
- Supports ASIO and WDM for Windows and CoreAudio for Mac OS X
- Low-latency drivers for Windows and Macintosh
UPC: 690534000296 In the Box Lynx Studio Technology AES16e-SRC - PCI Express AES/EBU Interface with Sample Rate Conversion Software Drivers for Mac and Windows One (1) Year Warranty User Manual PDF 2mbxcaaweyyrzcrvwbqxb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Studio Technology AES16e-SRC - PCI Express AES EBU Interface with Sample Rate Conversion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Studio Technology AES16e Specs | Converters | Not applicable | | Sample Rates | Up to 192kHz | | Analog In | No | | Analog Outputs | No | | Digital Input Connectors | 4 x XLR AES/EBU on each of two optional breakout cables
1 x BNC Clock It is important to note that the signal associated with each XLR and BNC connectors depend on which I/O port it is being used on | | Digital Output Connectors | 4 x XLR AES/EBU on each of two optional breakout cables
1 x BNC Clock It is important to note that the signal associated with each XLR and BNC connectors depend on which I/O port it is being used on | | MIDI In/Out | No | | Sync In/Out | AES/EBU
Wordclock | | Headphone Output | No | | THD + N | Not applicable | | Dynamic Range | Not applicable | | Frequency Response | Not applicable | | Minimum System Requirements | Mac
G5 or later including Intel
OS X 10.4 or higher
Available PCI Express slot
Video display with 1024 x 768 minimum resolution
PC
Windows compatible computer with PCI Express support
Windows XP/Vista/Windows 7, 32- or 64-bit
Available PCI Express slot
Video display with 1024 x 768 minimum resolution | | Specialties | Includes an LStream expansion port for increasing I/O capabilities. Connecting a Lynx LS-ADAT adds multi-channel ADAT lightpipe I/O and supports format conversion between AES/EBU and ADAT | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 11.1 x 7.5 x 2.8" |
